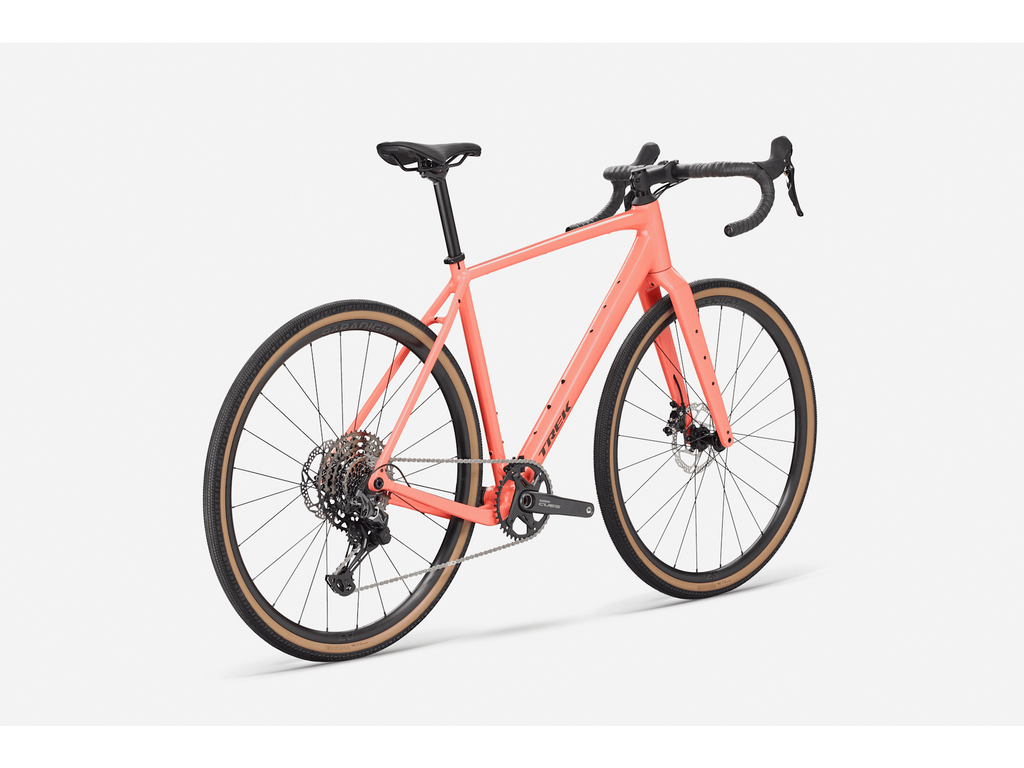

2027 Trek Checkpoint ALR 4 Gen 3
Living Coral / X-Small
Sale price
R 27,805.00
Regular price
R 33,500.00
Skip to product information
In stock
2027 Trek Checkpoint ALR 4 Gen 3
Sale price
R 27,805.00
Regular price
R 33,500.00
The 2027 Trek Checkpoint ALR 4 Gen 3 is built for mixed-surface rides that connect tarmac and gravel. Compare the listed frame, components and size options to choose your setup.
Specifications
| Model | 2027 Trek Checkpoint ALR 4 Gen 3 - Living Coral |
|---|---|
| Frame | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle |

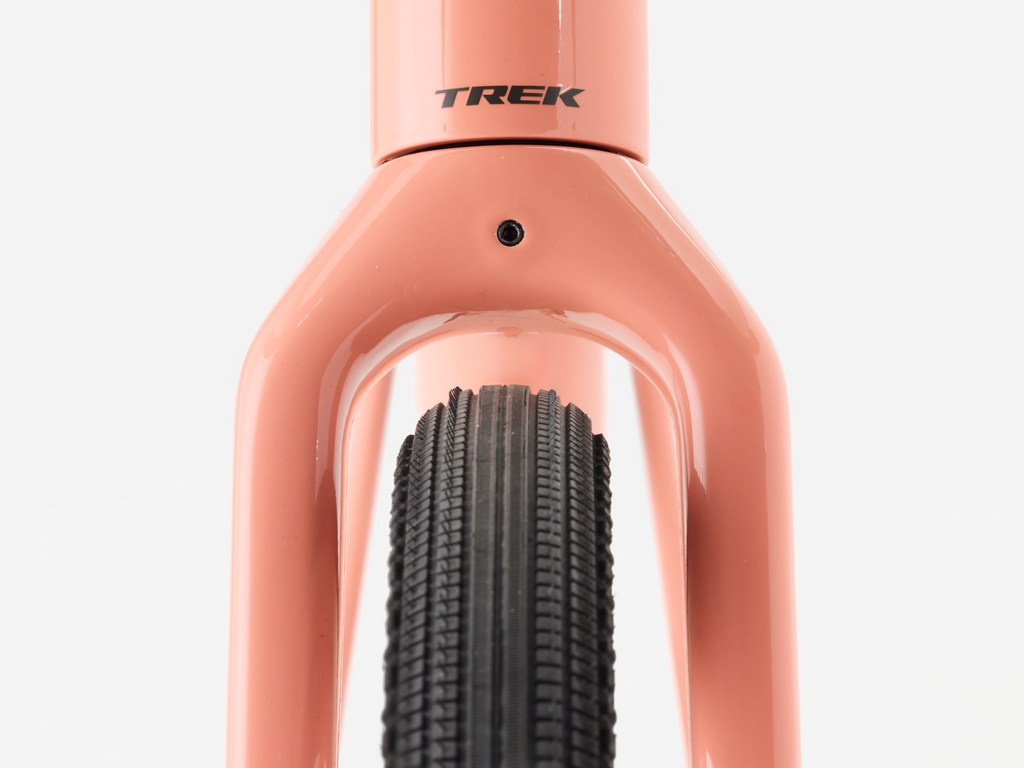

| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | ML - 10.40 kg / 22.93 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |

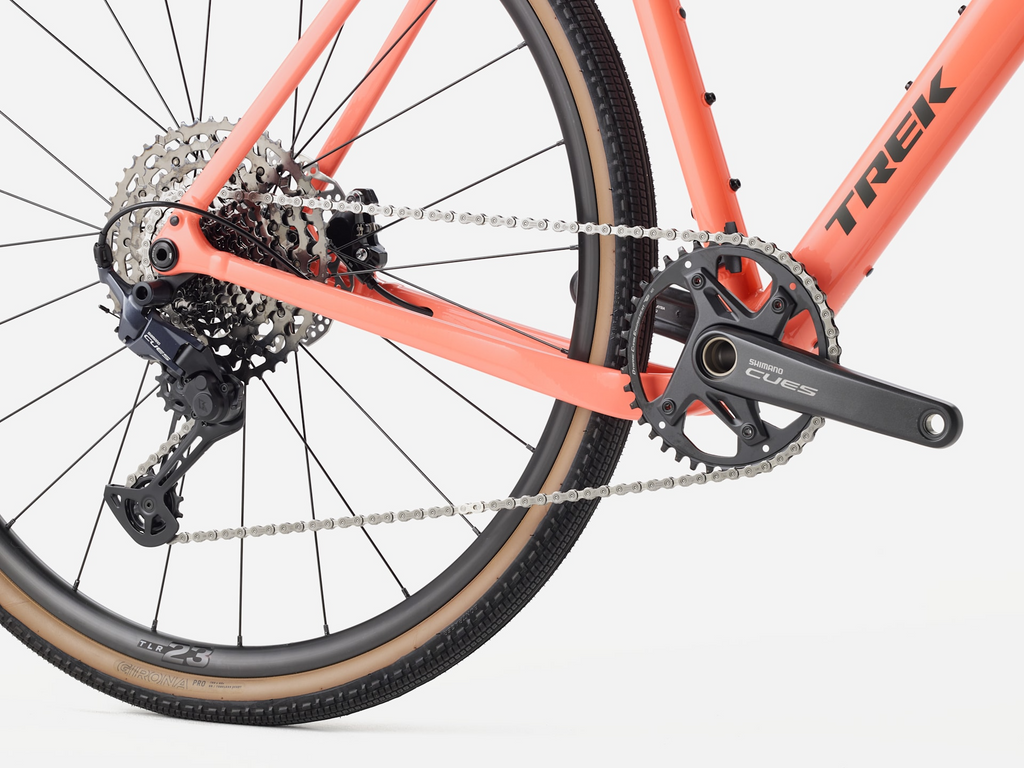

| Shifter | Shimano CUES U6030, 11-speed |
| Rear derailleur | Shimano CUES U8000 GS |
| Crank | Size: | XS, S | Shimano CUES FCU60301 , 40T ring, 165mm length | Size: | M, ML | Shimano CUES FCU60301 , 40T ring, 170mm length | Size: | L, XL | Shimano CUES FCU60301 , 40T ring, 172.5mm length |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano CUES LG700, LINKGLIDE, 11-50, 11 speed |
| Chain | Shimano LG500 |
| Max. chainring size | 1x:44 2x: 46/30 |
| Hub front | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle | Skewer front | Bontrager Switch chamfered thru axle |
| Hub rear | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details) |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

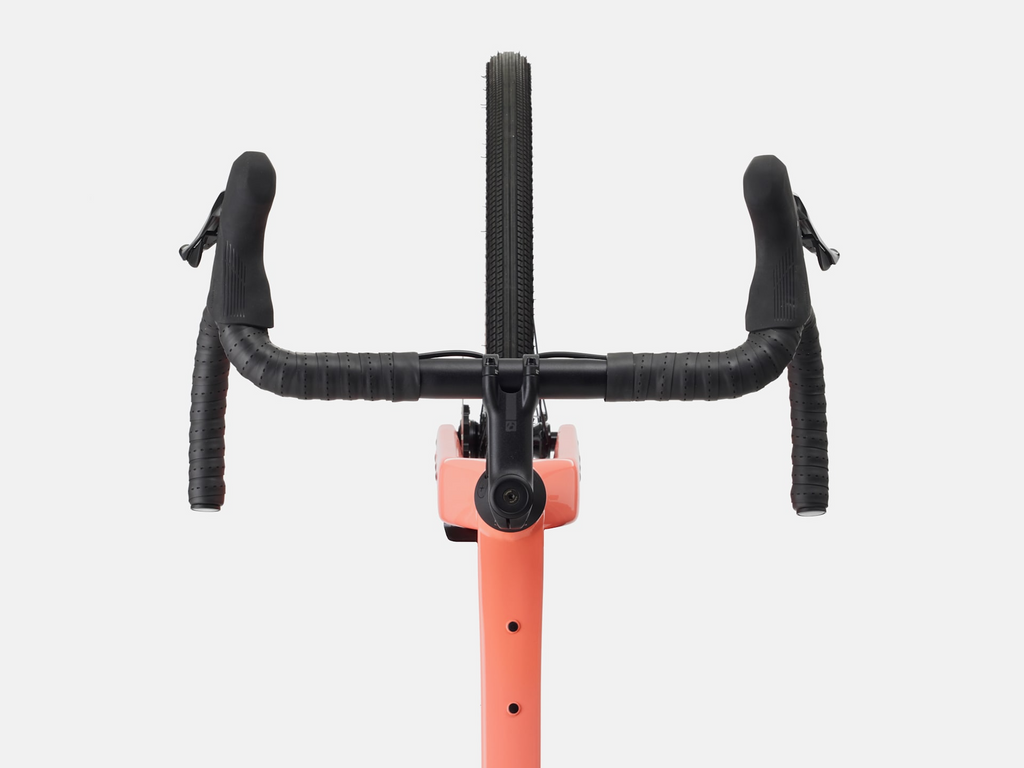

| Handlebar | Size: | XS, S | Bontrager Elite Gravel, alloy, 40 cm width | Size: | M, ML | Bontrager Elite Gravel, alloy, 42 cm width | Size: | L | Bontrager Elite Gravel, alloy, 44 cm width | Size: | XL | Bontrager Elite Gravel, alloy, 46 cm width |
| Handlebar | tape | Bontrager Supertack Perf tape |
| Stem | Size: | XS | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length | Size: | S, M | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | Size: | ML, L | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length | Size: | XL | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length |
| Brake | Size: | XS, S, M, ML, L, XL | Shimano CUES hydraulic disc, flat mount | Size: | XS, S, M, ML, L, XL | Shimano CUES U6030 |
| Brake rotor | Shimano RT54, CentreLock, 160mm |
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
