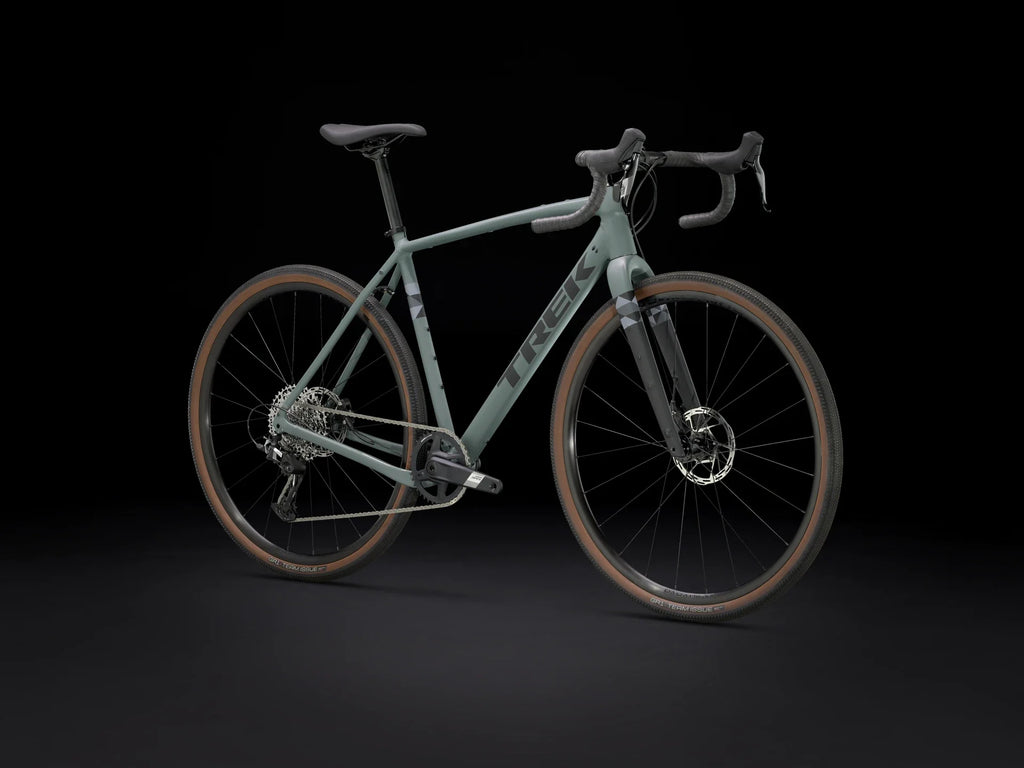

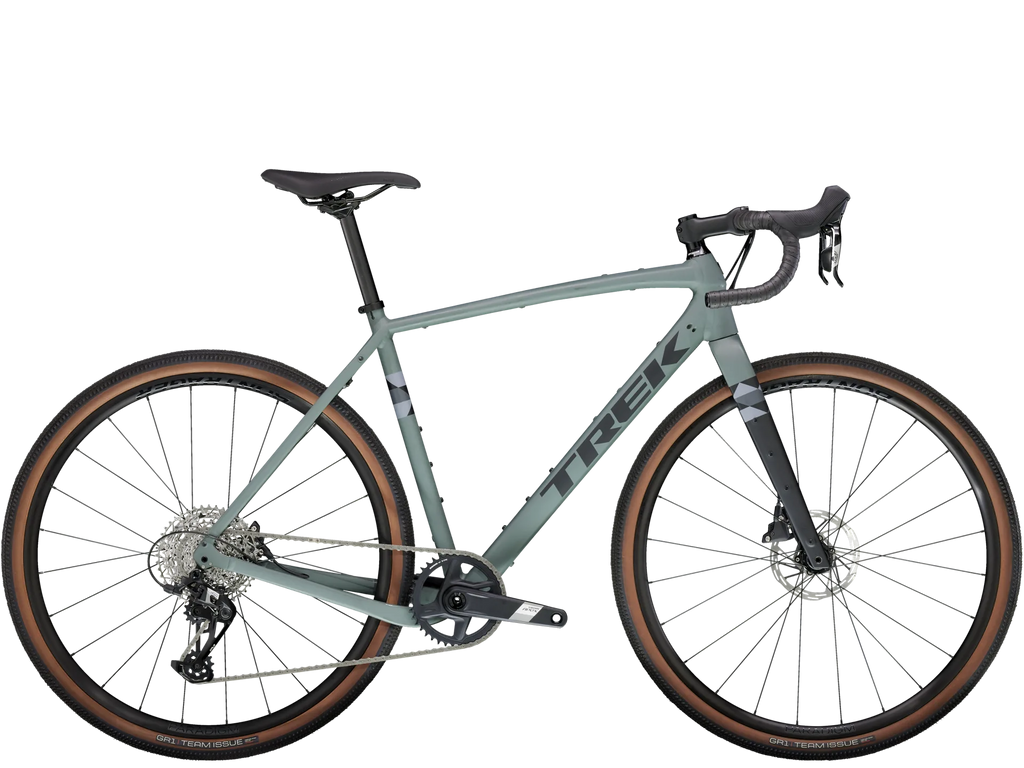

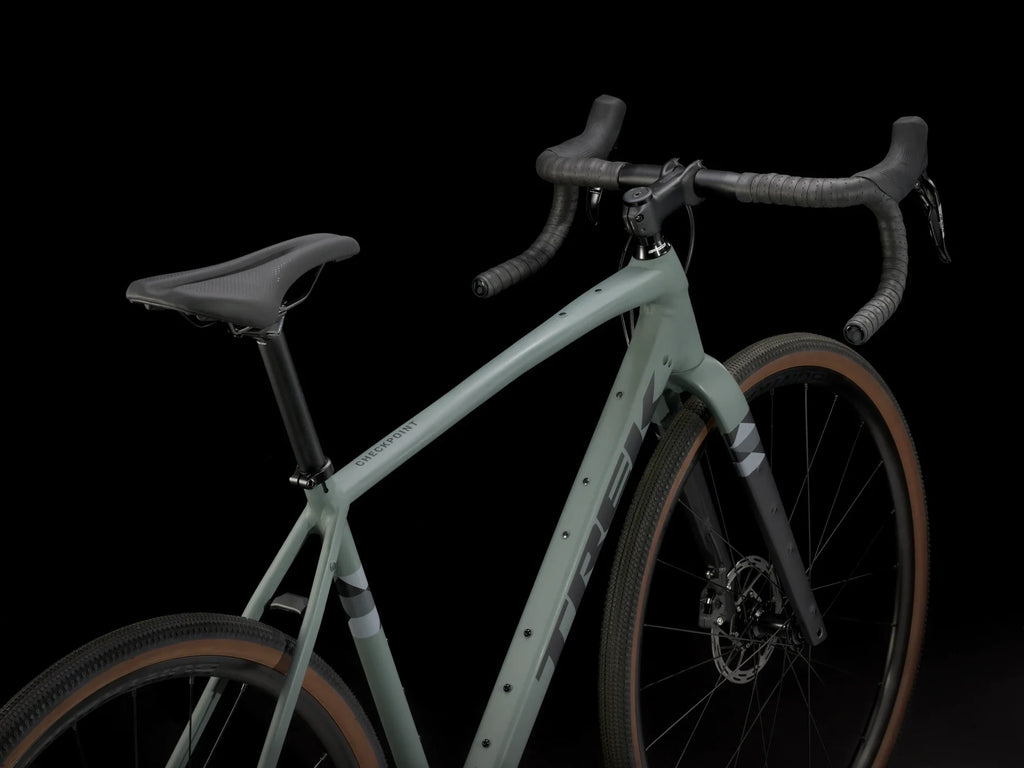

2025 Trek Checkpoint ALR 5
Sale price
R 41,500.00
Regular price
R 50,000.00
The 2025 Trek Checkpoint ALR 5 is built for mixed-surface rides that connect tarmac and gravel. Compare the listed frame, components and size options to choose your setup.
Specifications
| Model | 2025 Trek Checkpoint ALR 5 - Matte Keswick |
|---|---|

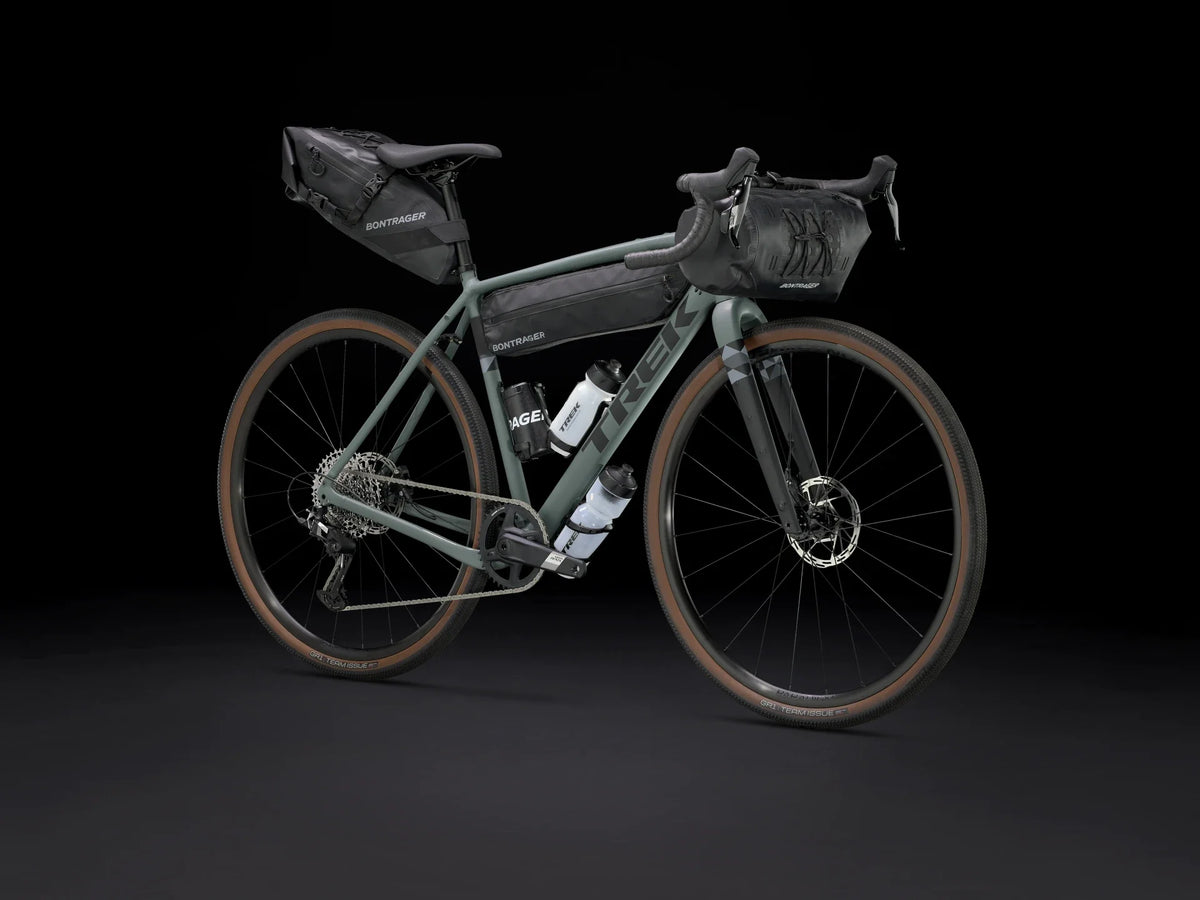

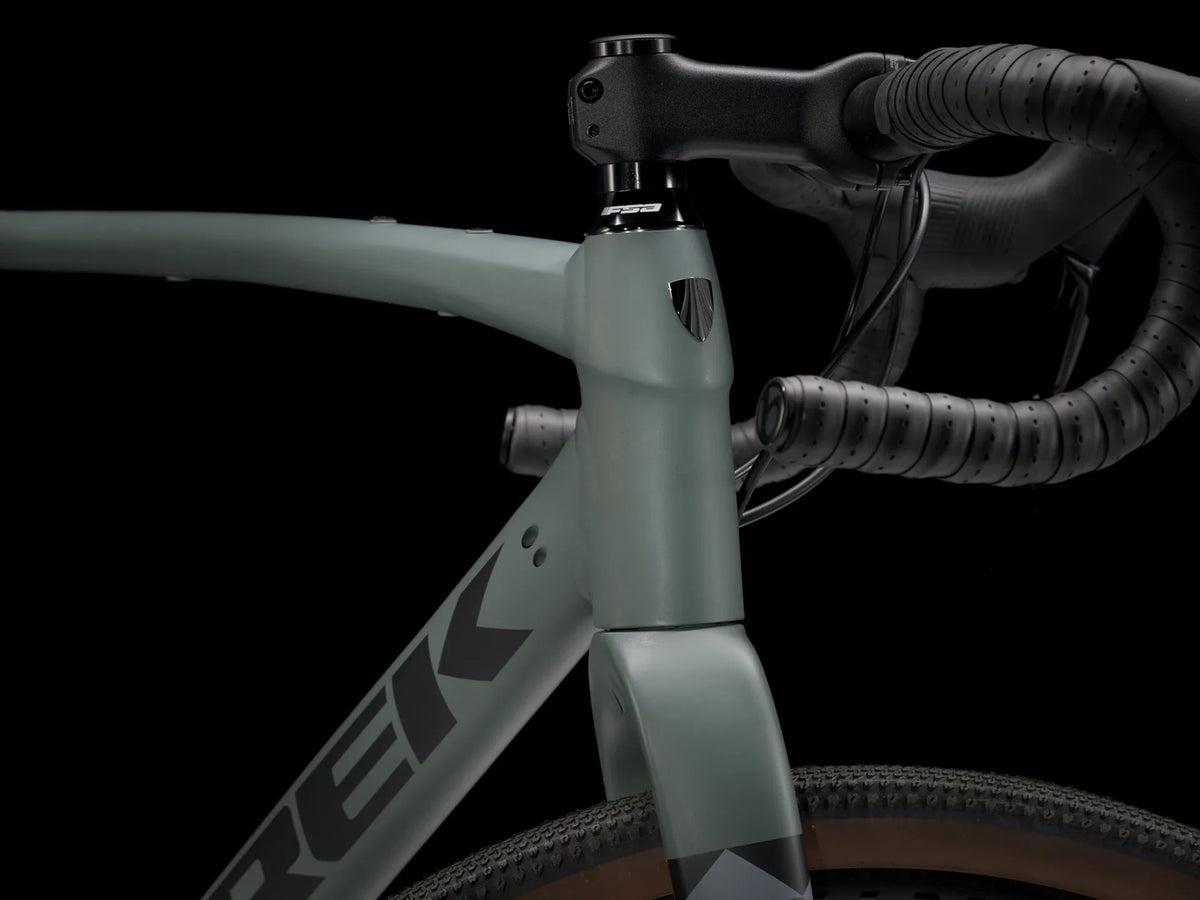

| Frame | with Fork 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |

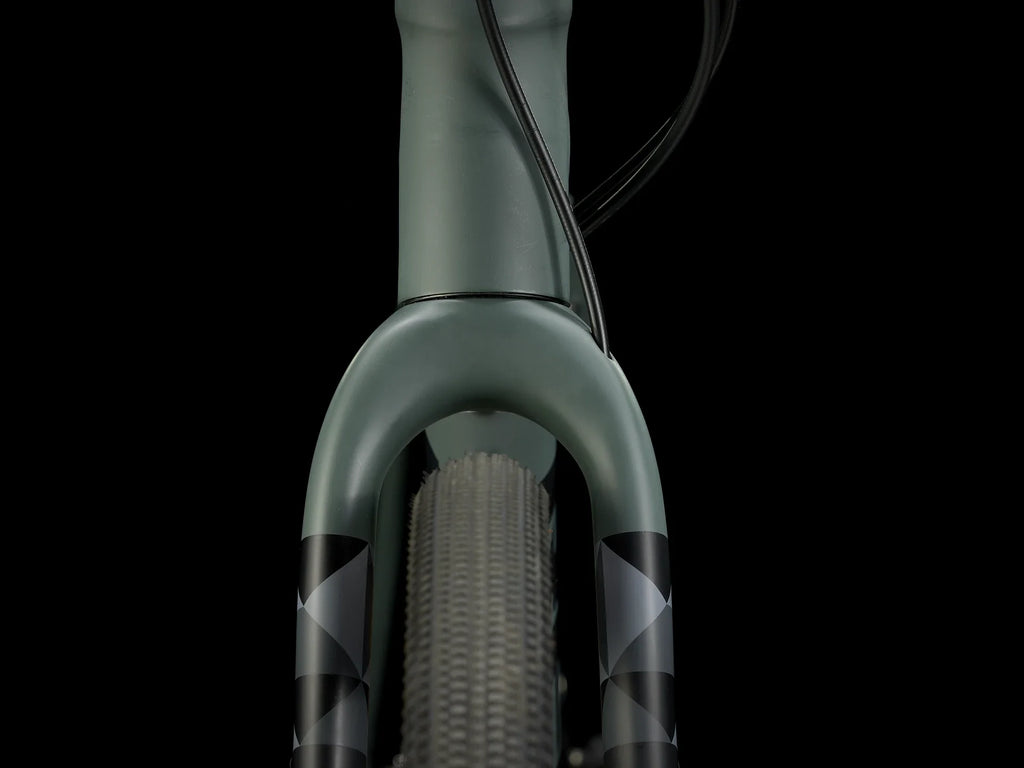

| Fork | Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | 56 - 9.60 kg / 21.17 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Shifter | SRAM Apex, 12-speed |

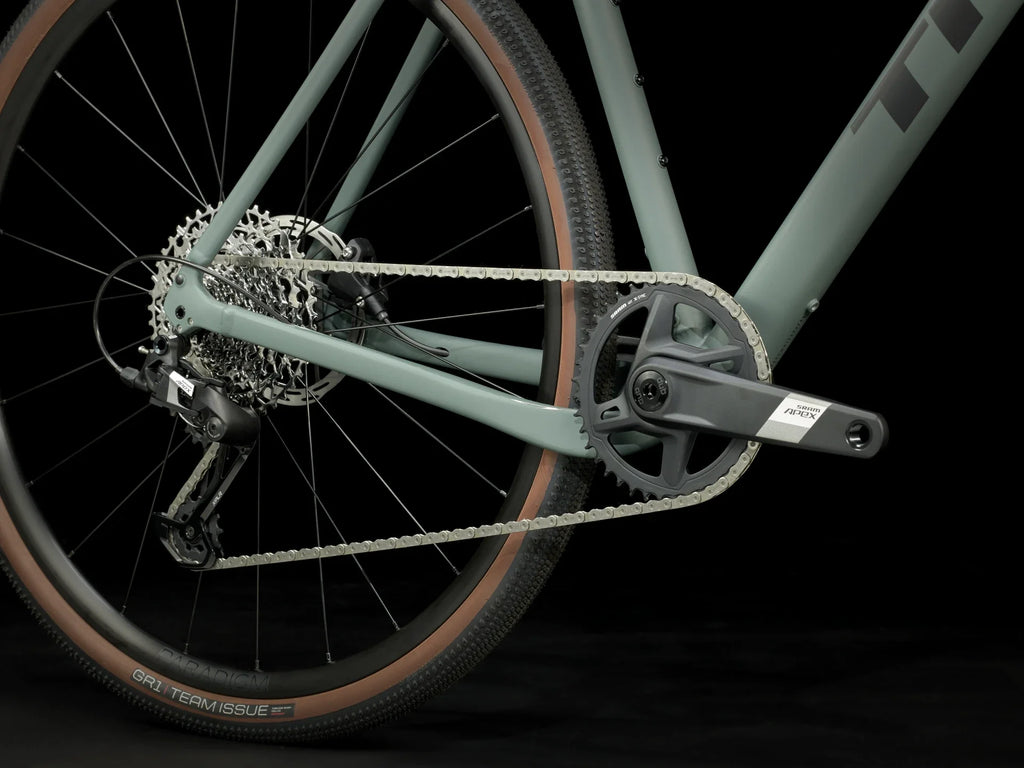

| Rear derailleur | SRAM Apex XPLR, 44T max cog |
| Crank | Size: 49 | SRAM Apex 1, 40T, DUB Wide, 165 mm length | Size: 52 | SRAM Apex 1, 40T, DUB Wide, 170 mm length | Size: 54, 56 | SRAM Apex 1, 40T, DUB Wide, 172.5 mm length | Size: 58, 61 | SRAM Apex 1, 40T, DUB Wide, 175 mm length |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1230, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Max. chainring size | 1x: 44T, 2x: 50/34 |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle | Skewer front Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | See service manual |
| Saddle | Size: 49, 52 | Bontrager Verse Comp, steel rails, 155 mm width | Size: 54, 56, 58, 61 | Bontrager Verse Comp, steel rails, 145 mm width |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

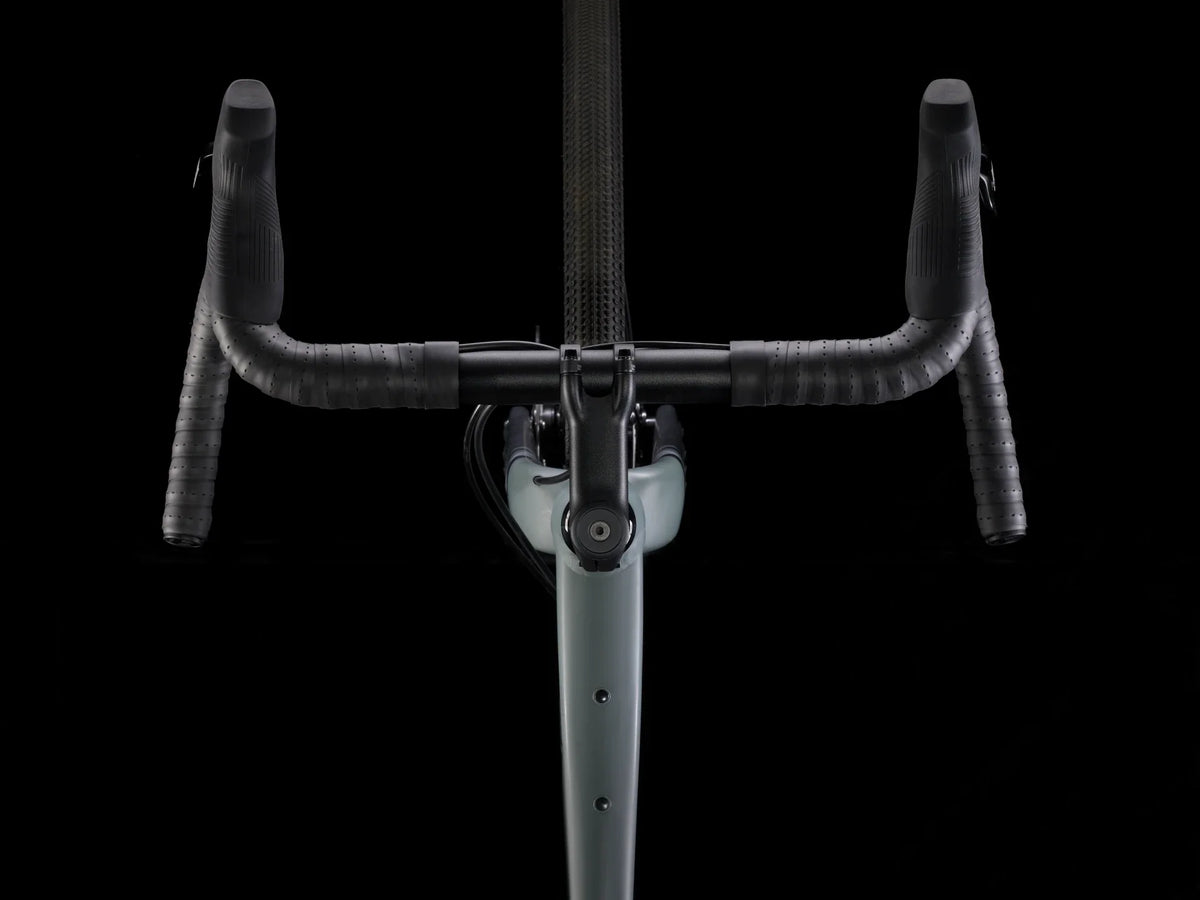

| Handlebar | Size: 49 | Bontrager Elite Gravel, 38 cm width | Size: 52 | Bontrager Elite Gravel, 40 cm width | Size: 54, 56 | Bontrager Elite Gravel, 42 cm width | Size: 58, 61 | Bontrager Elite Gravel, 44 cm width |
| Handlebar | tape Bontrager Supertack Perf tape |
| Stem | Size: 49 | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length | Size: 52, 54 | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | Size: 56, 58 | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length | Size: 61 | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |

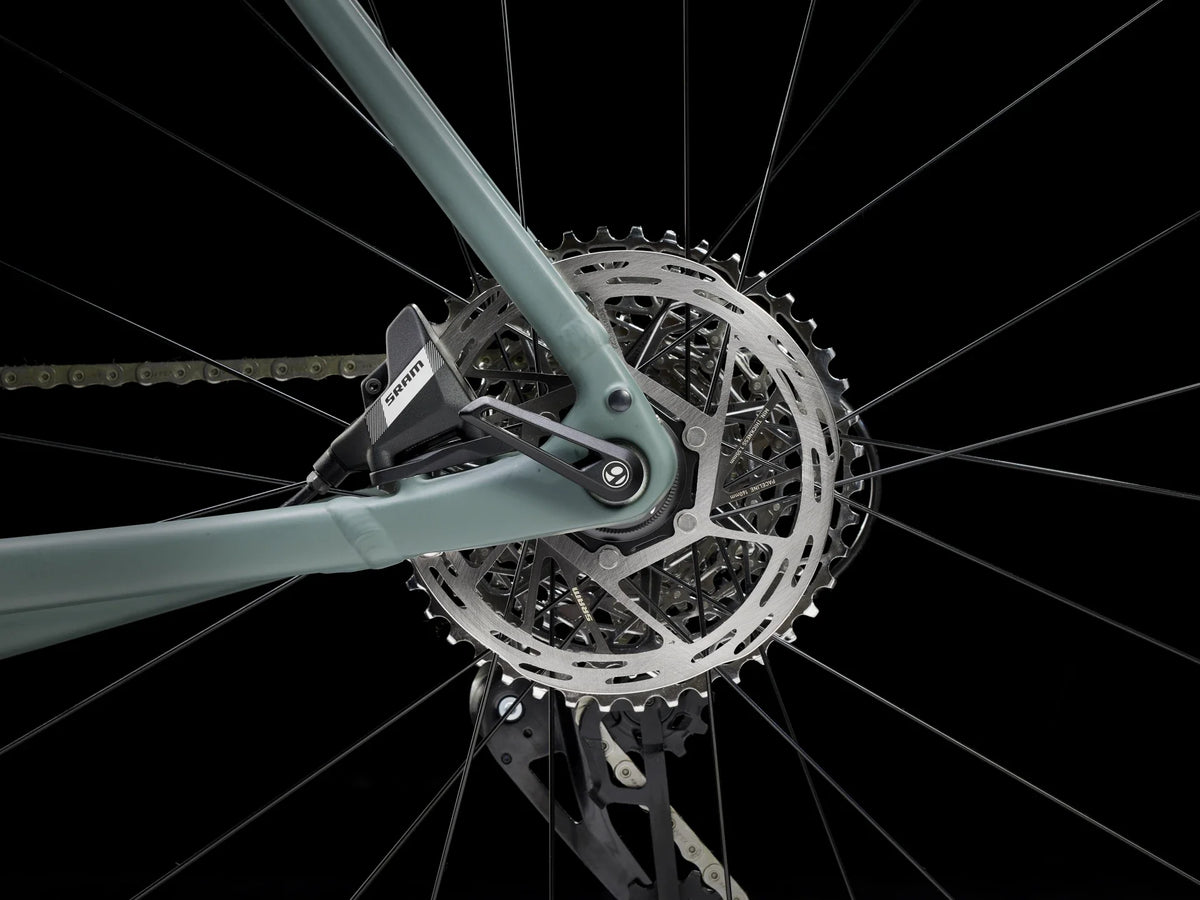

| Brake | SRAM Apex hydraulic disc, flat mount |

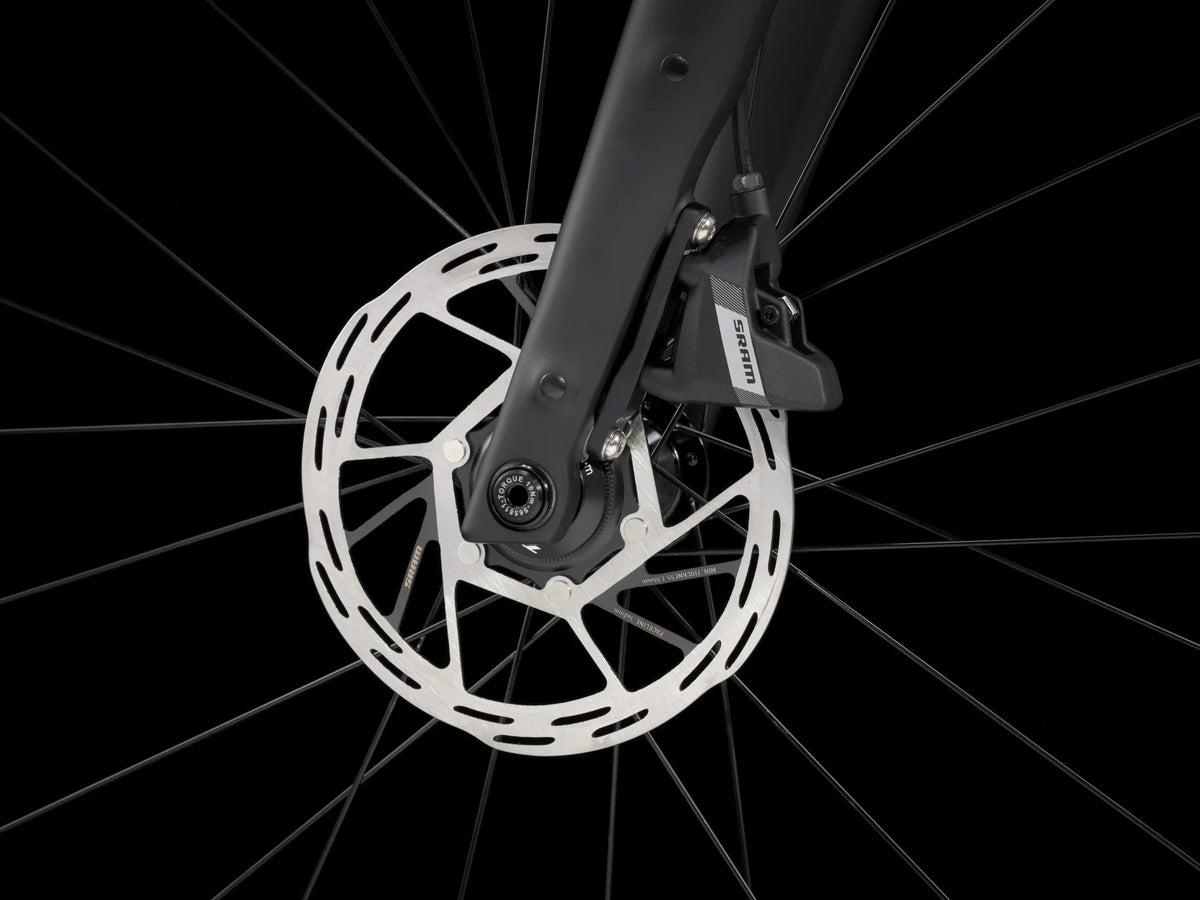

| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Brake | lever SRAM Apex, 12-speed |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
