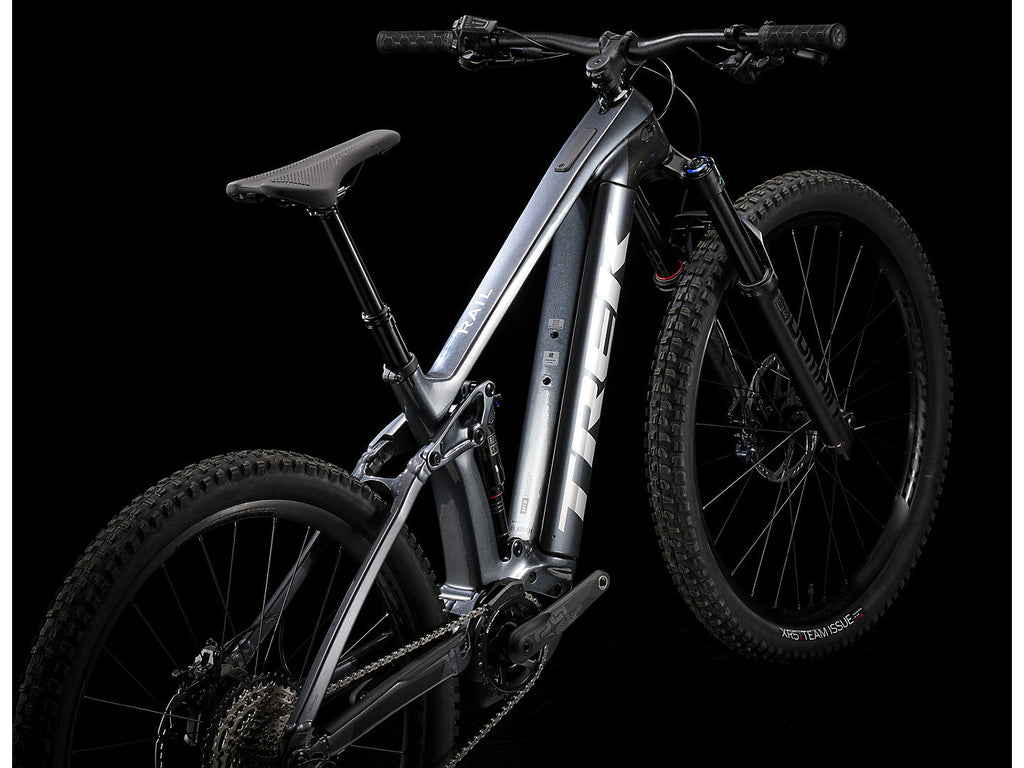

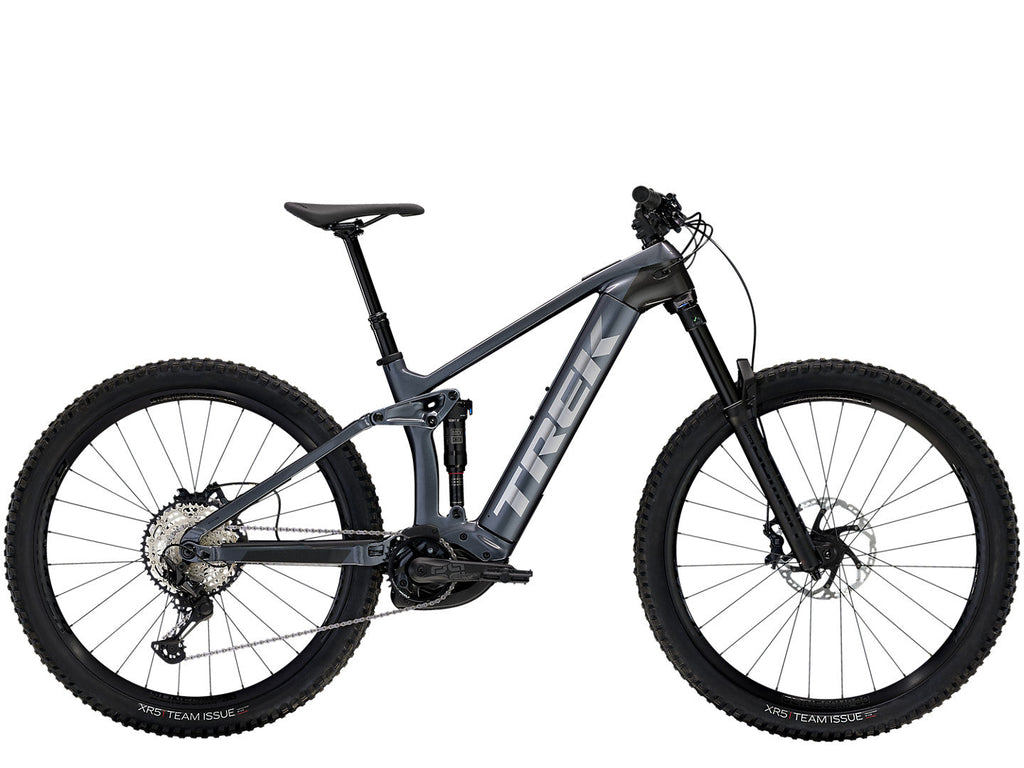

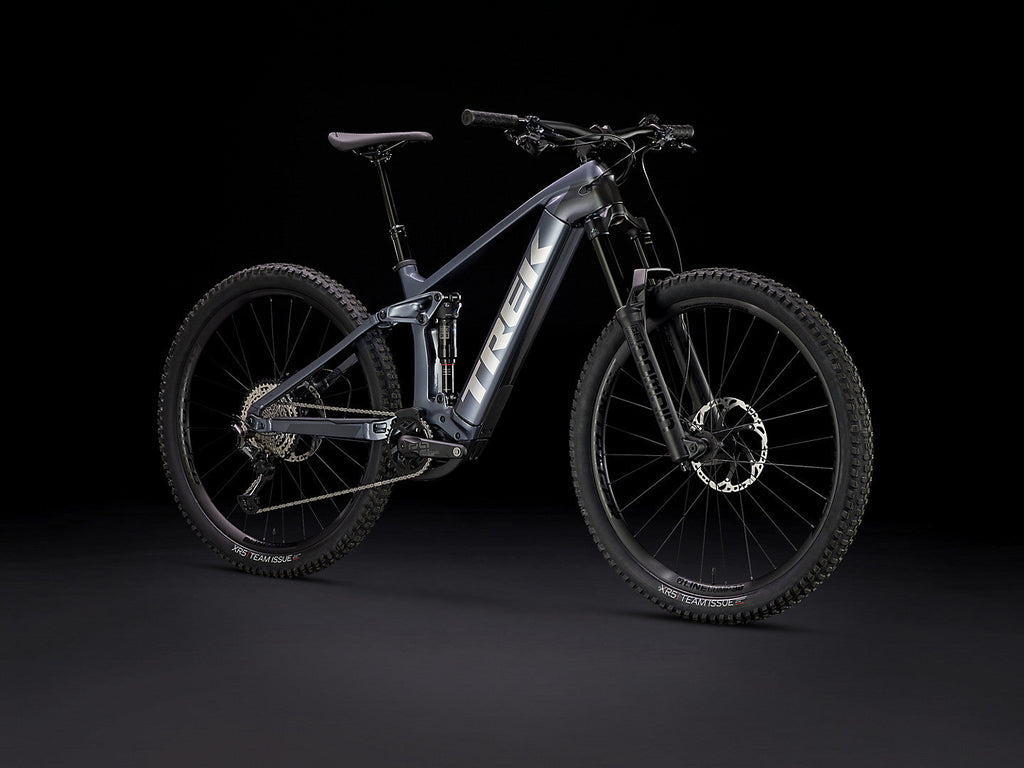

2024 Trek Rail 9.7 Gen 4
Sale price
R 121,800.00
Regular price
R 145,000.00
The 2024 Trek Rail 9.7 Gen 4 is built for steep, technical riding with a focus on descending. Pedal assistance adds support to your effort; review the motor and battery specification for this build. Compare the listed frame, components and size options to choose your setup.
Specifications
| Model | 2024 Trek Rail 9.7 Gen 4 - Galactic Grey |
|---|---|

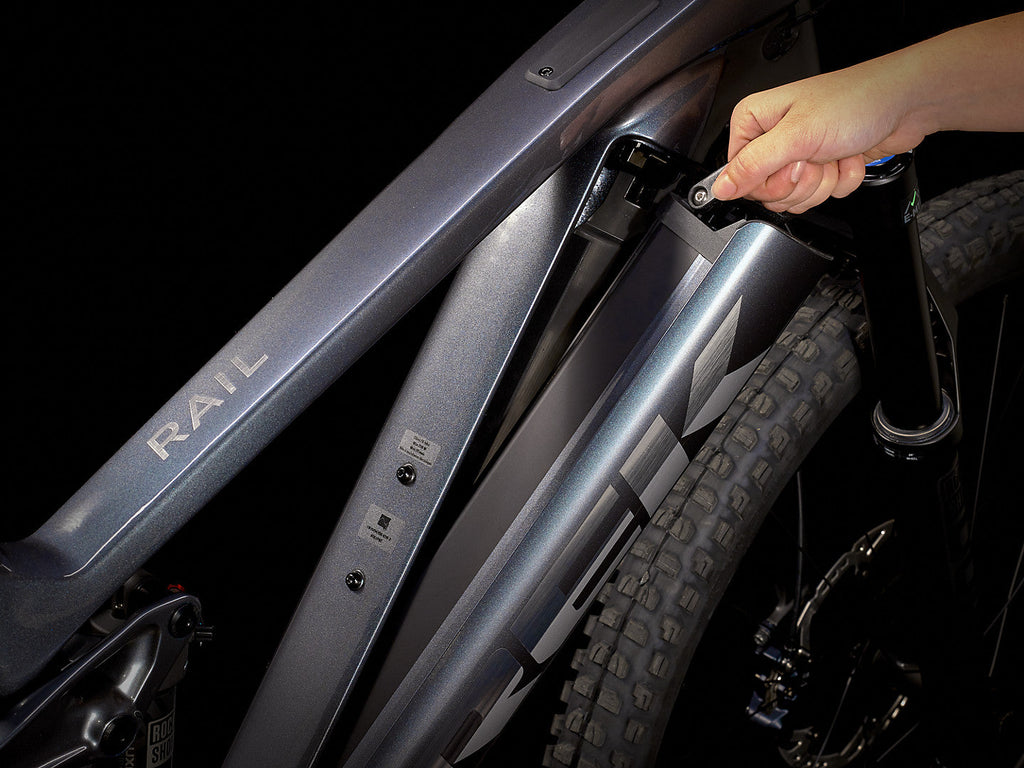

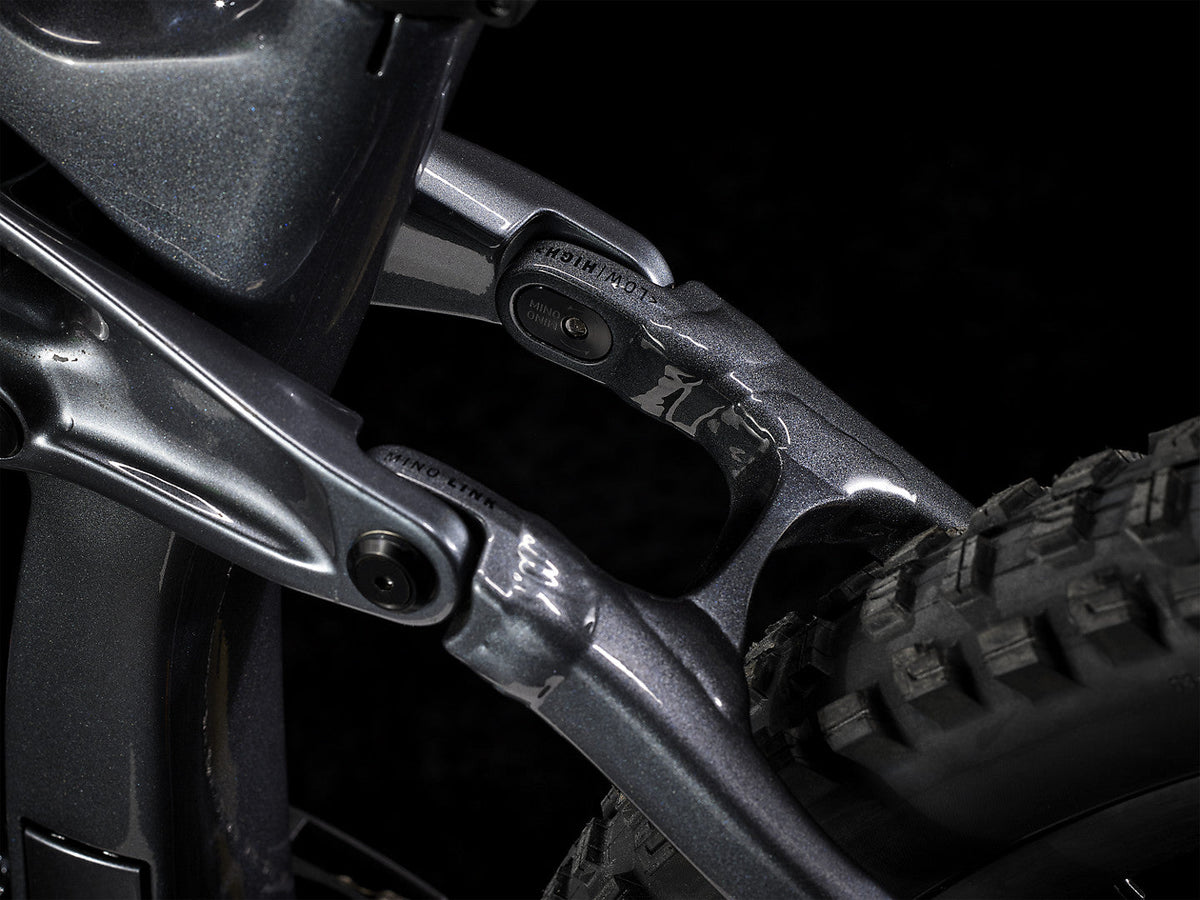

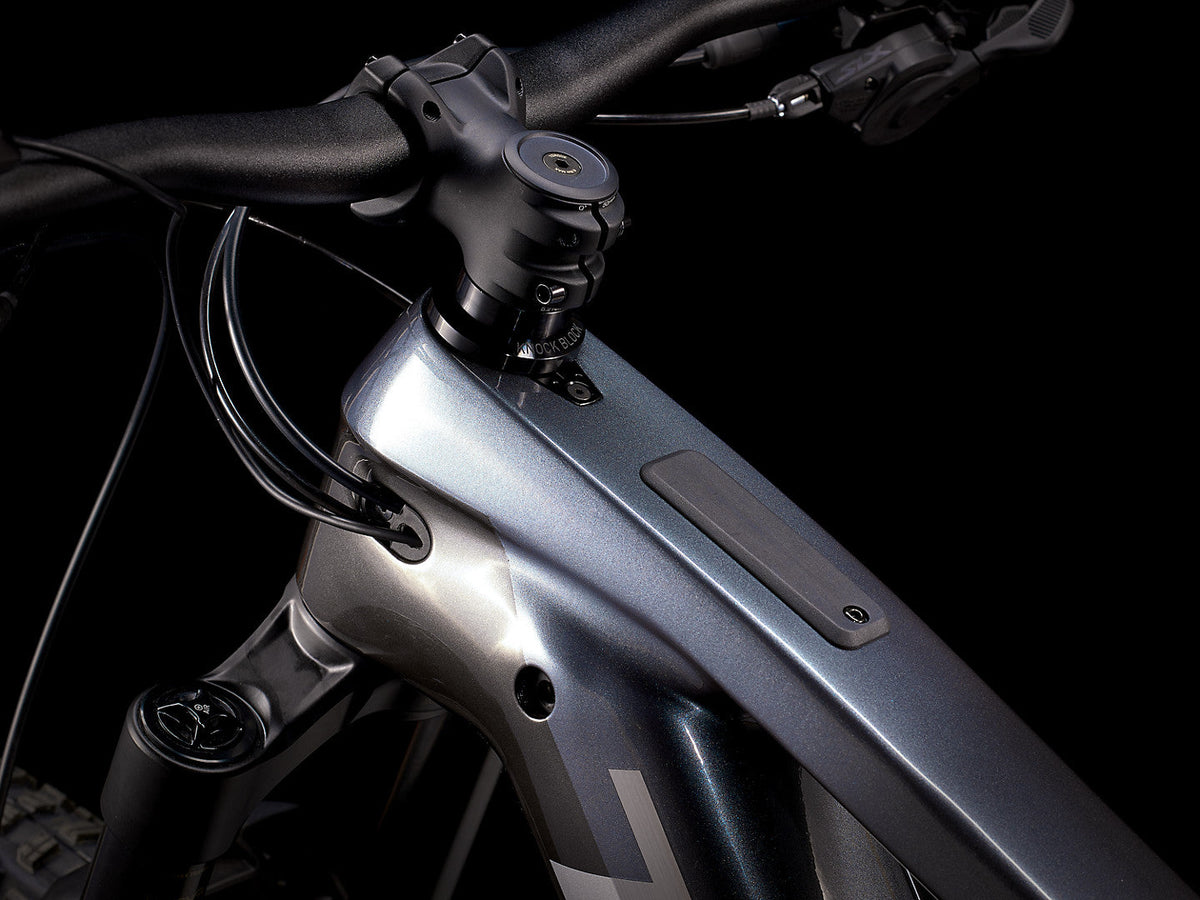

| Frame | OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel |
| Fork | RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8" oversized tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel |

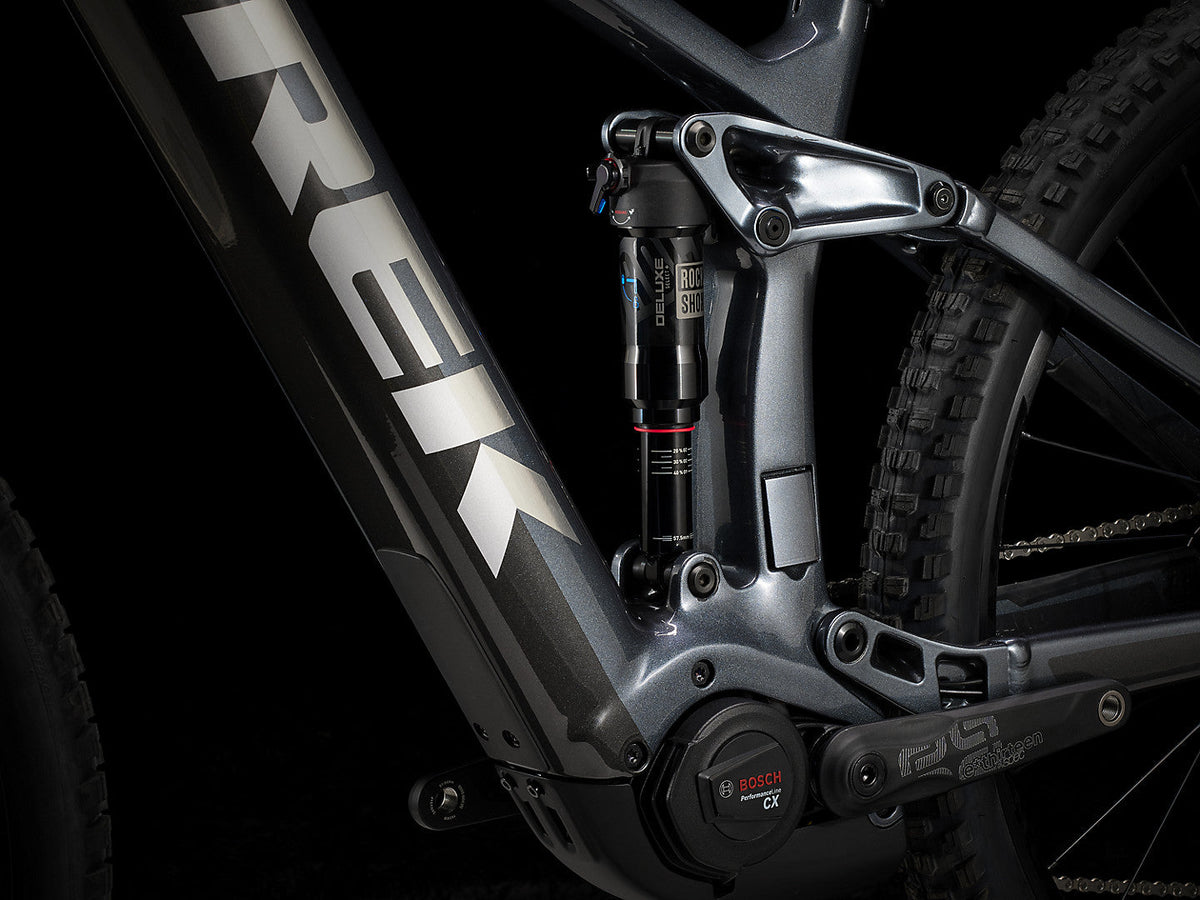

| Shock | RockShox Deluxe Select+ RT, 230 mm x 57.5 mm |
| Max compatible fork travel | 170 mm (580 mm axle-to-crown) |
| Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
| Wheel rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |

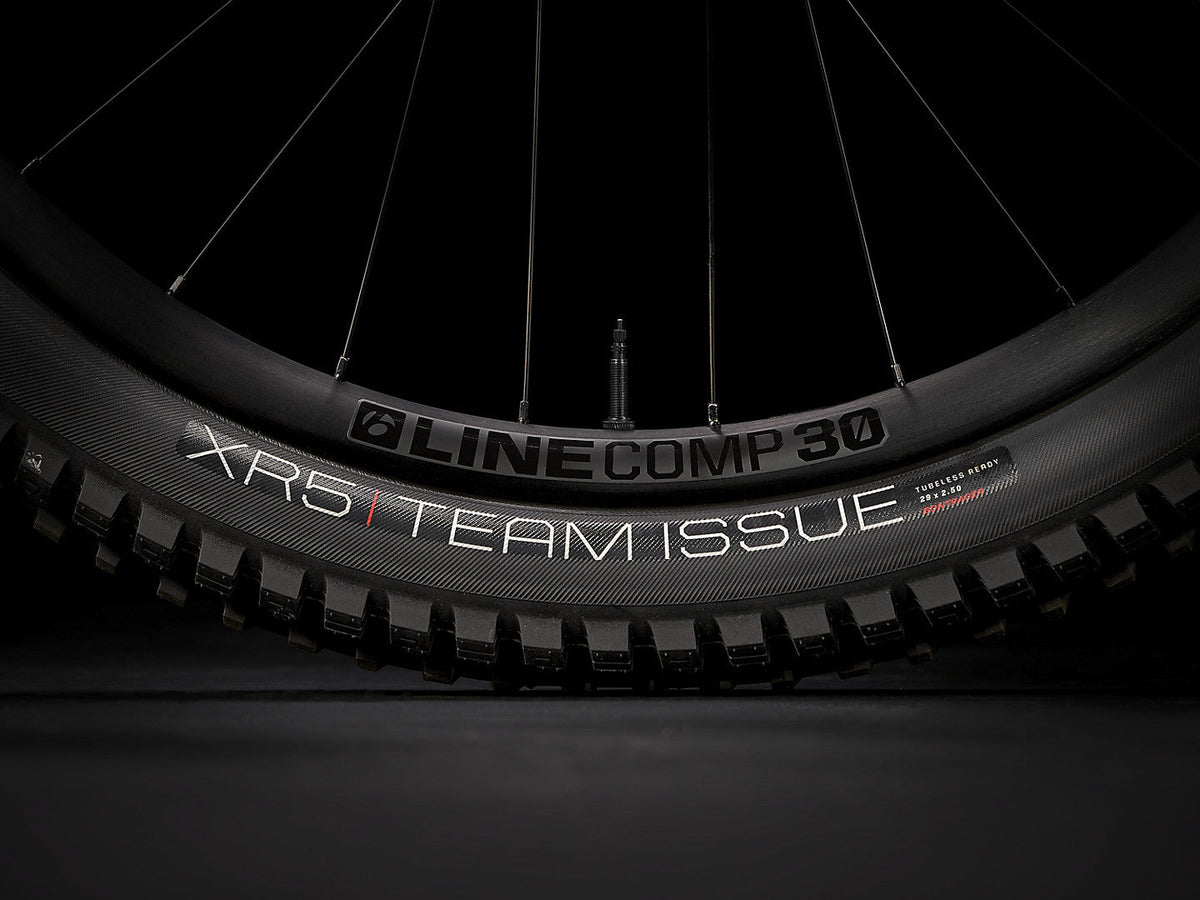

| Tyre | Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.60" Fork: See manufacturer |
| Shifter | Shimano SLX M7100, 12-speed |
| Rear derailleur | Shimano XT M8100, long cage |
| Crank arm | E*thirteen E*spec Plus, 34T, 160 mm length |
| Chainring | E*thirteen E*spec, 34T alloy, 55 mm chainline |

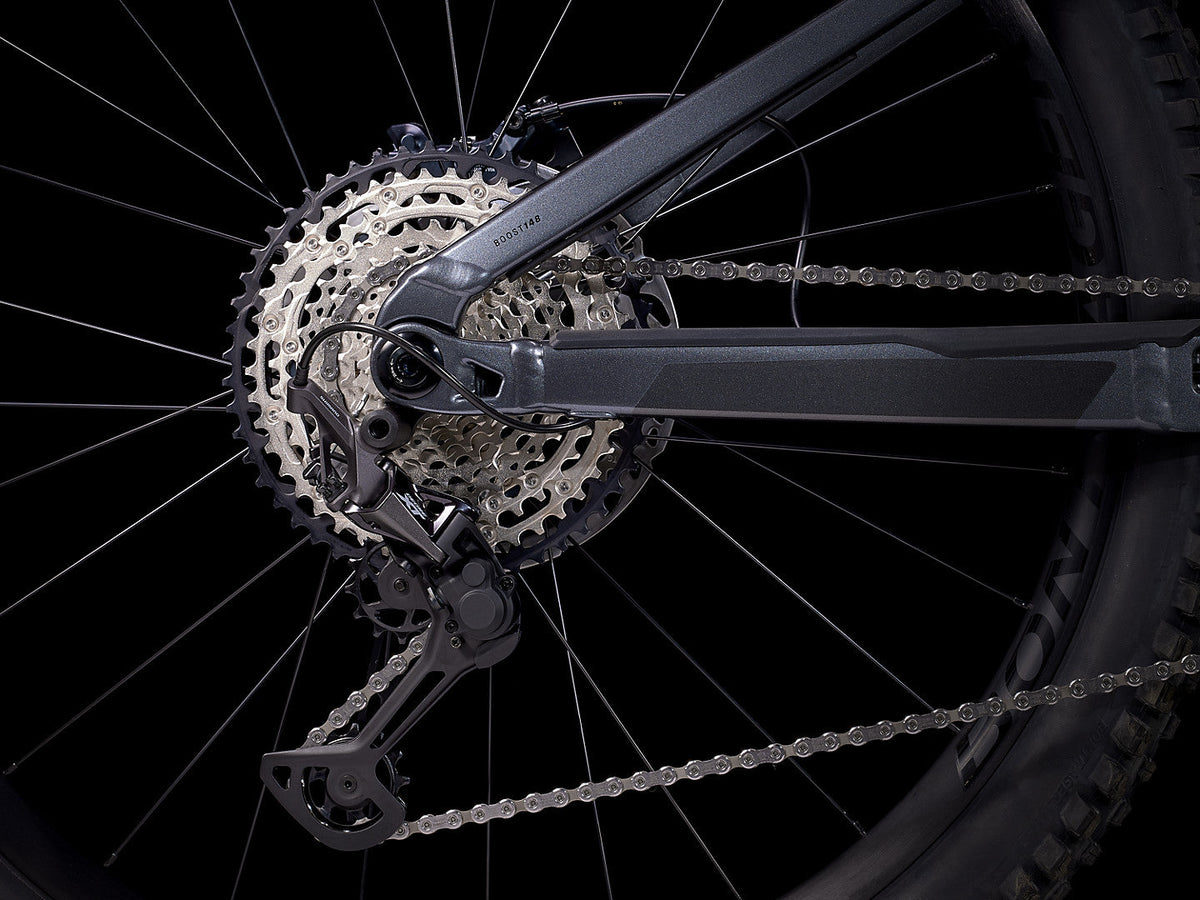

| Cassette | Shimano SLX M7100, 10-51, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 34T |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm |
| Seatpost | Size: M TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm |
| Seatpost | Size: L, XL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake rotor | Shimano RT76, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes: Front see fork manufacturer, rear 200 mm |
| Battery | Size: S Bosch PowerTube 625Wh, smart system |
| Battery | Size: M, L, XL Bosch PowerTube 750Wh, smart system |
| Charger | Bosch standard 2A, 110V, smart system |

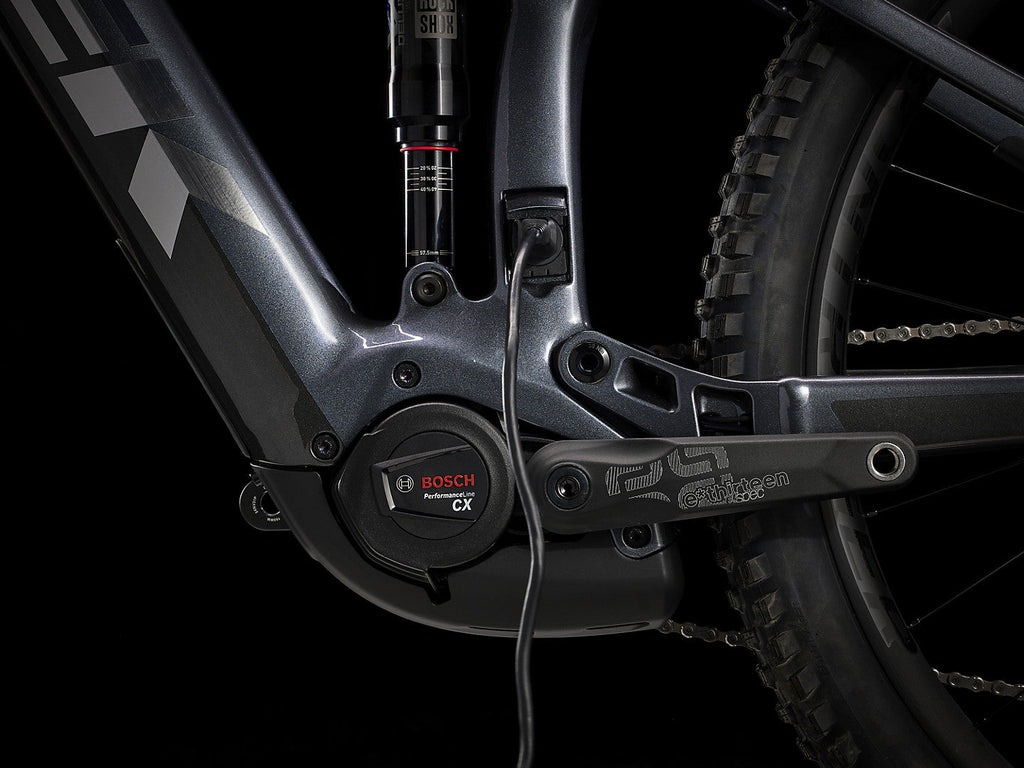

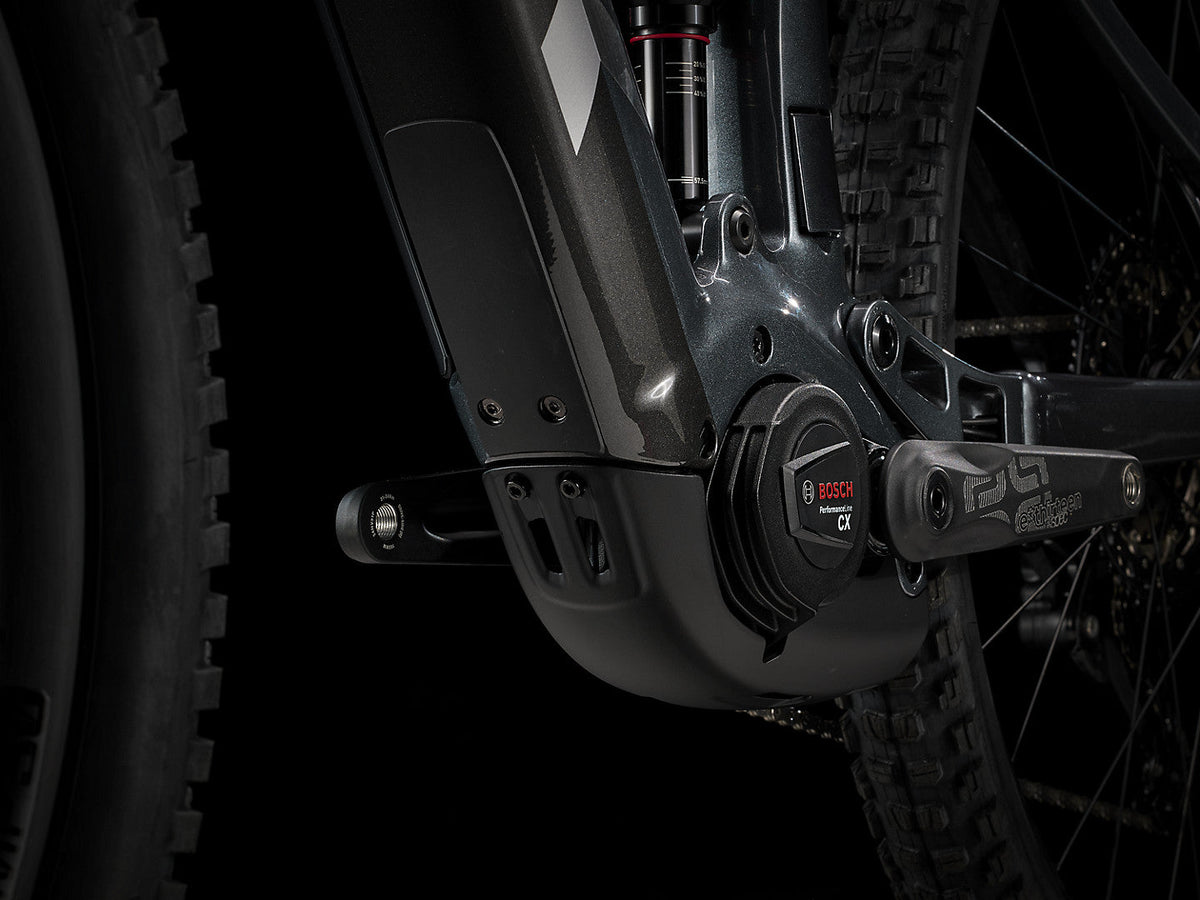

| Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC) |

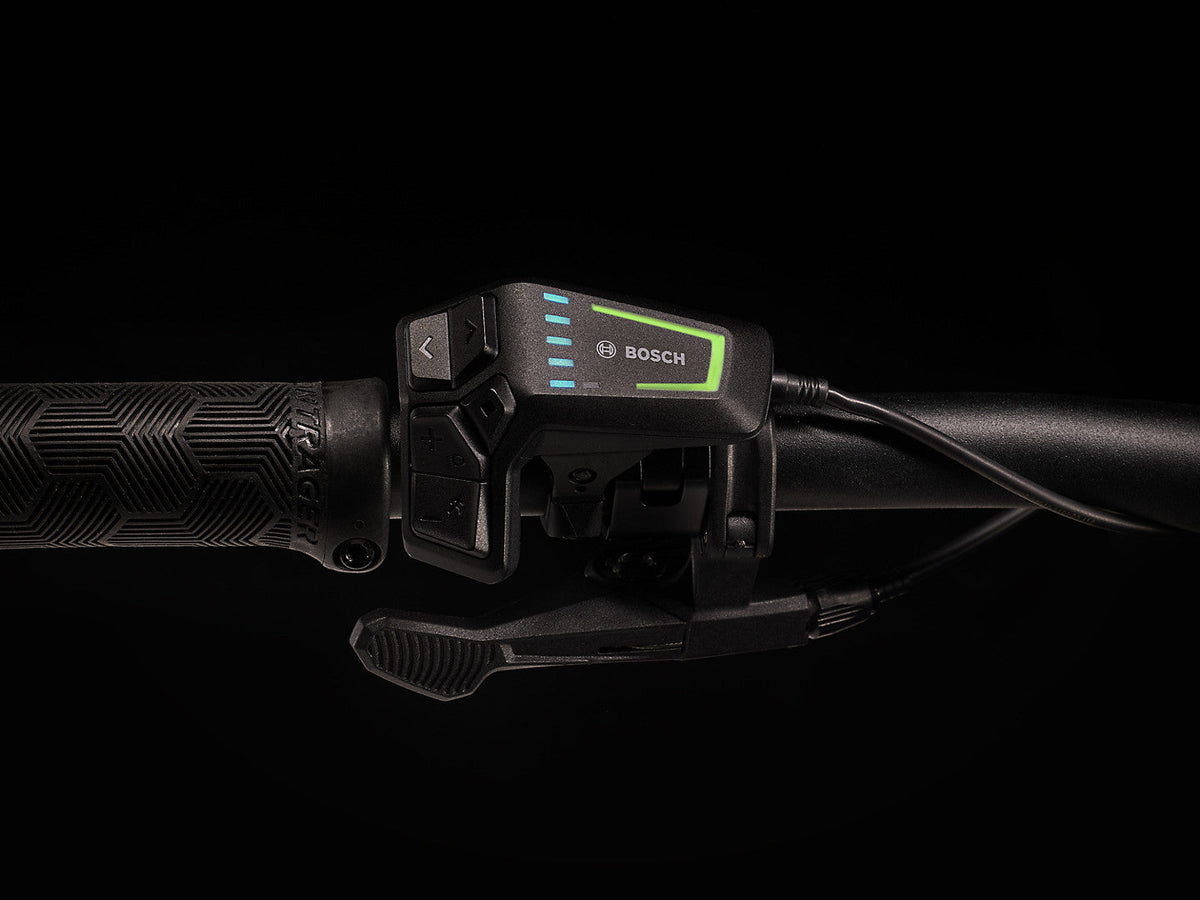

| Computer | Bosch LED remote, smart system |
| Weight | M - 24.65 kg / 54.35 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
