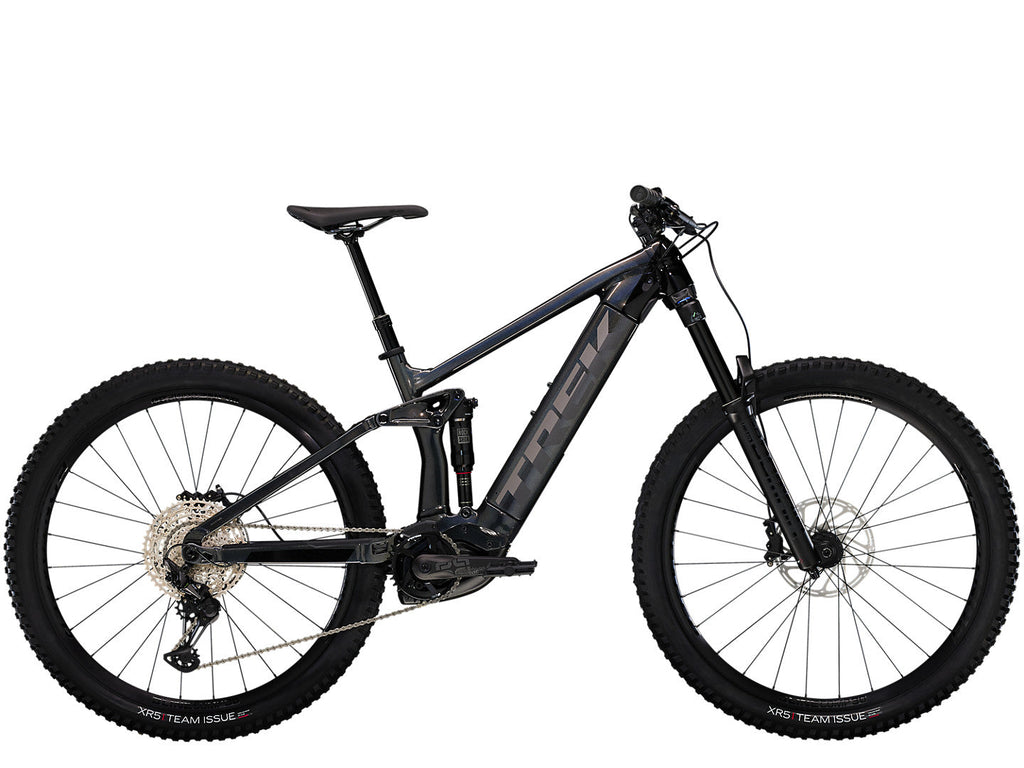

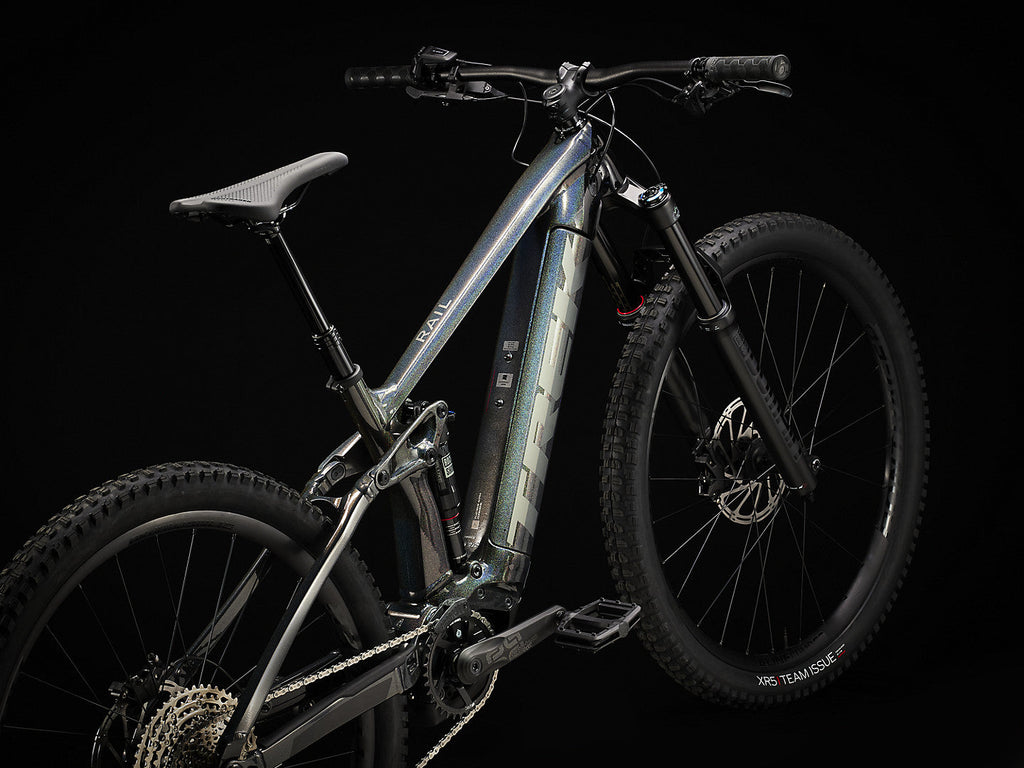

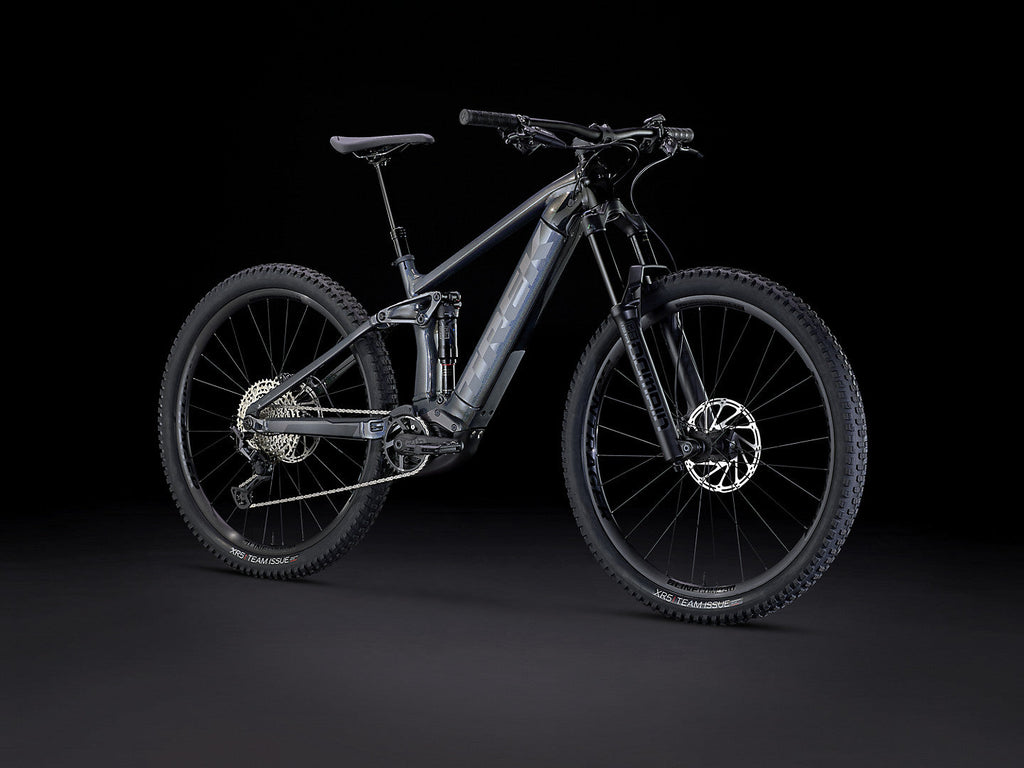

2024 Trek Rail 7 Gen 3
Sale price
R 105,000.00
Regular price
R 125,000.00
The 2024 Trek Rail 7 Gen 3 is built for steep, technical riding with a focus on descending. Pedal assistance adds support to your effort; review the motor and battery specification for this build. Compare the listed frame, components and size options to choose your setup.
Specifications
| Model | 2024 Trek Rail 7 Gen 3 - Dark Prismatic |
|---|---|

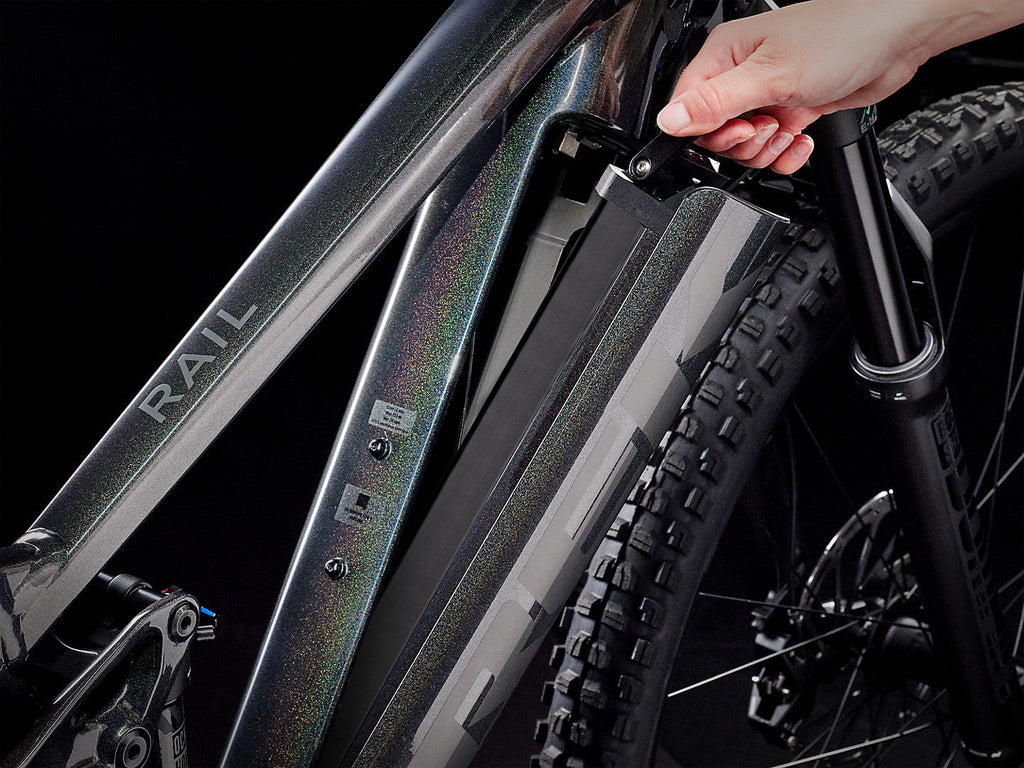

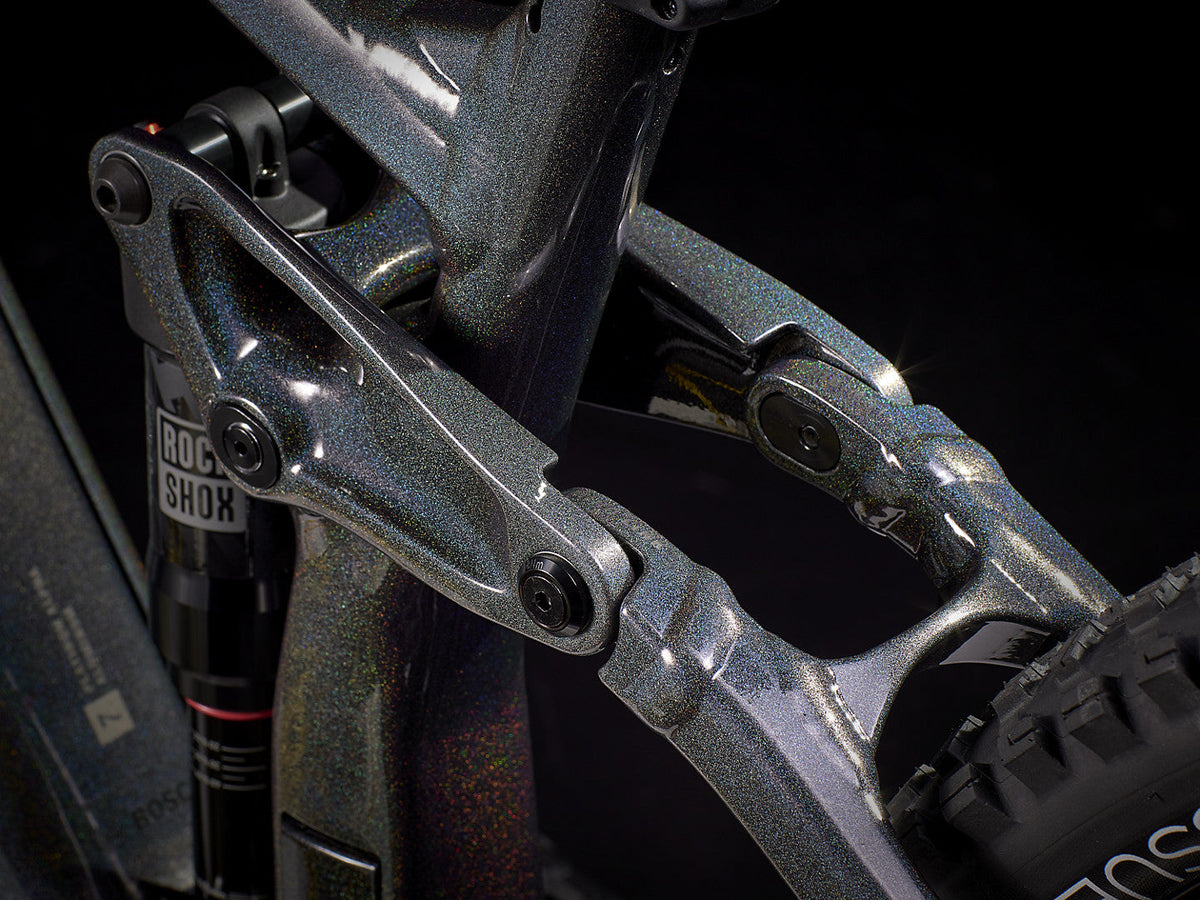

| Frame | Size: S Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
| Frame | Size: M, L, XL Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
| Fork | RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel |

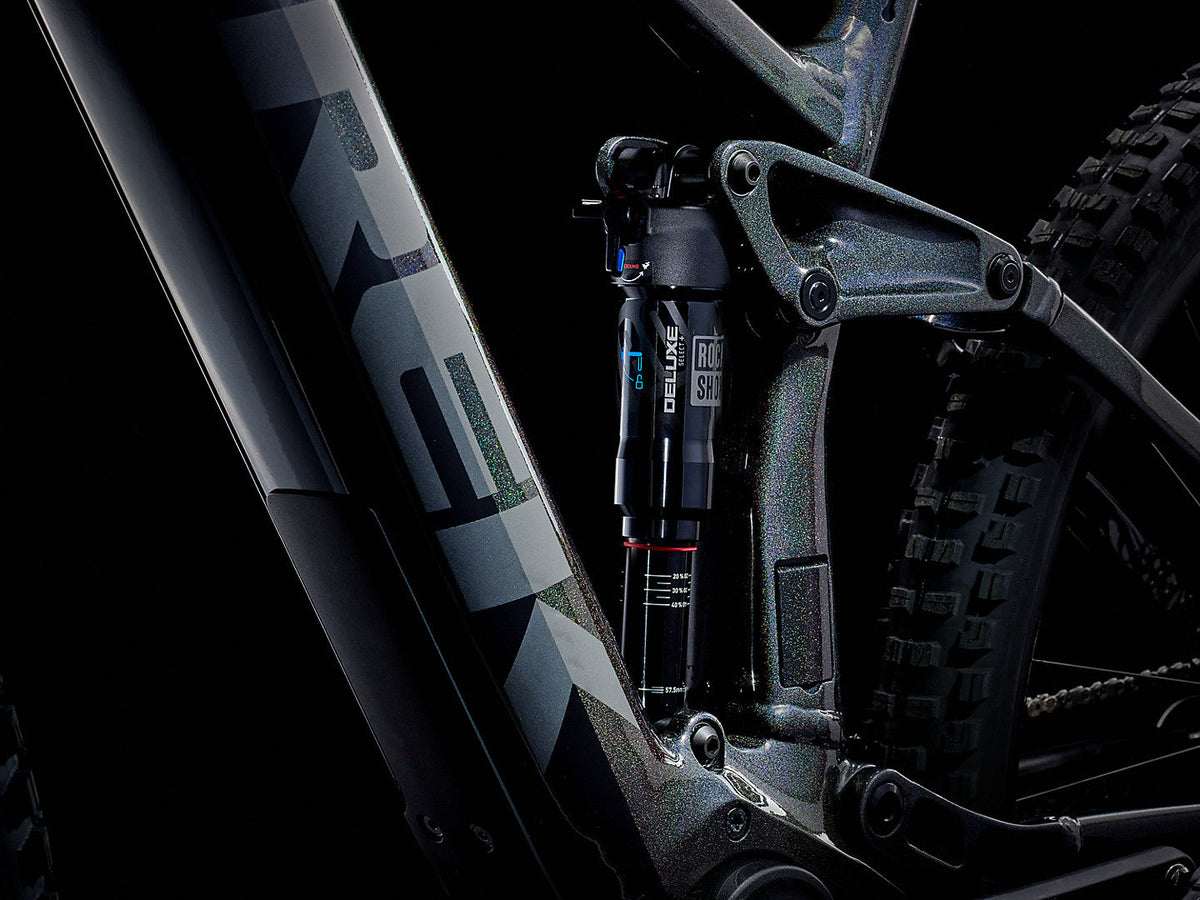

| Shock | RockShox Deluxe Select+ RT, 230 mm x 57.5 mm |
| Max compatible fork travel | 170 mm (580 mm axle-to-crown) |

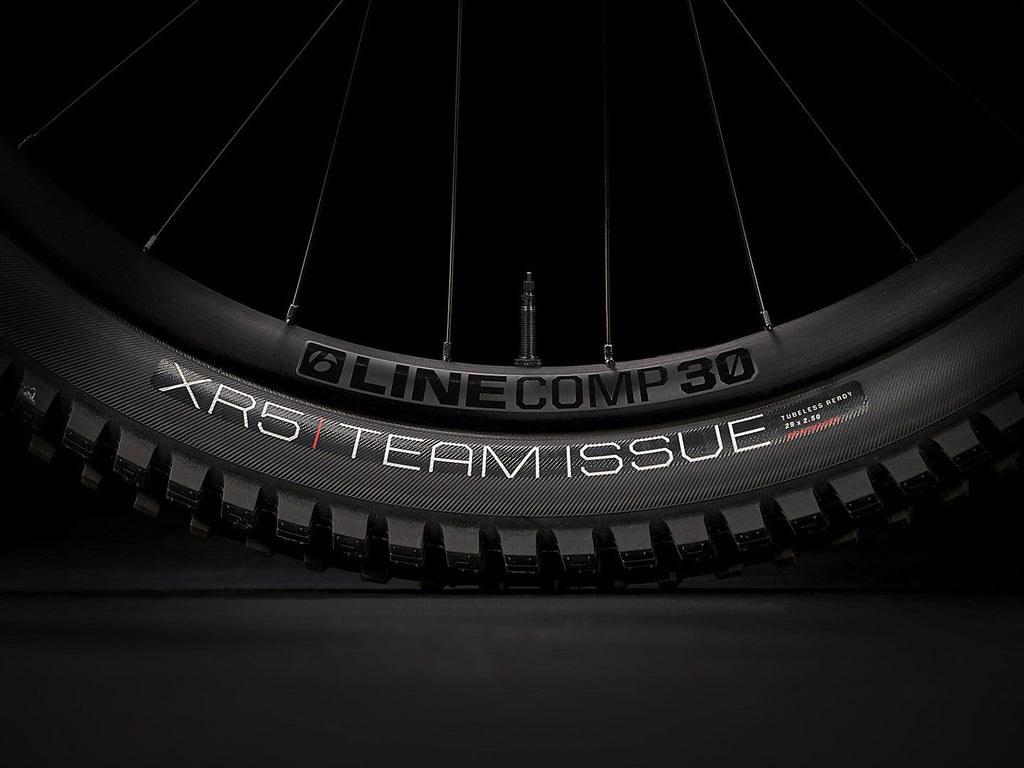

| Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
| Wheel rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle |
| Max tyre size | Frame: 29x2.60" Fork: See manufacturer |
| Shifter | Shimano SLX M7100, 12-speed |

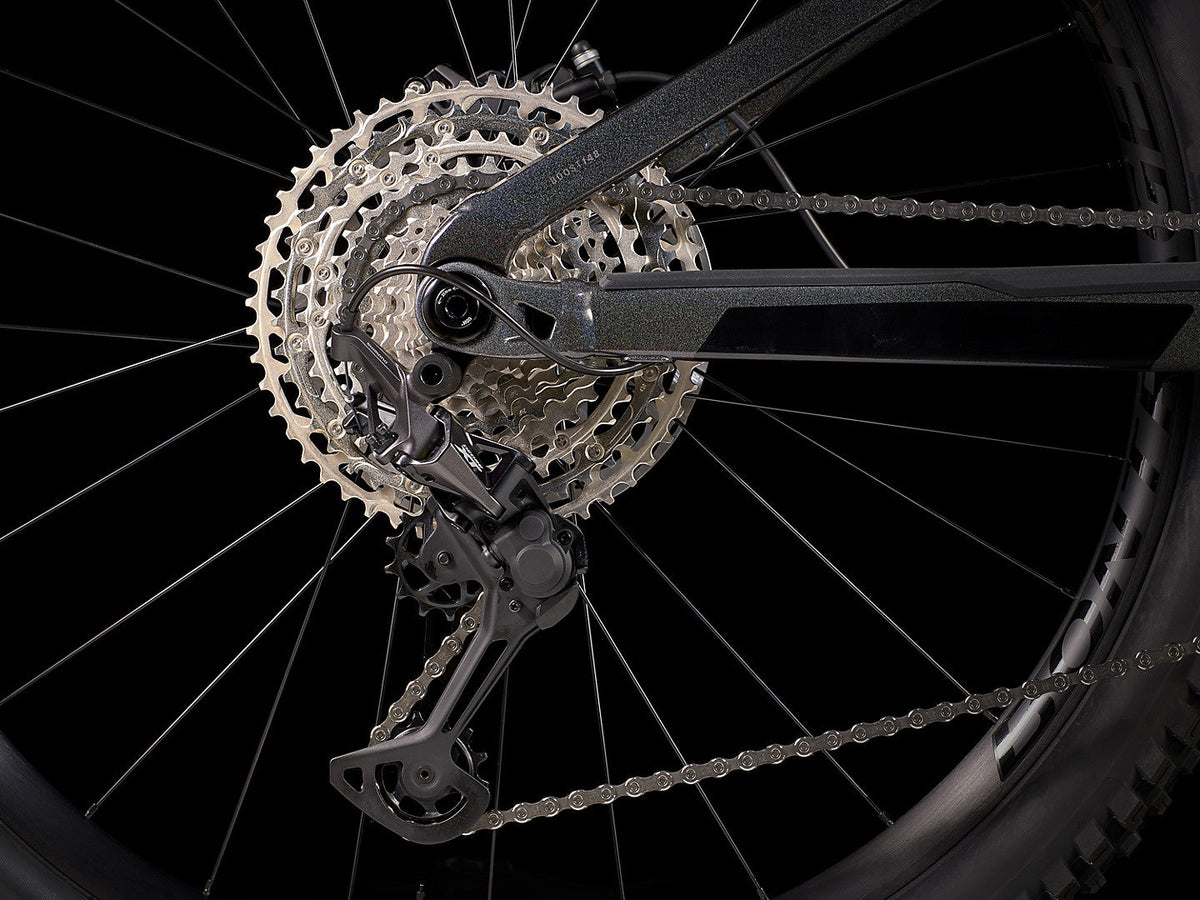

| Rear derailleur | Shimano XT M8100, long cage |
| Crank arm | Size: S, M, L, XL E*thirteen E*spec Plus, 34T, 160mm length |
| Crank arm | Size: S, M, L, XL E*thirteen E*spec Plus, 34T, 165 mm length |
| Chainring | Size: S, M, L, XL E*thirteen E*spec, 34T alloy, 55 mm chainline |
| Chainring | Size: S, M, L, XL E*thirteen, 34T, steel |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12 speed |
| Pedal | Wellgo VPE-536 |
| Max. chainring size | 34T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Seatpost | Size: M, L, XL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length |
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |

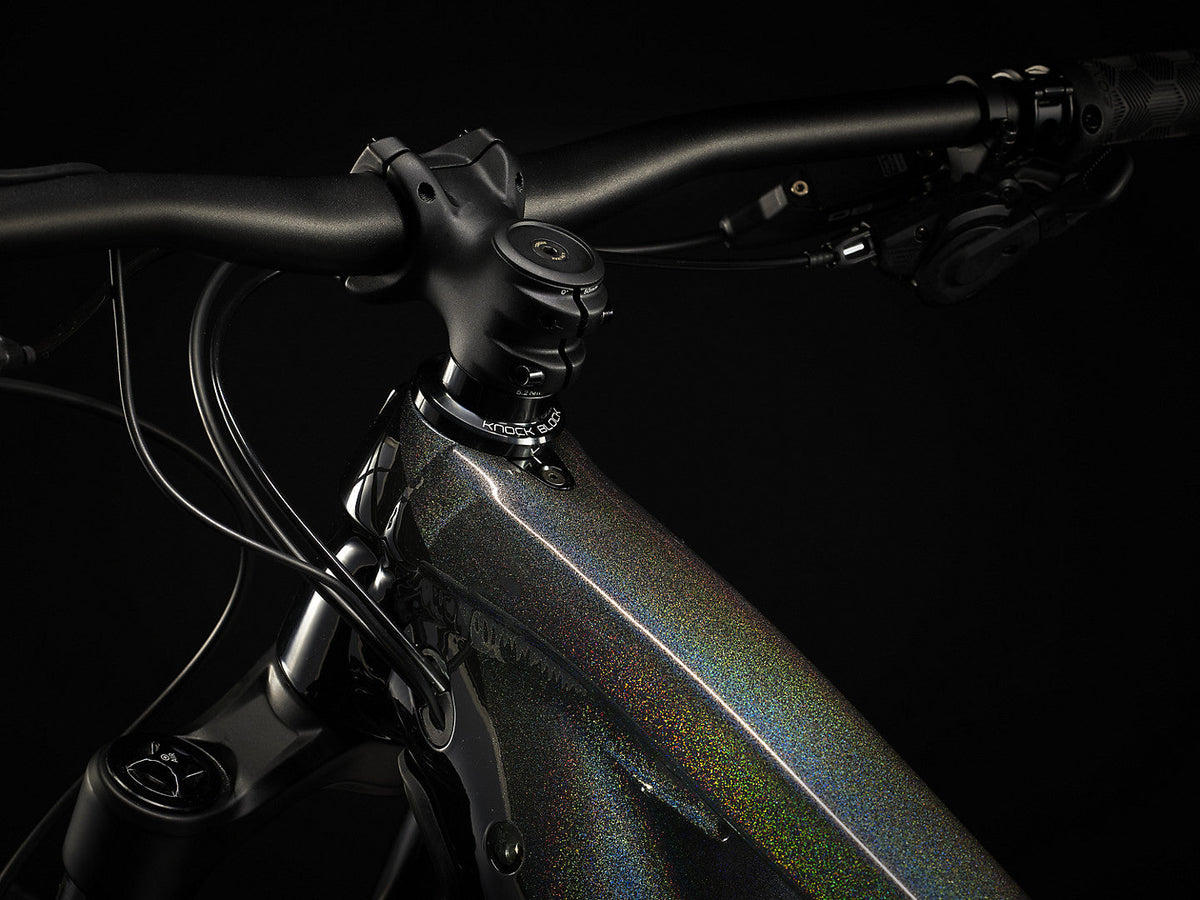

| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake rotor | Shimano RT76, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes: Front see fork manufacturer, rear 200 mm |
| Battery | Bosch PowerTube 625 Wh, smart system |
| Charger | Size: S, M, L, XL Bosch standard 2A, 110V, smart system |
| Charger | Size: S, M, L, XL Bosch standard 4A, 110V, smart system |

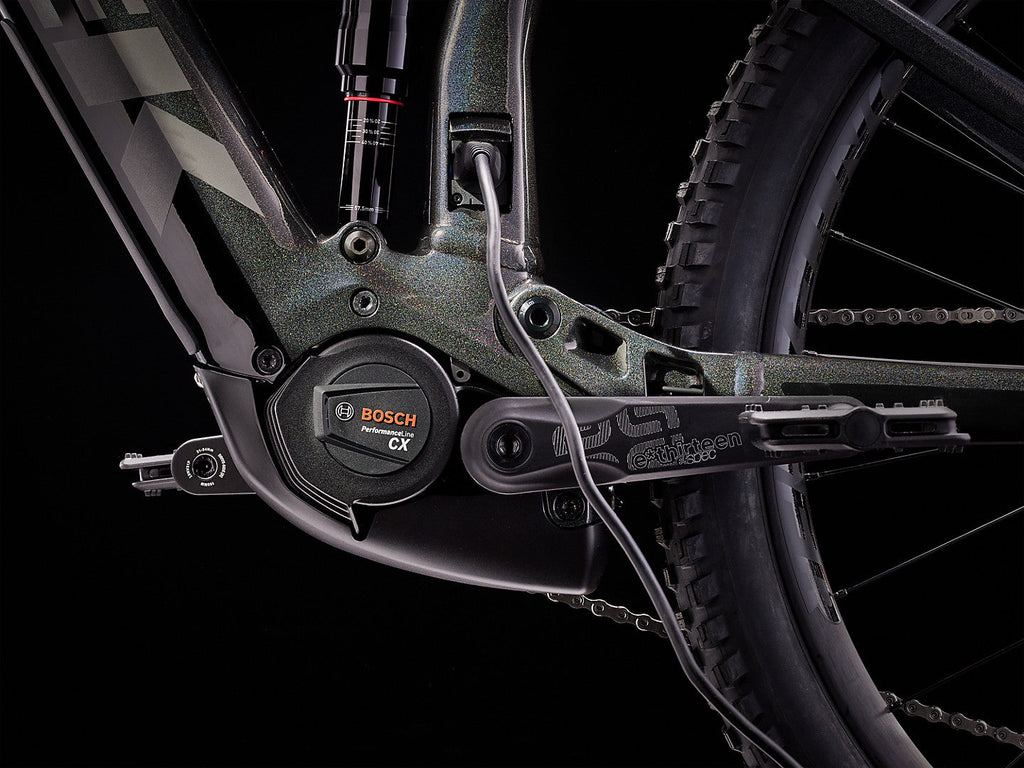

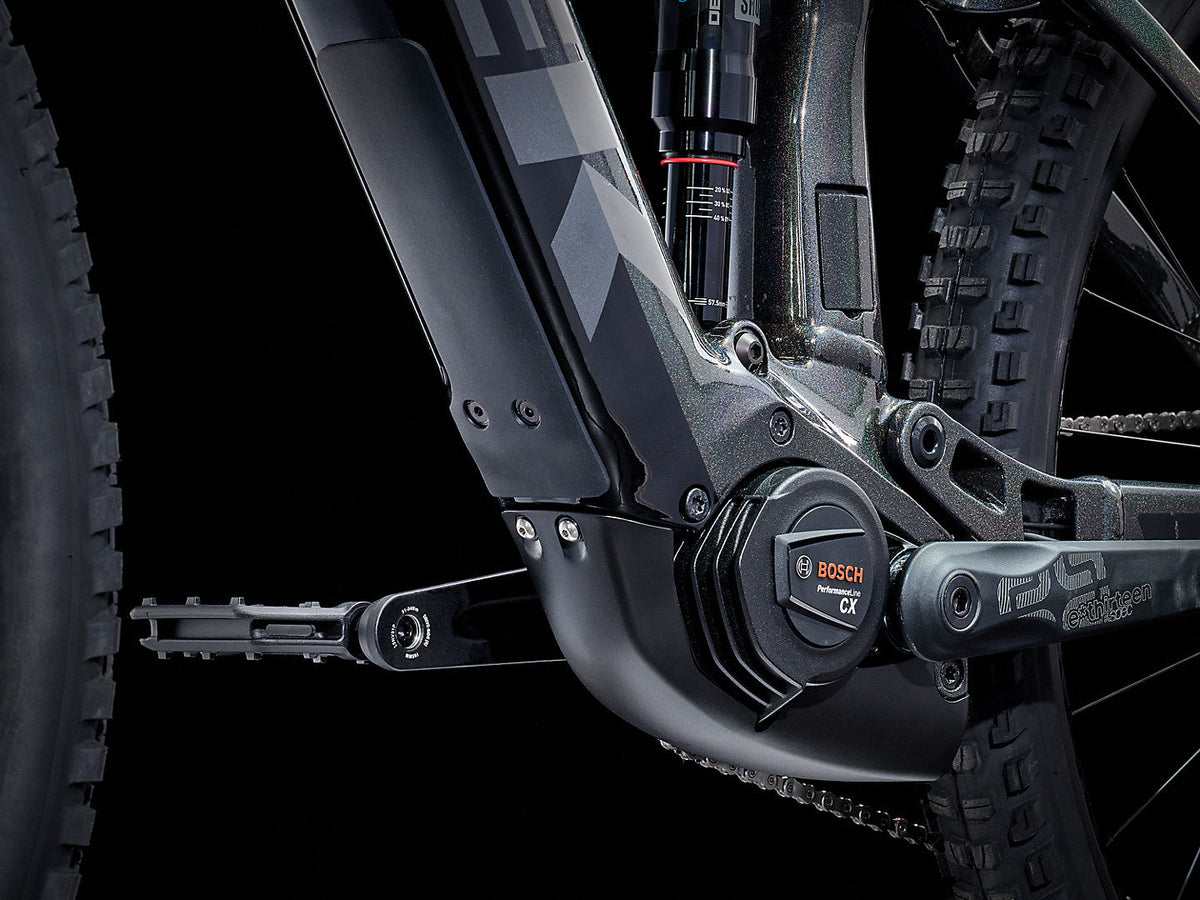

| Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC) |
| Computer | Size: S, M, L, XL Bosch Kiox 300, smart system |

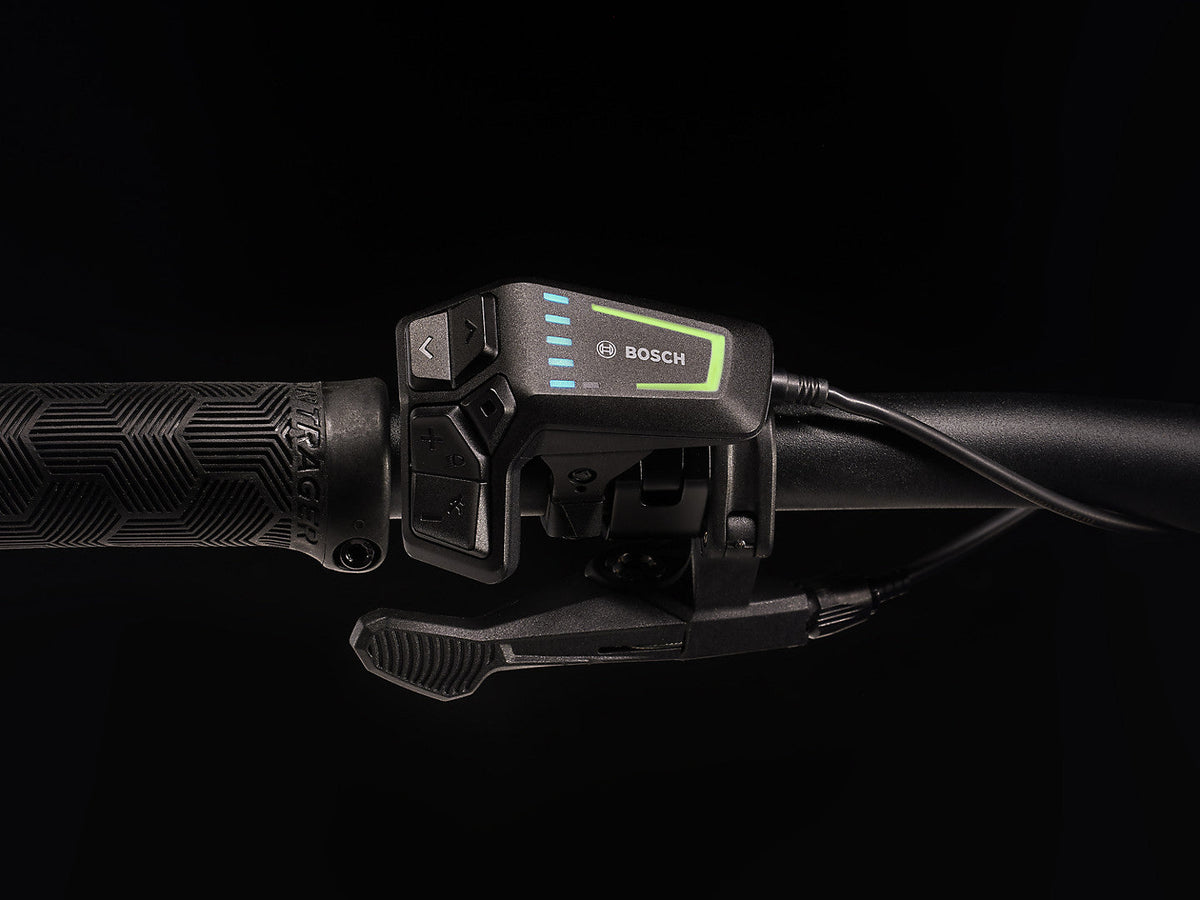

| Computer | Size: S, M, L, XL Bosch LED remote, smart system |
| Weight | M - 24.73 kg / 54.53 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
