Trek Émonda SL 5

Trek Émonda SL 5

R 41,500.00 R 50,000.00
ColourLithium Grey
Size58cm
In stock

The Trek Émonda SL 5 is built for fast road rides, training and racing. Compare the listed frame, components and size options to choose your setup.

Specifications

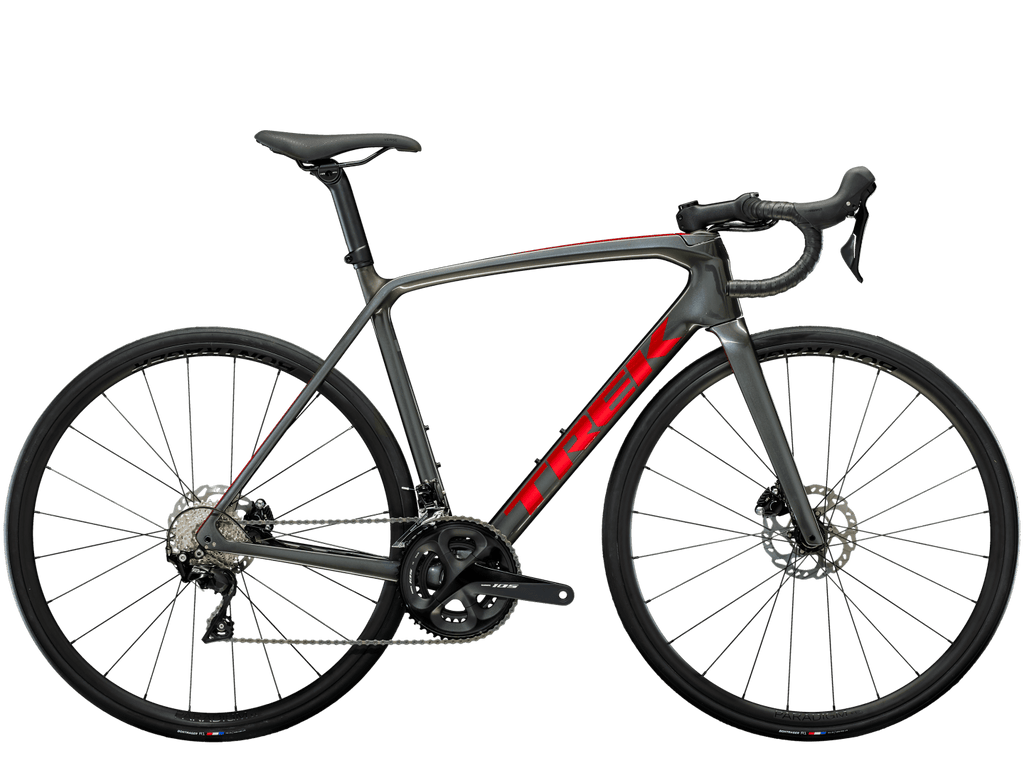

Model Trek Émonda SL 5 - Lithium Grey

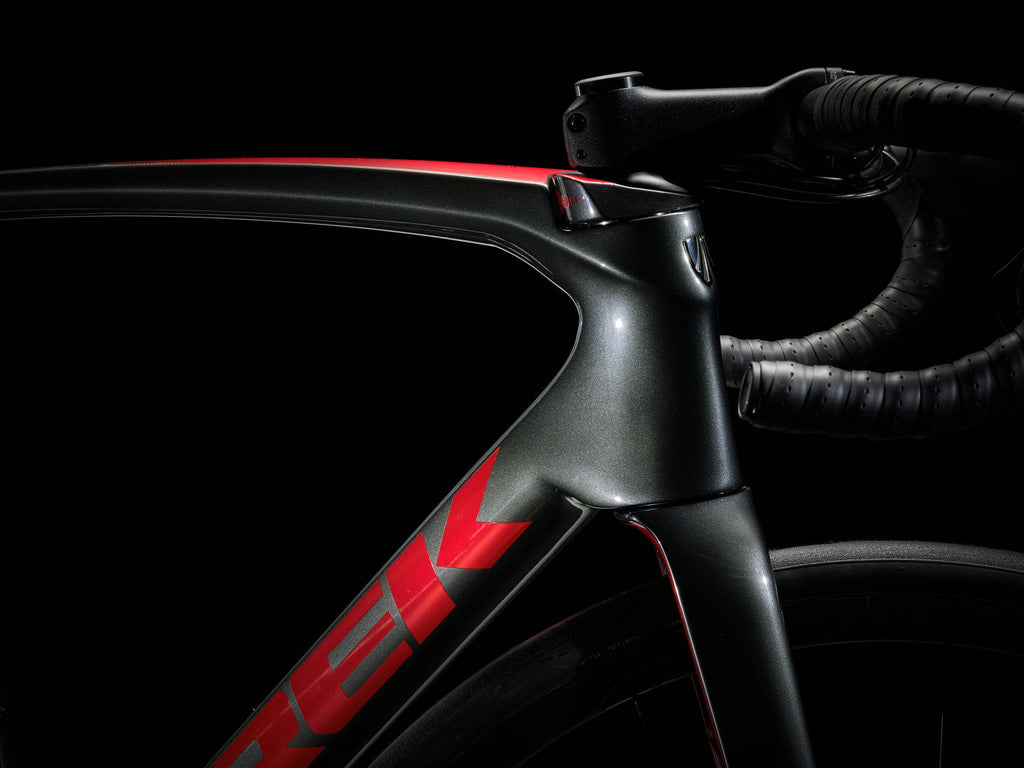

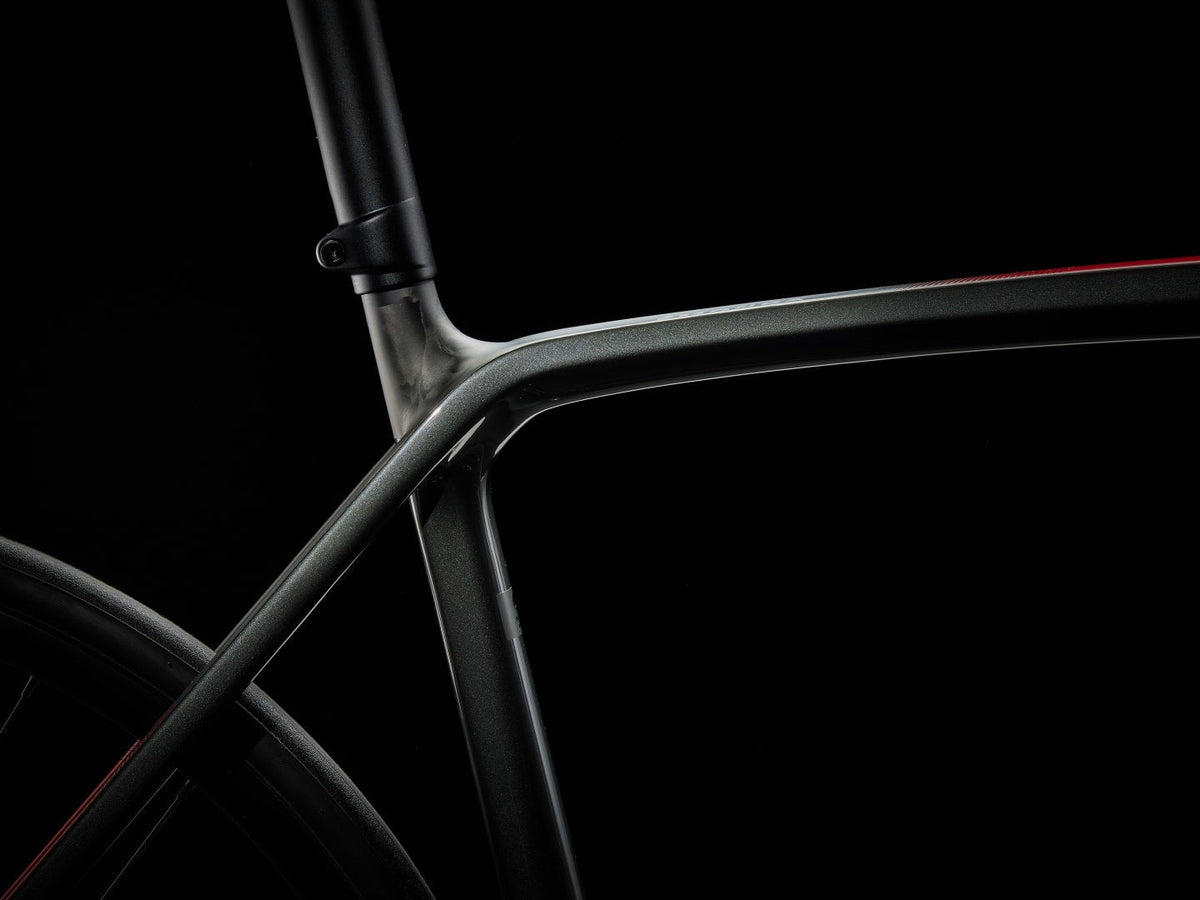

Frame Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Frame fit H1.5 Race
Hub front Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 c
Max tyre size 28c

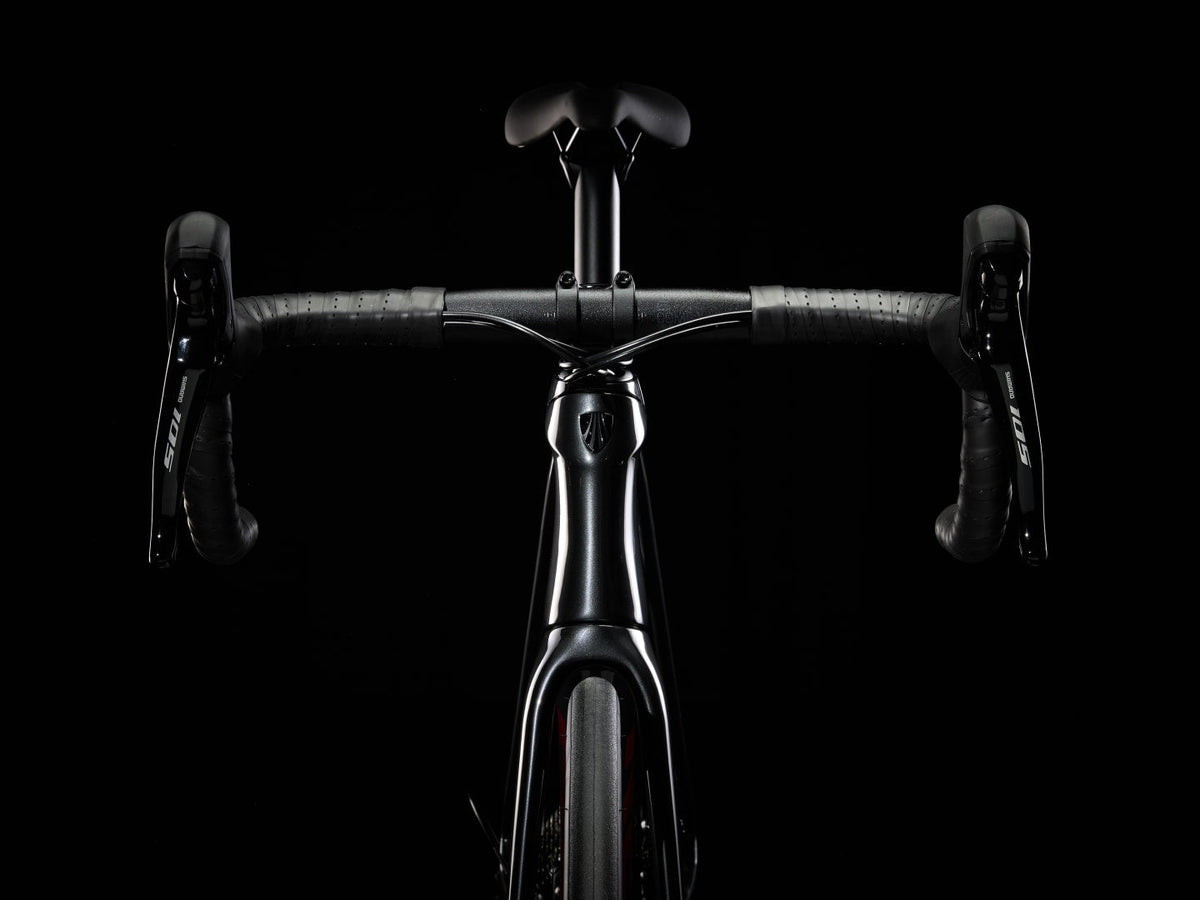

Shifter Size: 47, 50, 52 Shimano 105 R7025, short-reach lever, 11-speed
Shifter Size: 54, 56, 58, 60 Shimano 105 R7020, 11-speed
Front derailleur Shimano 105 R7000, braze-on
Rear derailleur Shimano 105 R7000, short cage, 30T max cog
Crank Size: 47 Shimano 105 R7000, 50/34 (compact), 165 mm length
Crank Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170 mm length

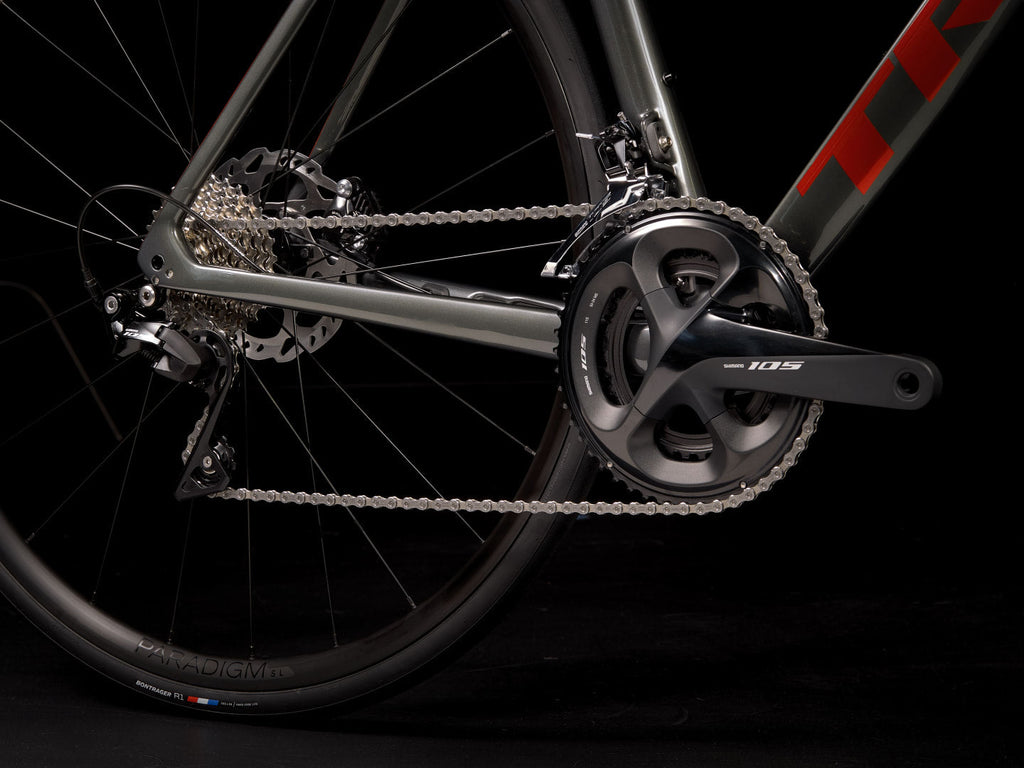

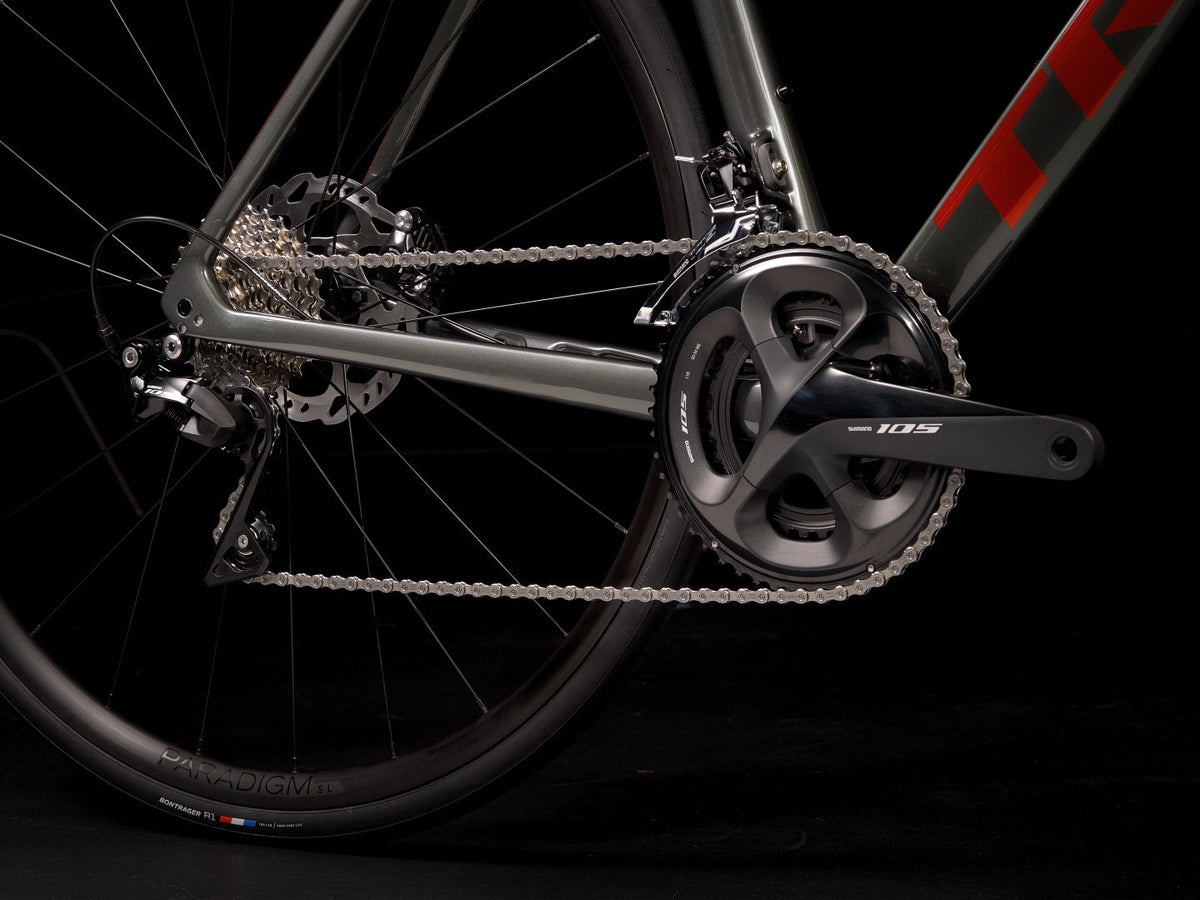

Crank Size: 54, 56, 58 Shimano 105 R7000, 50/34 (compact), 172.5 mm length
Crank Size: 60 Shimano 105 R7000, 50/34 (compact), 175 mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano 105 R7000, 11-30, 11 speed
Chain Shimano 105 HG601, 11-speed
Max. chainring size 1x: 50T, 2x: 53/39
Saddle Size: 47, 50, 52 Bontrager Verse Short Comp, steel rails, 155 mm width
Saddle Size: 54, 56, 58, 60 Bontrager Verse Short Comp, steel rails, 145 mm width
Seatpost Size: 47, 50, 52, 54 Bontrager alloy seat mast cap, 10 mm offset, short length
Seatpost Size: 56, 58, 60 Bontrager alloy seat mast cap, 10 mm offset, tall length

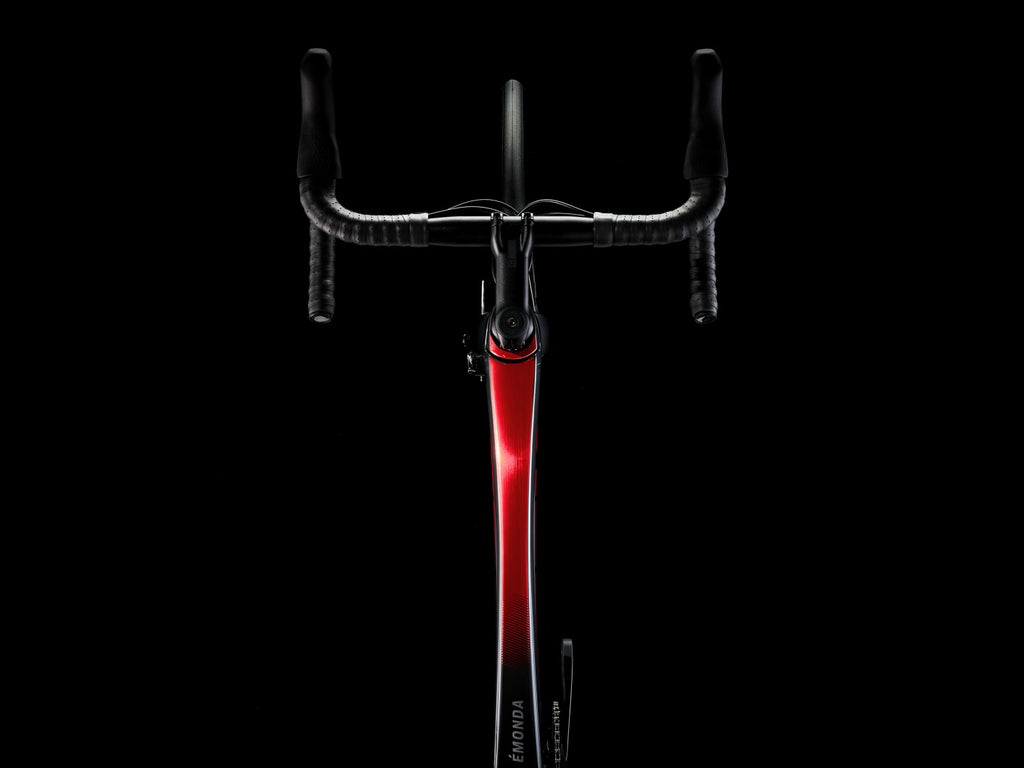

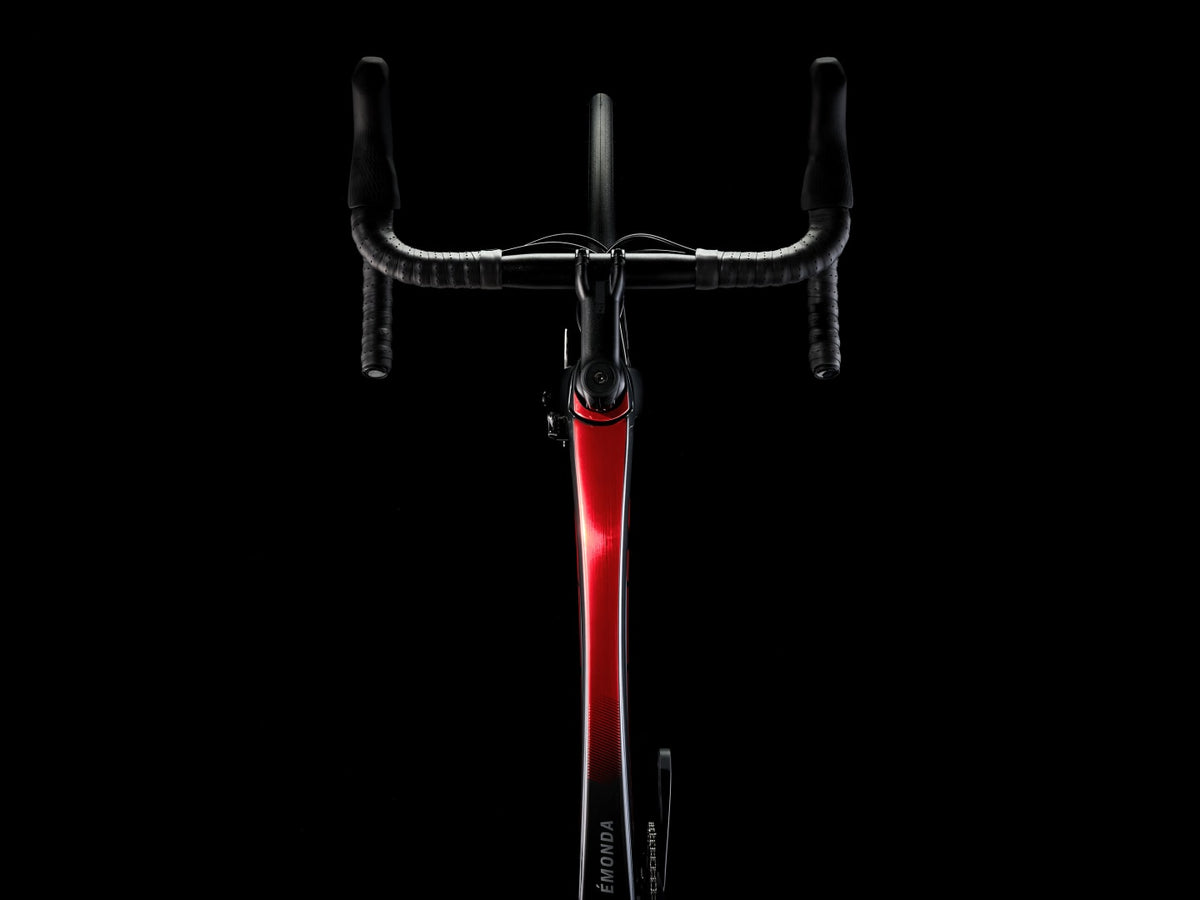

Handlebar Size: 47, 50 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width
Handlebar Size: 52 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
Handlebar Size: 54, 56, 58 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Handlebar Size: 60 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape Bontrager Supertack Perf tape

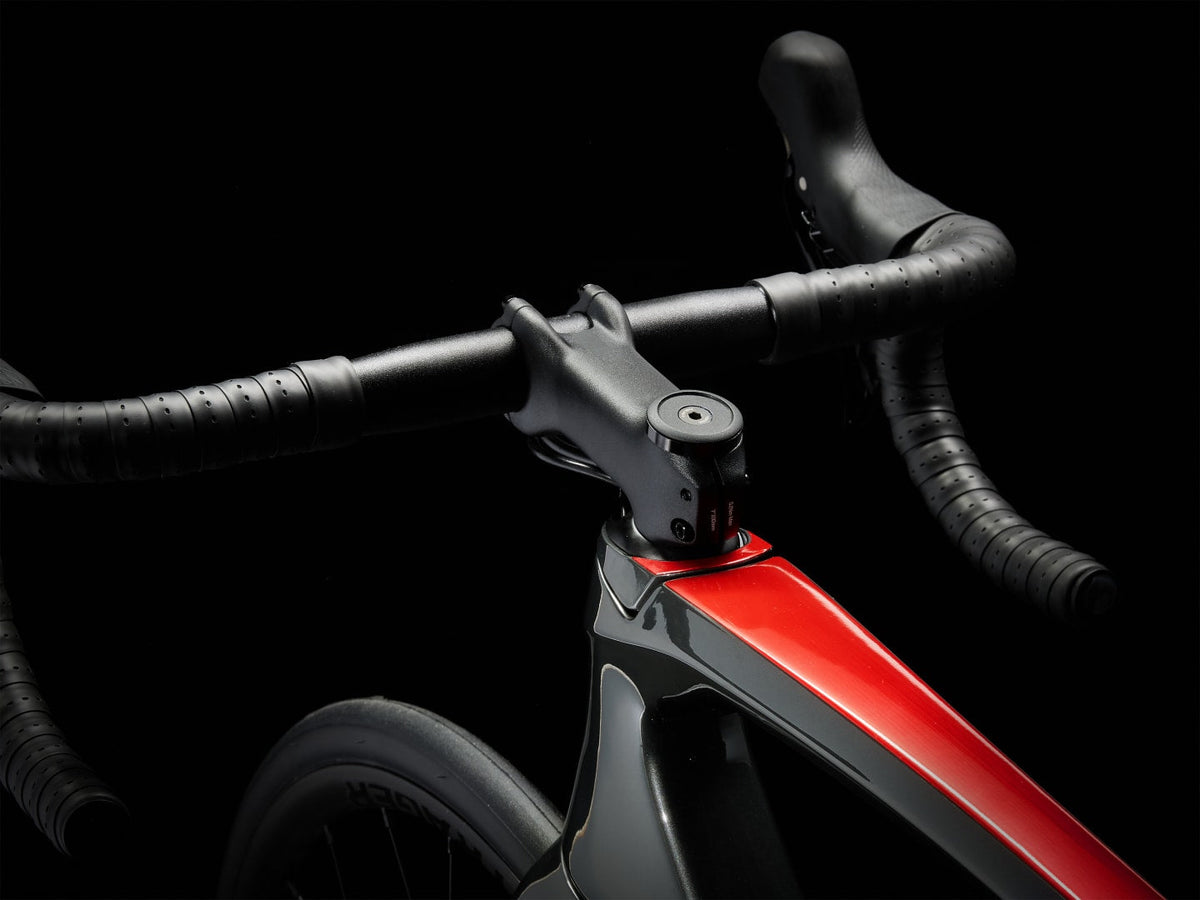

Stem Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Stem Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Stem Size: 58, 60 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

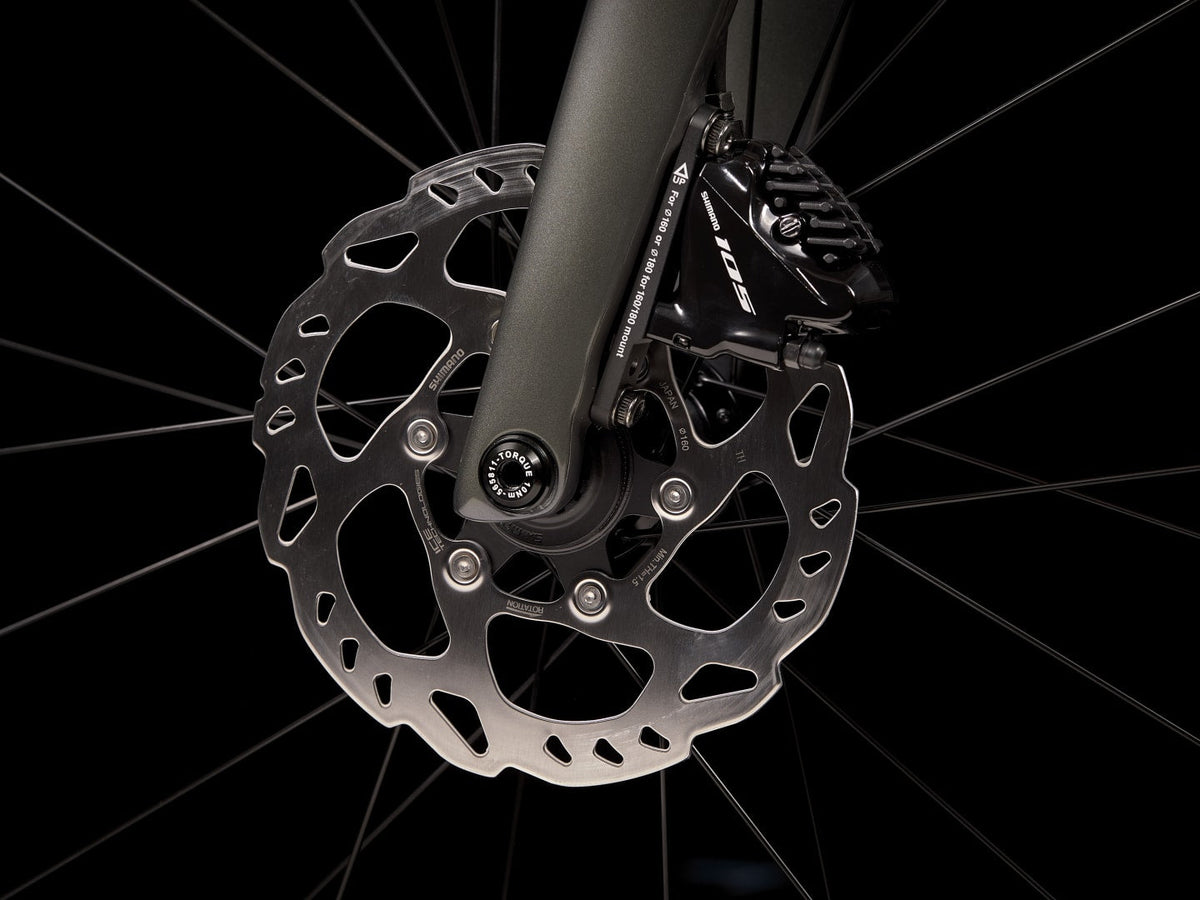

Brake Shimano 105 hydraulic disc
Brake rotor Shimano RT70, CentreLock, 160 mm
Rotor size Max brake rotor sizes: 160 mm front and rear
Weight 56 - 8.87 kg / 19.55 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
