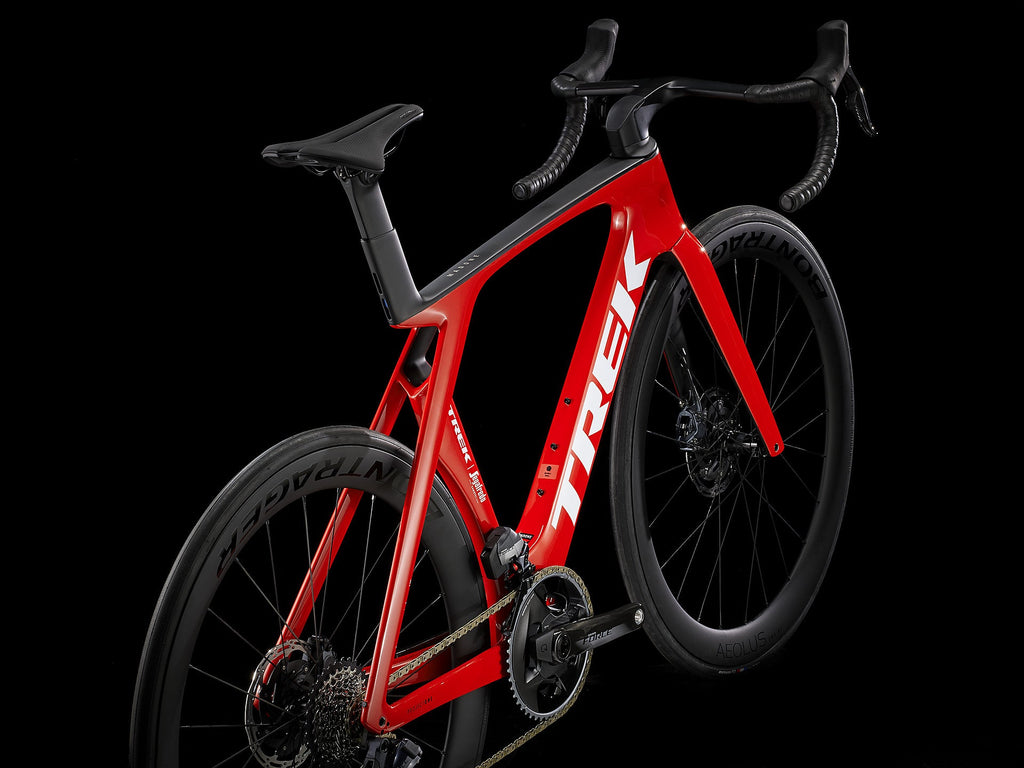

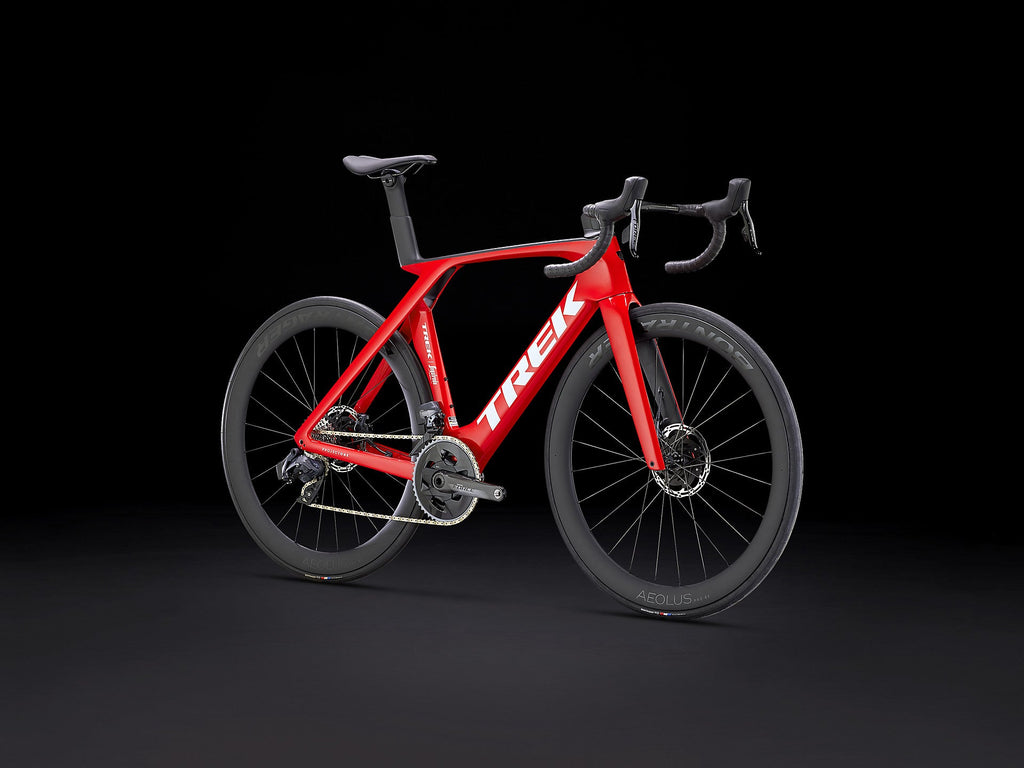

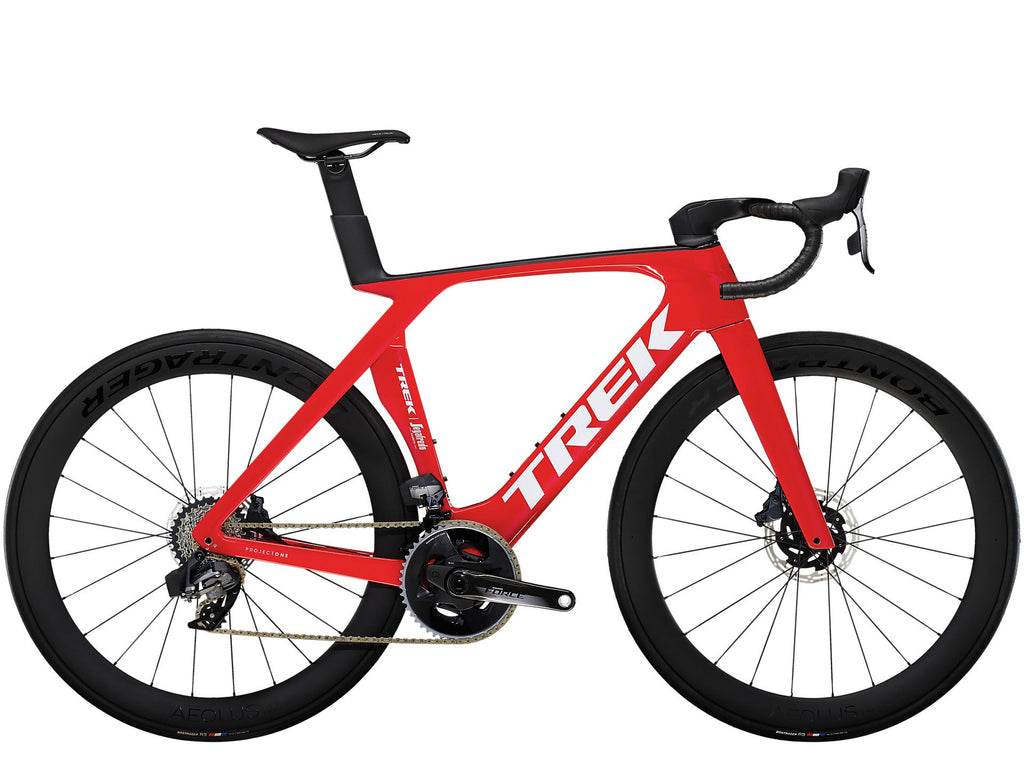

Gen 7 Trek Madone SLR 7 AXS
56
Sale price
R 130,200.00
Regular price
R 155,000.00
Skip to product information
In stock
Gen 7 Trek Madone SLR 7 AXS
Sale price
R 130,200.00
Regular price
R 155,000.00
The Gen 7 Trek Madone SLR 7 AXS is built for fast road rides, training and racing. Compare the listed frame, components and size options to choose your setup.
Specifications
| Model | Gen 7 Trek Madone SLR 7 AXS - 56cm |
|---|---|

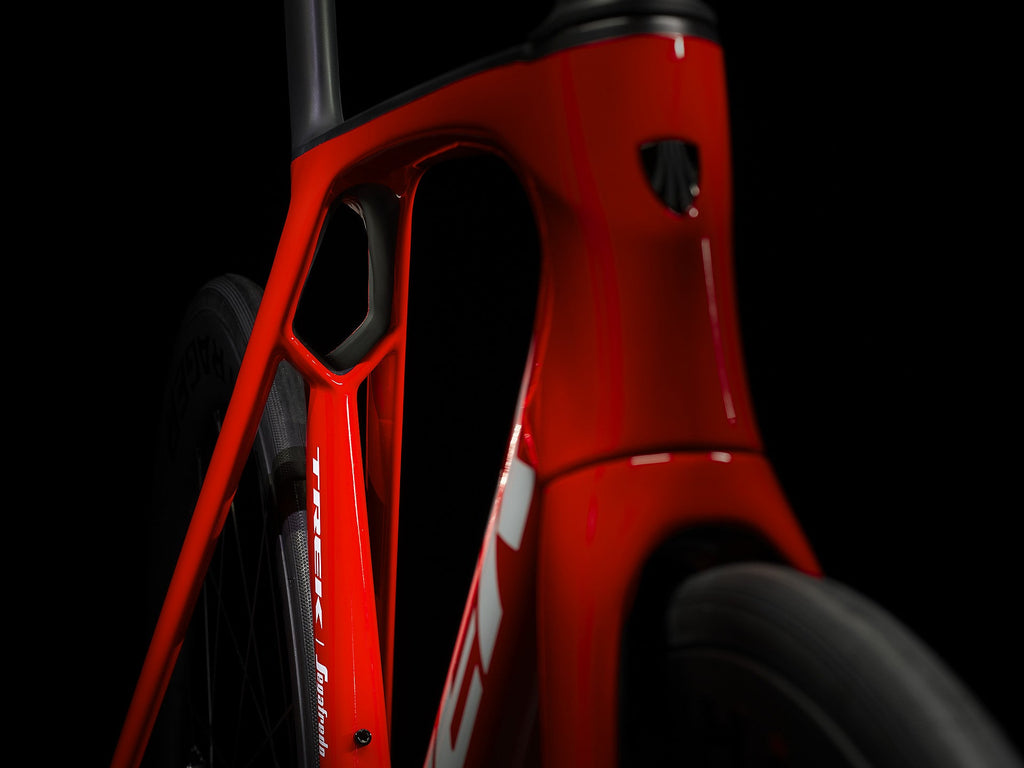

| Frame | 800 Series OCLV Carbon, KVF (Ka mmtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12 mm thru axle |
| Fork | Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100 mm thru axle |
| Frame fit | H1.5 Race |
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle |
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle |
| Skewer front | Bontrager Switch thru-axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready |
| Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c |
| Max tyre size | 28c |
| Shifter | SRAM Force eTap AXS, 12-speed |
| Front derailleur | SRAM Force eTap AXS, braze-on |
| Rear derailleur | SRAM Force eTap AXS, 36T max cog |

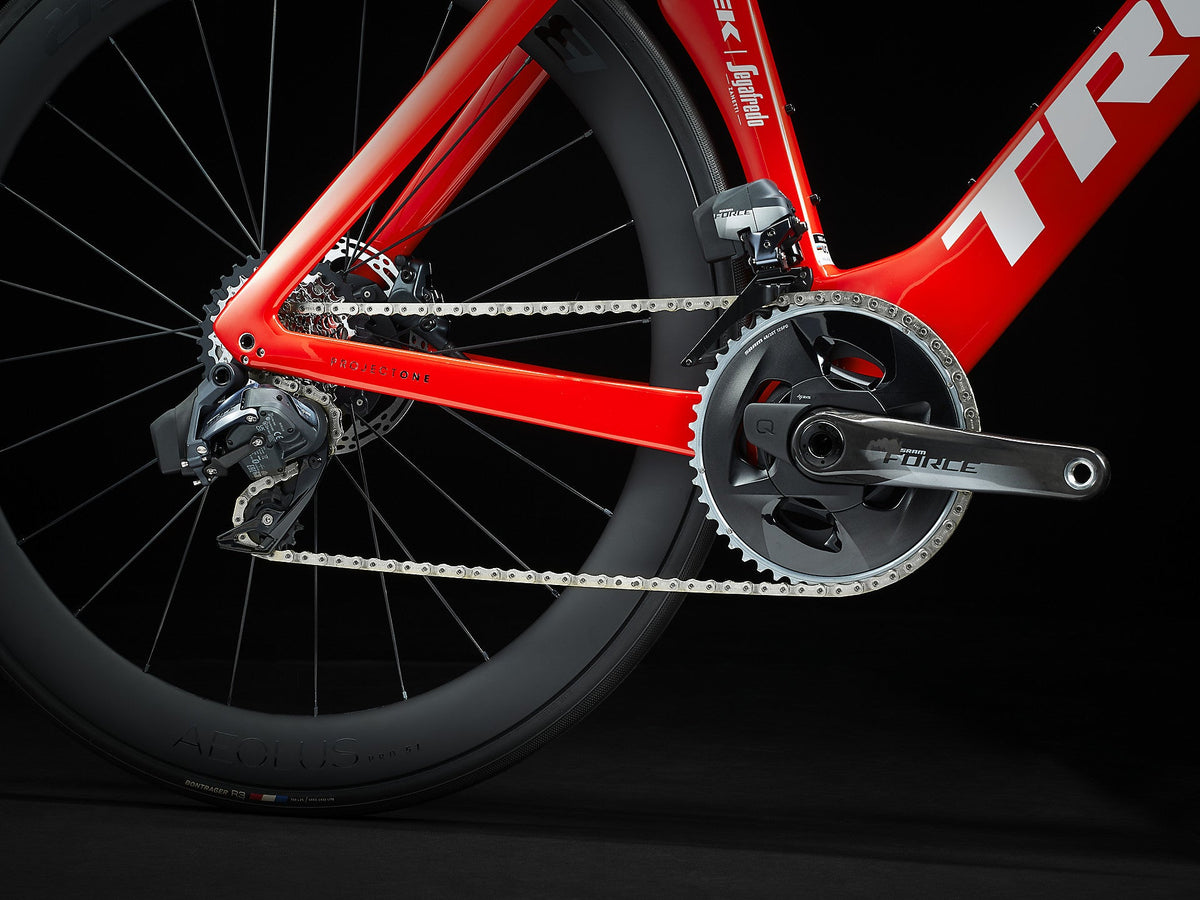

| Crank | Size: 47 SRAM Force AXS Power Meter, 48/35, DUB, 165 mm length |
| Crank | Size: 50, 52 SRAM Force AXS Power Meter, 48/35, DUB, 170 mm length |
| Crank | Size: 54, 56, 58 SRAM Force AXS Power Meter, 48/35, DUB, 172.5 mm length |
| Crank | Size: 60, 62 SRAM Force AXS Power Meter, 48/35, DUB, 175 mm length |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM Force XG-1270, 10-33, 12 speed |
| Chain | SRAM Force, 12 speed |
| Max. chainring size | 1x: 50T, 2x: 54/40 |
| Saddle | Size: 47, 50, 52 Bontrager Aeolus P2 Elite, 155 mm width |
| Saddle | Size: 54, 56, 58, 60, 62 Bontrager Aeolus Elite, austenite rails, 145 mm width |

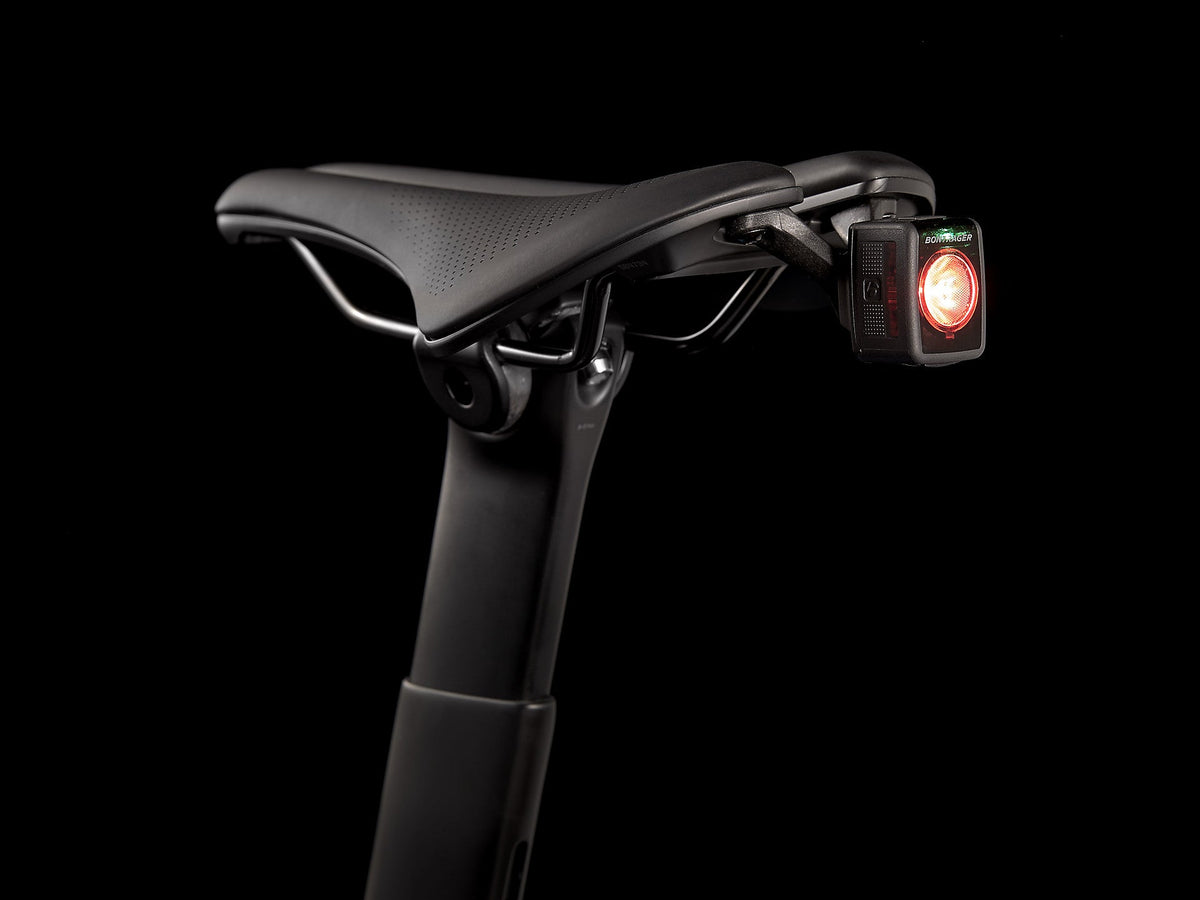

| Seatpost | Size: 47, 50, 52, 54 Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length |
| Seatpost | Size: 56, 58, 60, 62 Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, tall length |

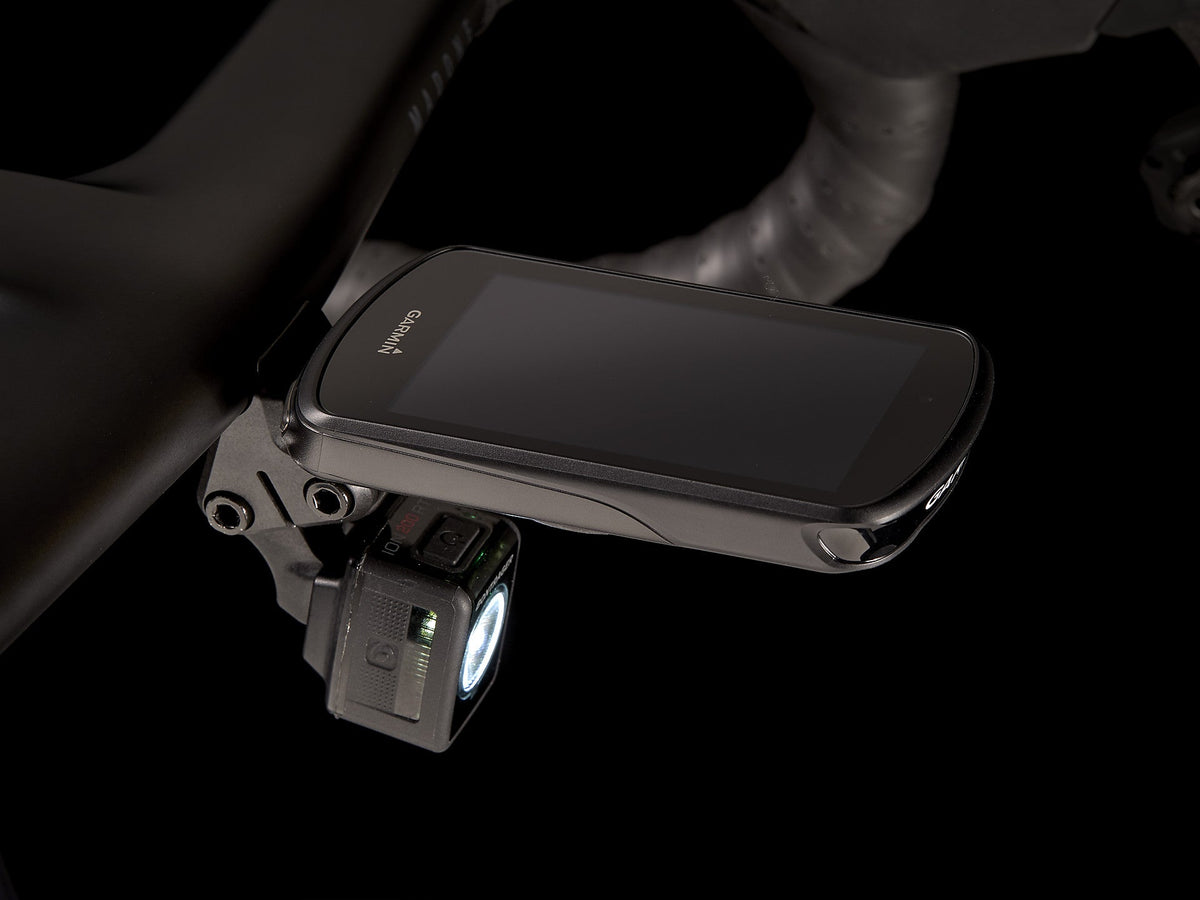

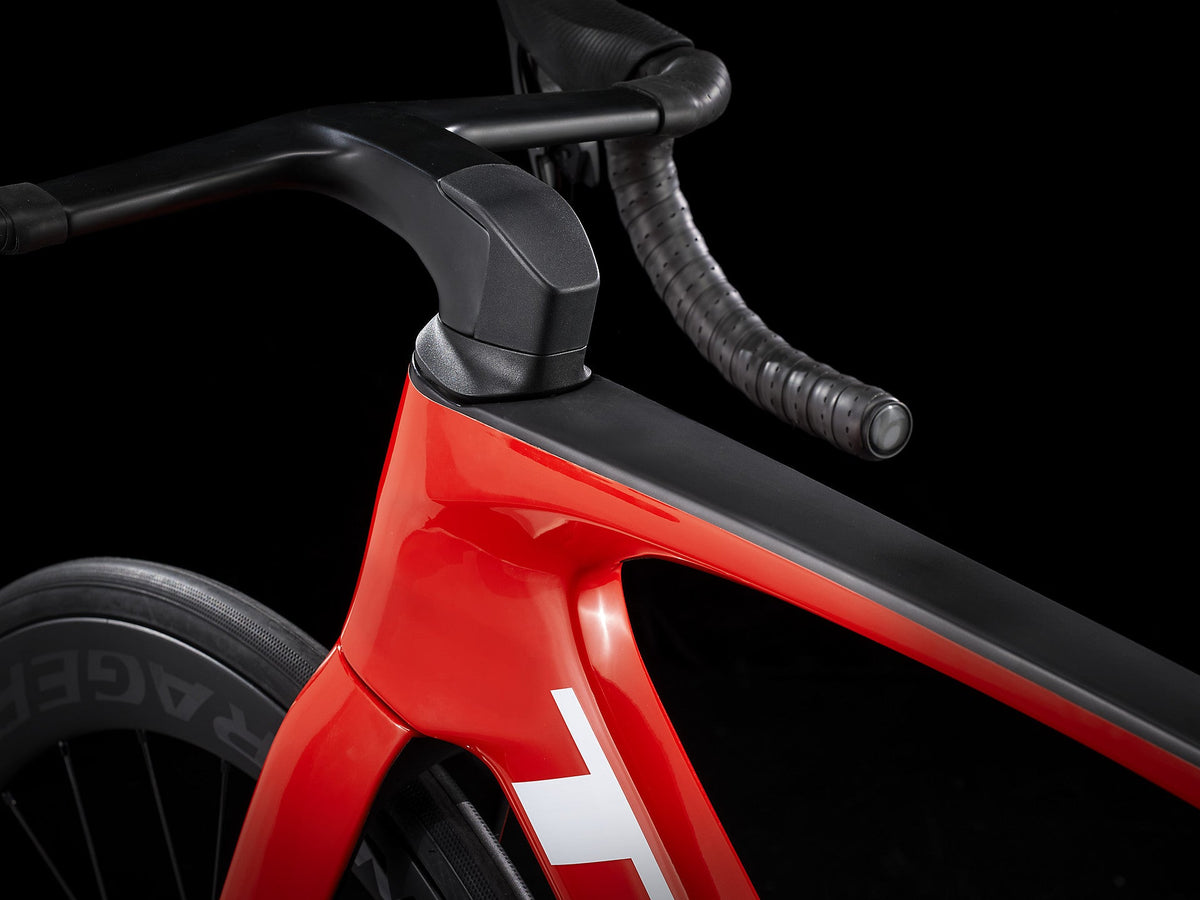

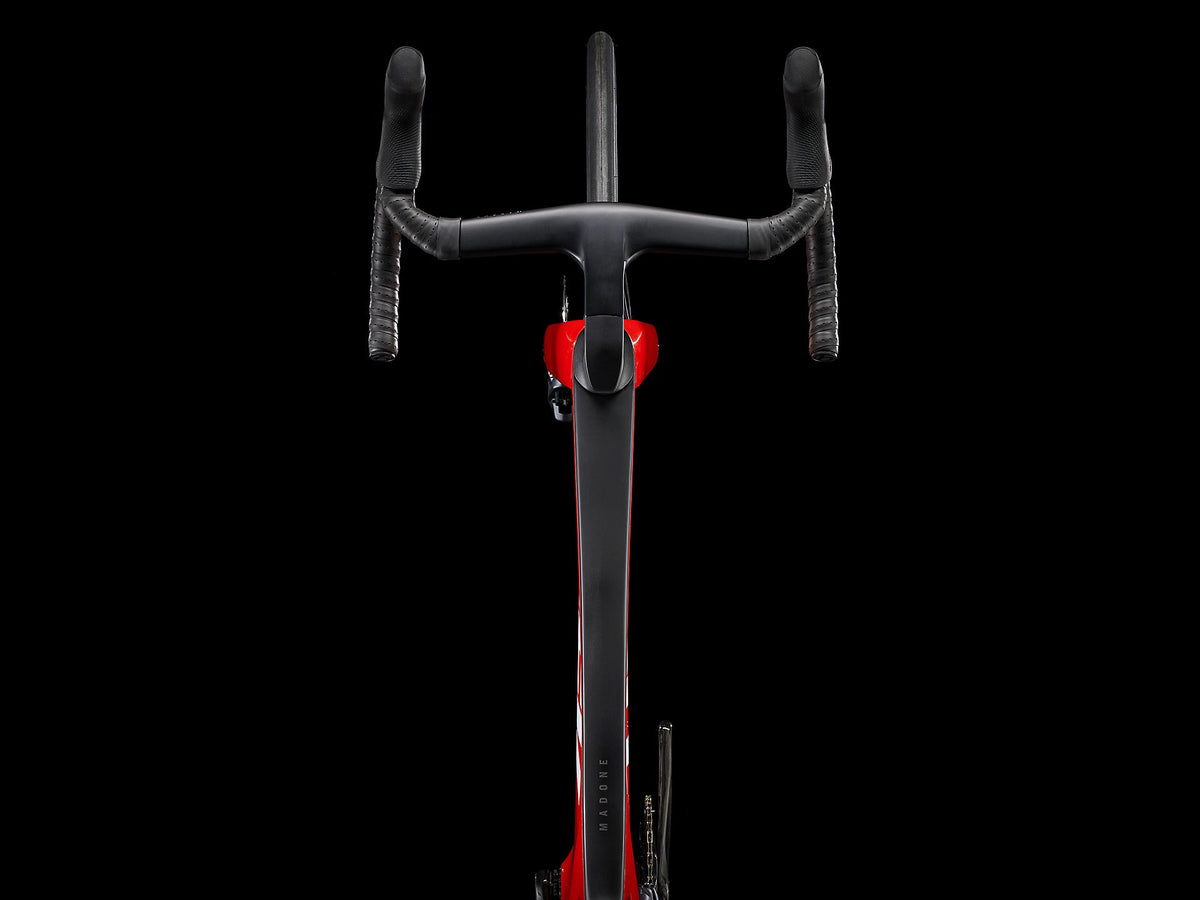

| Handlebar/stem (integrated) | Size: 47 Madone Integrated handlebar/stem, OCLV Carbon, 380 mm width, 80 mm stem length |
| Handlebar/stem (integrated) | Size: 50, 52 Madone Integrated handlebar/stem, OCLV Carbon, 400 mm width, 90 mm stem length |
| Handlebar/stem (integrated) | Size: 54 Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 90 mm stem length |
| Handlebar/stem (integrated) | Size: 56, 58 Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 100 mm stem length |
| Handlebar/stem (integrated) | Size: 60, 62 Madone Integrated handlebar/stem, OCLV Carbon, 440 mm width, 110 mm stem length |
| Handlebar tape | Bontrager Supertack Perf tape |

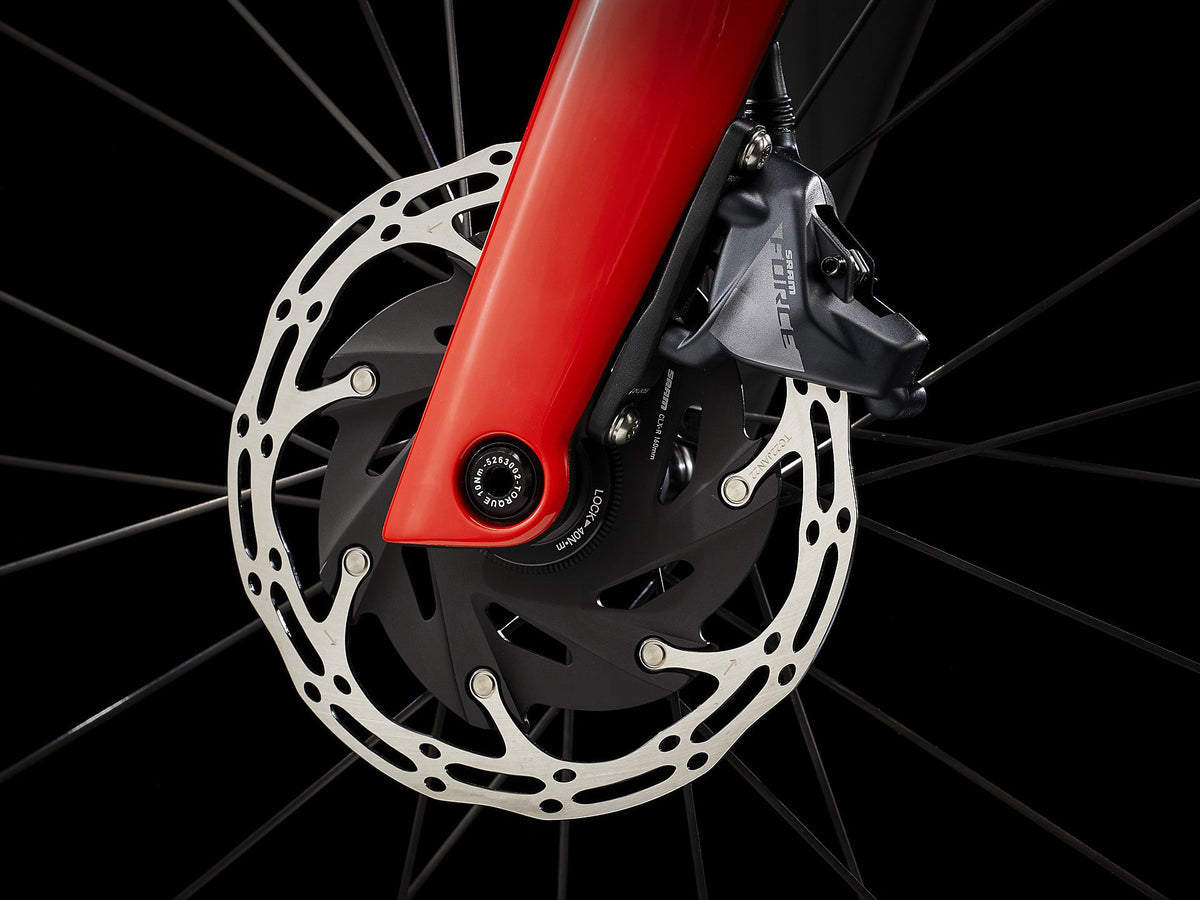

| Brake | SRAM Force eTap AXS hydraulic disc |
| Brake rotor | SRAM CenterLine X, CenterLock, round edge, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Battery | SRAM eTap battery pack (with charger) |
| Weight | 56 – 7.76 kg/17.11 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 275 pounds (125 kg). |
| Size | Rider Height | Inseam |
| 47 | 152 - 158 cm 5'0" - 5'2" | 71 - 75 cm 28" - 30" |
| 50 | 158 - 163 cm 5'2" - 5'4" | 74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" | 76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" | 78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" | 81 - 85 cm 32" - 33" |
| 58 | 180 - 185 cm 5'11" - 6'1" | 84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" | 86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" | 89 - 92 cm 35" - 36" |
| Frame size number | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Stem length | Saddle rail height min (w/short mast) | Saddle rail height max (w/short mast) | Saddle rail height min (w/tall mast) | Saddle rail height max (w/tall mast) |
| 47 cm | 700c | 42.4 | 74.6° | 10.0 | 72.1° | 51.2 | 7.2 | 41.0 | 4.5 | 6.8 | 97.2 | 69.2 | 37.3 | 50.7 | 80.0 | 55.0 | 62.0 | 58.5 | 65.5 |
| 50 cm | 700c | 45.3 | 74.6° | 11.1 | 72.1° | 52.1 | 7.2 | 41.0 | 4.5 | 6.2 | 97.4 | 71.1 | 37.8 | 52.1 | 90.0 | 58.0 | 65.0 | 61.5 | 68.5 |
| 52 cm | 700c | 48.3 | 74.2° | 12.1 | 72.8° | 53.4 | 7.2 | 41.0 | 4.5 | 5.8 | 97.7 | 73.2 | 38.3 | 53.3 | 90.0 | 61.0 | 68.0 | 64.5 | 71.5 |
| 54 cm | 700c | 49.6 | 73.7° | 13.1 | 73.0° | 54.3 | 7.0 | 41.0 | 4.5 | 5.6 | 98.1 | 74.4 | 38.6 | 54.1 | 90.0 | 63.5 | 70.5 | 67.0 | 74.0 |
| 56 cm | 700c | 52.5 | 73.3° | 15.1 | 73.5° | 55.9 | 7.0 | 41.0 | 4.0 | 5.8 | 98.3 | 76.8 | 39.1 | 56.3 | 100.0 | 66.5 | 73.0 | 70.0 | 76.5 |
| 58 cm | 700c | 55.3 | 73.0° | 17.1 | 73.8° | 57.4 | 6.8 | 41.1 | 4.0 | 5.7 | 99.2 | 79.3 | 39.6 | 58.1 | 100.0 | 68.5 | 75.5 | 72.0 | 79.0 |
| 60 cm | 700c | 57.3 | 72.8° | 19.1 | 73.9° | 58.6 | 6.8 | 41.1 | 4.0 | 5.6 | 100.1 | 81.1 | 39.9 | 60.1 | 110.0 | 70.5 | 77.5 | 74.0 | 81.0 |
| 62 cm | 700c | 59.3 | 72.5° | 21.1 | 73.9° | 59.8 | 6.8 | 41.2 | 4.0 | 5.6 | 101.0 | 82.9 | 40.3 | 62.0 | 110.0 | 73.0 | 80.5 | 76.5 | 84.0 |
