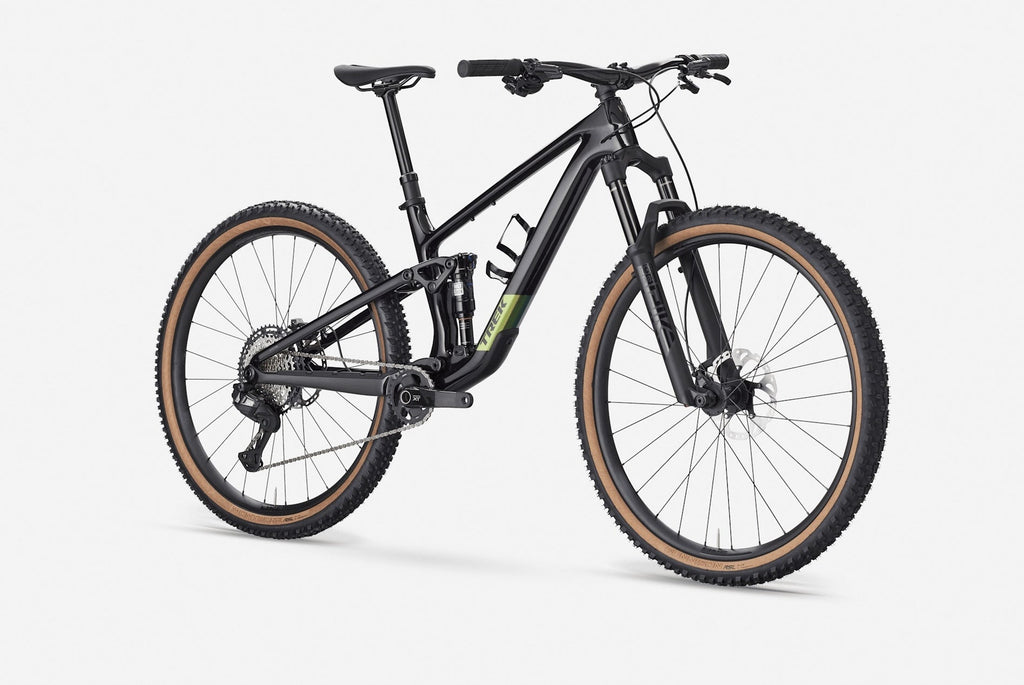

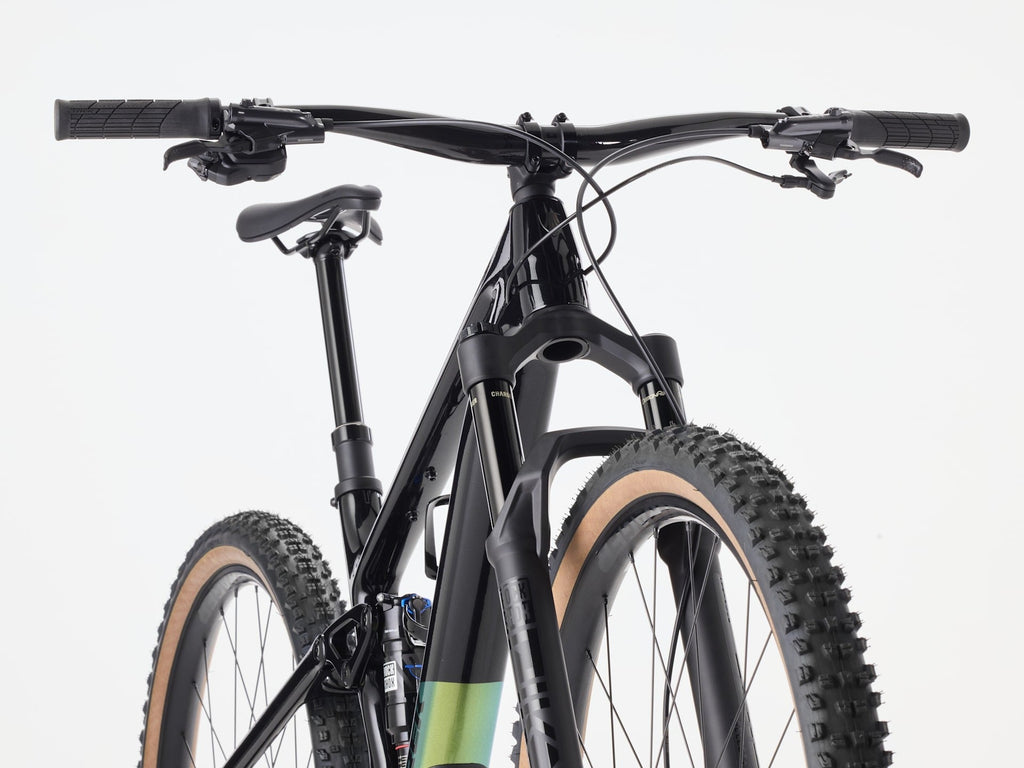

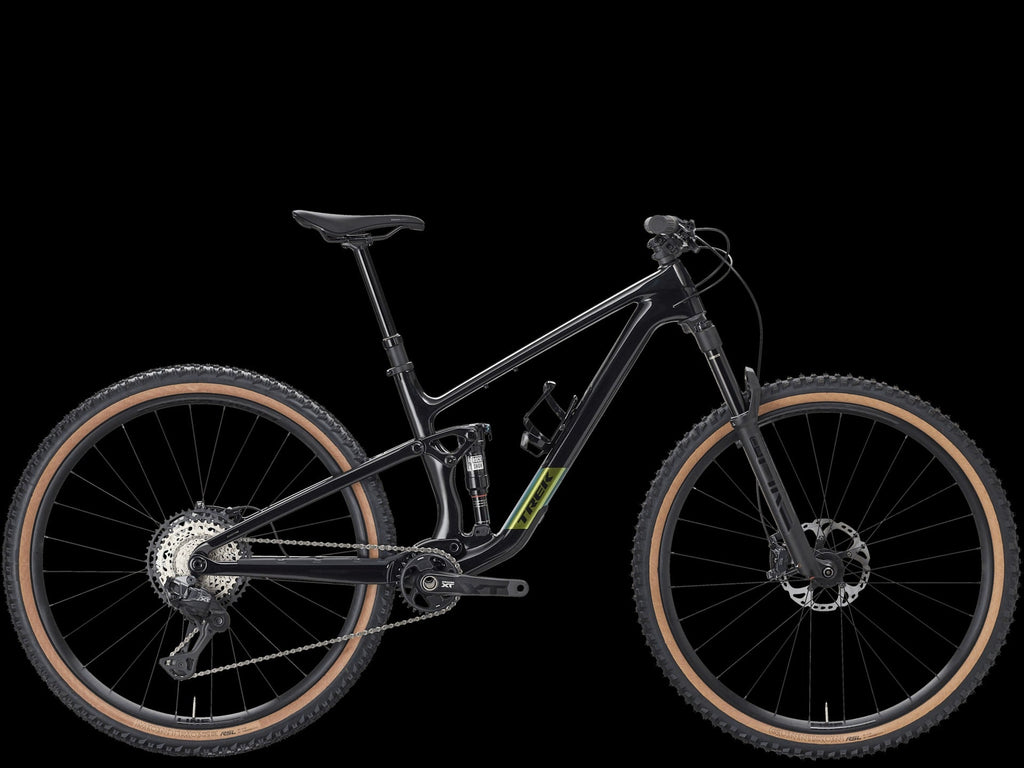

2027 Trek Top Fuel 9.8 XT Di2 Gen 4
Dark Star / Small (27.5" wheel)
Sale price
R 92,400.00
Regular price
R 110,000.00
Skip to product information
In stock
2027 Trek Top Fuel 9.8 XT Di2 Gen 4
Sale price
R 92,400.00
Regular price
R 110,000.00
The 2027 Trek Top Fuel 9.8 XT Di2 Gen 4 is built for trail rides that combine climbs, corners and descents. Compare the listed frame, components and size options to choose your setup.
Specifications
| Model | 2027 Trek Top Fuel 9.8 XT Di2 Gen 4 - Dark Star |
|---|---|
| Frame | Size: XL, L, S , M, ML OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm travel |
| Fork | Size: XL, L, S , M, ML RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel |

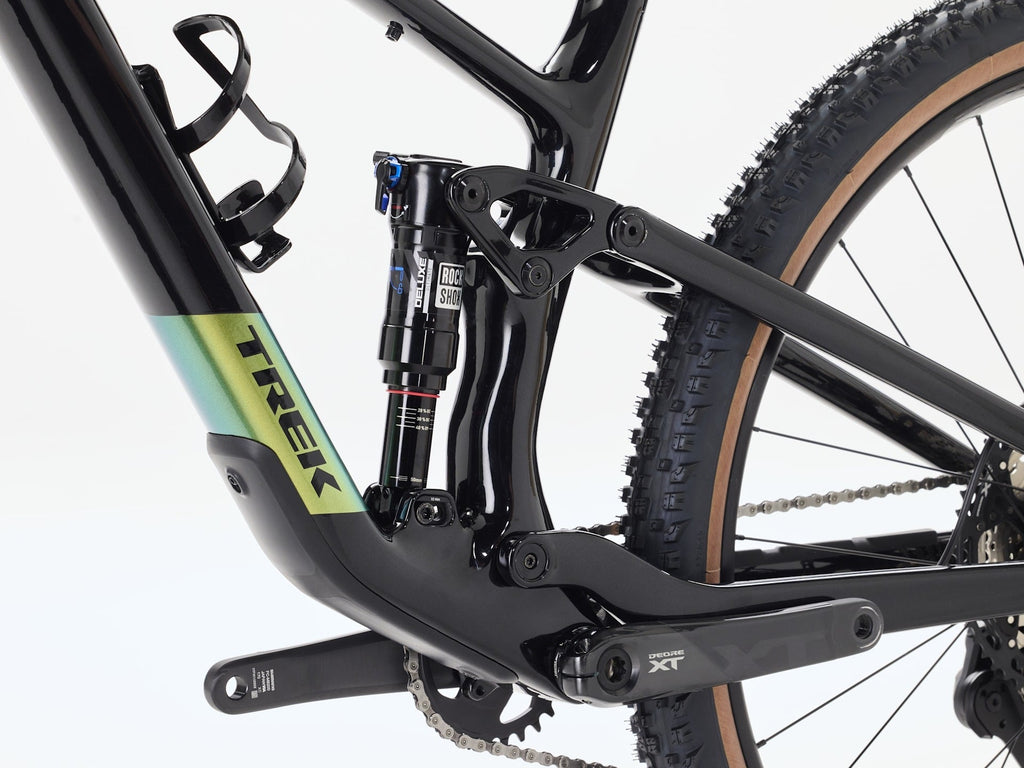

| Shock | Size: XL, L, S , M, ML RockShox Deluxe Ultimate RCT, 185 mm x 50 mm |
| Wheel front | Size: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5" |
| Wheel front | Size: XL, L, M, ML Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
| Wheel rear | Size: S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 27.5" |
| Wheel rear | Size: XL, L, M, ML Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle, 29" |
| Skewer rear | Size: XL, L, S , M, ML Bontrager Switch thru-axle, removable lever |
| Tyre | Size: S Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40" |
| Tyre | Size: XL, L, M, ML Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" |
| Tyre | Size: XL, L, M, ML Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" |
| Tyre part | Size: XL, L, S , M, ML Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| Shifter | Size: XL, L, S , M, ML Shimano XT Di2 M8250, 12-speed |

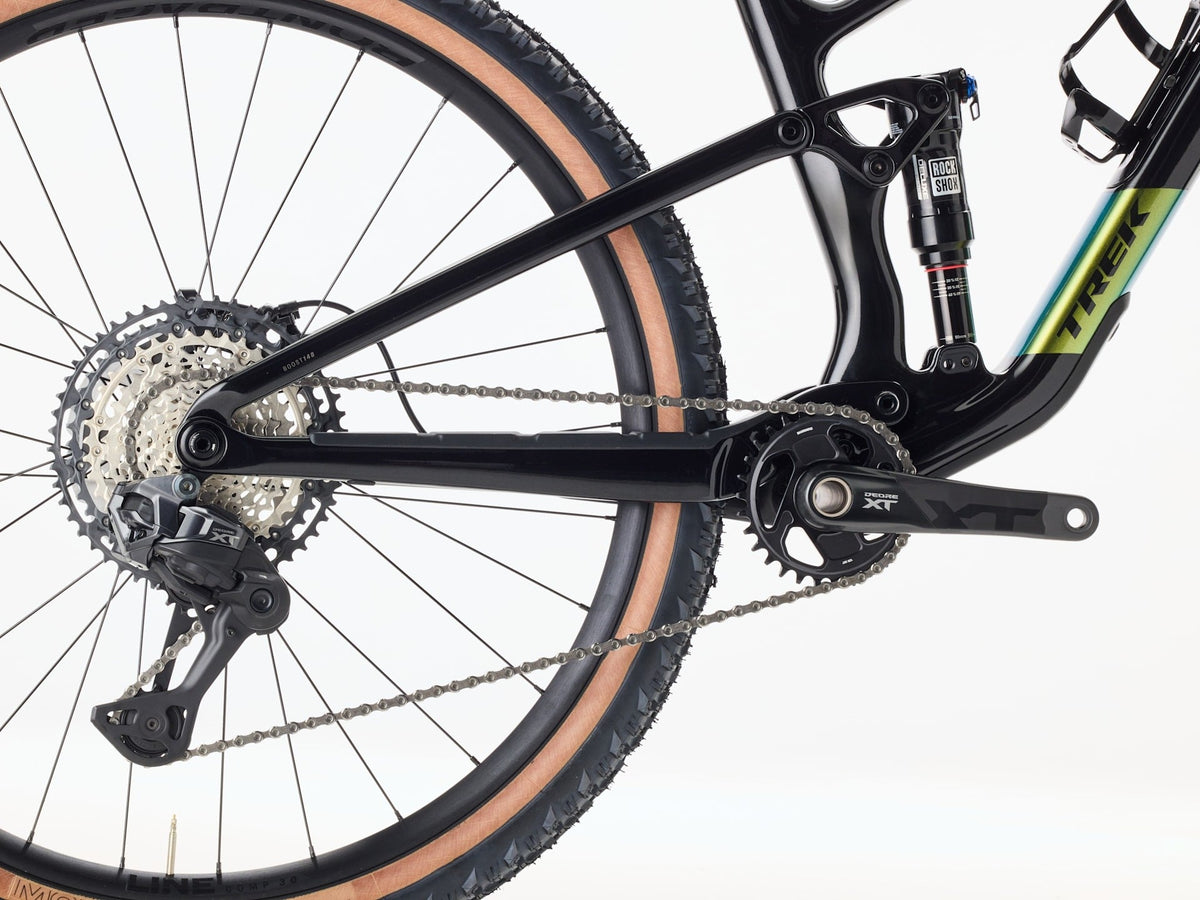

| Rear derailleur | Size: XL, L, S , M, ML Shimano XT M8250, long cage |
| Crank | Size: XL, L, S , M, ML Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length |
| Bottom bracket | Size: XL, L, S , M, ML Shimano BB-MT501 BSA |
| Cassette | Size: XL, L, S , M, ML Shimano XT M8200, 10-51, 12-speed |
| Chain | Size: XL, L, S , M, ML Shimano Ultegra/XT M8100, 12-speed |
| Chain | Size: ML Shimano XT M8100, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
| Saddle | Size: XL, L, S , M, ML Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length |
| Seatpost | Size: M, ML Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
| Seatpost | Size: XL, L Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |

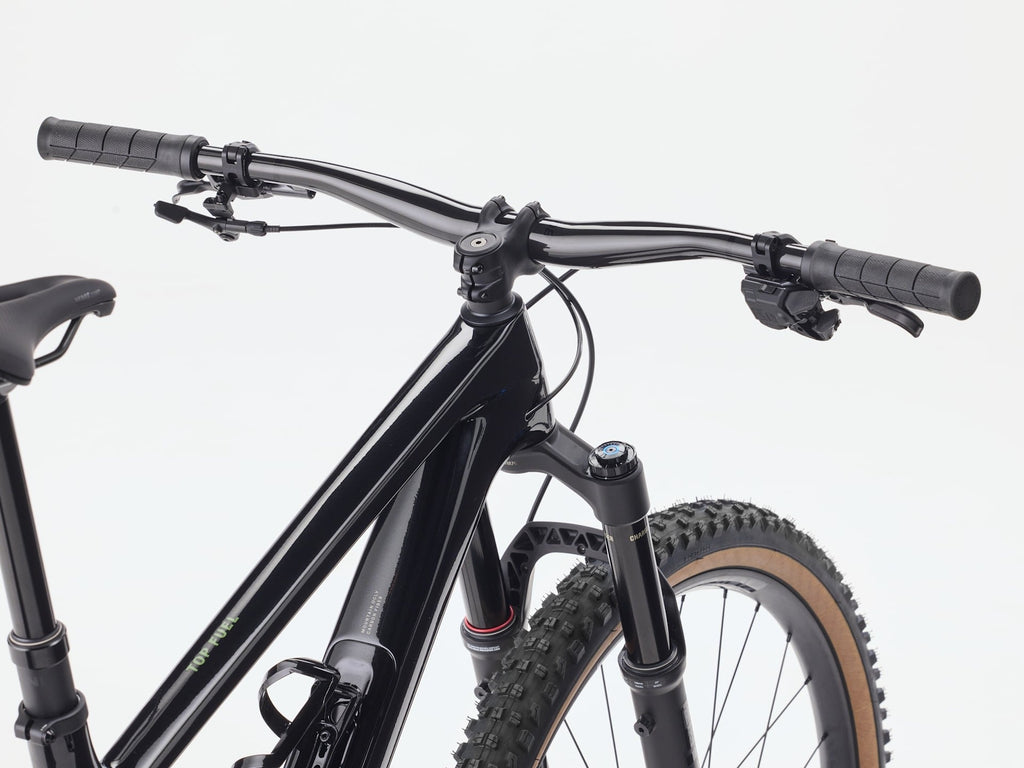

| Handlebar | Size: XL, L, S , M, ML Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Size: XL, L, S , M, ML Trek Line Elite, lock-on |
| Stem | Size: XL, L, S , M, ML Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length |
| Brake | Size: XL, L, S , M, ML Shimano XT M8200 4-piston hydraulic disc |
| Brake rotor | Size: XL, L, S , M, ML Shimano RT86, 6-bolt, 180 mm |
| Rotor size | Max brake rotor sizes – Frame: 200 mm, min 180 mm |
| Weight | M - 14.00 kg / 30.86 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
