2027 Trek Checkmate SLR 7 AXS
Gloss Trek Black/Matte Carbon Smoke / X-Small
Sale price
R 155,400.00
Regular price
R 185,000.00
Skip to product information
In stock
2027 Trek Checkmate SLR 7 AXS
Sale price
R 155,400.00
Regular price
R 185,000.00
The 2027 Trek Checkmate SLR 7 AXS is built for mixed-surface rides that connect tarmac and gravel. Compare the listed frame, components and size options to choose your setup.

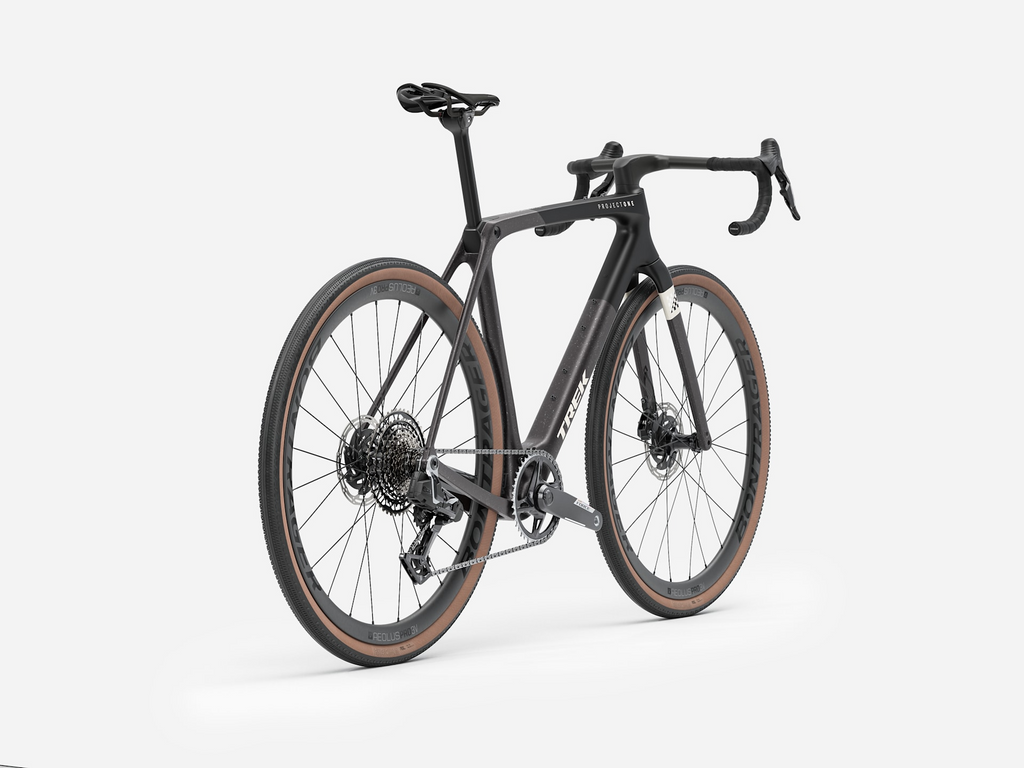

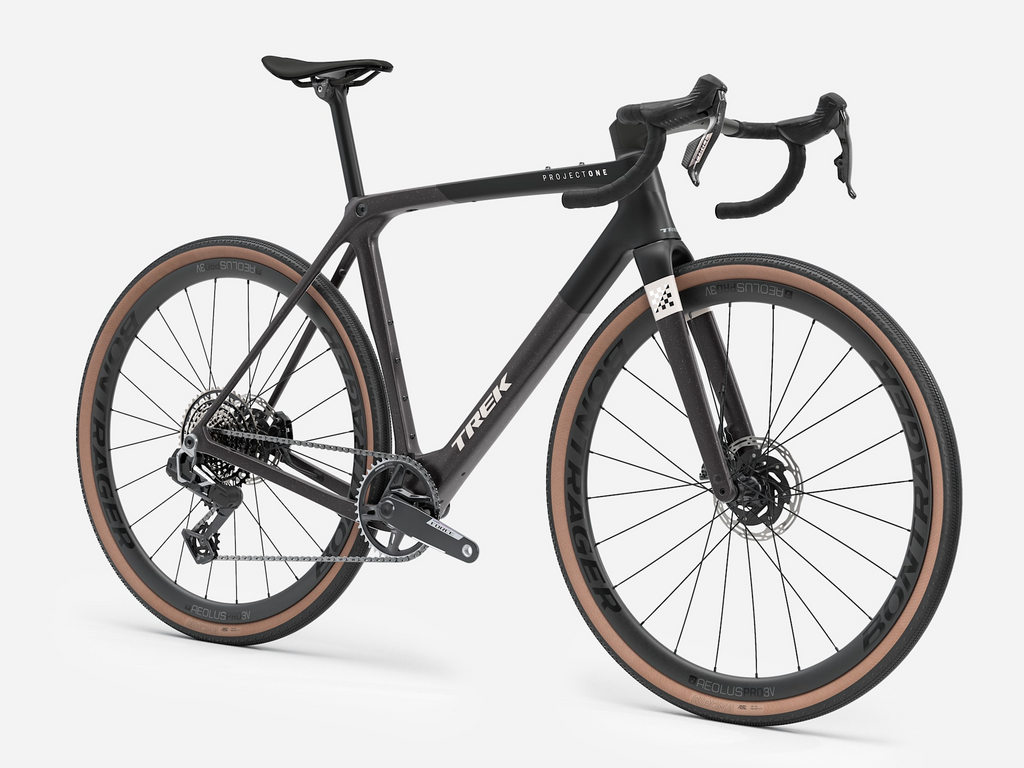

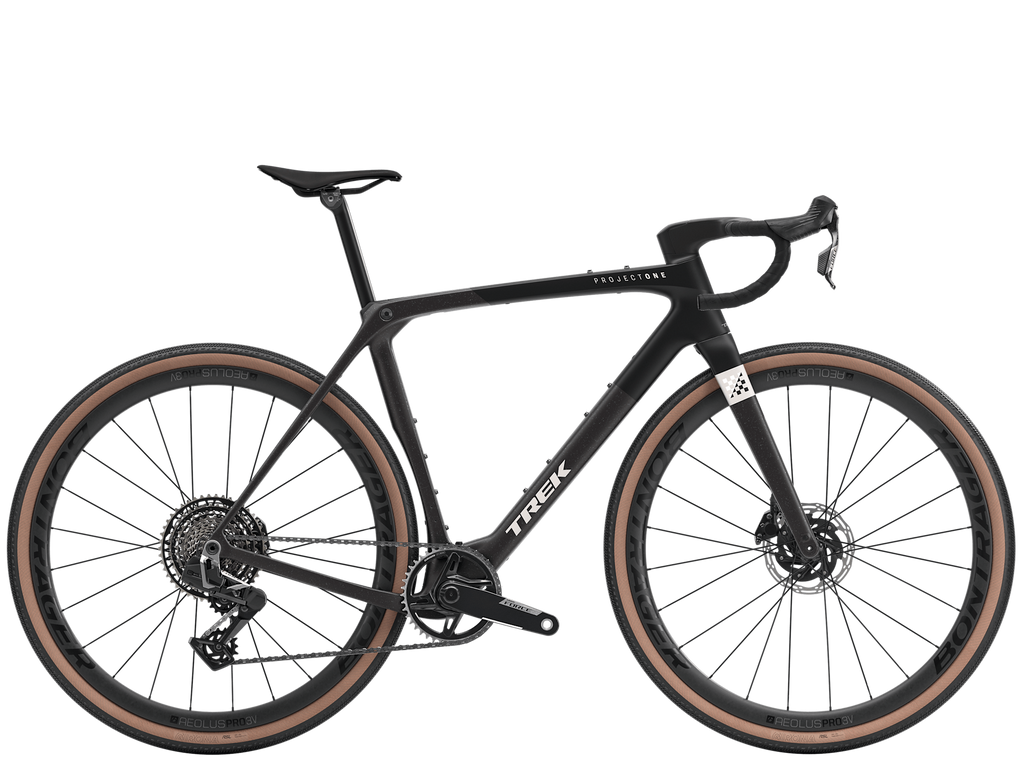

Specifications — Gloss Trek Black/Matte Carbon Smoke
| Model | 2027 Trek Checkmate SLR 7 AXS - Gloss Trek Black/Matte Carbon Smoke |
|---|---|
| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |

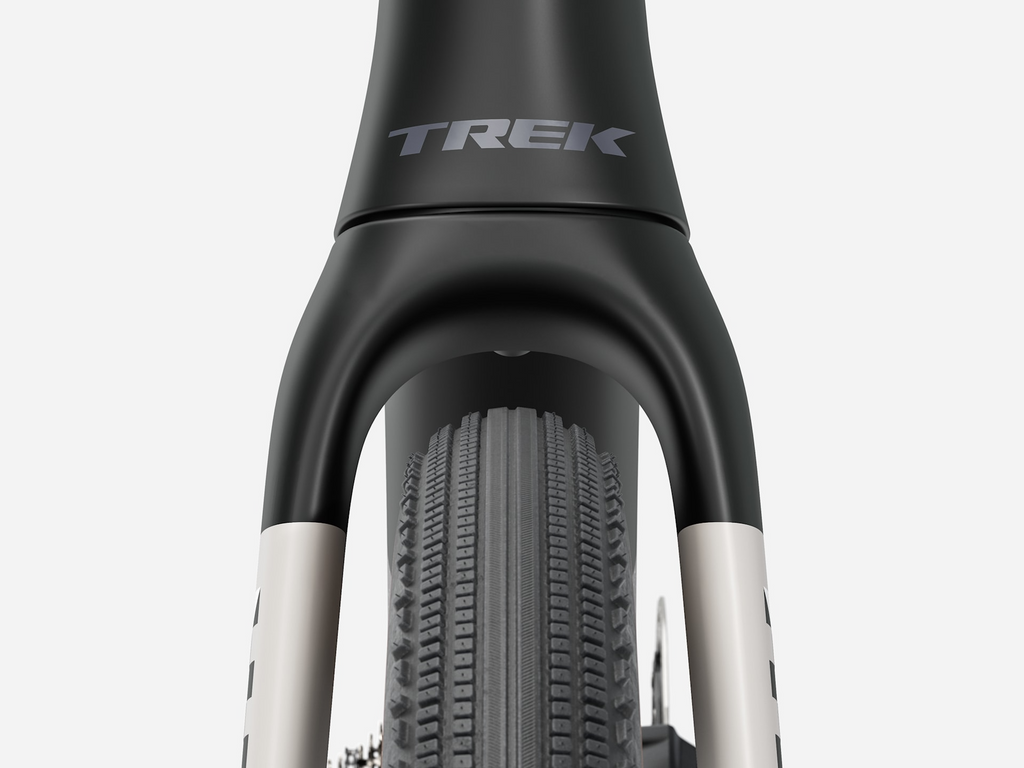

| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Weight | ML - 8.47 kg / 18.68 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Battery | SRAM AXS battery pack (with charger) |
| Shifter | SRAM Force AXS E1 |
| Rear derailleur | SRAM Force XPLR AXS, 46T max cog |

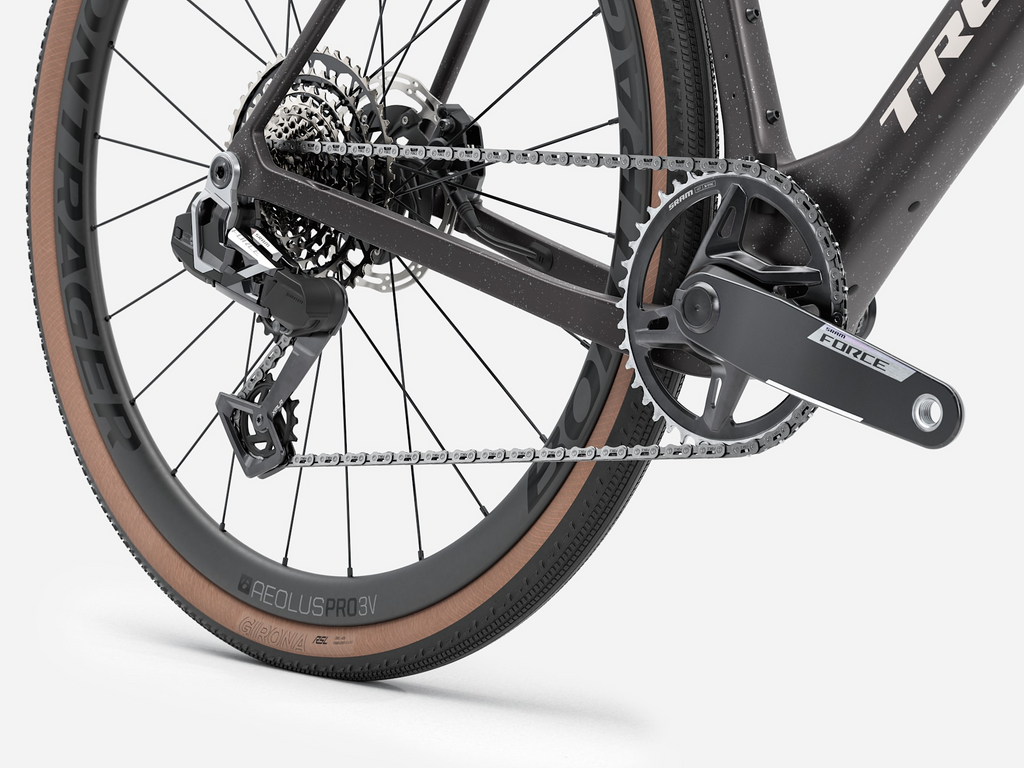

| Crank | Size: | XS, S | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165 mm length | Size: | M, ML | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170 mm length | Size: | L, XL | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5 mm length |
| Bottom bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13-speed |
| Max. chainring size | See service manual |
| Wheel front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Wheel rear | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle | Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 45 mm without mudguards, 38 mm with mudguards (as measured, see manual for details) |
| Saddle | Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width |

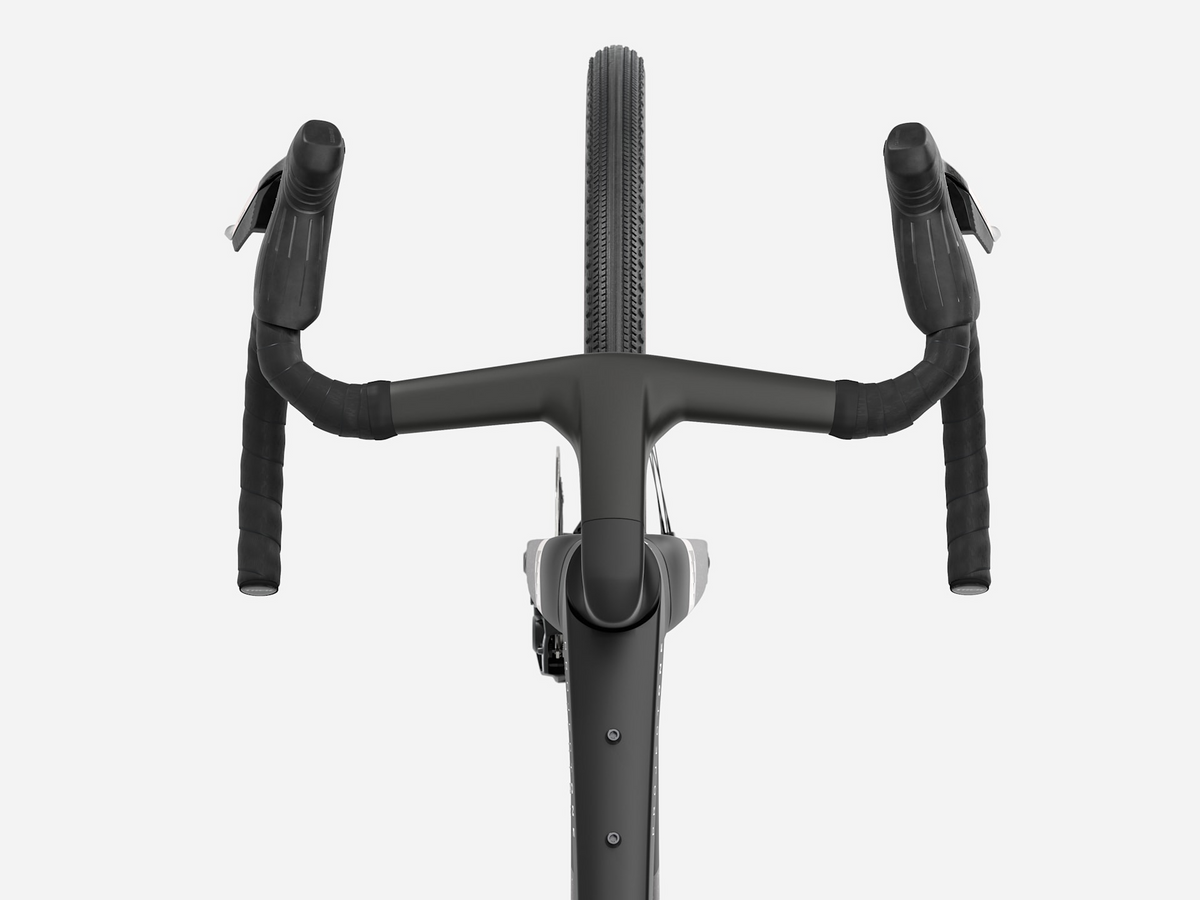

| Seatpost | KVF aero carbon seat post, 5 mm offset, 280 mm length | *Handlebar/stem (integrated) | Size: | XS | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 70 mm stem length | Size: | S | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 80 mm stem length | Size: | M | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length | Size: | ML, L | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 100 mm stem length | Size: | XL | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length |
| Handlebar | tape | Trek EcoTack |
| Brake rotor | SRAM Paceline X, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front and rear |

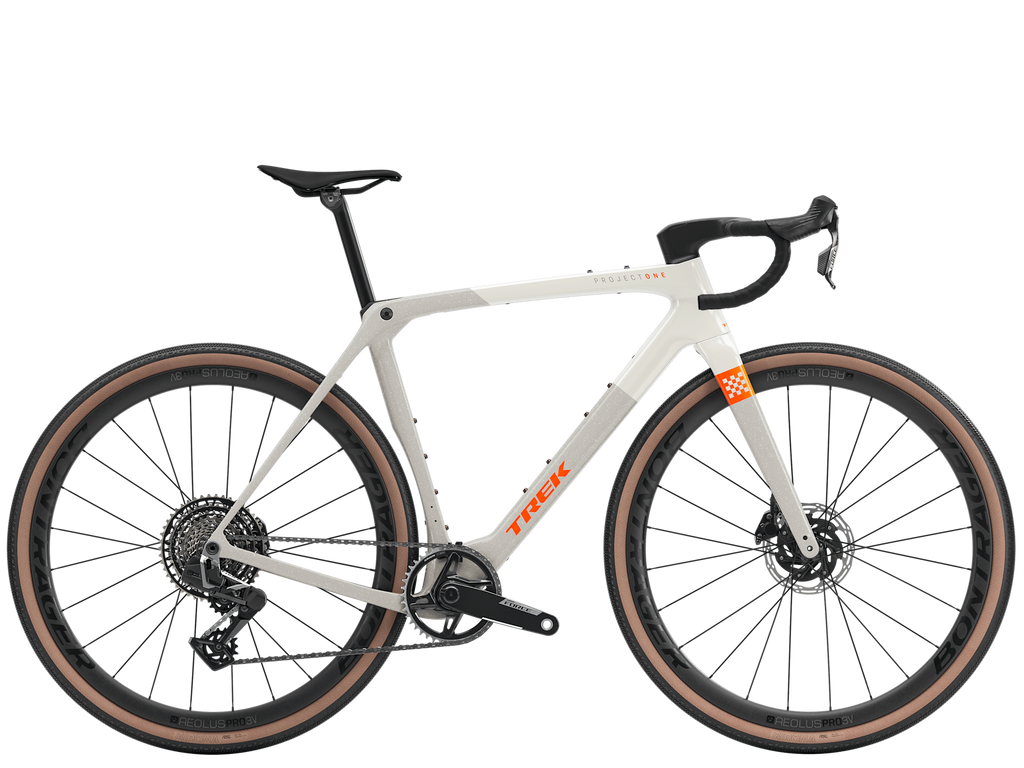

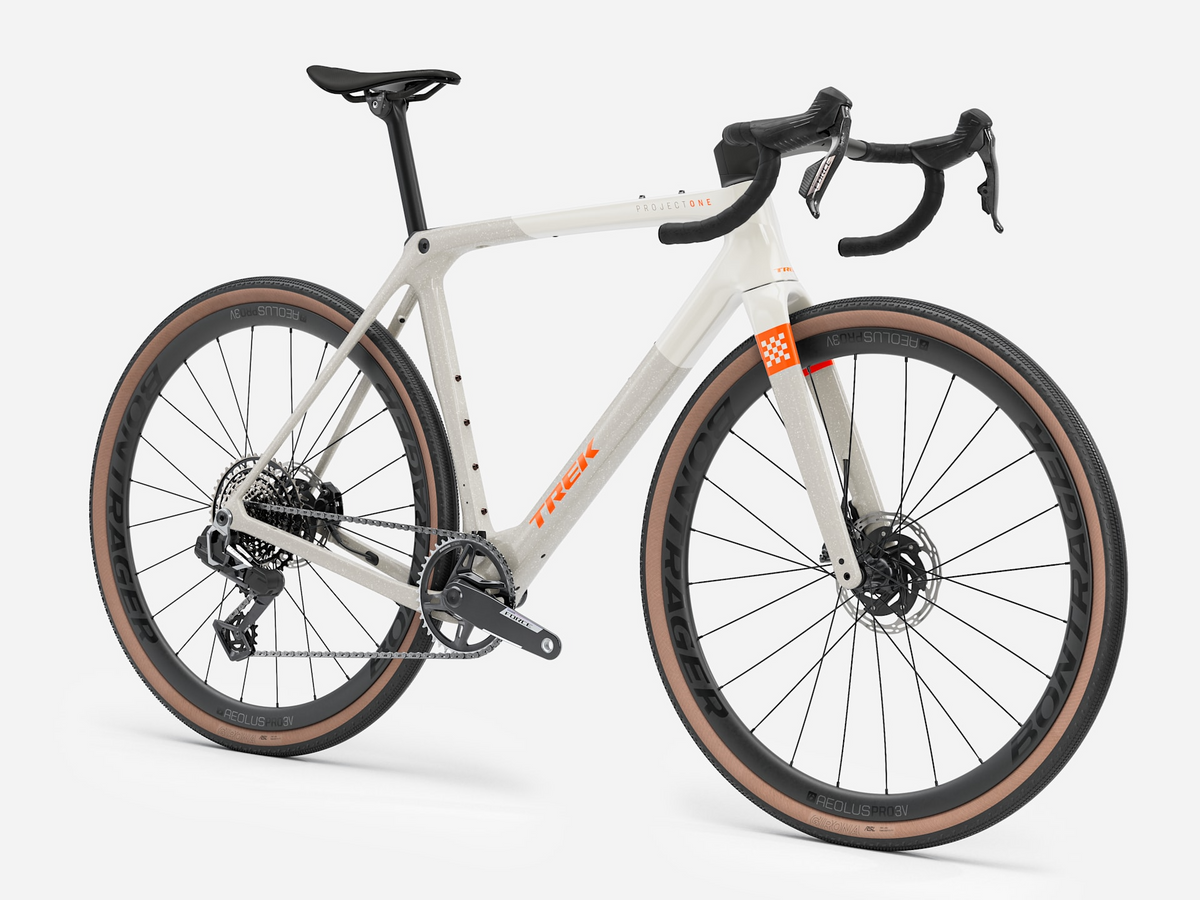

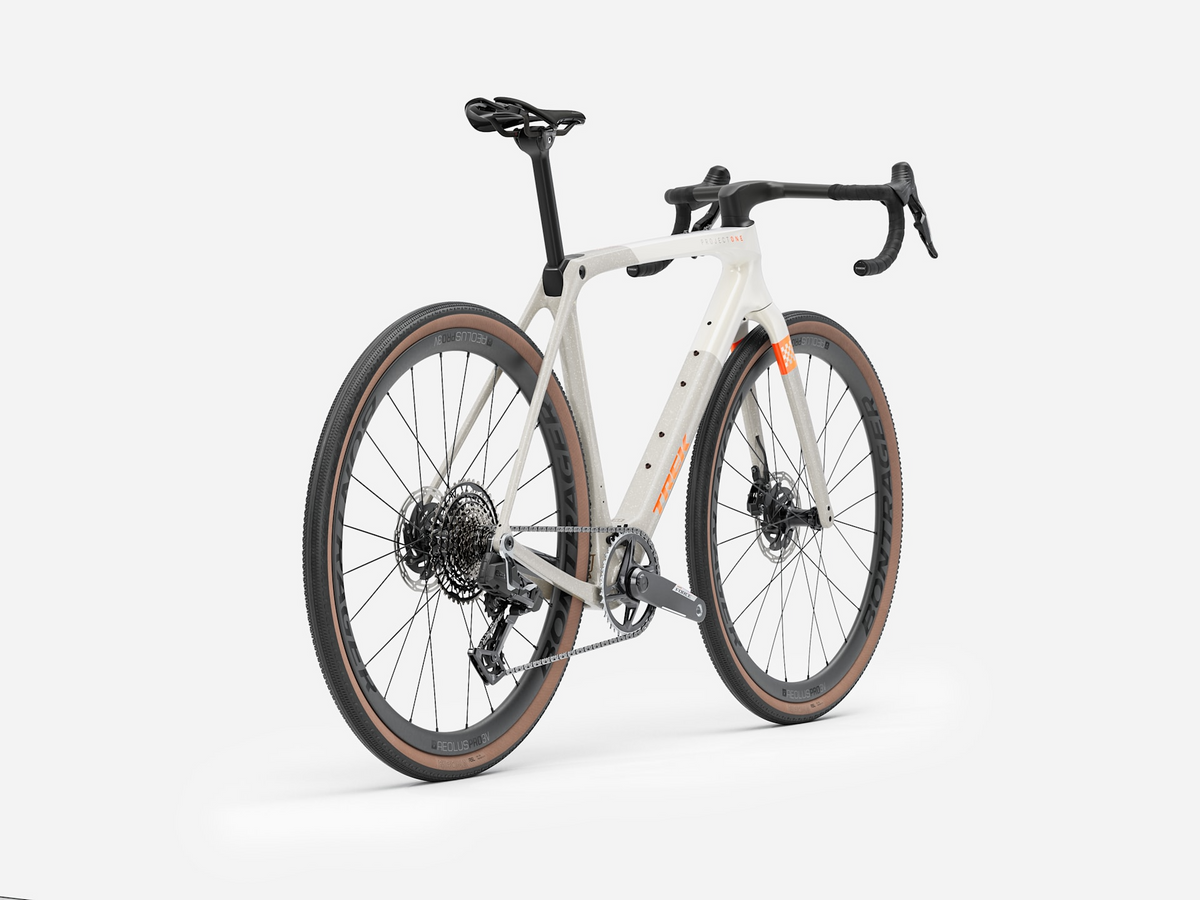

Specifications — Era White/Buff Beige
| Model | 2027 Trek Checkmate SLR 7 AXS - Era White/Buff Beige |
|---|---|
| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |

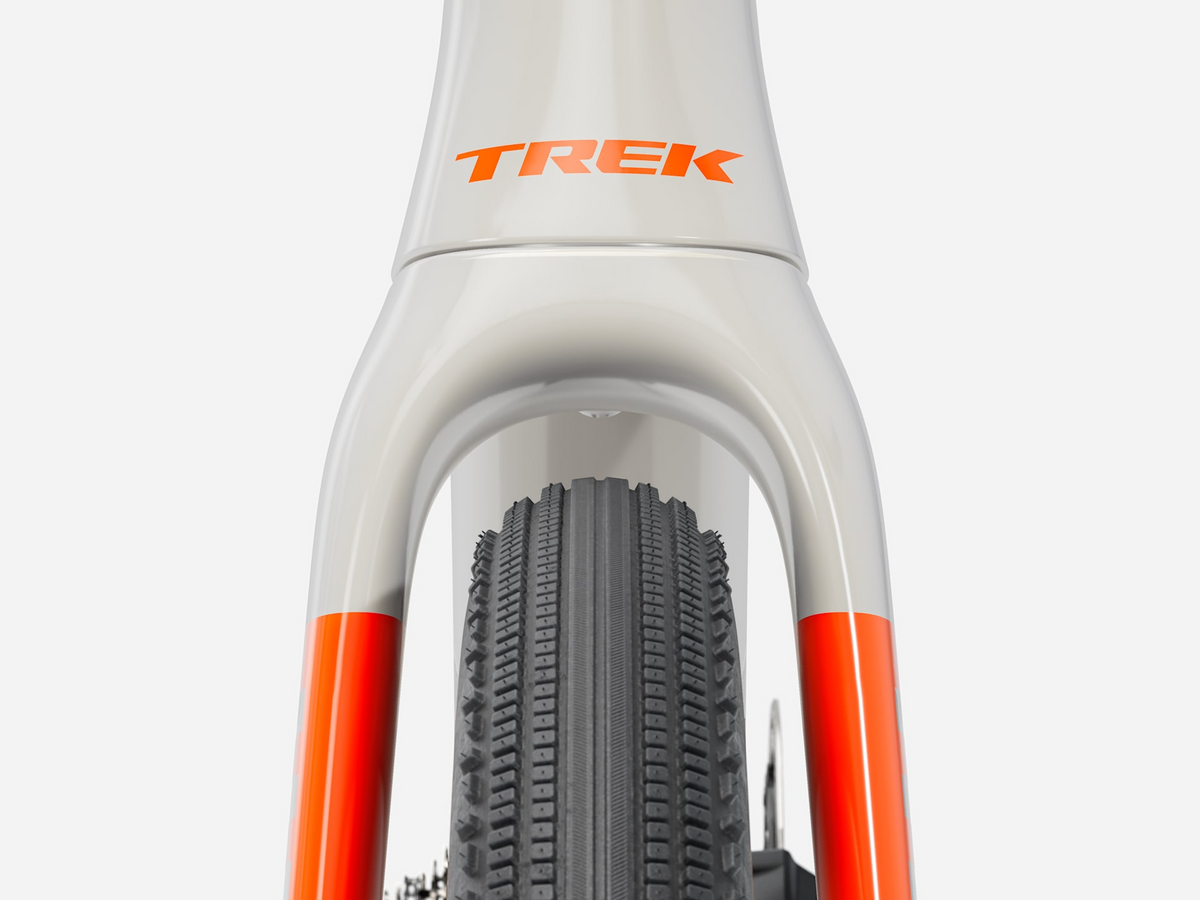

| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Weight | ML - 8.47 kg / 18.68 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Battery | SRAM AXS battery pack (with charger) |
| Shifter | SRAM Force AXS E1 |

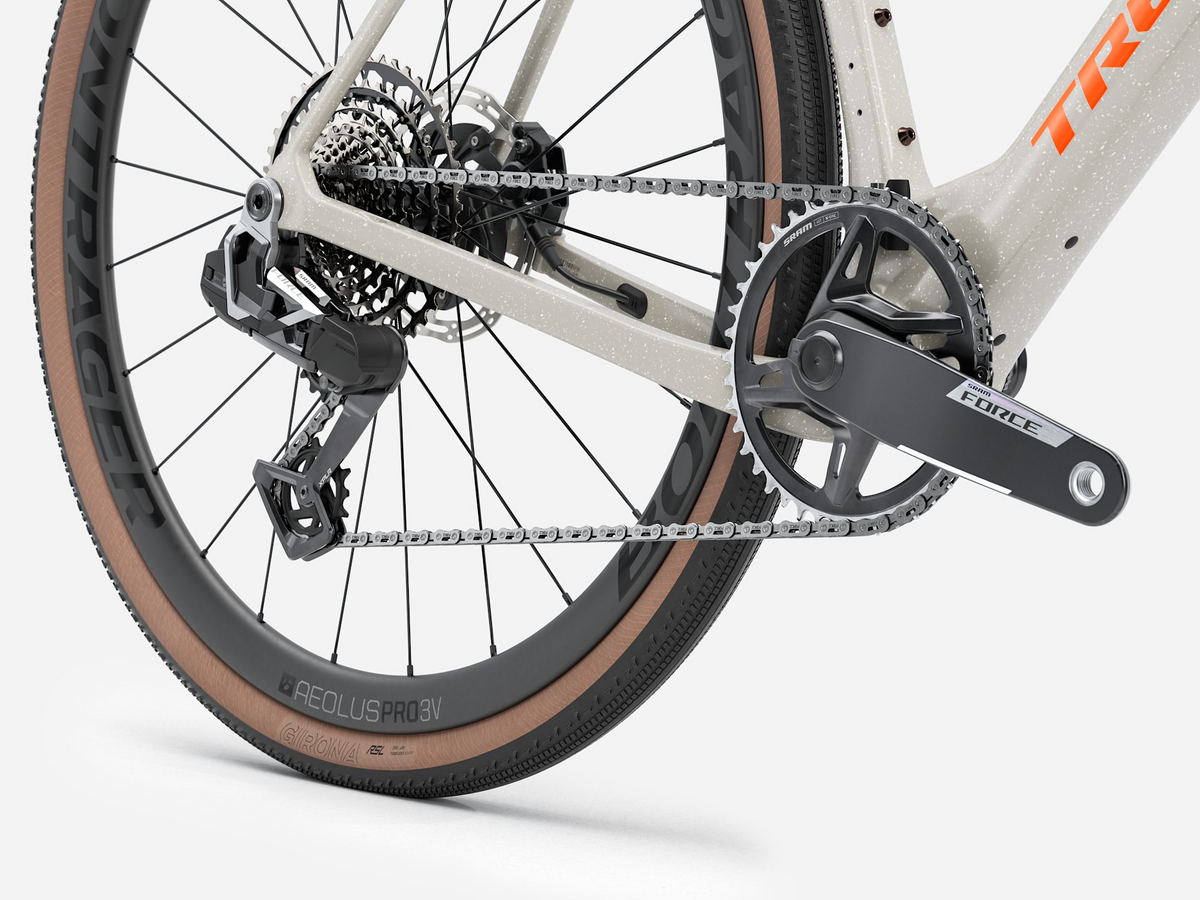

| Rear derailleur | SRAM Force XPLR AXS, 46T max cog |
| Crank | Size: | XS, S | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165 mm length | Size: | M, ML | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170 mm length | Size: | L, XL | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5 mm length |
| Bottom bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13-speed |
| Max. chainring size | See service manual |
| Wheel front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Wheel rear | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle | Skewer front | Bontrager Switch chamfered thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 45 mm without mudguards, 38 mm with mudguards (as measured, see manual for details) |
| Saddle | Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width |

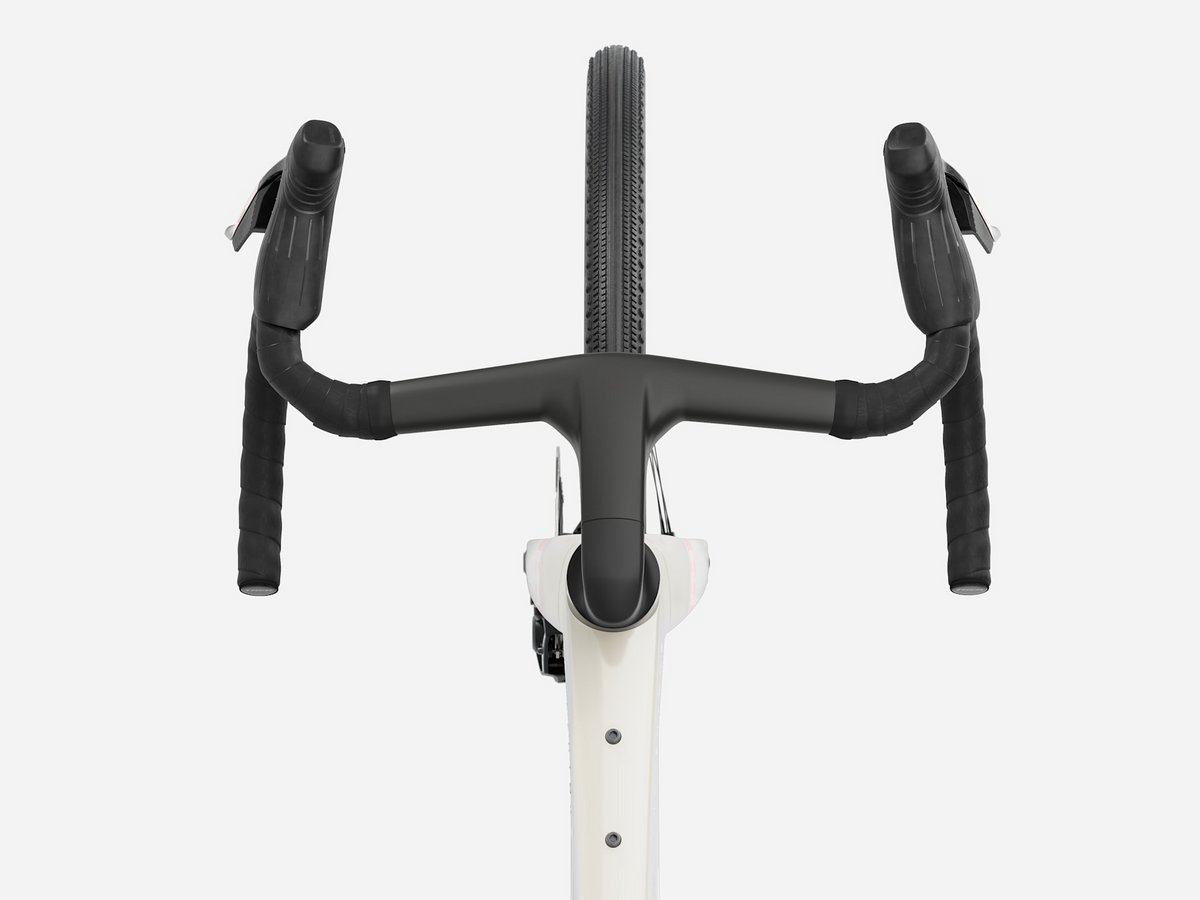

| Seatpost | KVF aero carbon seat post, 5 mm offset, 280 mm length | *Handlebar/stem (integrated) | Size: | XS | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 70 mm stem length | Size: | S | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 80 mm stem length | Size: | M | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length | Size: | ML, L | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 100 mm stem length | Size: | XL | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length |
| Handlebar | tape | Trek EcoTack |
| Brake rotor | SRAM Paceline X, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
