2025 Trek Madone SL 5 Gen 8
Matte Deep Smoke / Small
Sale price
R 53,950.00
Regular price
R 65,000.00
Skip to product information
In stock
2025 Trek Madone SL 5 Gen 8
Sale price
R 53,950.00
Regular price
R 65,000.00
The 2025 Trek Madone SL 5 Gen 8 is built for fast road rides, training and racing. Compare the listed frame, components and size options to choose your setup.

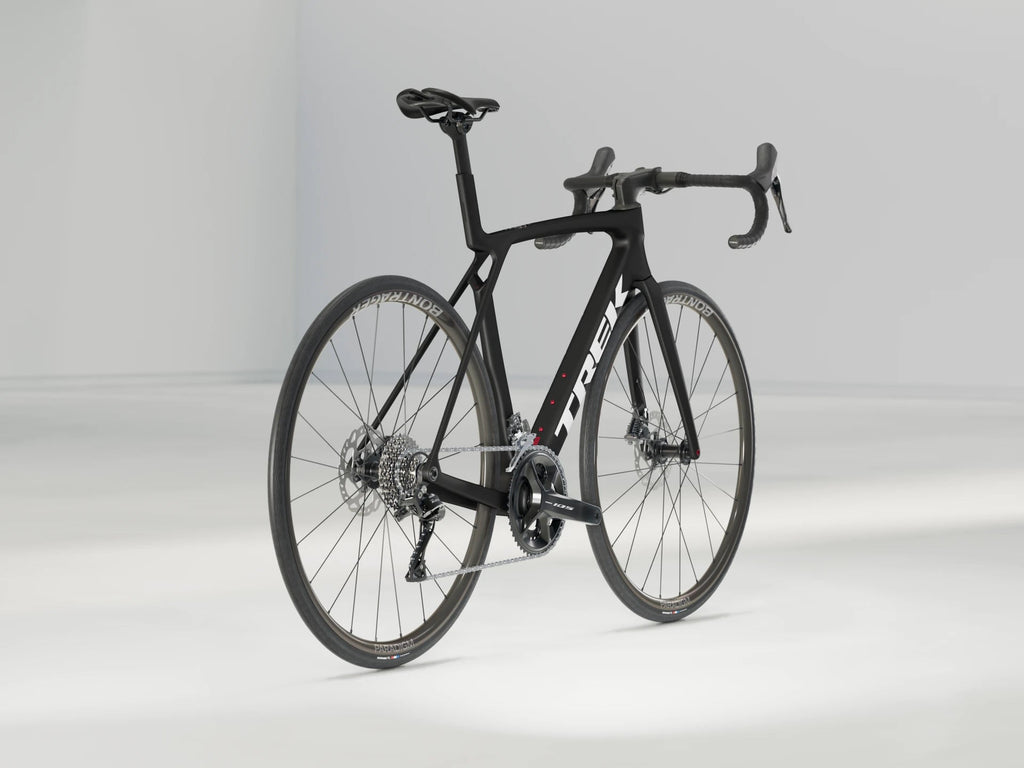

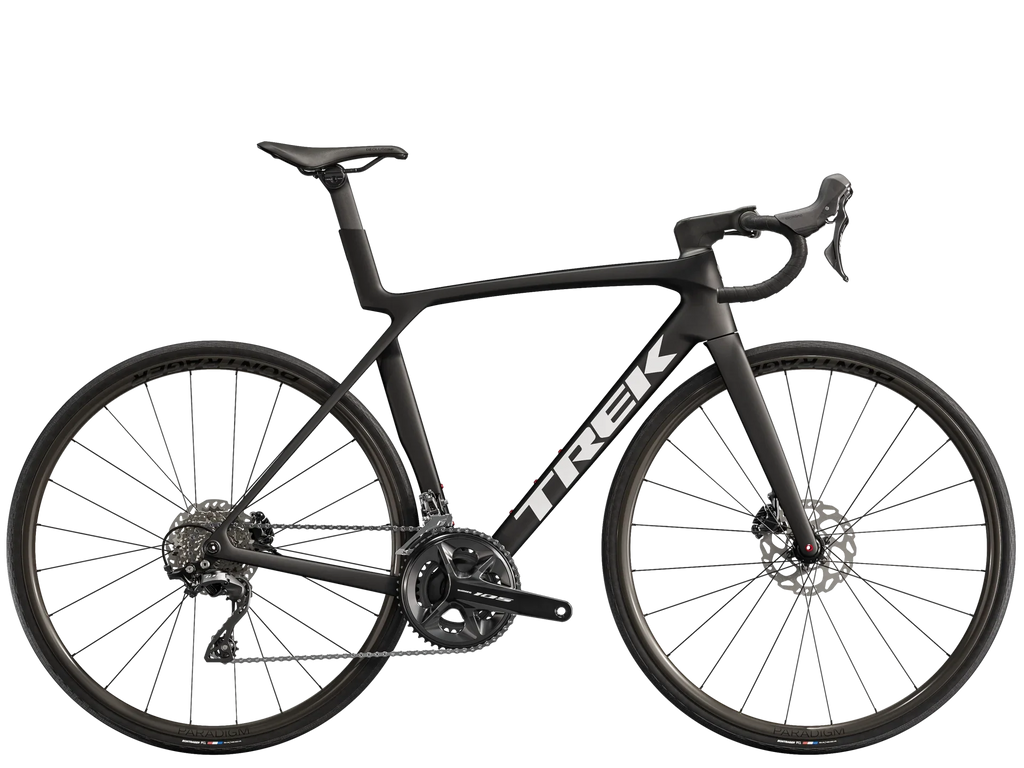

Specifications — Matte Deep Smoke
| Model | 2025 Trek Madone SL 5 Gen 8 - Matte Deep Smoke |
|---|---|

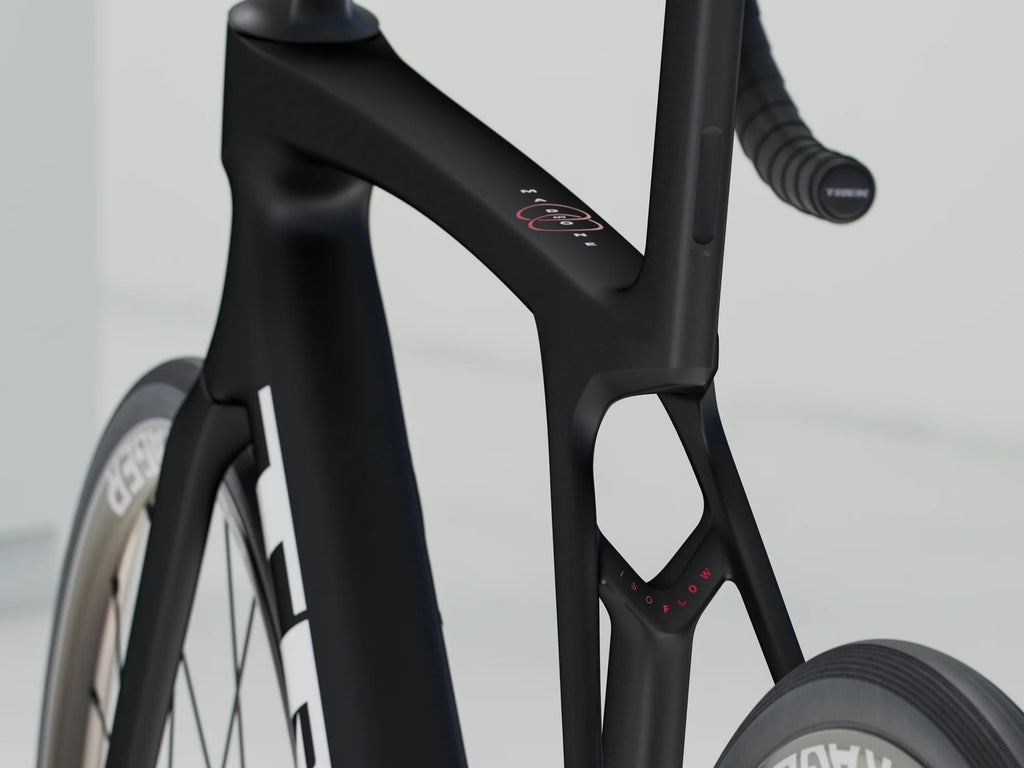

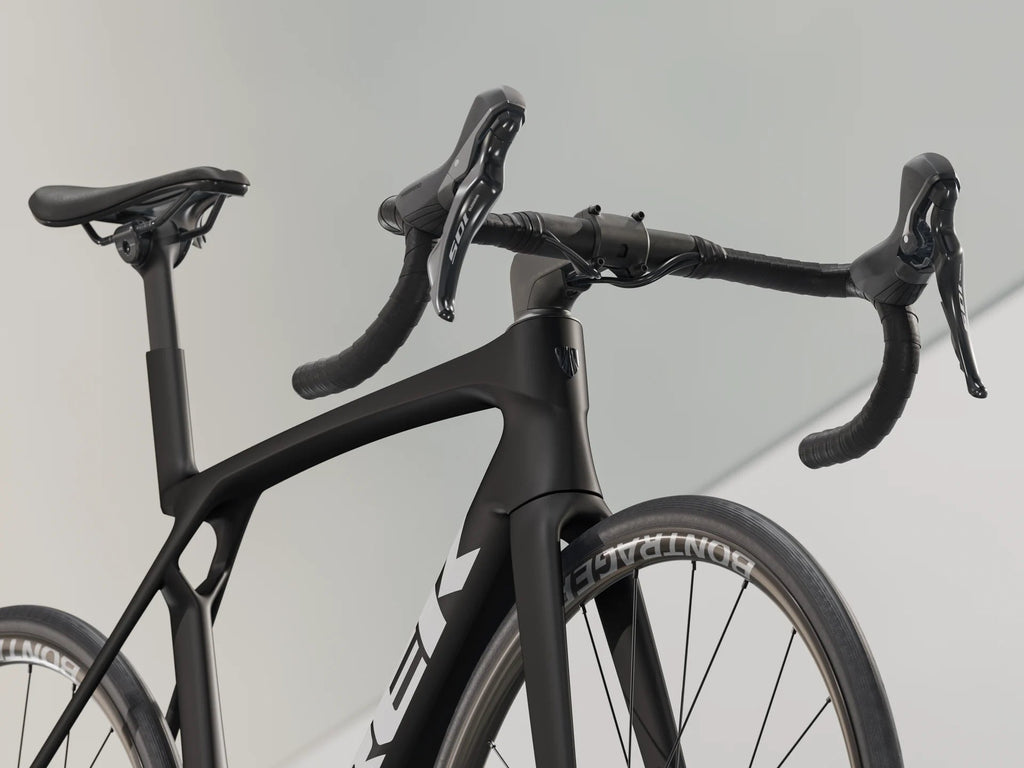

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 8.70 kg / 19.19 lbs (with tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Shifter | Shimano 105 R7120, 12-speed |
| Front derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Size: | XS, S | Shimano 105 R7100, 50/34, 165 mm length | Size: | XS, S | Shimano RS520, 50/34, 165 mm length | Size: | M | Shimano 105 R7100, 50/34, 170 mm length | Size: | M | Shimano RS520, 50/34, 170 mm length | Size: | ML, L | Shimano 105 R7100, 50/34, 172.5 mm length | Size: | ML, L | Shimano RS520, 50/34, 172.5 mm length | Size: | XL | Shimano 105 R7100, 50/34, 175 mm length | Size: | XL | Shimano RS520, 50/34, 175 mm length |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle | Skewer front | Bontrager Switch chamfered thru axle |
| Hub rear | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm |
| Max tyre size | 32 mm (as measured, see manual for details) |
| Saddle | Size: | XS, S | Bontrager Aeolus Comp, steel rails, 155 mm width | Size: | XS, S, M, ML, L, XL | Verse Short, steel rails, 145 mm width | Size: | M, ML, L, XL | Bontrager Aeolus Comp, steel rails, 145 mm width |
| Seatpost | Size: | XS, S, M, XL | Madone aero carbon seat post, 0 mm offset, short length | Size: | ML, L | Madone aero carbon seat post, 0 mm offset, long length |

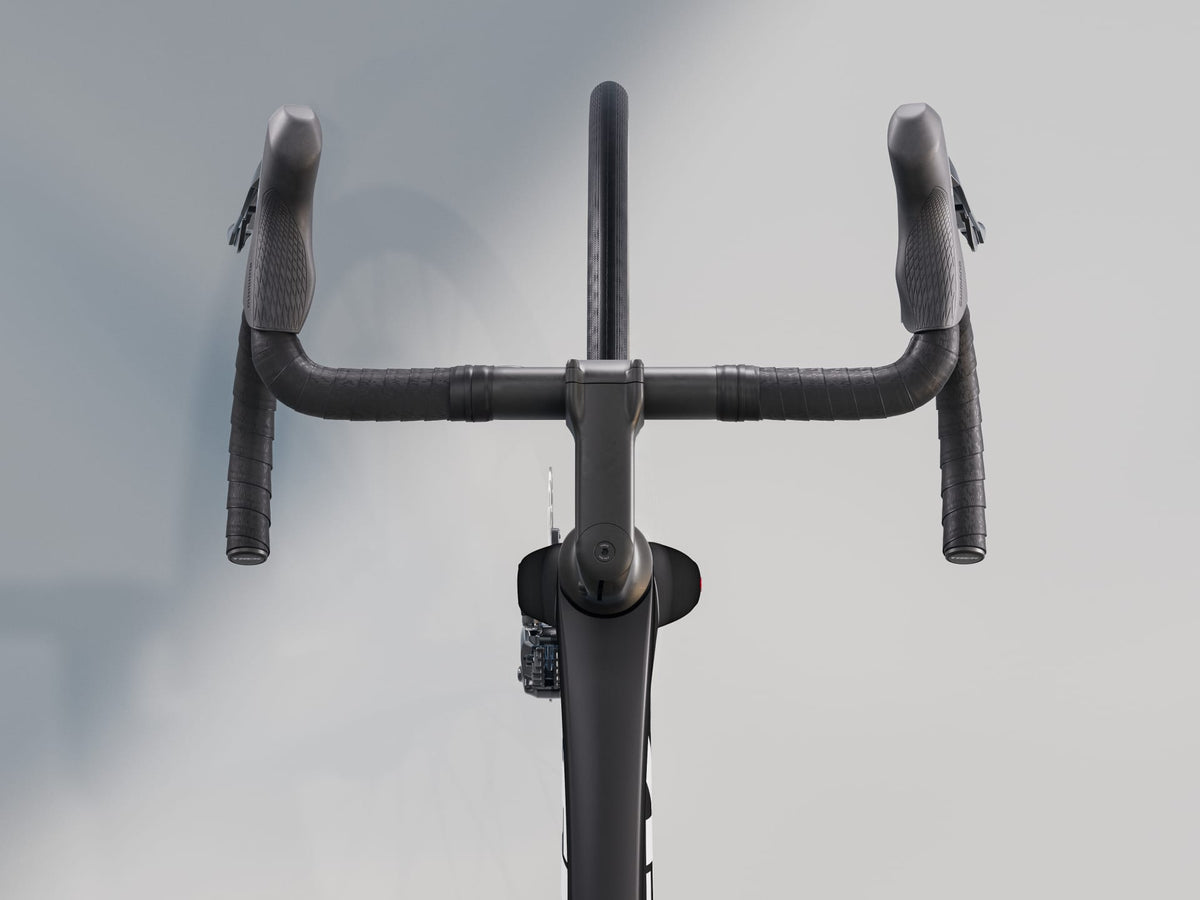

| Handlebar | Size: | XS | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width | Size: | S, M | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width | Size: | ML, L | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width | Size: | XL | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| Handlebar | tape | Trek EcoTack, black |
| Stem | Size: | XS | Trek RCS Pro, -7-degree, 80 mm length | Size: | S, M | Trek RCS Pro, -7-degree, 90 mm length | Size: | ML, L | Trek RCS Pro, -7-degree, 100 mm length | Size: | XL | Trek RCS Pro, -7-degree, 110 mm length |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |

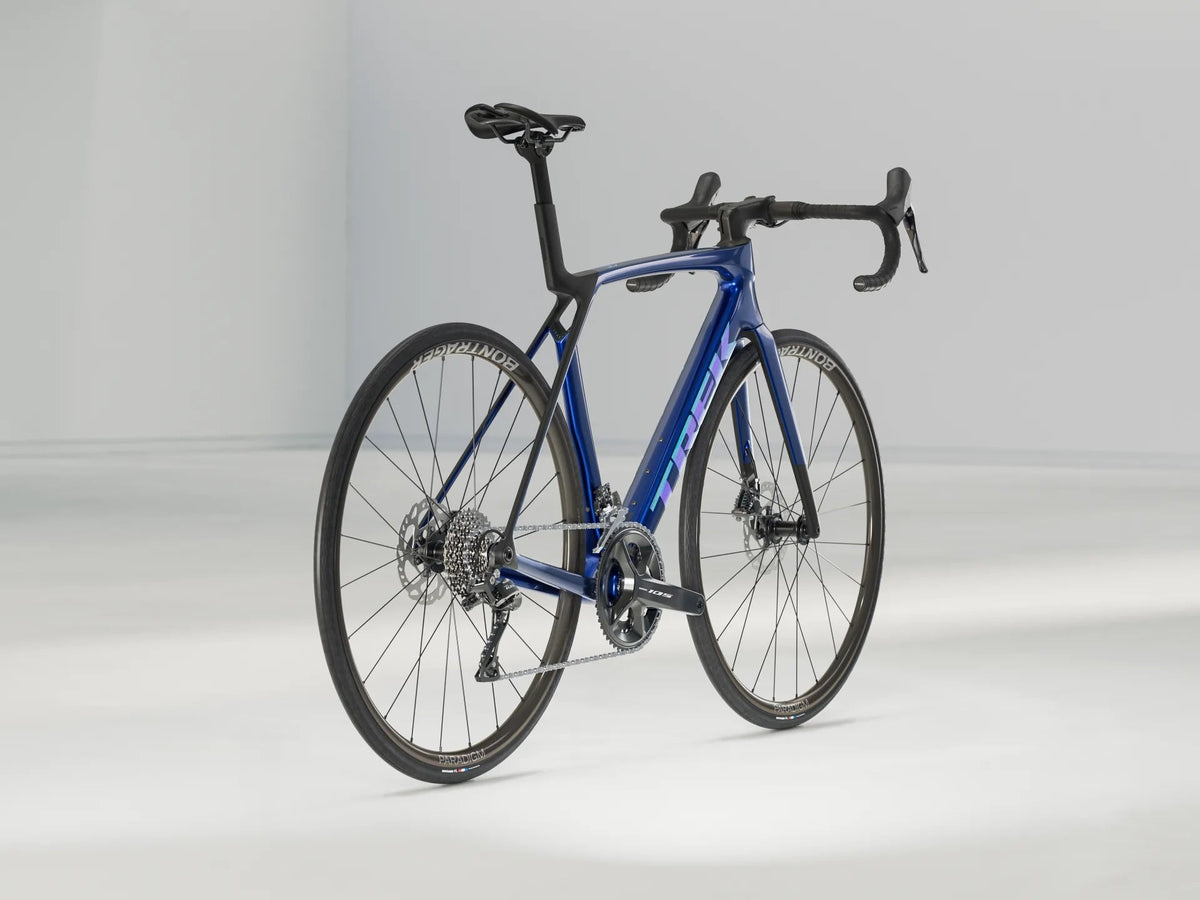

Specifications — Hex Blue

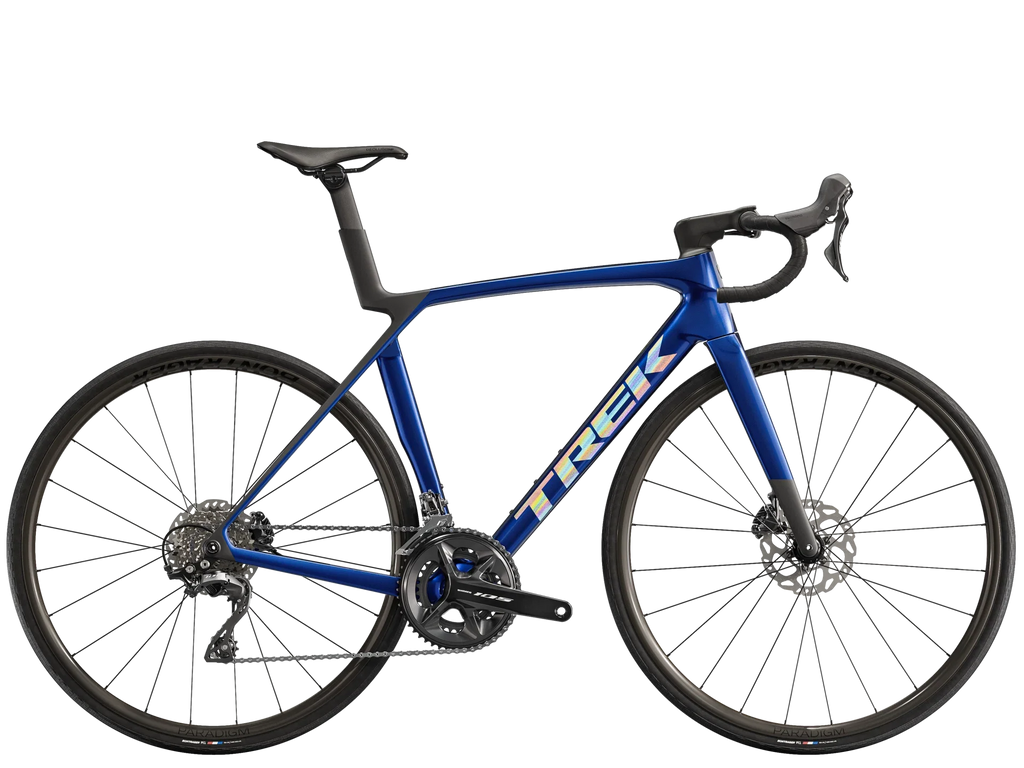

| Model | 2025 Trek Madone SL 5 Gen 8 - Hex Blue |
|---|---|

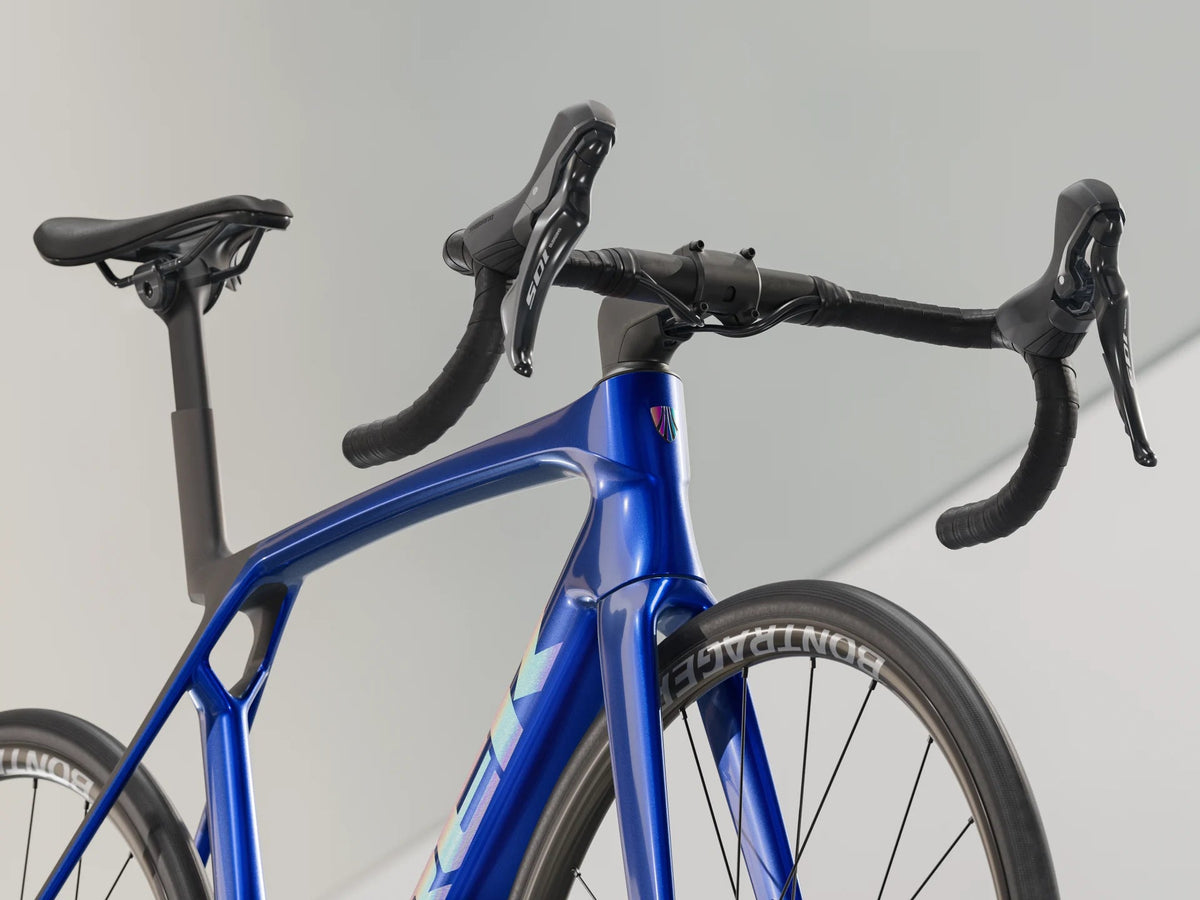

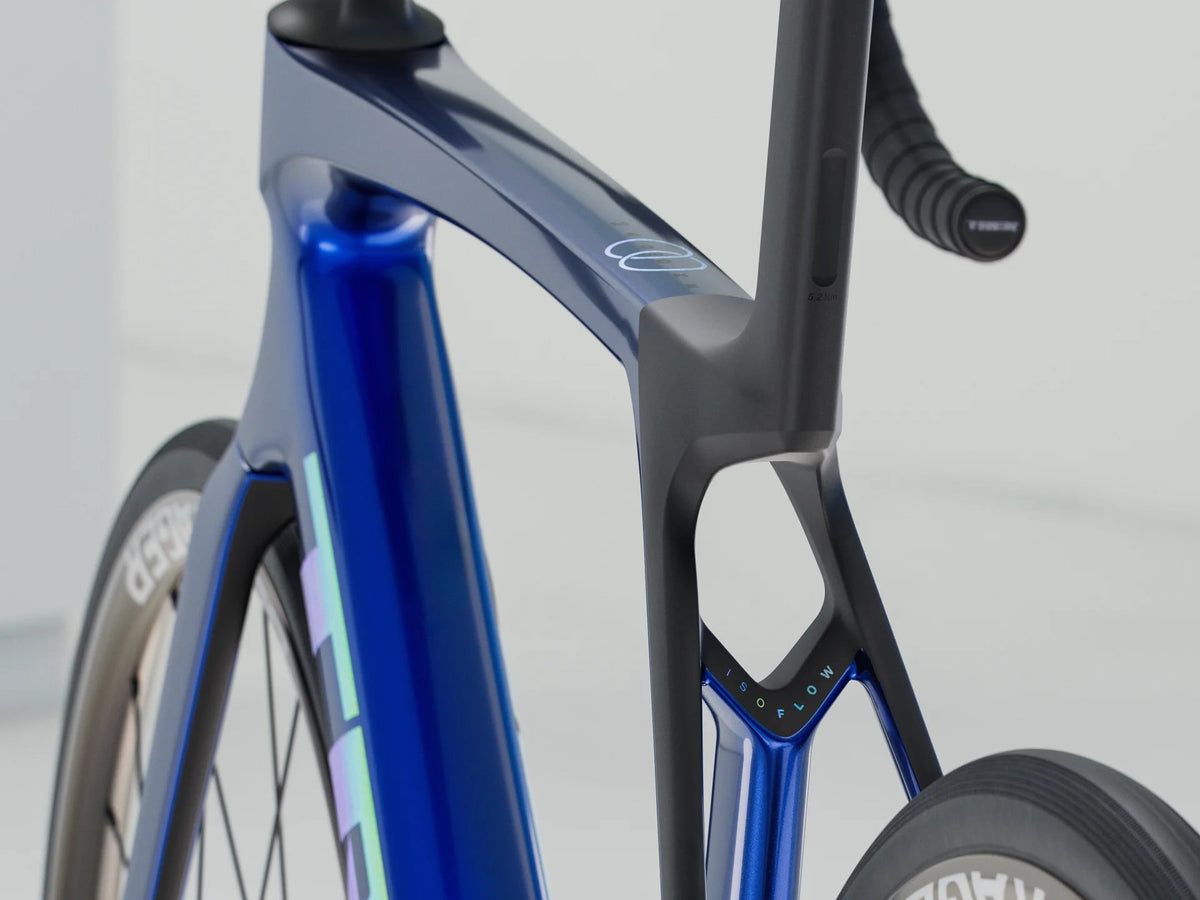

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 8.70 kg / 19.19 lbs (with tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Shifter | Shimano 105 R7120, 12-speed |
| Front derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |

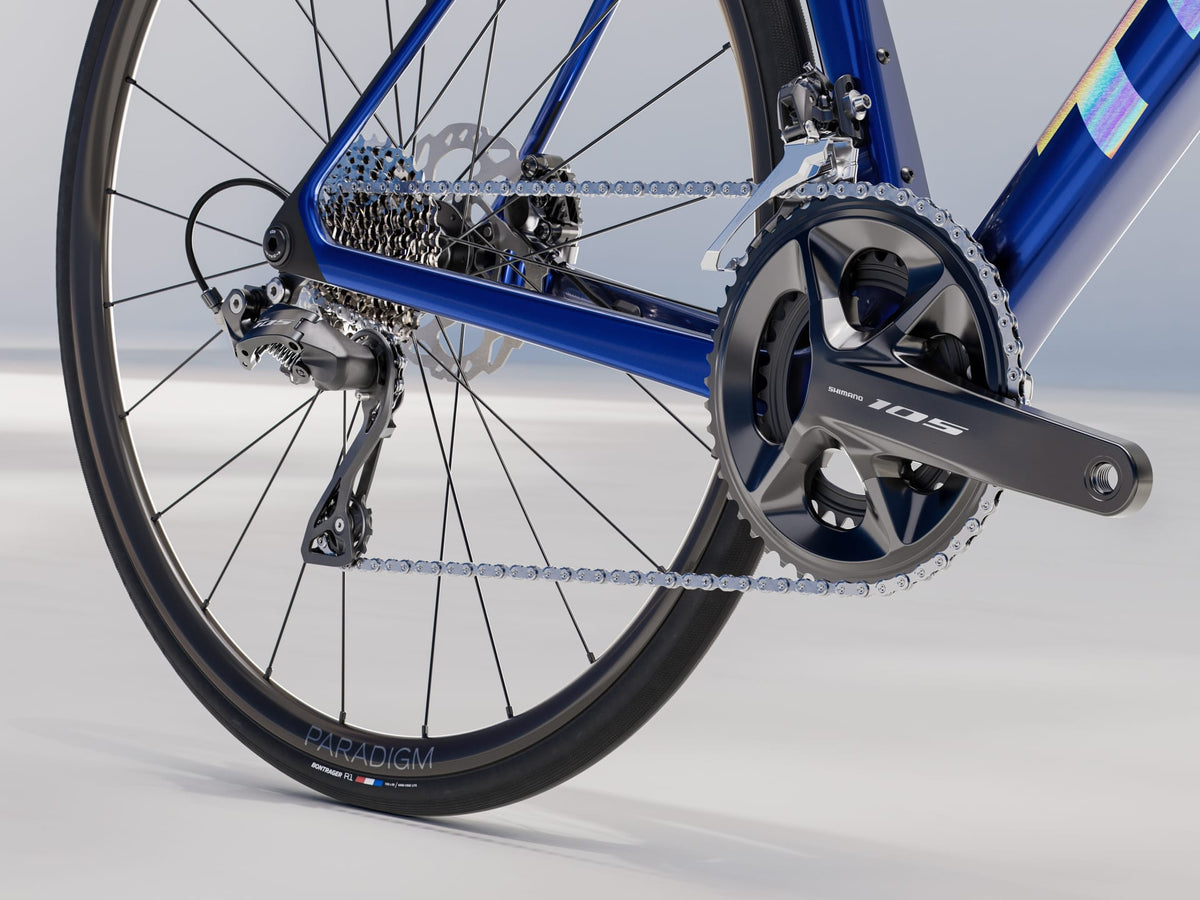

| Crank | Size: | XS, S | Shimano 105 R7100, 50/34, 165 mm length | Size: | XS, S | Shimano RS520, 50/34, 165 mm length | Size: | M | Shimano 105 R7100, 50/34, 170 mm length | Size: | M | Shimano RS520, 50/34, 170 mm length | Size: | ML, L | Shimano 105 R7100, 50/34, 172.5 mm length | Size: | ML, L | Shimano RS520, 50/34, 172.5 mm length | Size: | XL | Shimano 105 R7100, 50/34, 175 mm length | Size: | XL | Shimano RS520, 50/34, 175 mm length |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle | Skewer front | Bontrager Switch chamfered thru axle |
| Hub rear | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm |
| Max tyre size | 32 mm (as measured, see manual for details) |
| Saddle | Size: | M/L | Bontrager Aeolus Comp, steel rails, 155 mm width |
| Seatpost | Size: | XS, S, M, XL | Madone aero carbon seat post, 0 mm offset, short length | Size: | ML, L | Madone aero carbon seat post, 0 mm offset, long length |

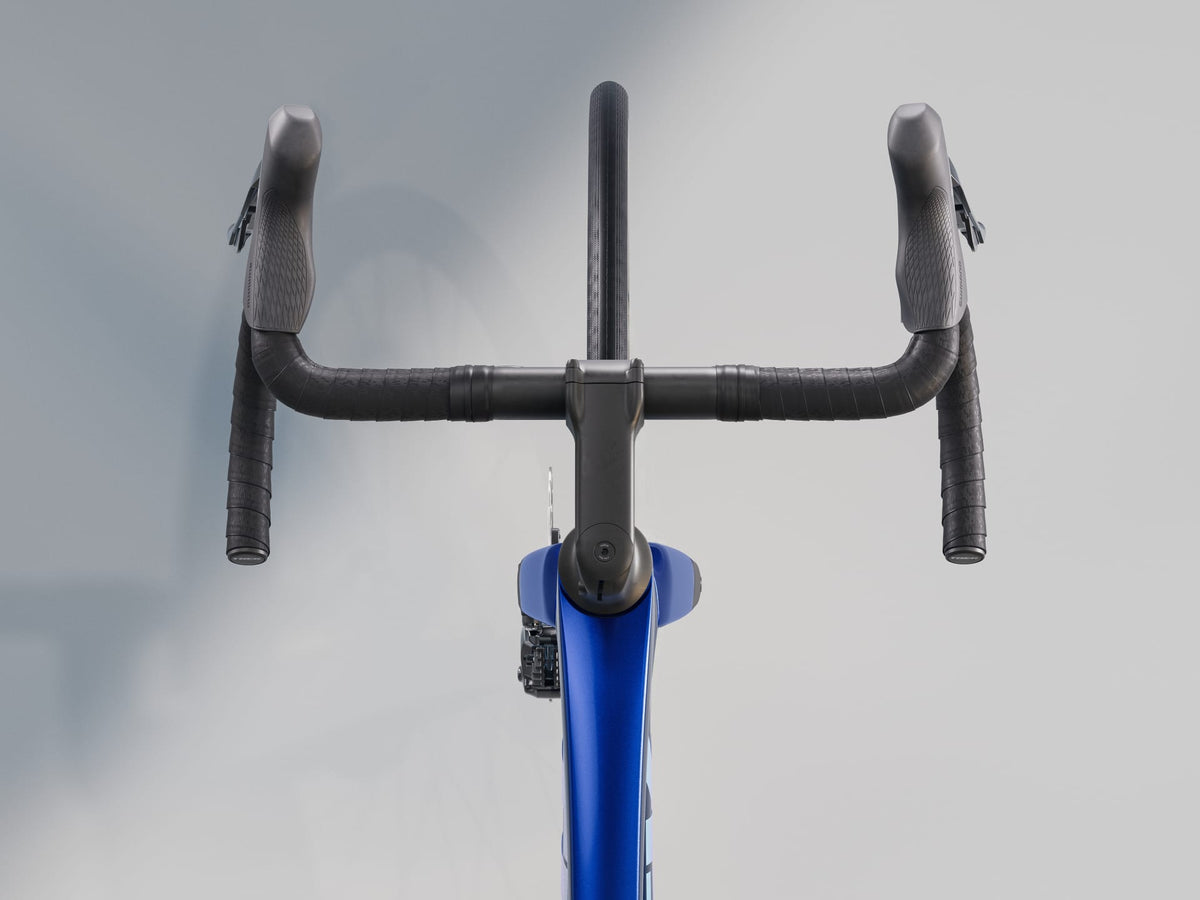

| Handlebar | Size: | XS | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width | Size: | S, M | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width | Size: | ML, L | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width | Size: | XL | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| Handlebar | tape | Trek EcoTack, black |
| Stem | Size: | XS | Trek RCS Pro, -7-degree, 80 mm length | Size: | S, M | Trek RCS Pro, -7-degree, 90 mm length | Size: | ML, L | Trek RCS Pro, -7-degree, 100 mm length | Size: | XL | Trek RCS Pro, -7-degree, 110 mm length |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |
