2025 Trek Fuel EXe 9.7
Sale price
R 134,400.00
Regular price
R 160,000.00
The 2025 Trek Fuel EXe 9.7 is built for trail rides that combine climbs, corners and descents. Pedal assistance adds support to your effort; review the motor and battery specification for this build. Compare the listed frame, components and size options to choose your setup.
Specifications — Lava

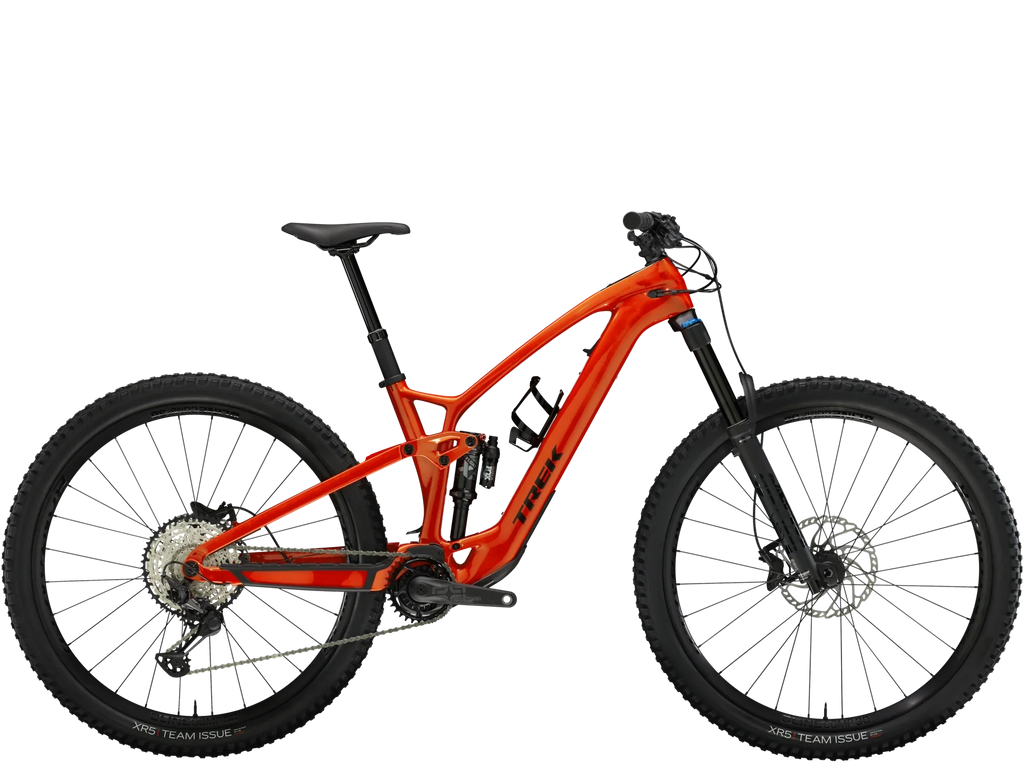

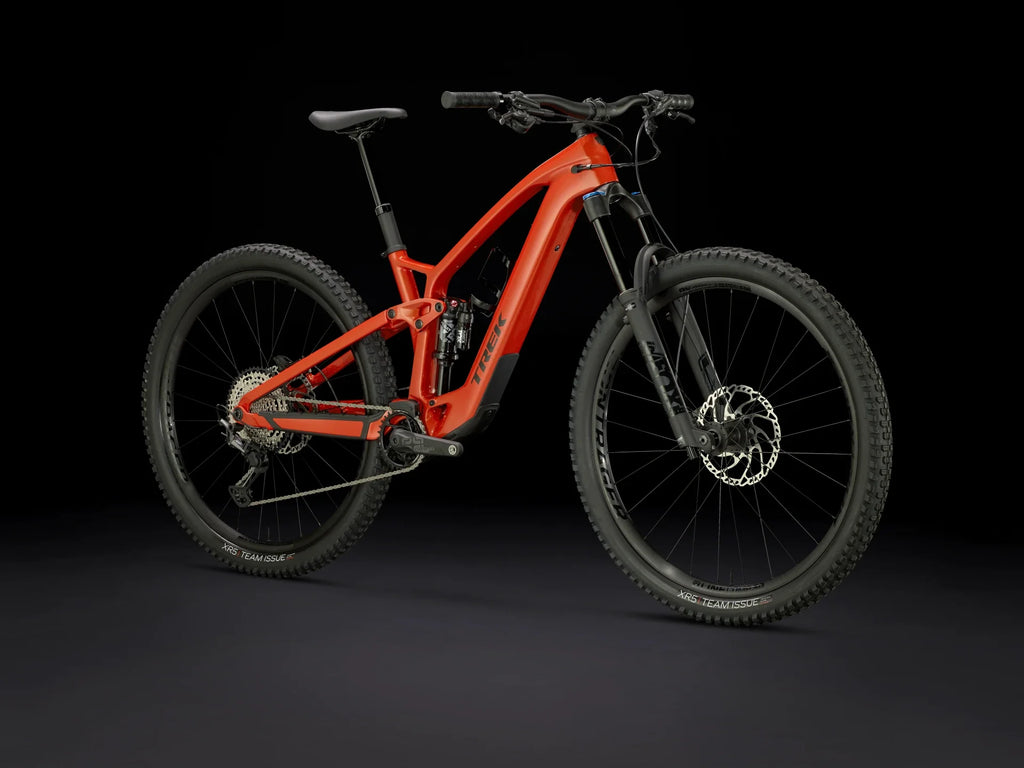

| Model | 2025 Trek Fuel EXe 9.7 - Lava |
|---|---|

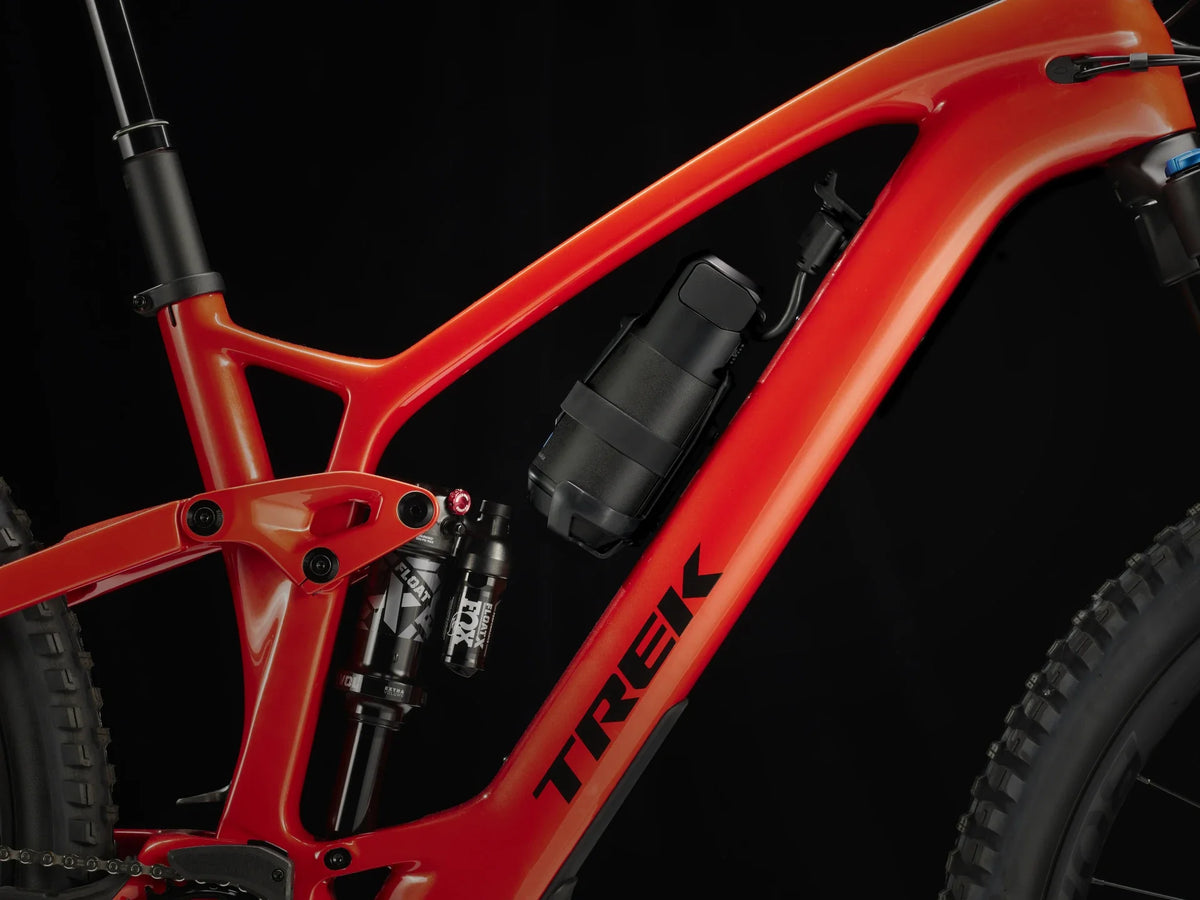

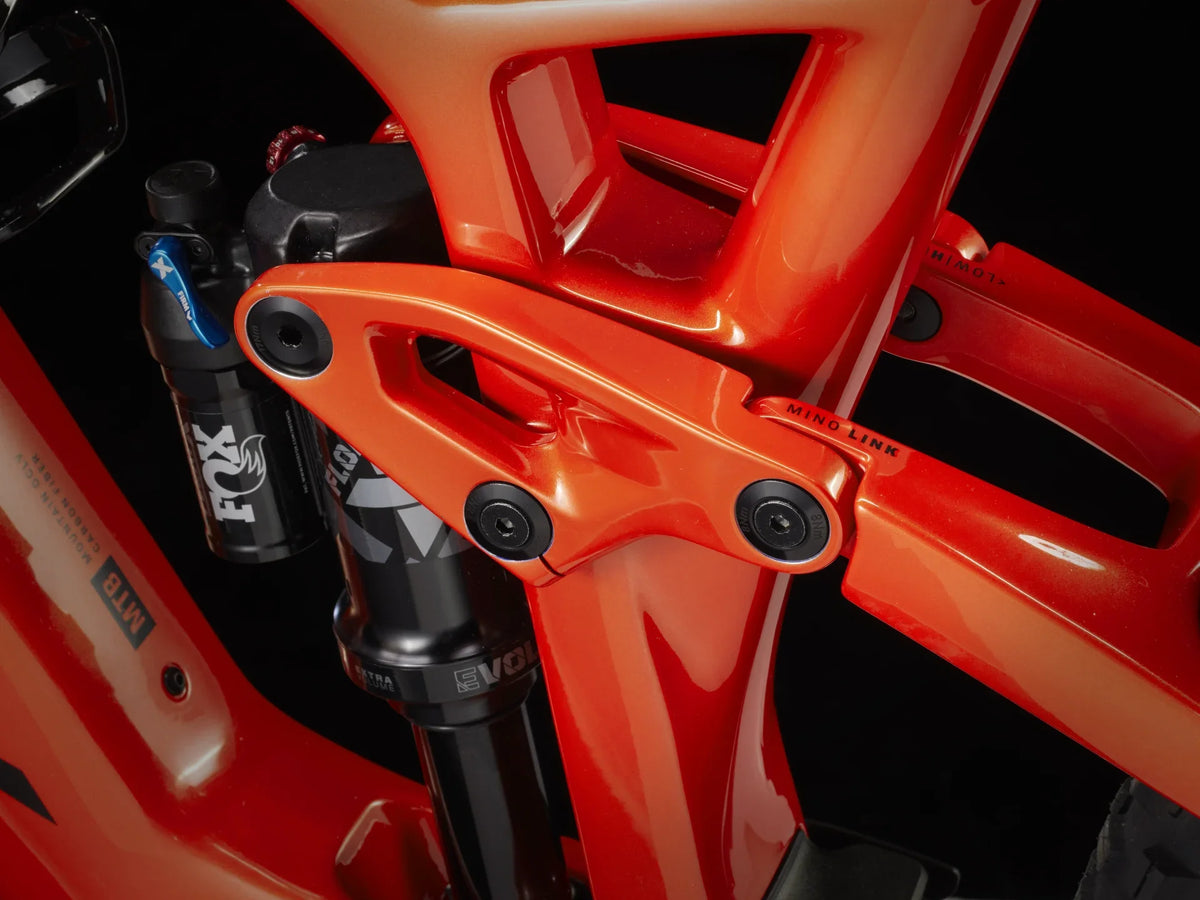

| Mainframe | Size: S, XL, L, M OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Size: S, XL, L, M Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel |
| Fork | Size: S, XL, L, M Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

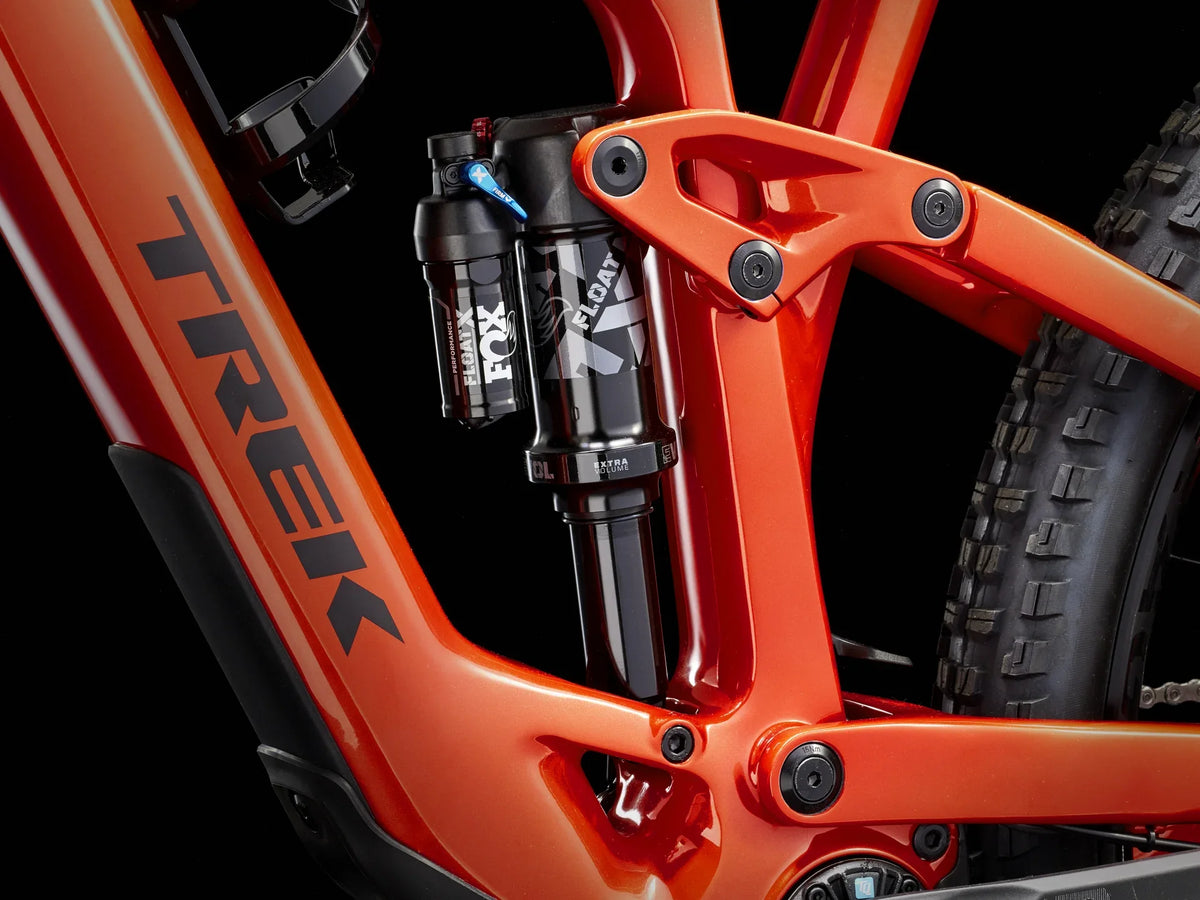

| Shock | Size: S, XL, L, M Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Front Wheel | Size: S, XL, L, M Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Rear Wheel | Size: S, XL, L, M Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29" |
| Rear Skewer | Size: S, XL, L, M Bontrager Switch thru-axle, removable lever |
| Tire | Size: S, XL, L, M Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Tire Part | Size: S, XL, L, M Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Size: S, XL, L, M Bontrager TLR |
| Max tyre size | Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer |

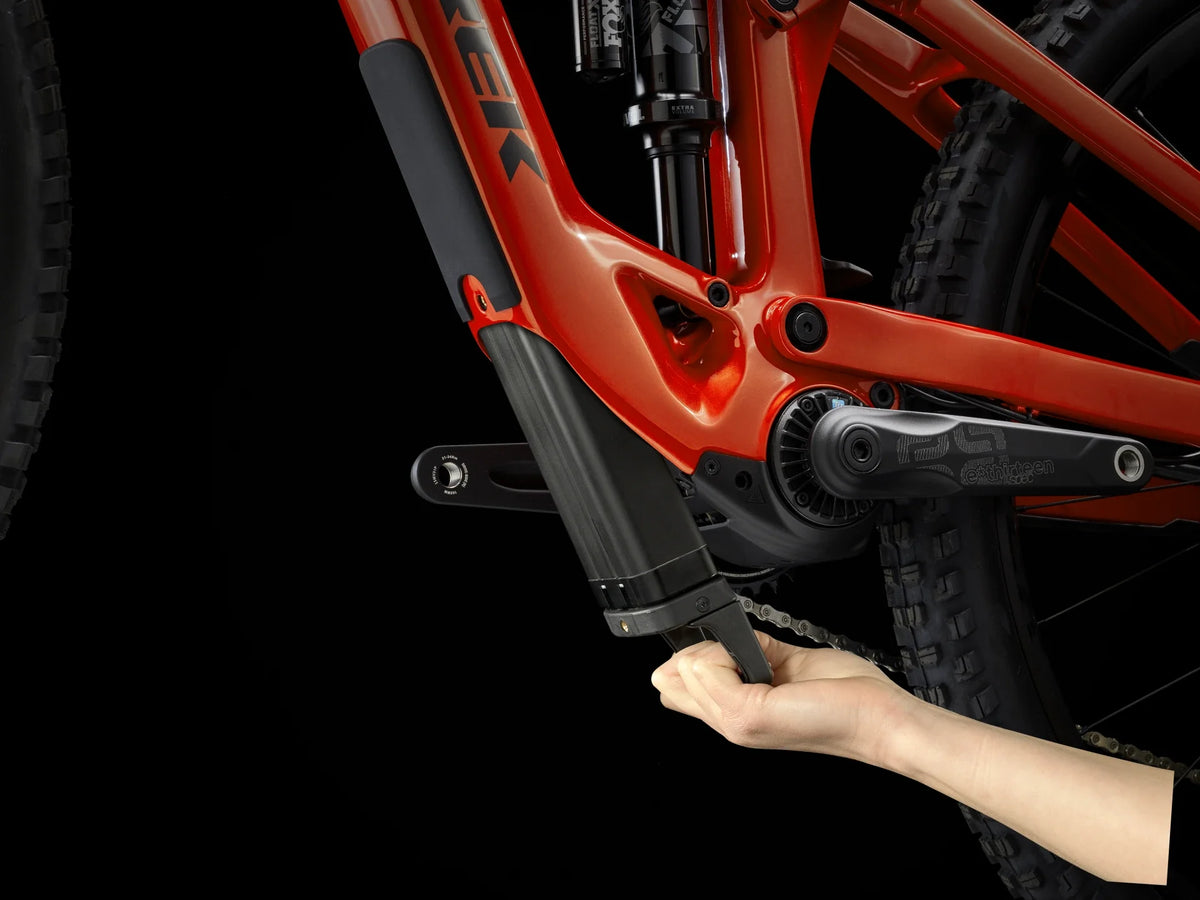

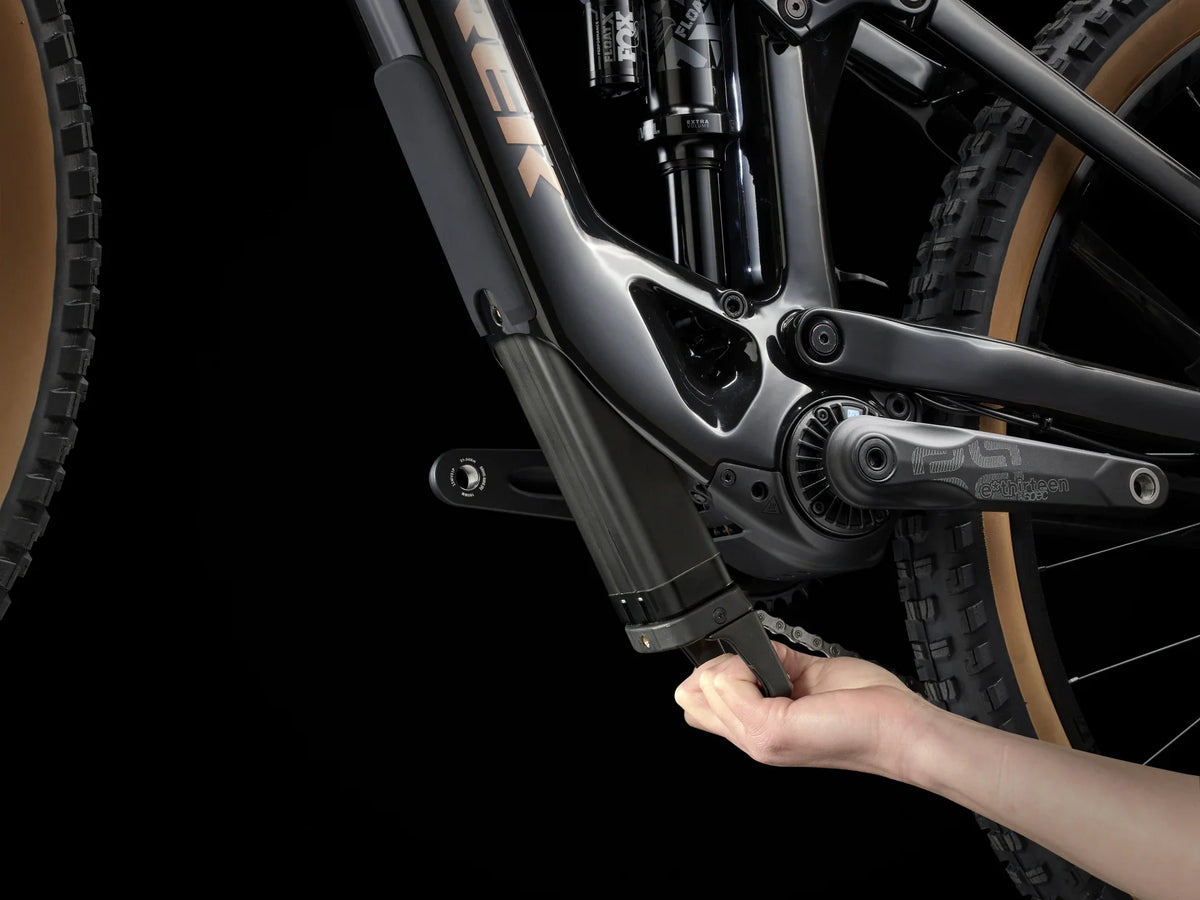

| Battery | Size: S, XL, L, M TQ 360Wh |
| Charger | Size: S, XL, L, M TQ 4A charger |

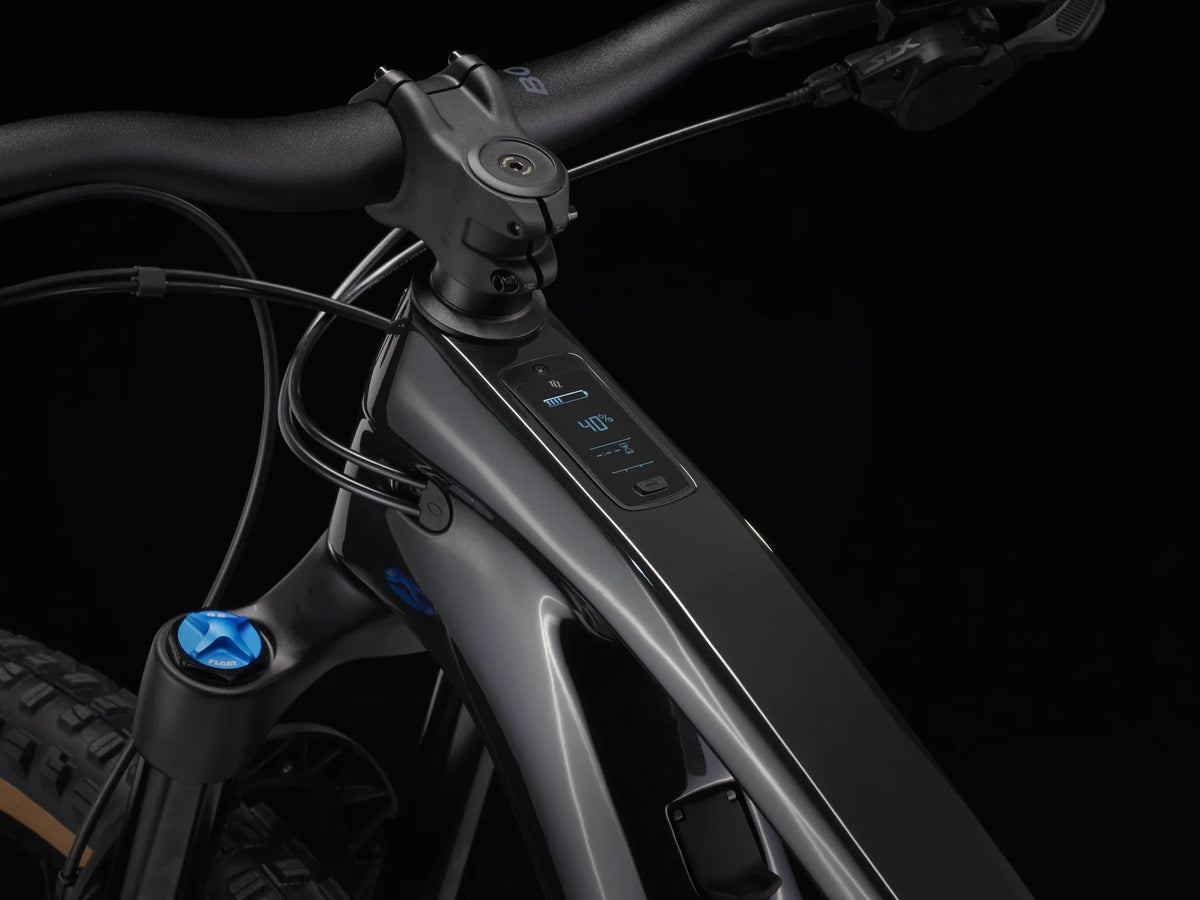

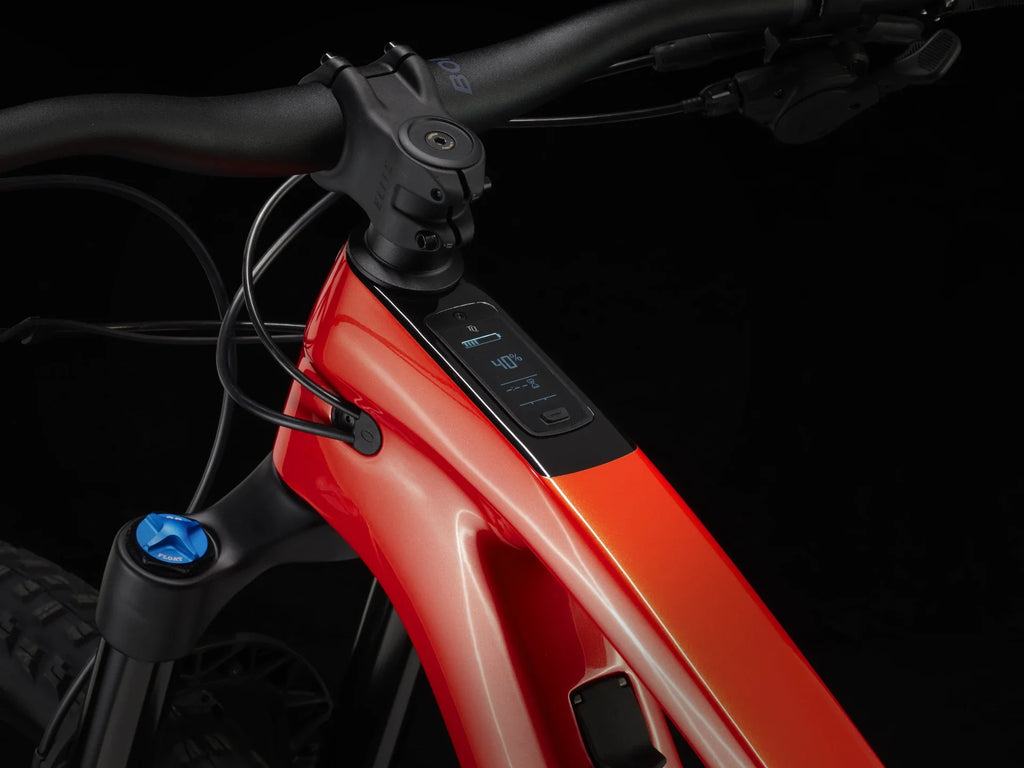

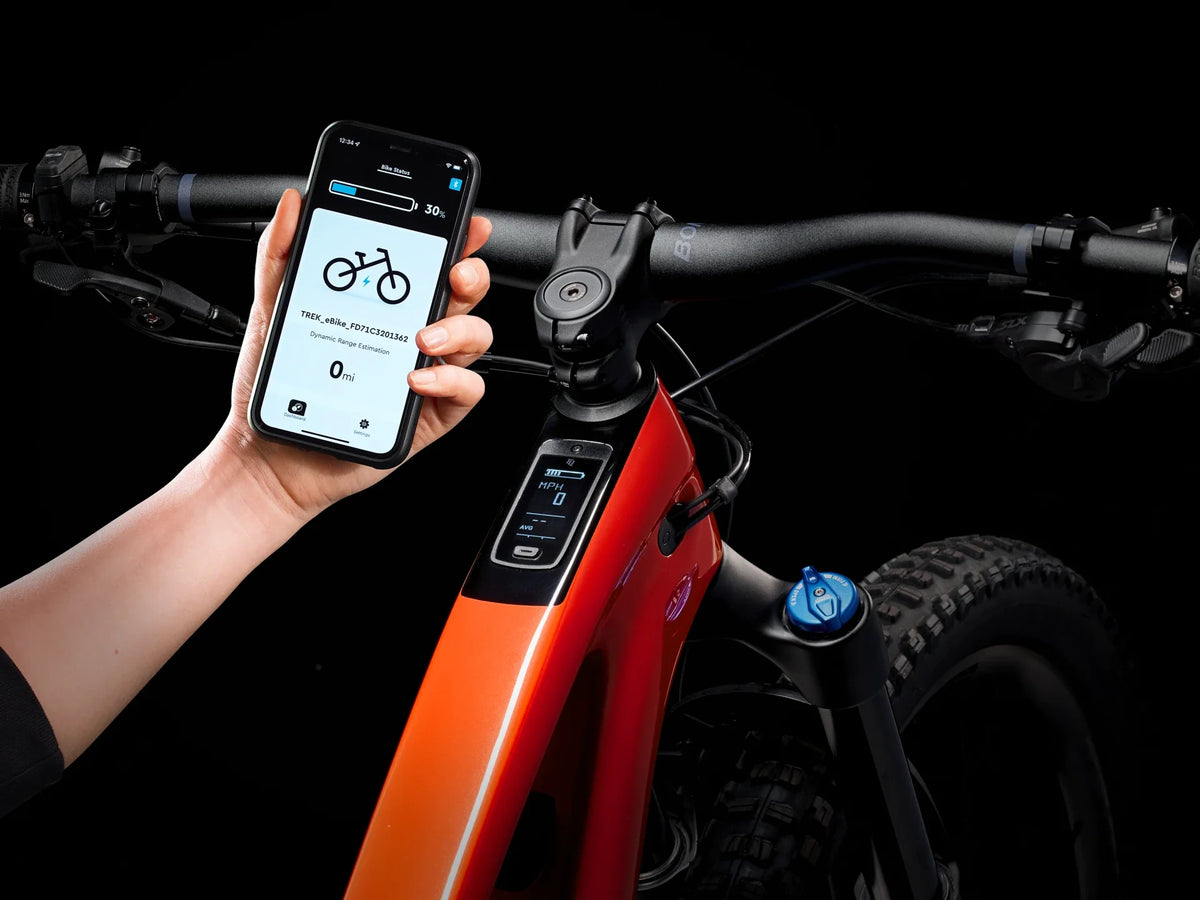

| Computer | Size: S, XL, L, M TQ LED display with Bluetooth & ANT+ connectivity |

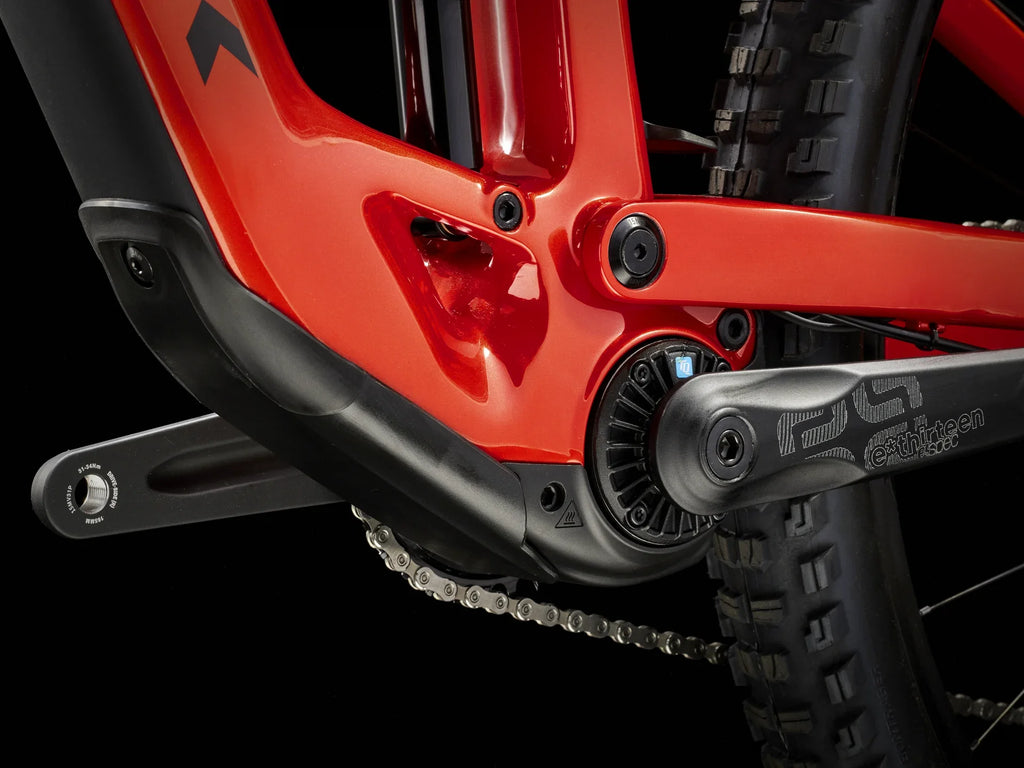

| Motor | Size: S, XL, L, M TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |

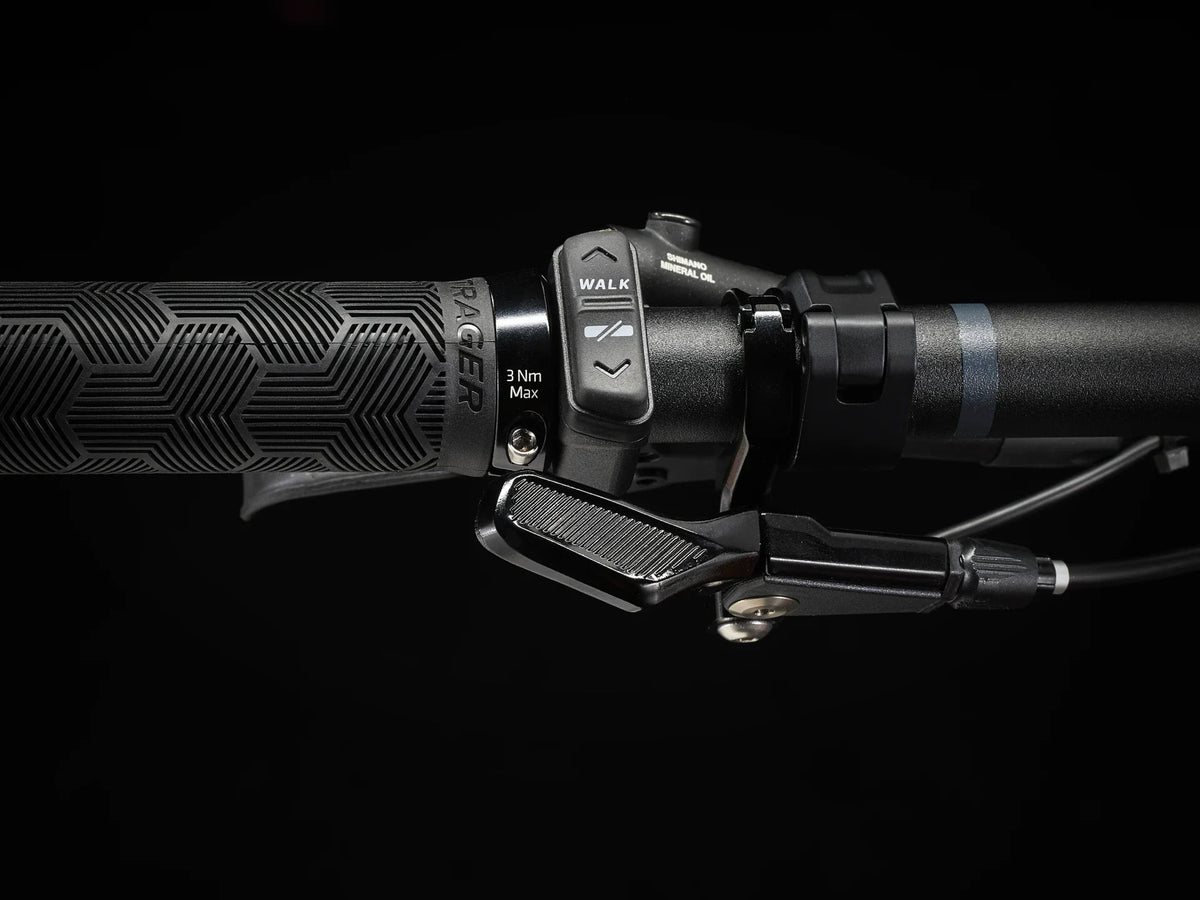

| Shifter | Size: S, XL, L, M Shimano SLX M7100, 12-speed |
| Rear Derailleur | Size: S, XL, L, M Shimano XT M8100, long cage |
| Crank | Size: S, XL, L, M E*thirteen E*spec Plus, 165 mm length |
| Crank Arm | Size: S, XL, L, M E*thirteen E*spec Plus, 165 mm length |
| Chain Ring | Size: S, XL, L, M E*Thirteen Helix Core Steel 32t steel, 55mm chainline |
| Chain Ring | Size: S, XL, L, M E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
| Cassette | Size: S, XL, L, M Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Size: S, XL, L, M Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
| Saddle | Size: S, XL, L, M Bontrager Verse P3, chromoly rails |
| Saddle | Size: S, XL, L, M Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length |
| Seatpost | Size: M Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Seatpost | Size: XL, L Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
| Handlebar | Size: S, XL, L, M Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Size: S, XL, L, M Bontrager XR Trail Elite, nylon lock-on |
| Stem | Size: S, XL, L, M Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Headset | Size: S, XL, L, M Integrated cartridge bearing, 1-1/8" top, 1.5" bottom |

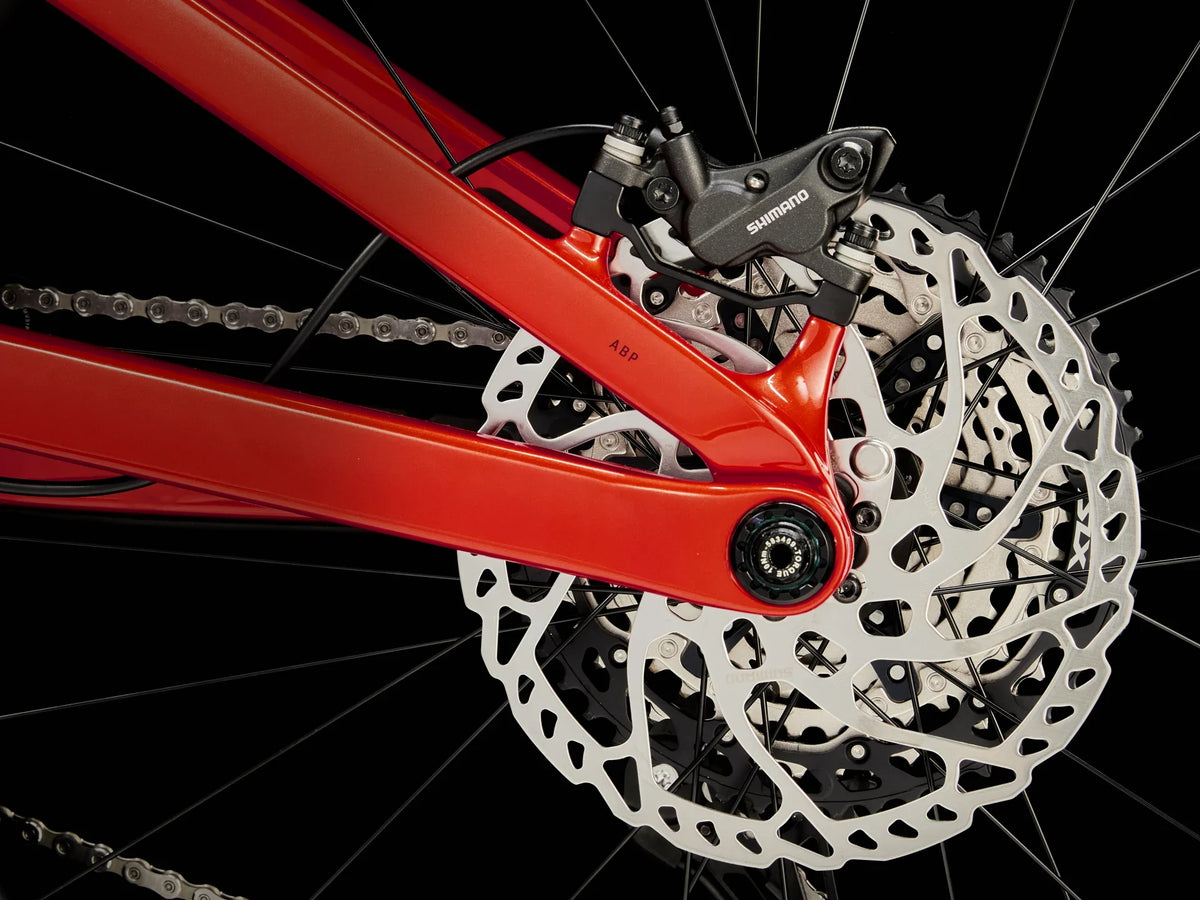

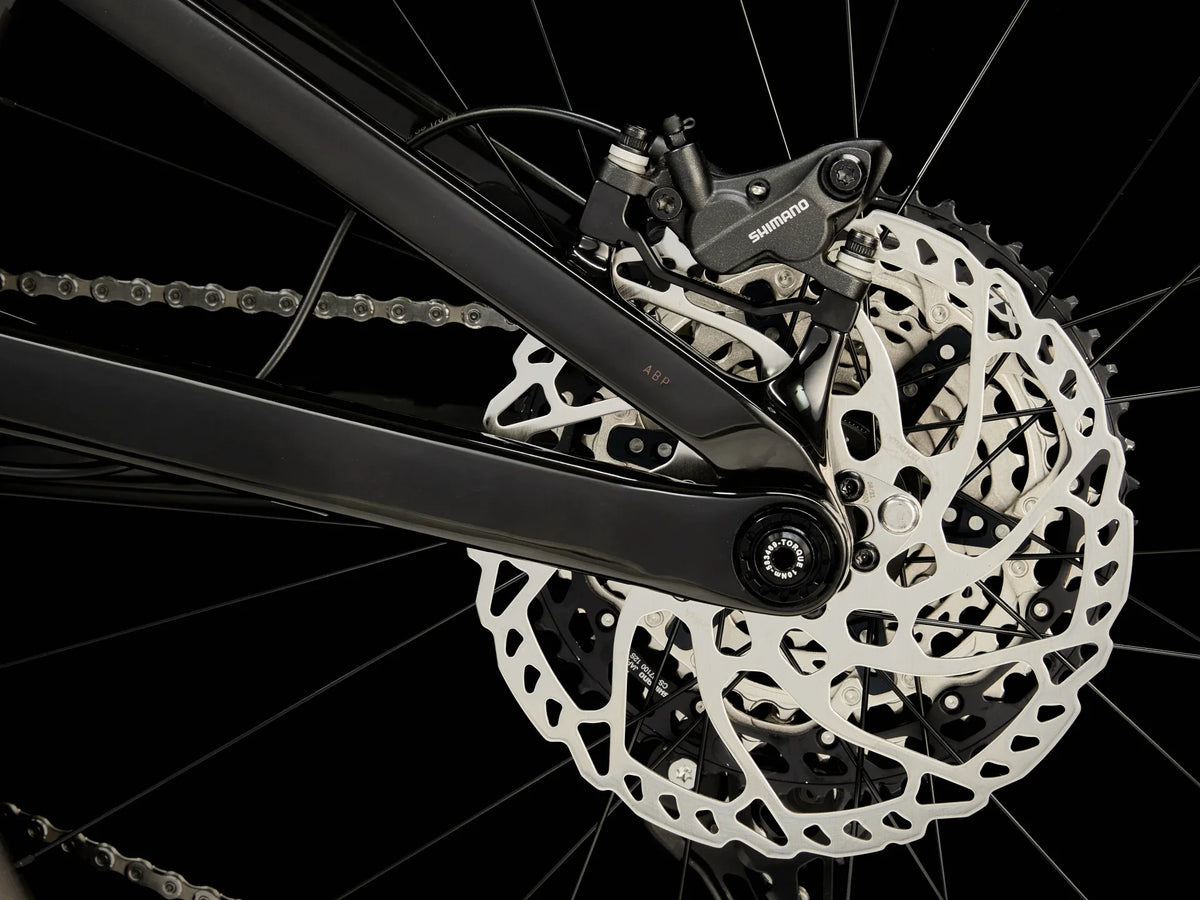

| Brake | Size: S, XL, L, M Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake Rotor | Size: S, XL, L, M Shimano RT66, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 19.33 kg / 42.62 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Specifications — Deep Smoke

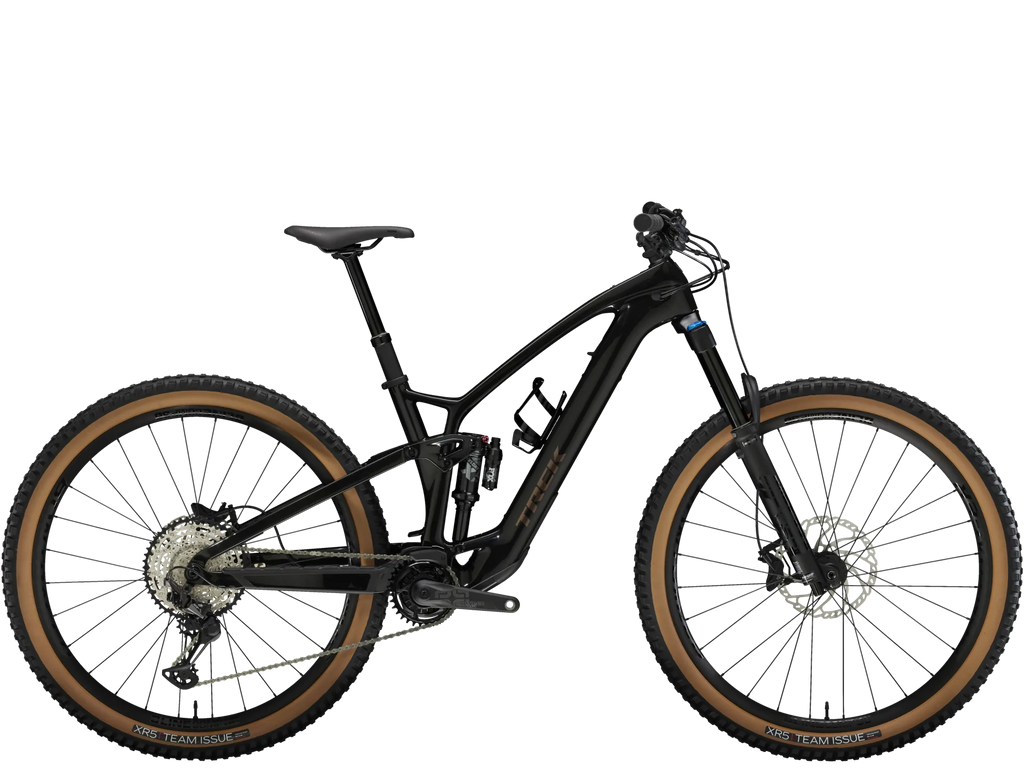

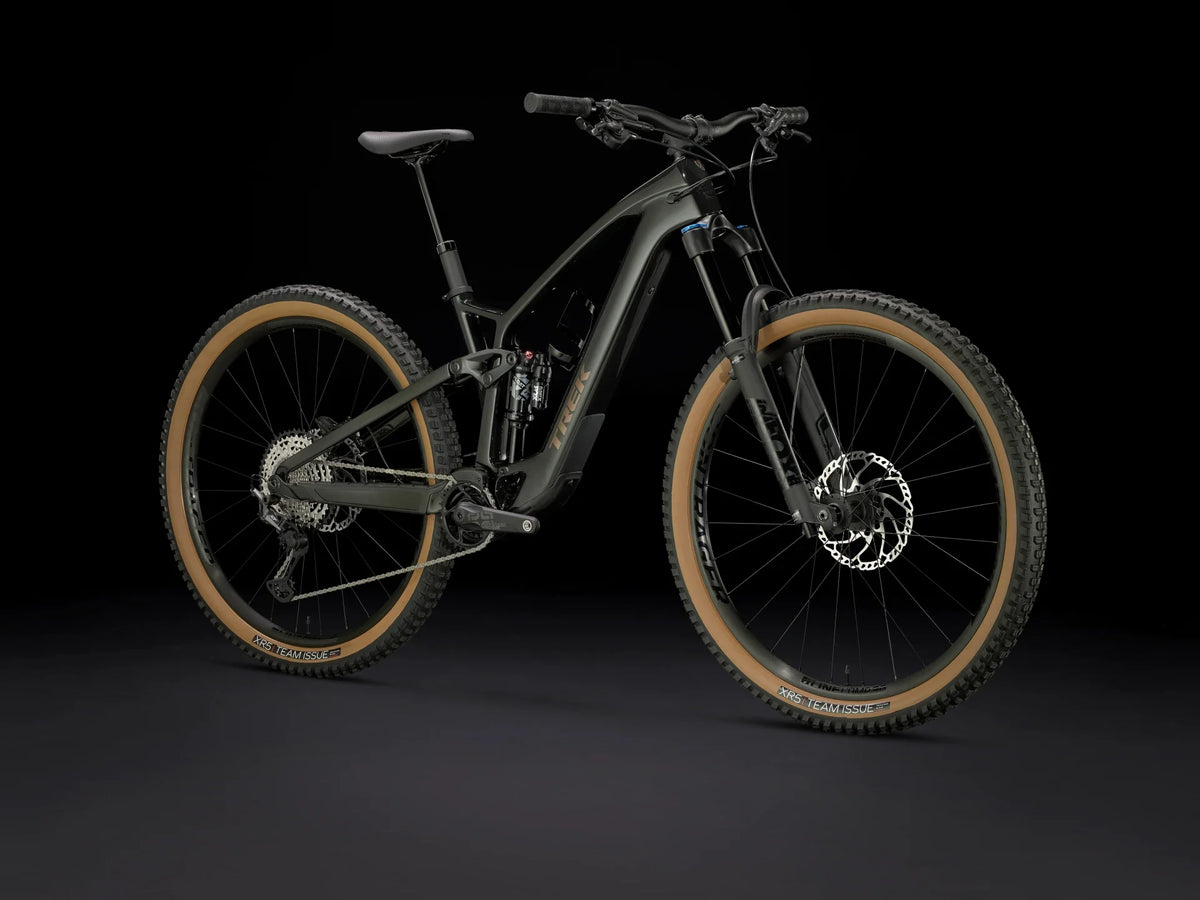

| Model | 2025 Trek Fuel EXe 9.7 - Deep Smoke |
|---|---|
| Mainframe | Size: S, XL, L, M OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Size: S, XL, L, M Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel |
| Fork | Size: S, XL, L, M Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

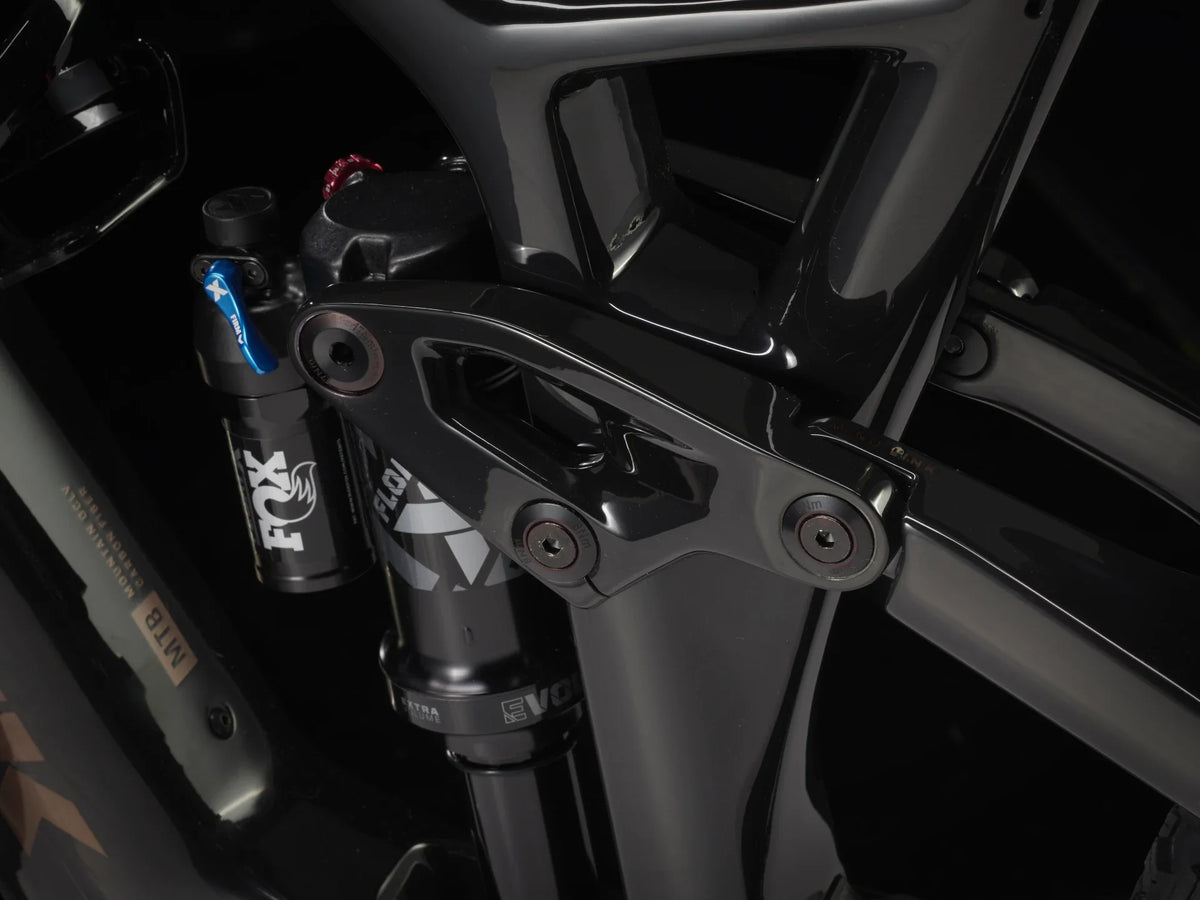

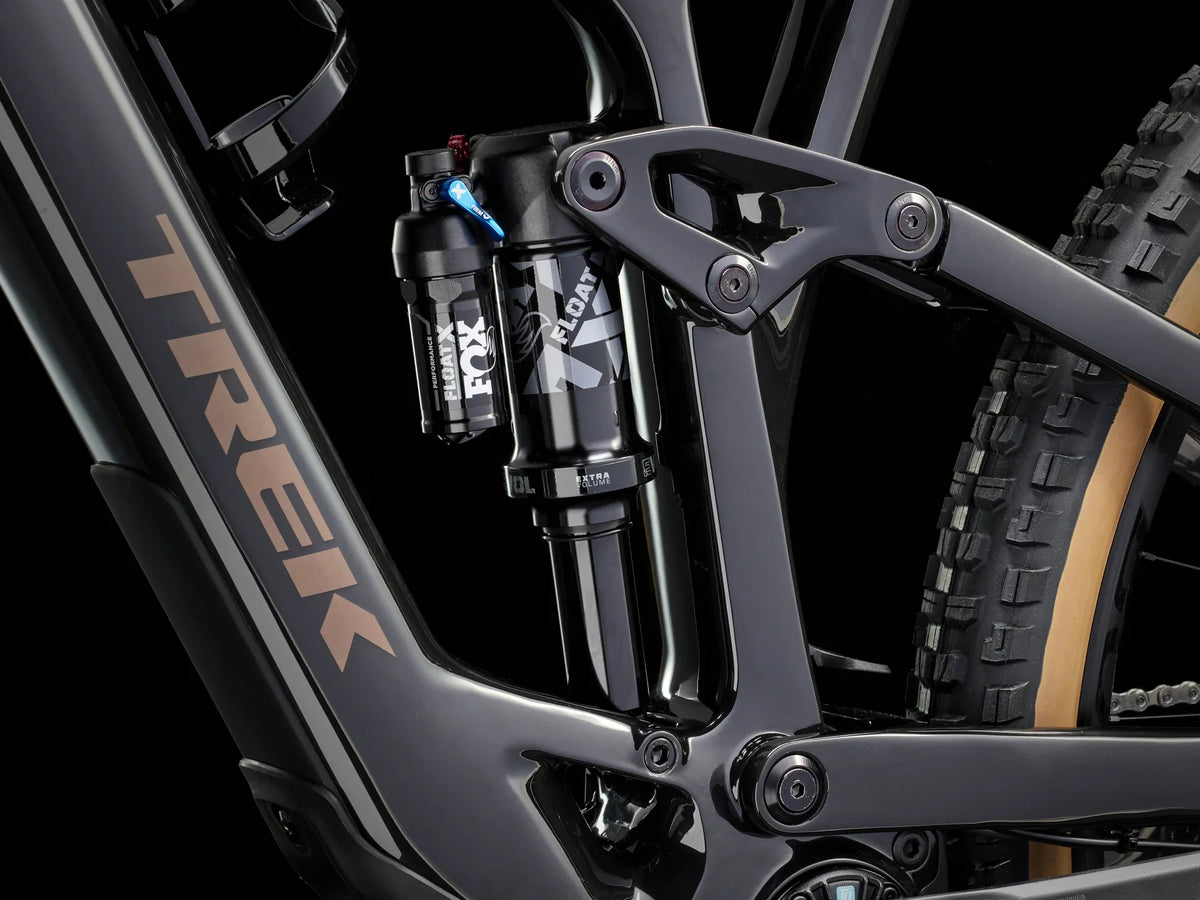

| Shock | Size: S, XL, L, M Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Front Wheel | Size: S, XL, L, M Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Rear Wheel | Size: S, XL, L, M Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29" |
| Rear Skewer | Size: S, XL, L, M Bontrager Switch thru-axle, removable lever |
| Tire | Size: S, XL, L, M Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Tire Part | Size: S, XL, L, M Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Size: S, XL, L, M Bontrager TLR |
| Max tyre size | Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer |
| Battery | Size: S, XL, L, M TQ 360Wh |
| Charger | Size: S, XL, L, M TQ 4A charger |

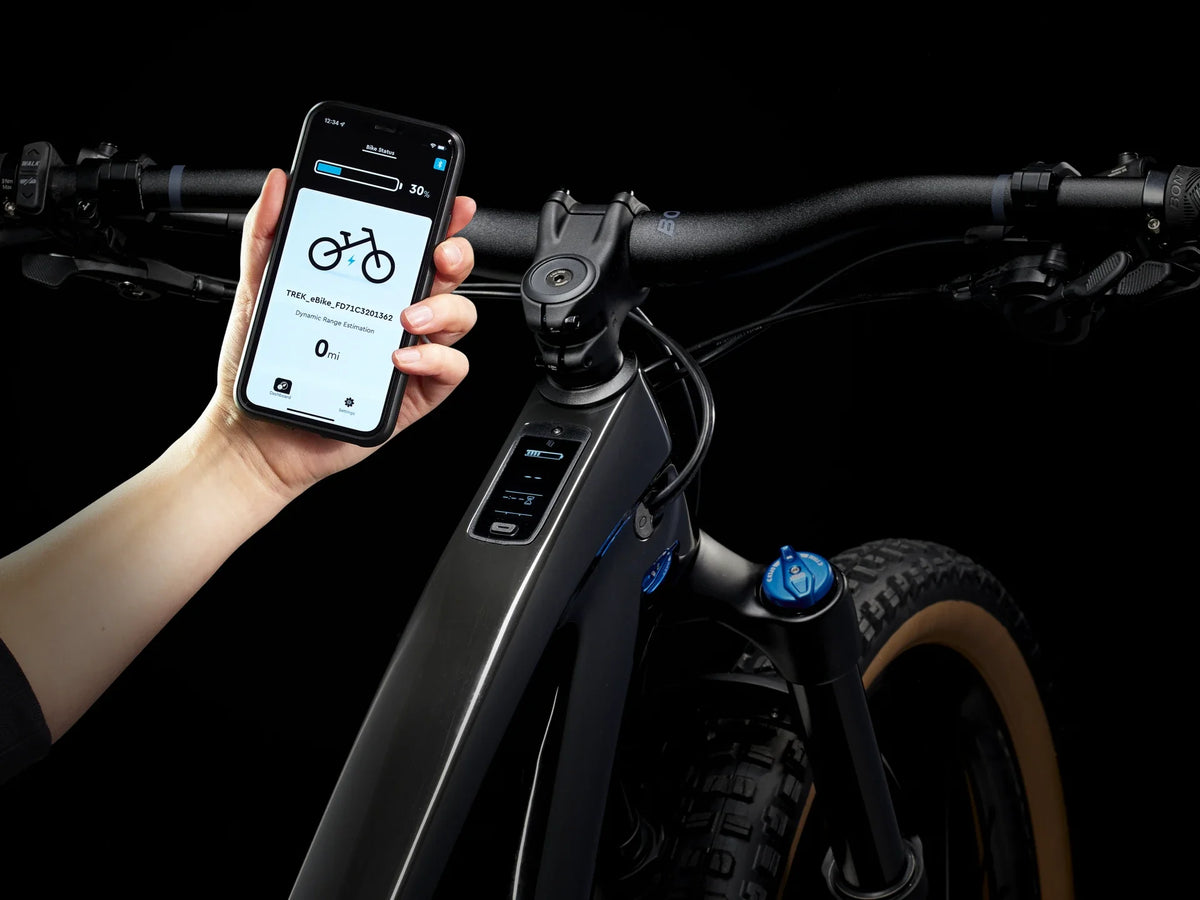

| Computer | Size: S, XL, L, M TQ LED display with Bluetooth & ANT+ connectivity |

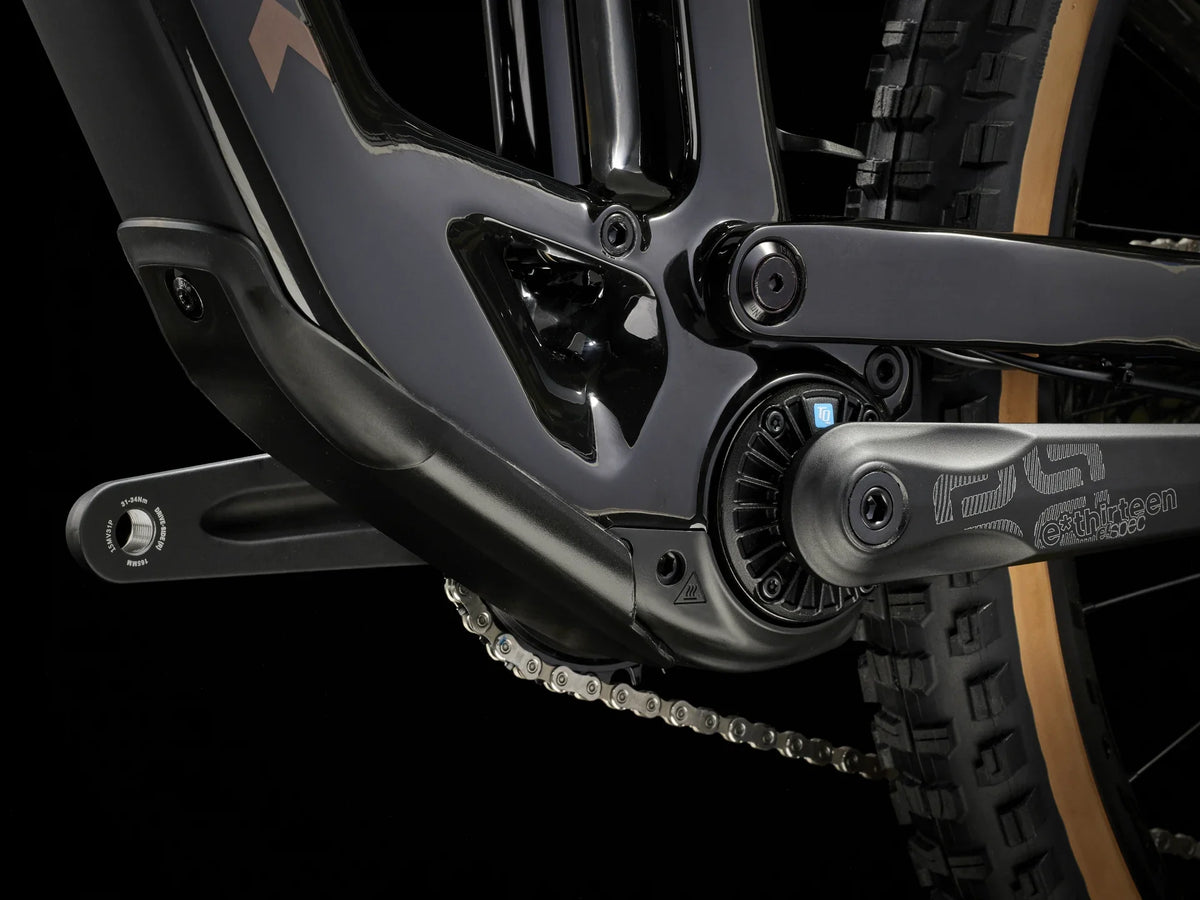

| Motor | Size: S, XL, L, M TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
| Shifter | Size: S, XL, L, M Shimano SLX M7100, 12-speed |
| Rear Derailleur | Size: S, XL, L, M Shimano XT M8100, long cage |
| Crank | Size: S, XL, L, M E*thirteen E*spec Plus, 165 mm length |
| Crank Arm | Size: S, XL, L, M E*thirteen E*spec Plus, 165 mm length |
| Chain Ring | Size: S, XL, L, M E*Thirteen Helix Core Steel 32t steel, 55mm chainline |
| Chain Ring | Size: S, XL, L, M E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
| Cassette | Size: S, XL, L, M Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Size: S, XL, L, M Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
| Saddle | Size: S, XL, L, M Bontrager Verse P3, chromoly rails |
| Saddle | Size: S, XL, L, M Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length |
| Seatpost | Size: M Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Seatpost | Size: XL, L Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
| Handlebar | Size: S, XL, L, M Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Size: S, XL, L, M Bontrager XR Trail Elite, nylon lock-on |
| Stem | Size: S, XL, L, M Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Headset | Size: S, XL, L, M Integrated cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | Size: S, XL, L, M Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake Rotor | Size: S, XL, L, M Shimano RT66, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 19.33 kg / 42.62 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
