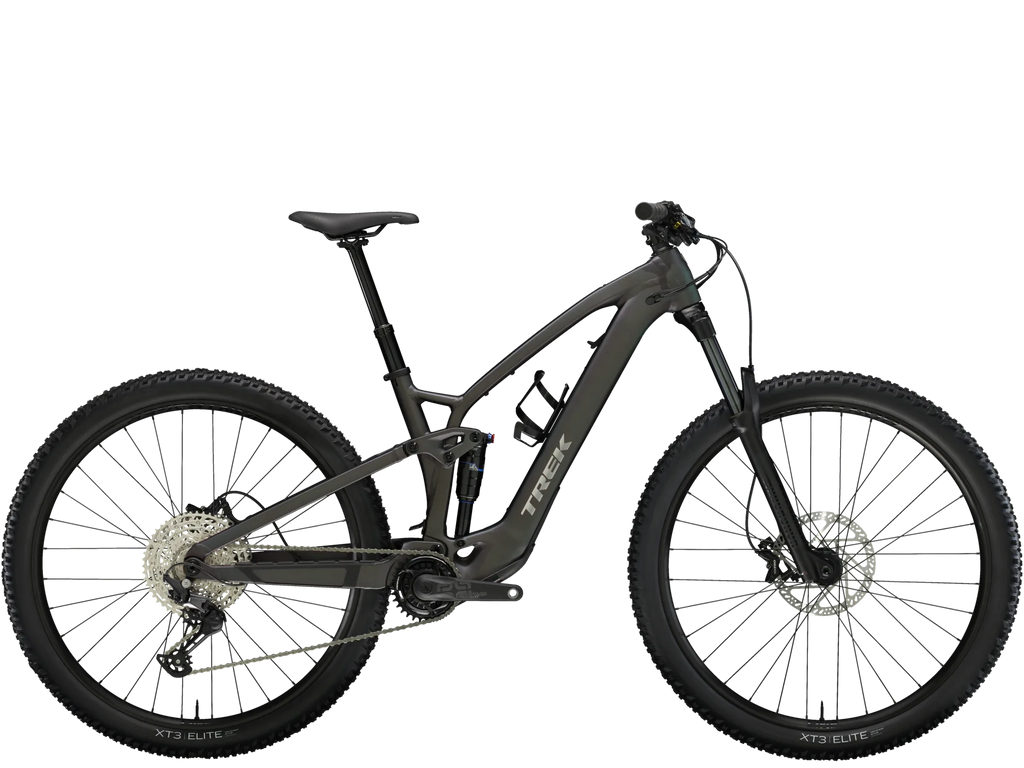

2025 Trek Fuel EXe 5
Sale price
R 100,800.00
Regular price
R 120,000.00

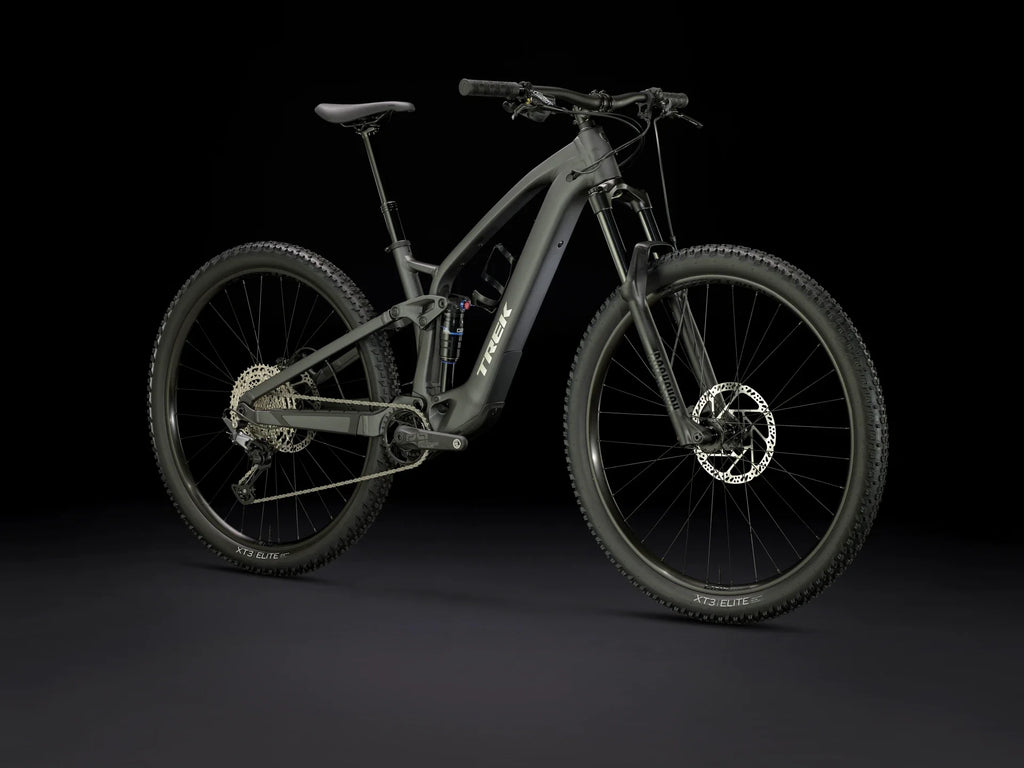

The 2025 Trek Fuel EXe 5 is built for trail rides that combine climbs, corners and descents. Pedal assistance adds support to your effort; review the motor and battery specification for this build. Compare the listed frame, components and size options to choose your setup.
Specifications
| Model | 2025 Trek Fuel EXe 5 - Matte Dnister Black |
|---|---|
| Mainframe | Size: S, XL, L, M Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Size: S, XL, L, M Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Fork | Size: S, XL, L, M RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel |

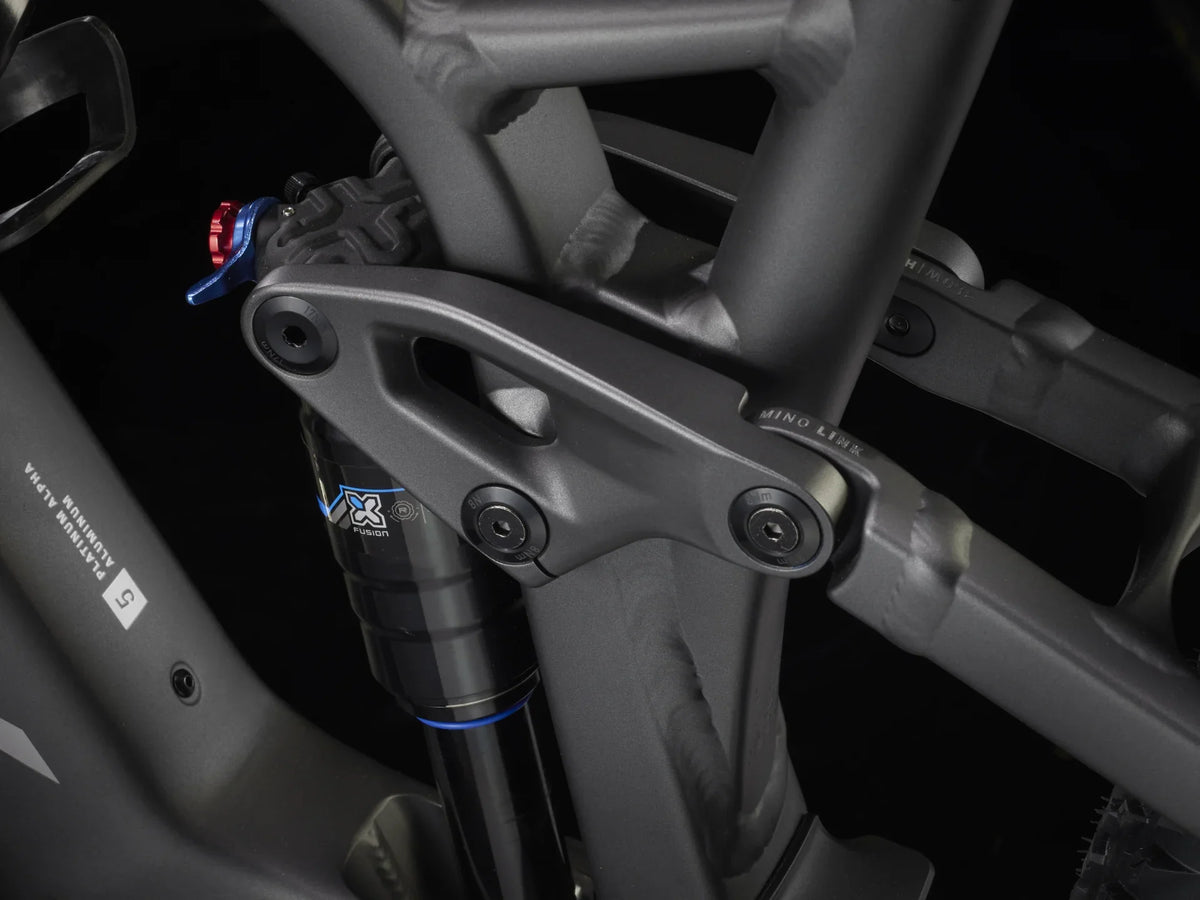

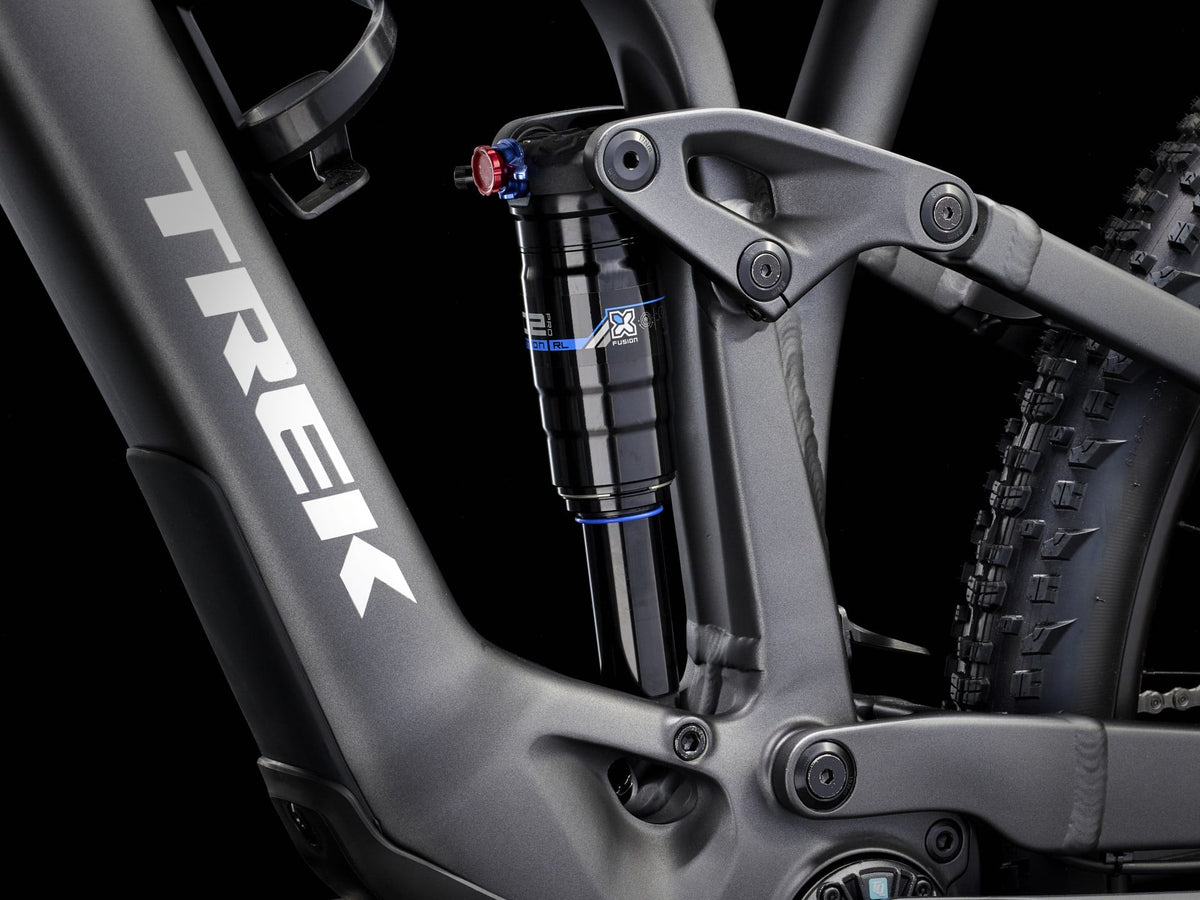

| Shock | Size: S, XL, L, M X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm |
| Front Hub | Size: S, XL, L, M Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Rear Hub | Size: S, XL, L, M Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Rear Skewer | Size: S, XL, L, M Bontrager Switch thru-axle, removable lever |
| Rim | Size: S, XL, L, M Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Tire | Size: S, XL, L, M Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40" |
| Rim Strip | Size: S, XL, L, M Bontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |

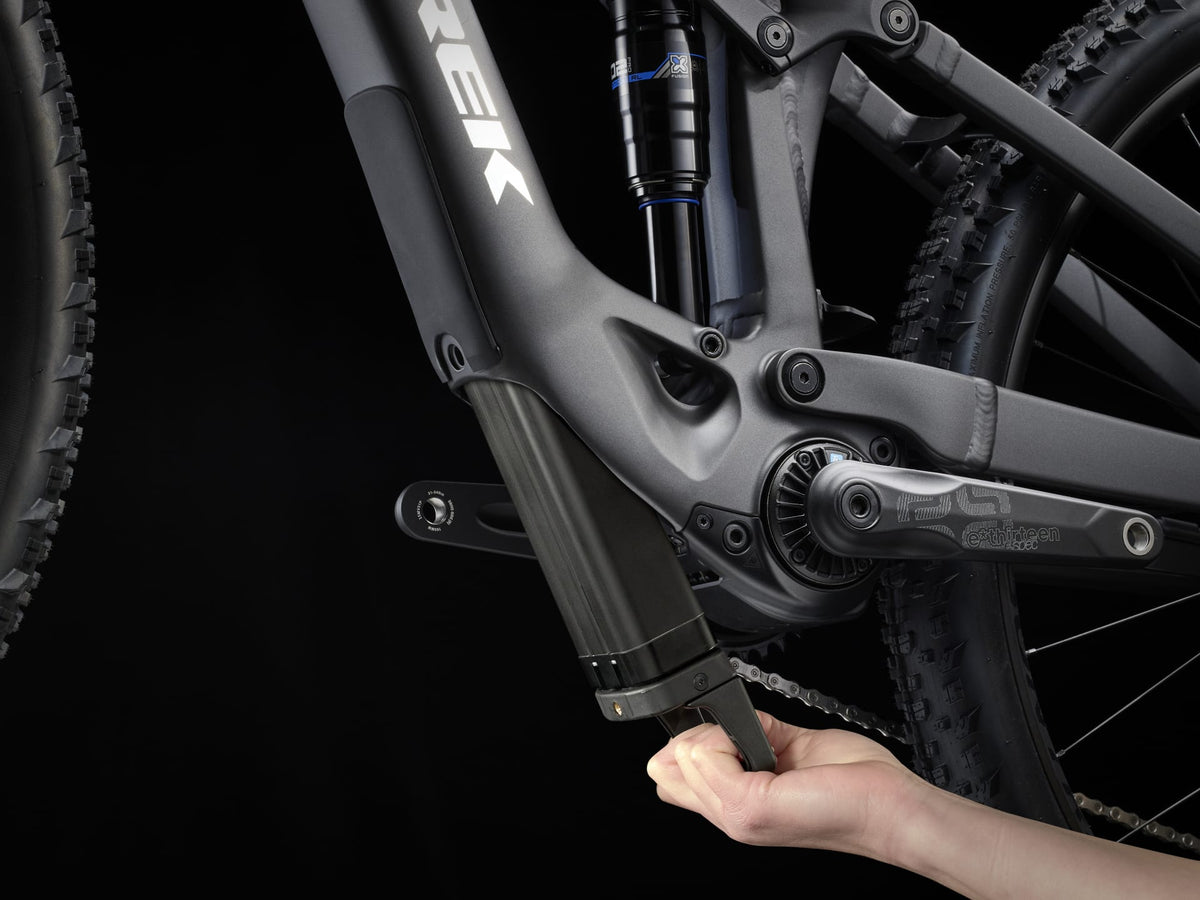

| Battery | Size: S, XL, L, M TQ 360Wh |
| Charger | Size: S, XL, L, M TQ 4A charger |

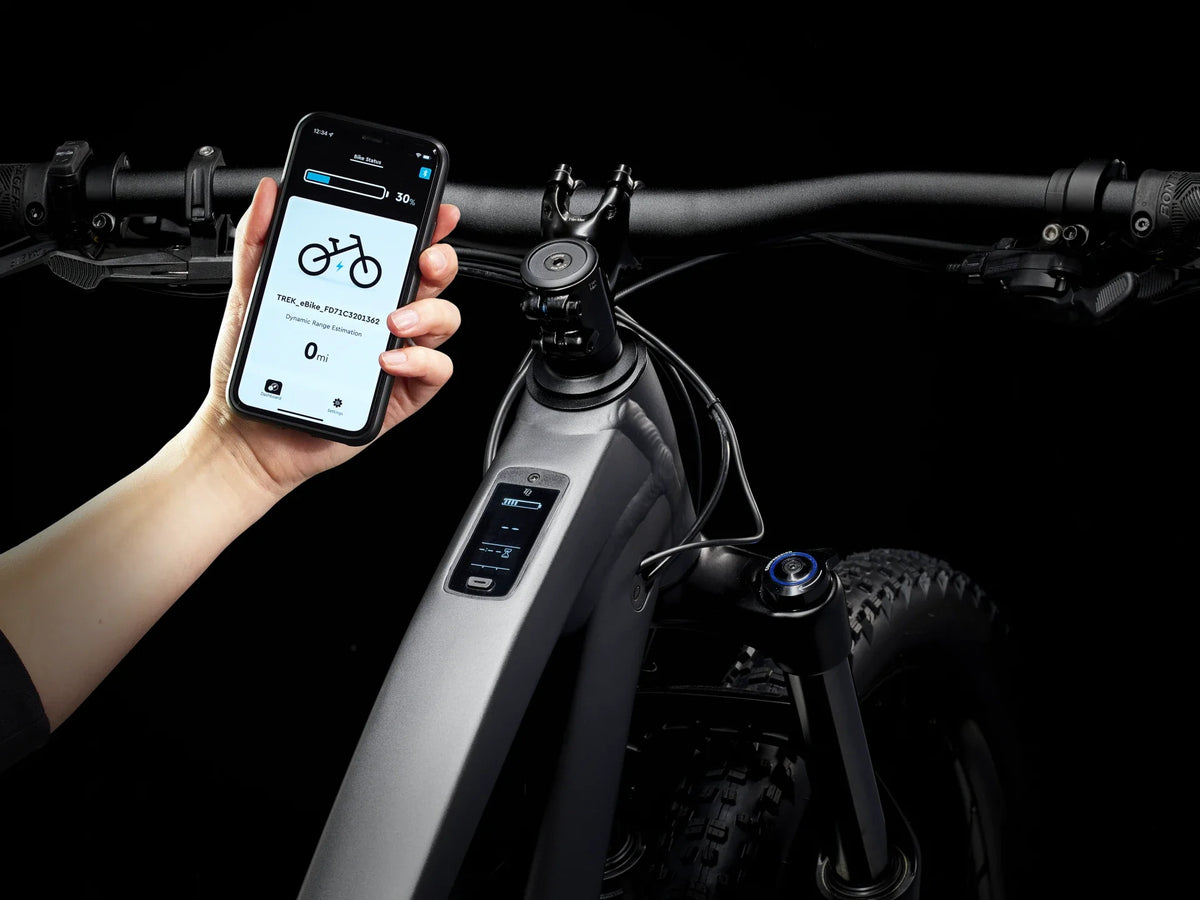

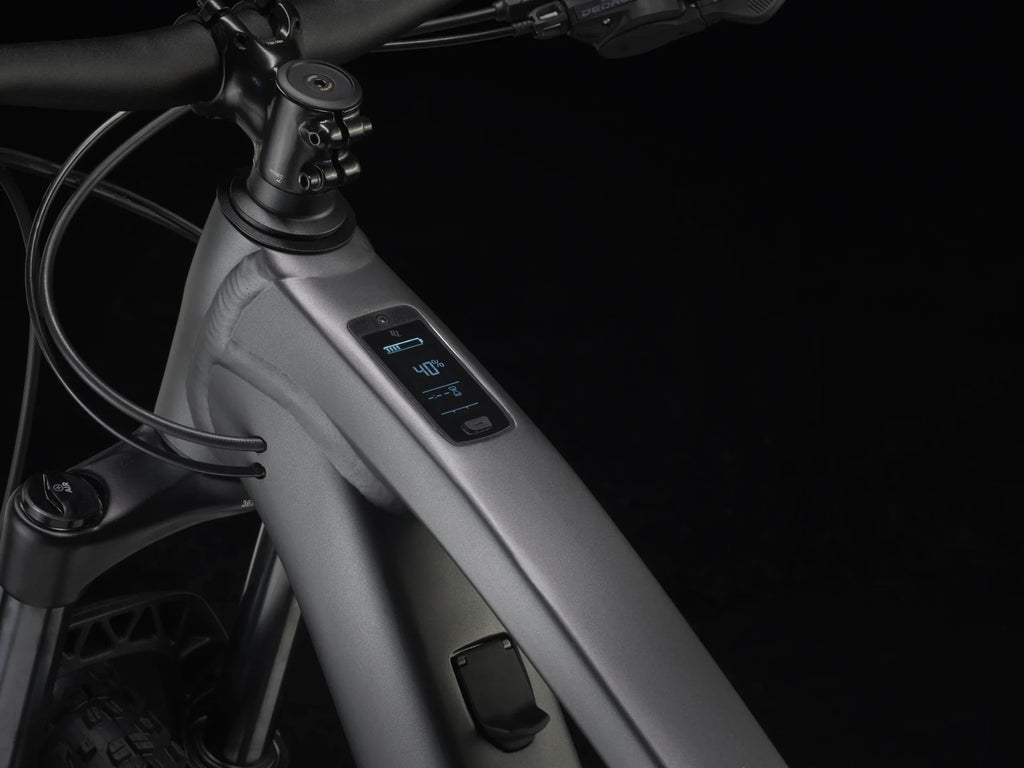

| Computer | Size: S, XL, L, M TQ LED display with Bluetooth & ANT+ connectivity |

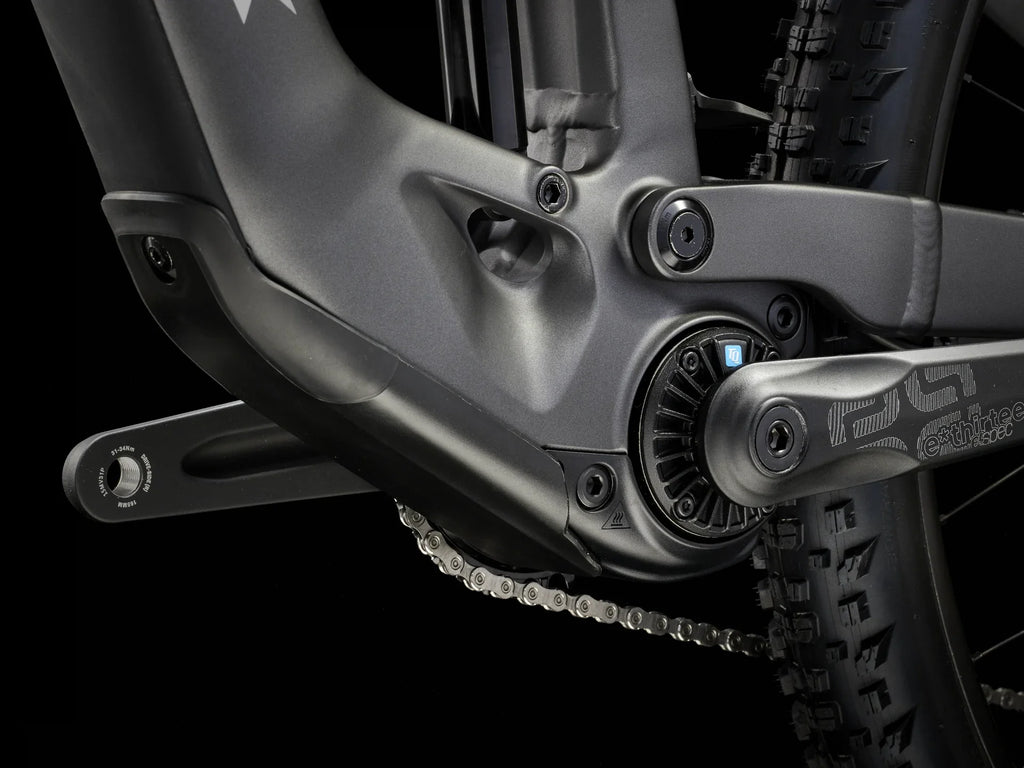

| Motor | Size: S, XL, L, M TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |

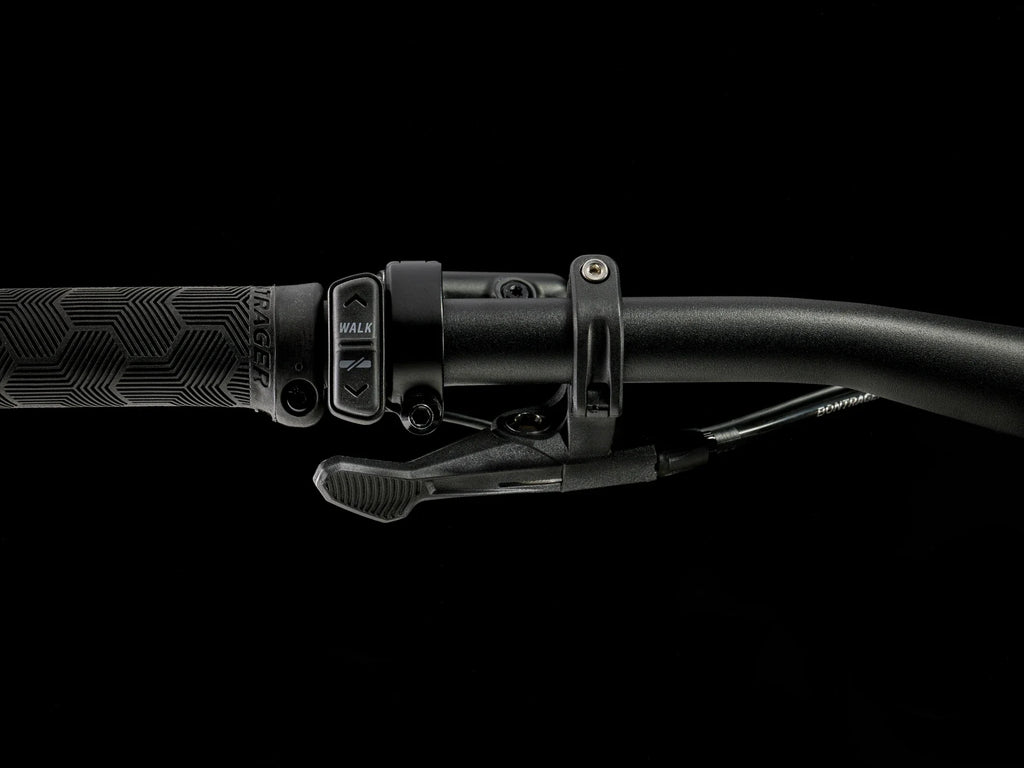

| Shifter | Size: S, XL, L, M Shimano Deore M6100, 12-speed |
| Rear Derailleur | Size: S, XL, L, M Shimano Deore M6100, long cage |
| Crank | Size: S, XL, L, M E*thirteen E*spec Plus, 165 mm length |
| Chain Ring | Size: S, XL, L, M E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
| Cassette | Size: S, XL, L, M Shimano Deore M6100, 10-51, 12-speed |
| Chain | Size: S, XL, L, M Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
| Saddle | Size: S, XL, L, M Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
| Seatpost | Size: M TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length |
| Seatpost | Size: XL, L TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
| Handlebar | Size: S, XL, L, M Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Size: S, XL, L, M Bontrager XR Trail Comp, nylon lock-on |
| Stem | Size: S, XL, L, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Headset | Size: S, XL, L, M Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

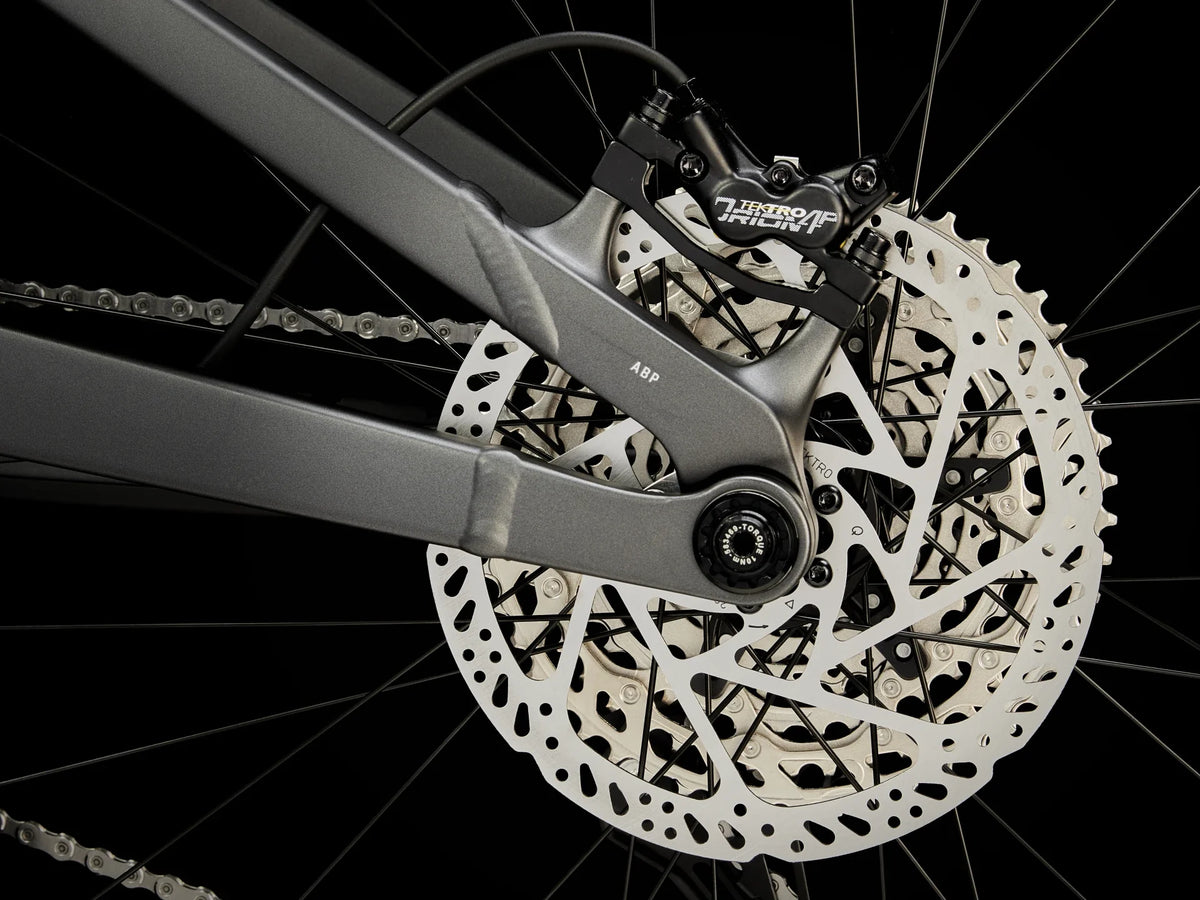

| Brake | Size: S, XL, L, M Tektro HD-M745 hydraulic disc |
| Brake Rotor | Size: S, XL, L, M Tektro, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Weight | M - 20.98 kg / 46.26 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
