2025 Trek Fuel EX AL Gen 6 Frame Set
Small (29" wheel)
Sale price
R 33,200.00
Regular price
R 40,000.00
Skip to product information
In stock
2025 Trek Fuel EX AL Gen 6 Frame Set
Sale price
R 33,200.00
Regular price
R 40,000.00
The 2025 Trek Fuel EX AL Gen 6 Frame Set provides the starting point for a custom build. Match your components to the frame standards and size details below before choosing your build kit.
Specifications
| Model | 2025 Trek Fuel EX AL Gen 6 Frame Set |
|---|---|
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Max tyre size | Frame: 29x2.5" (XS & S: 27.5x2.5") Fork: See manufacturer |
| Max. chainring size | Max: 34T (oval – 32T) Min: 28T |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |

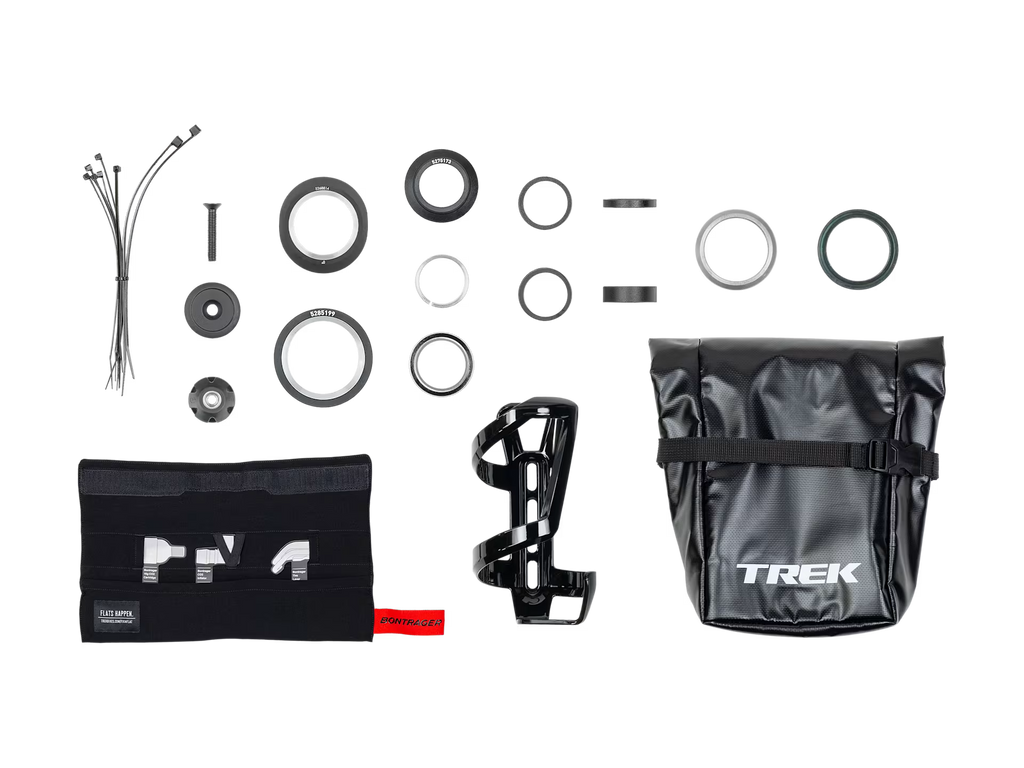

| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M – 4.60 kg/10.15 lb |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
