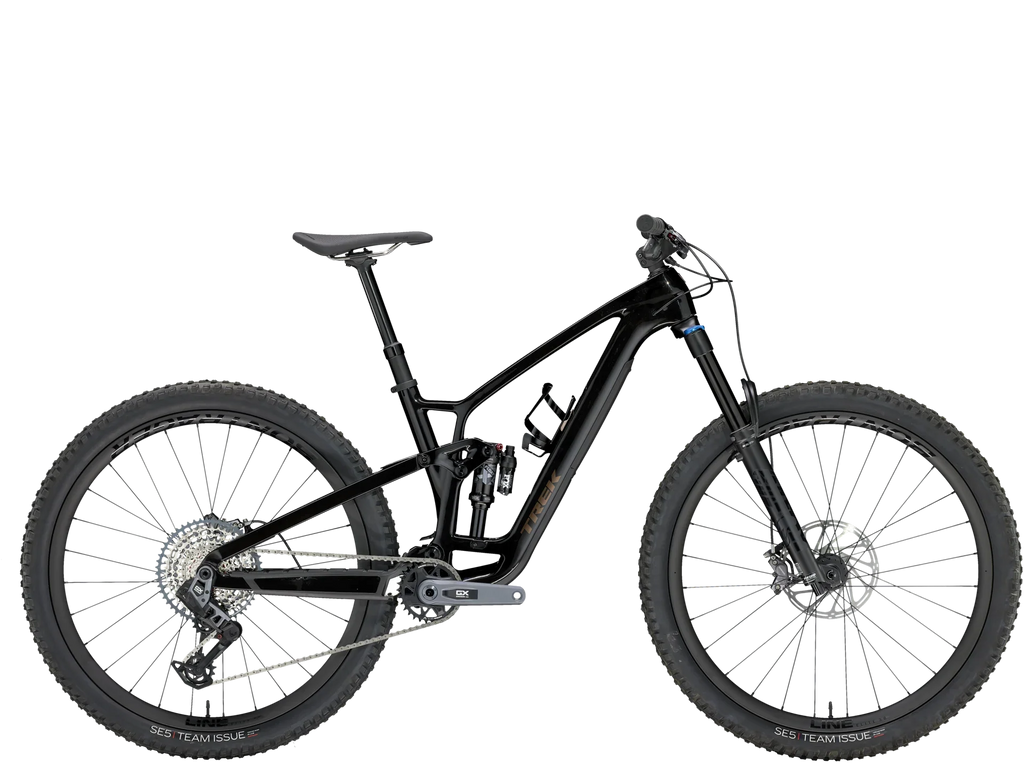

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 1
  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 2
  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 3

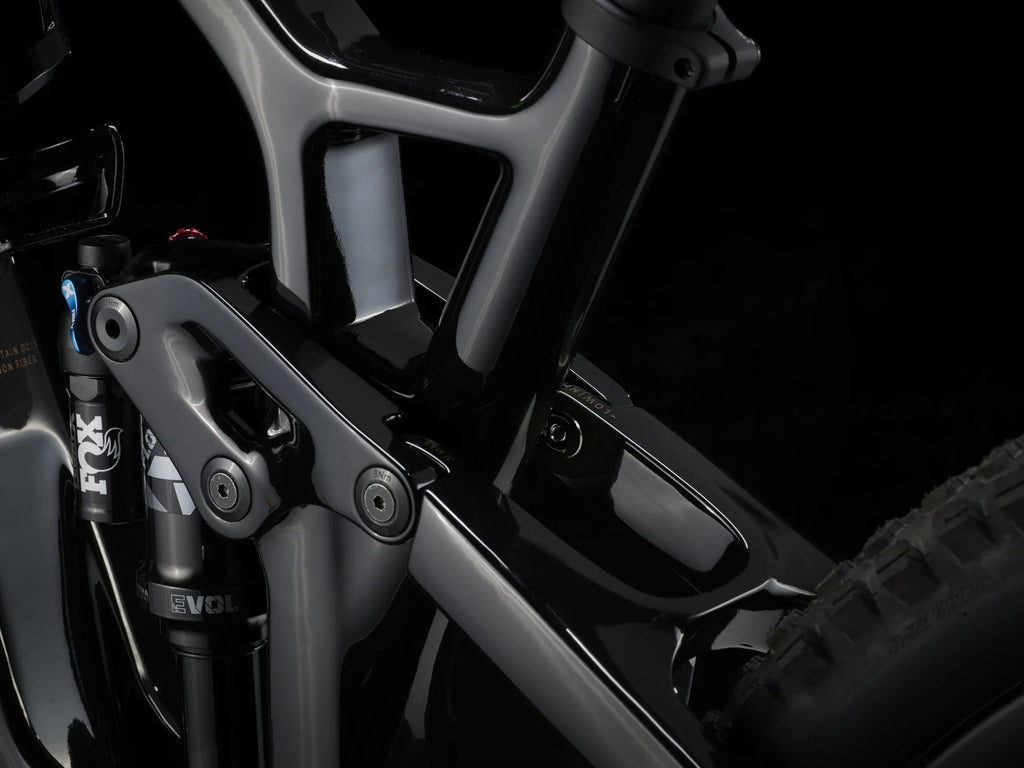

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 4

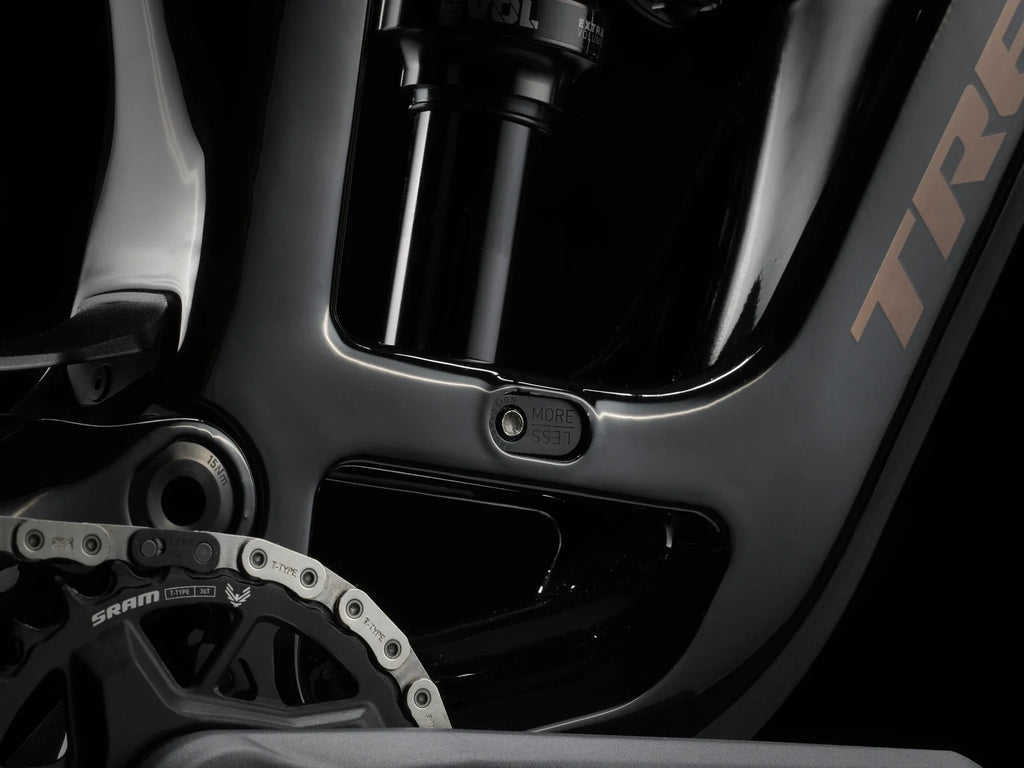

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 5

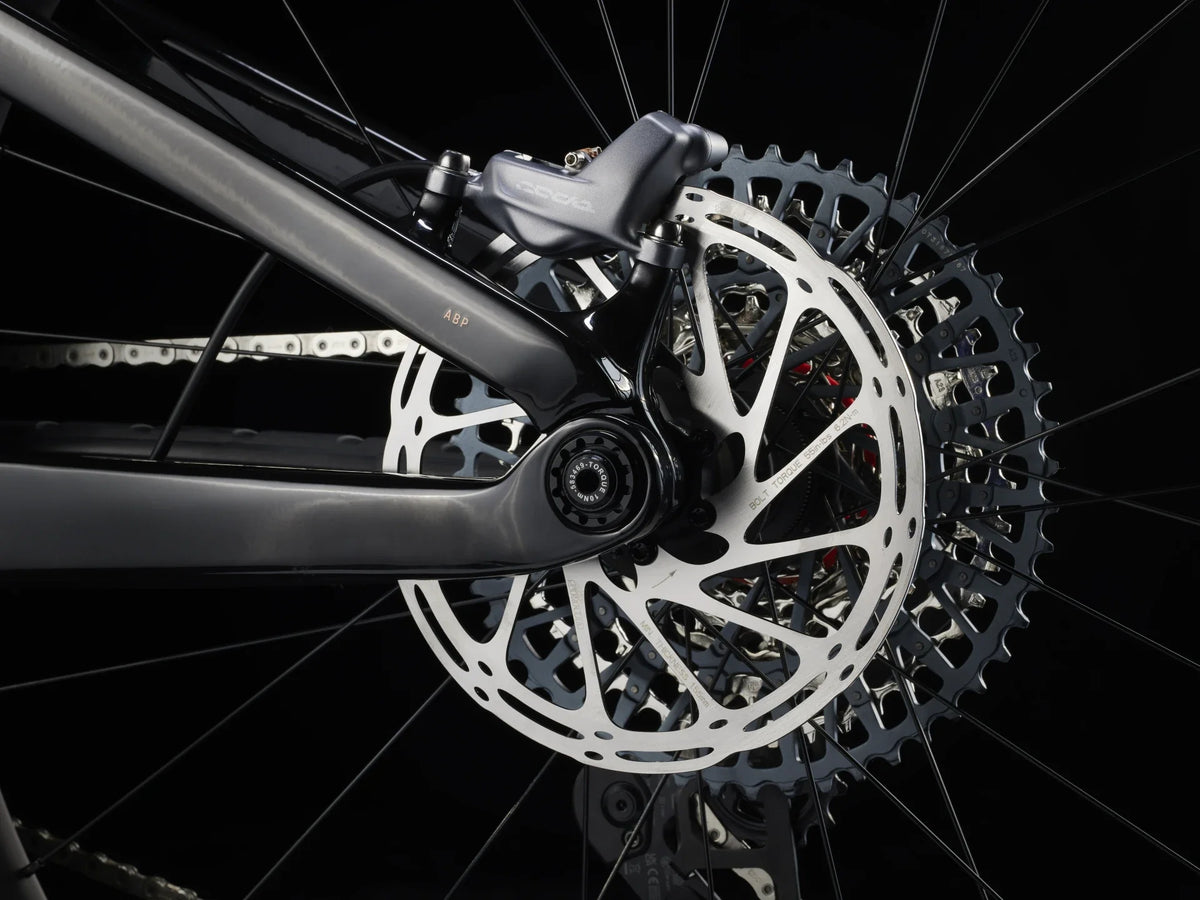

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 6

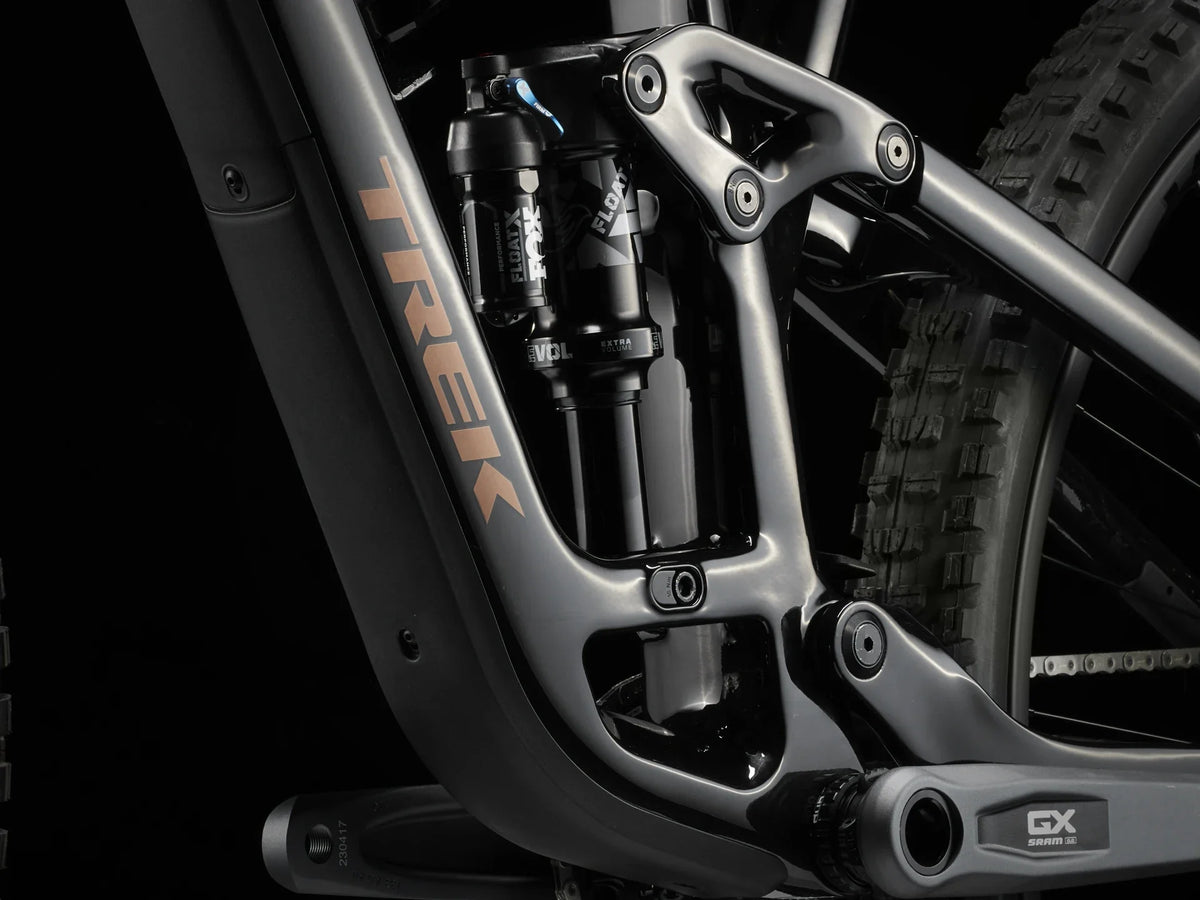

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 7

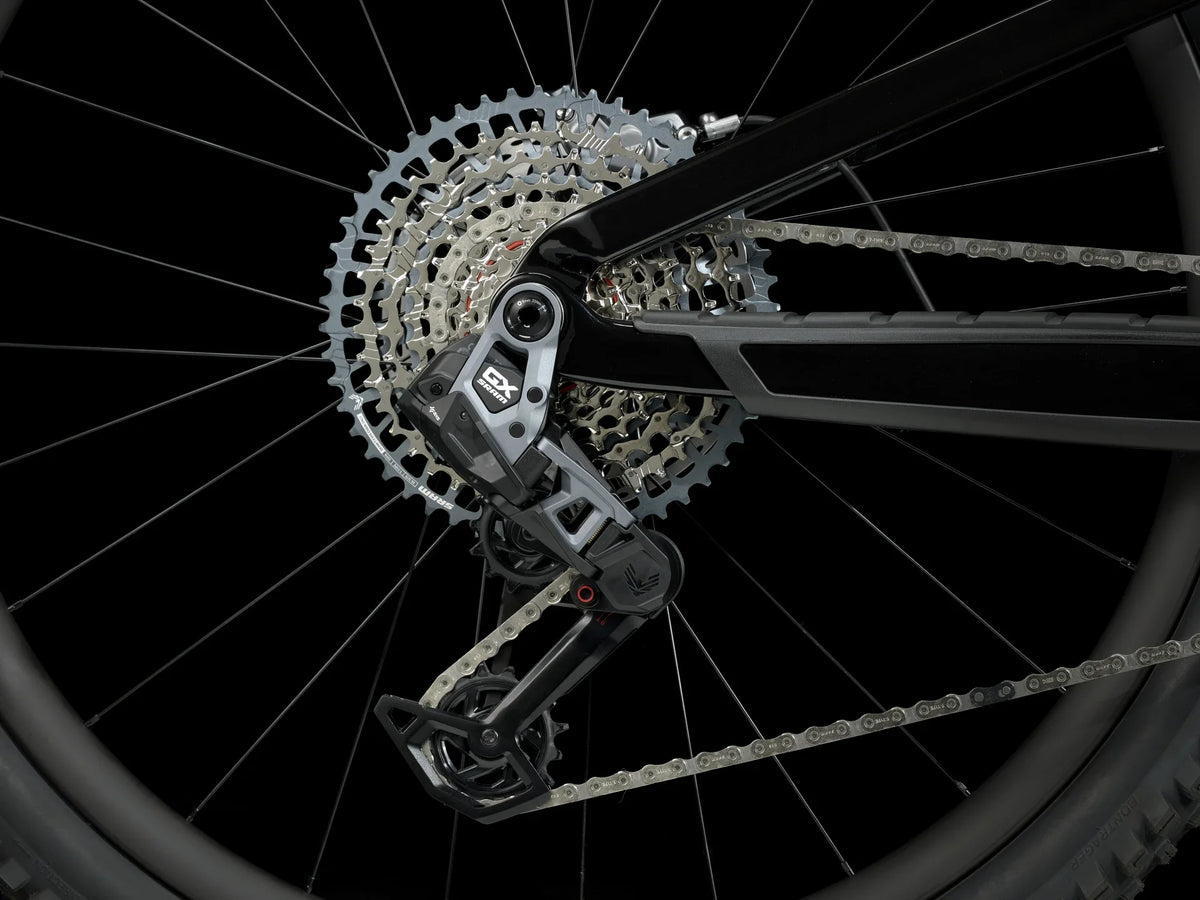

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 8

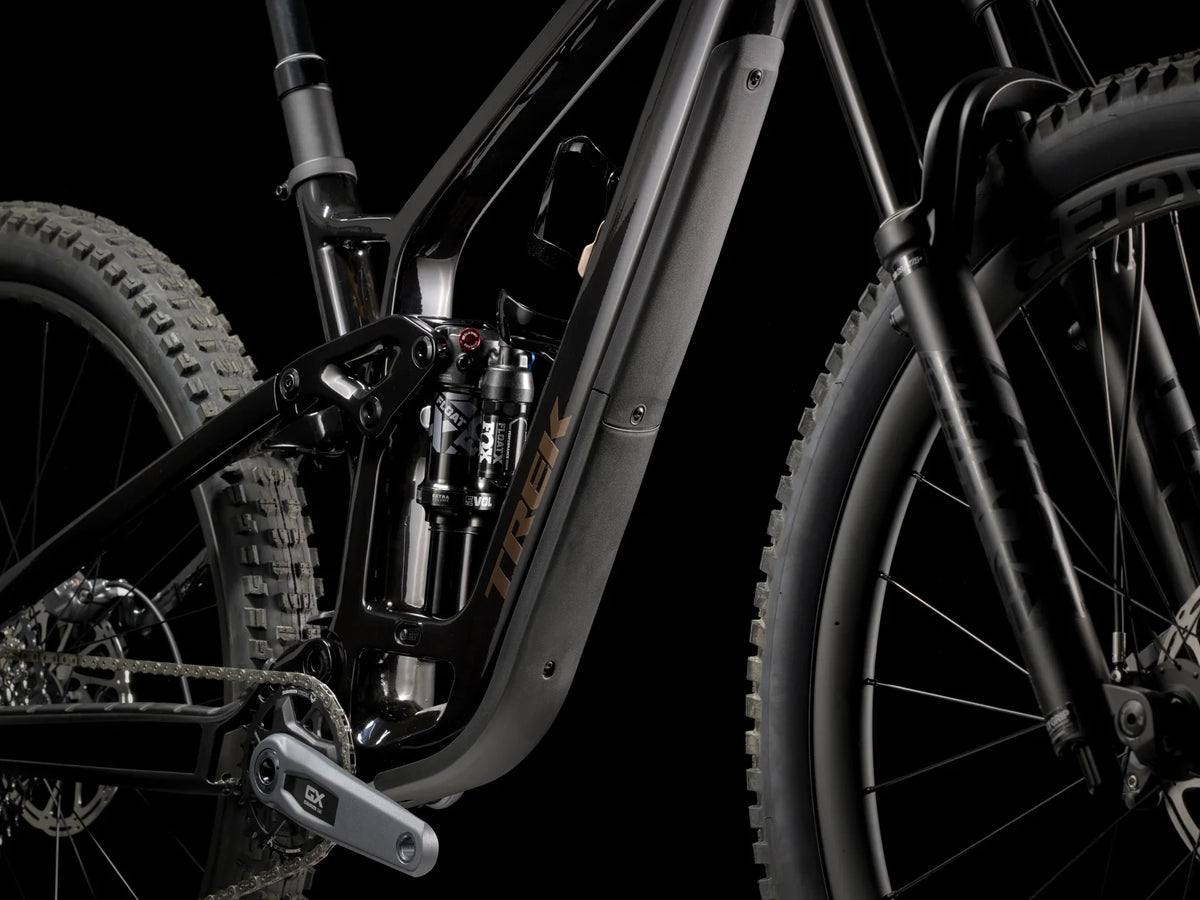

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 9

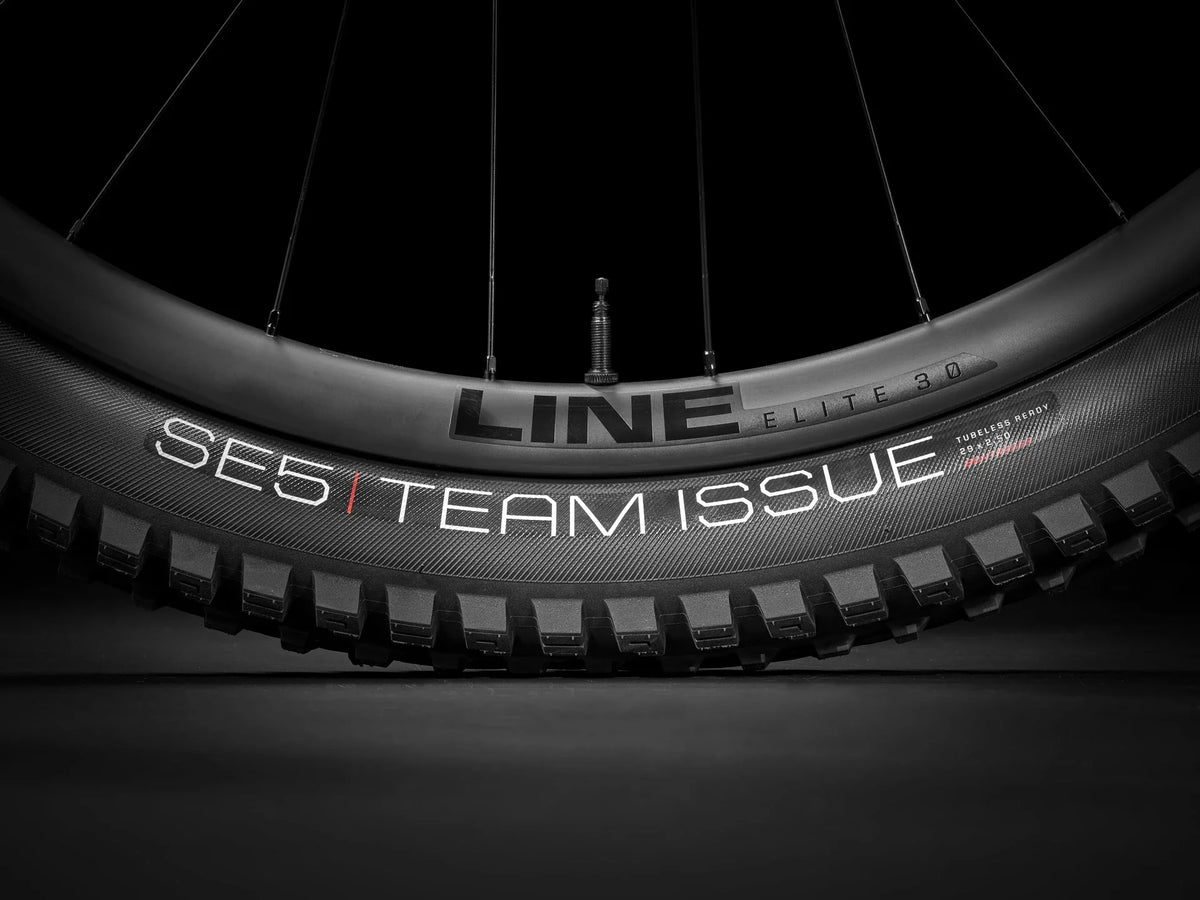

  • 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke — image 10

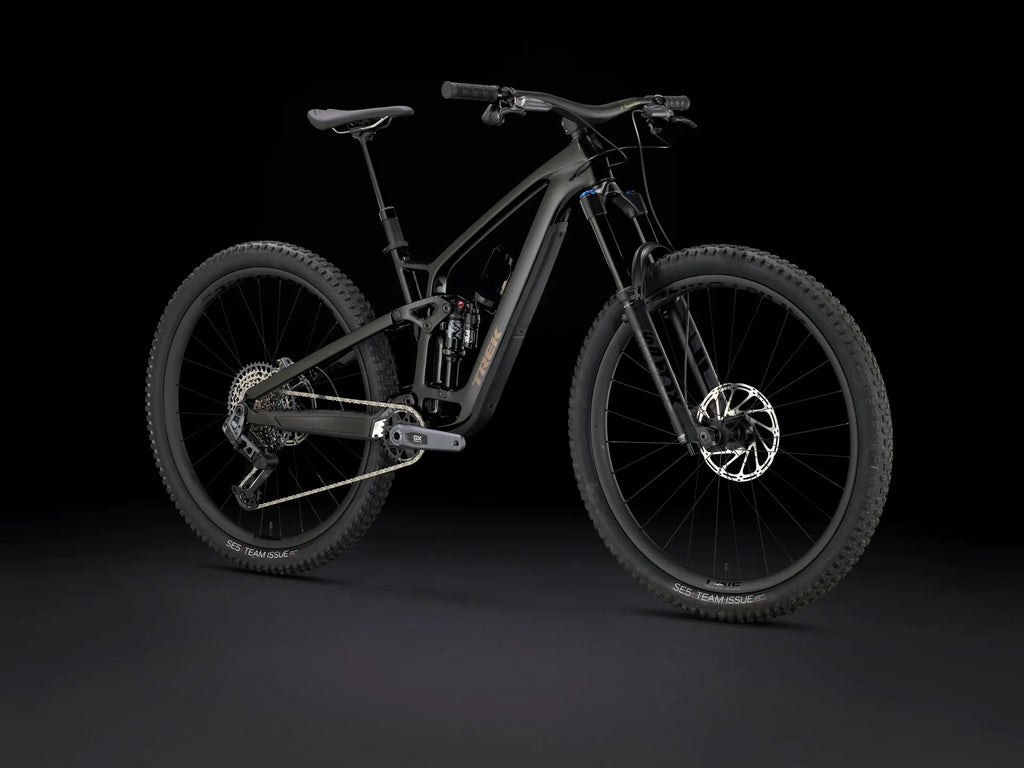

2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6

2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6

R 121,800.00 R 145,000.00
ColourDeep Smoke
Size
In stock

The 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 is built for trail rides that combine climbs, corners and descents. Compare the listed frame, components and size options to choose your setup.

Specifications

Model 2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 - Deep Smoke
Mainframe Size: ML , M , L , S , XL OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork Size: ML , M , L , S , XL Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
Shock Size: ML , M , L , S , XL Fox Performance Float X, 2-position damper, 185 mm x 55 mm
Front Wheel Size: ML , M , L , S , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Rear Wheel Size: ML , M , L , S , XL Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29"
Front Hub Size: ML , M , L , S , XL Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Skewer Size: ML , M , L , S , XL Bontrager Switch thru-axle, removable lever
Rim Size: ML , M , L , S , XL Bontrager Line Elite 30, Tubeless-Ready
Tire Size: ML , M , L , S , XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tire Part Size: ML , M , L , S , XL Bontrager TLR sealant, 180 ml/6 oz
Rim Strip Size: ML , M , L , S , XL Bontrager TLR
Max tyre size Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Battery Size: ML , M , L , S , XL SRAM AXS battery pack (with charger)
Shifter Size: ML , M , L , S , XL SRAM AXS POD
Rear Derailleur Size: ML , M , L , S , XL SRAM GX Eagle AXS, T-Type
Crank Size: ML , M , L , S , XL SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Bottom Bracket Size: ML , M , L , S , XL SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette Size: ML , M , L , S , XL SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain Size: ML , M , L , S , XL SRAM GX Eagle, T-Type, 12-speed
Max. chainring size 1x: 34T round, 32T oval, min 28T
Saddle Size: ML , M , L , S , XL Bontrager Arvada, austenite rails, 138 mm width
Saddle Size: ML , M , L , S , XL Verse Short Comp, steel rails, 145 mm width
Seatpost Size: S Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
Seatpost Size: ML , M Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
Seatpost Size: M Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
Seatpost Size: ML , L , XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Seatpost Size: L Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
Seatpost Size: XL Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Integrated Bar Stem Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Integrated Bar Stem Size: ML , M , L , XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips Size: ML , M , L , S , XL Bontrager XR Trail Elite, nylon lock-on
Headset Size: ML , M , L , S , XL Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake Size: ML , M , L , S , XL SRAM CODE Bronze 4-piston hydraulic disc
Brake Rotor Size: ML , M , L , S , XL SRAM CentreLine, 6-bolt, round-edge, 180 mm
Brake Rotor Size: ML , M , L , XL SRAM CentreLine, 6-bolt, round-edge, 200 mm
Rotor size Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

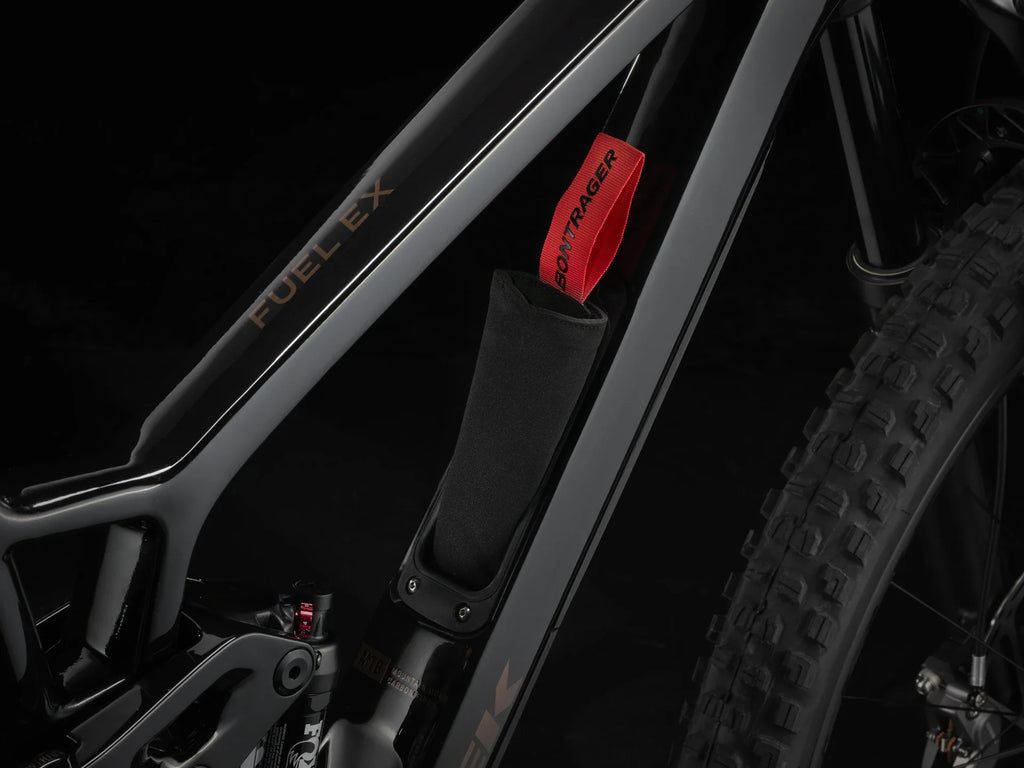

Bag Size: ML , M , L , S , XL Bontrager BITS Internal Frame Storage Bag
Weight M - 14.53 kg / 32.04 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
