2024 Trek Checkpoint SL 5
Deep Smoke / 61cm
Sale price
R 53,950.00
Regular price
R 65,000.00
Skip to product information
In stock
2024 Trek Checkpoint SL 5
Sale price
R 53,950.00
Regular price
R 65,000.00
The 2024 Trek Checkpoint SL 5 is built for mixed-surface rides that connect tarmac and gravel. Compare the listed frame, components and size options to choose your setup.
Specifications — Deep Smoke

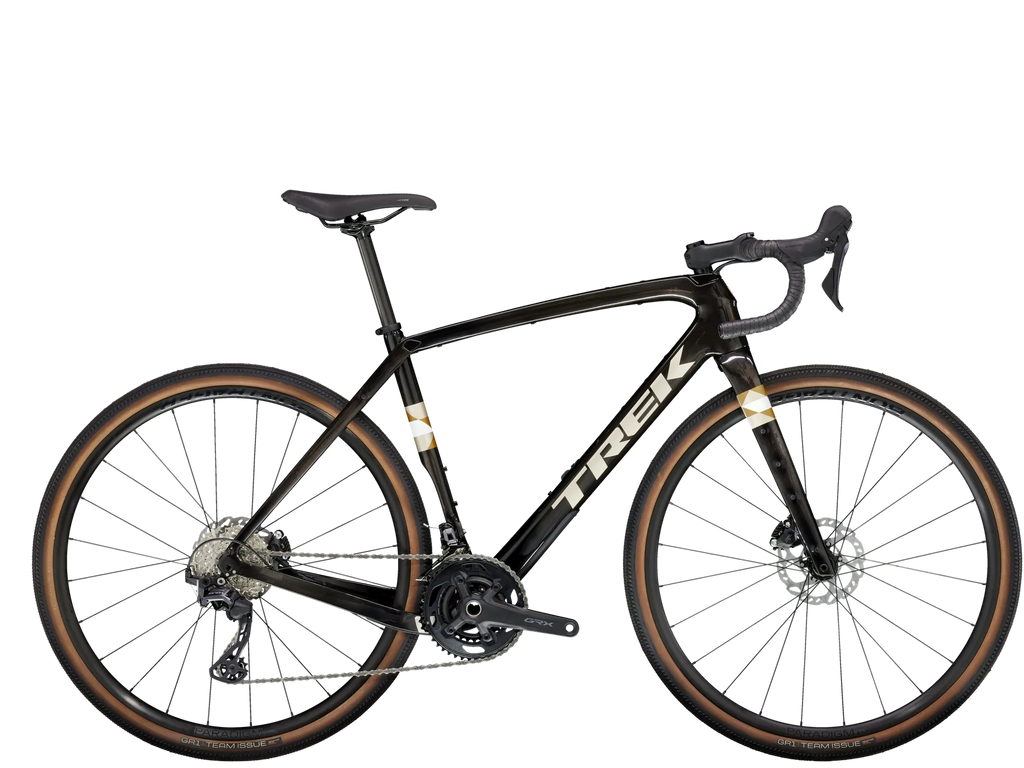

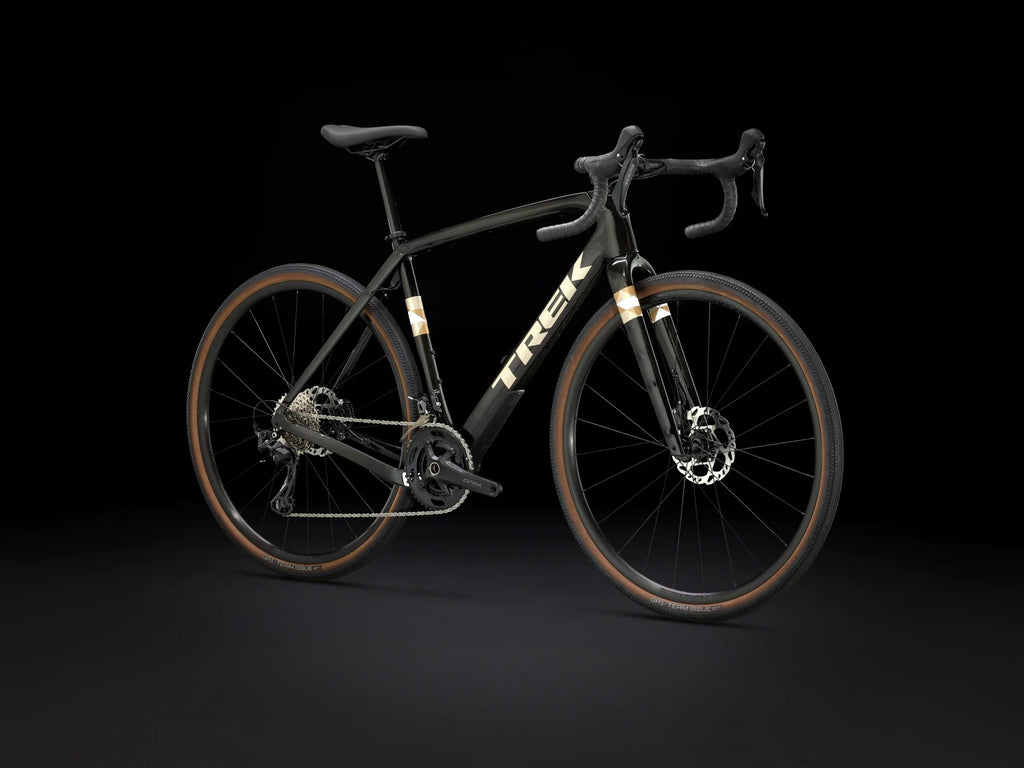

| Model | 2024 Trek Checkpoint SL 5 - Deep Smoke |
|---|---|

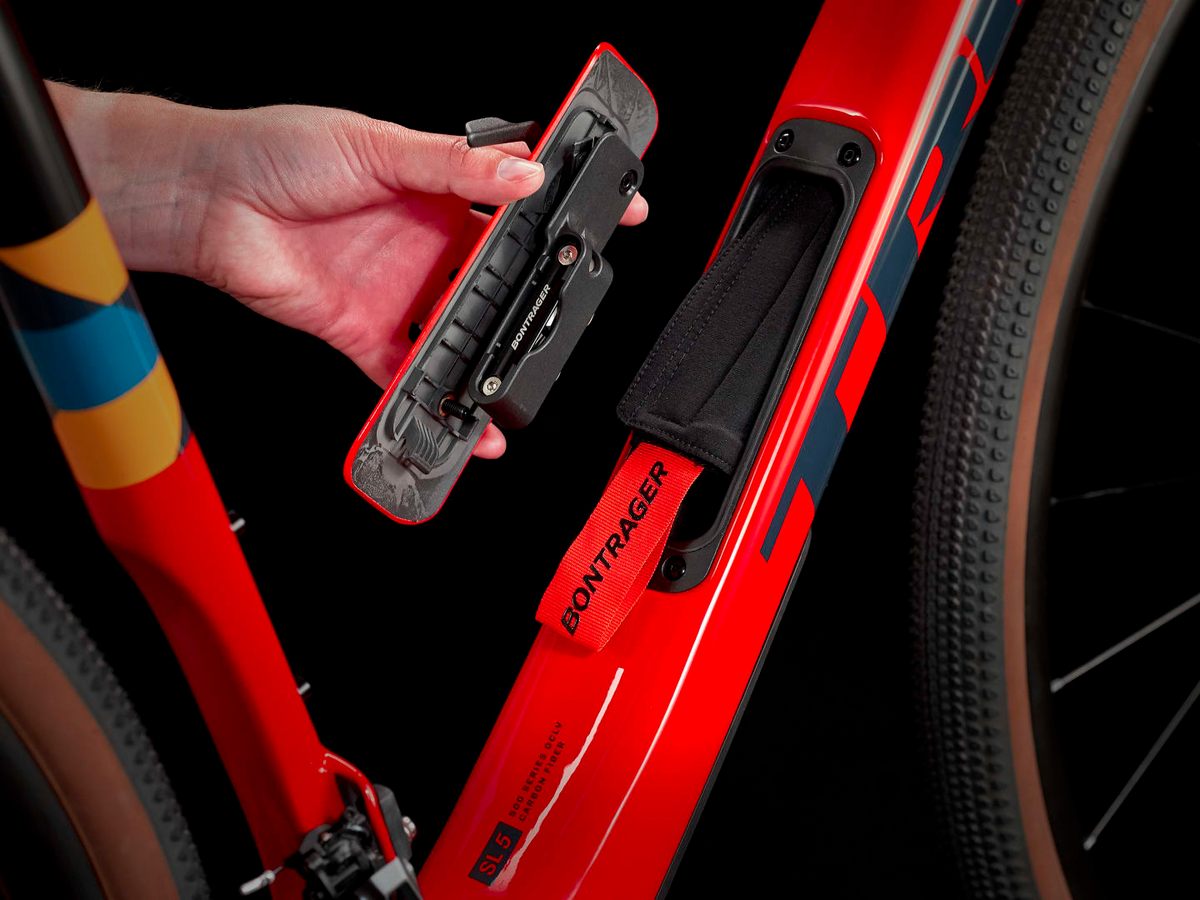

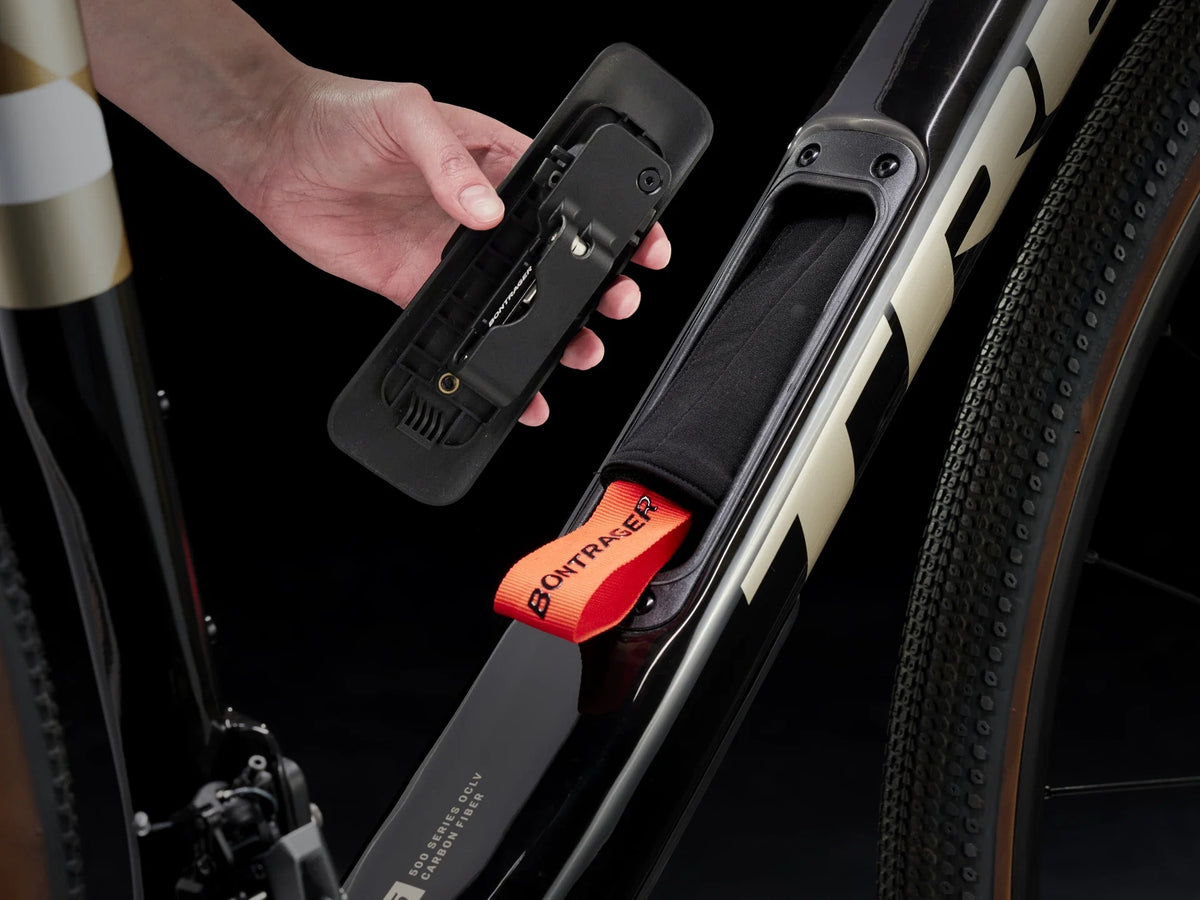

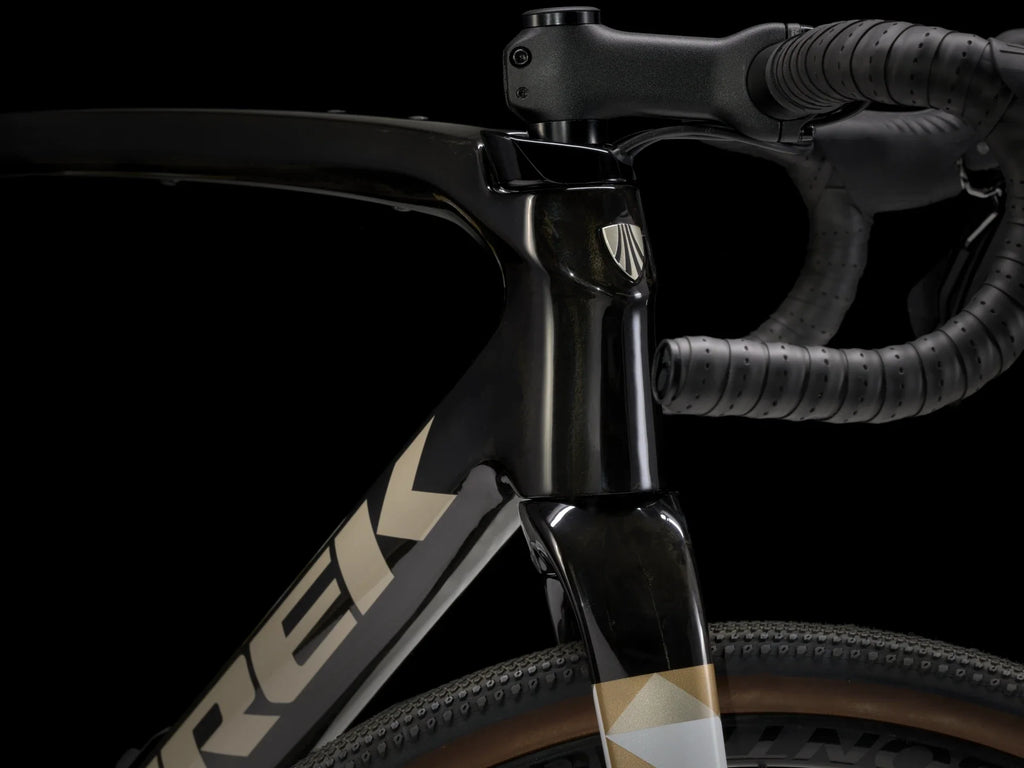

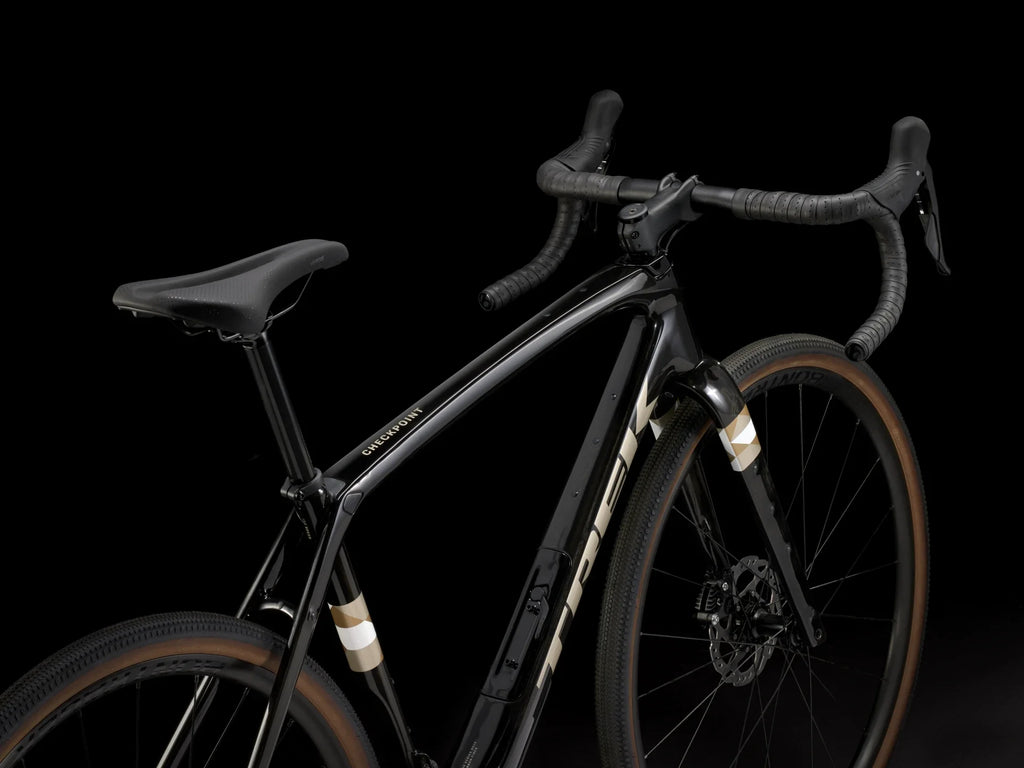

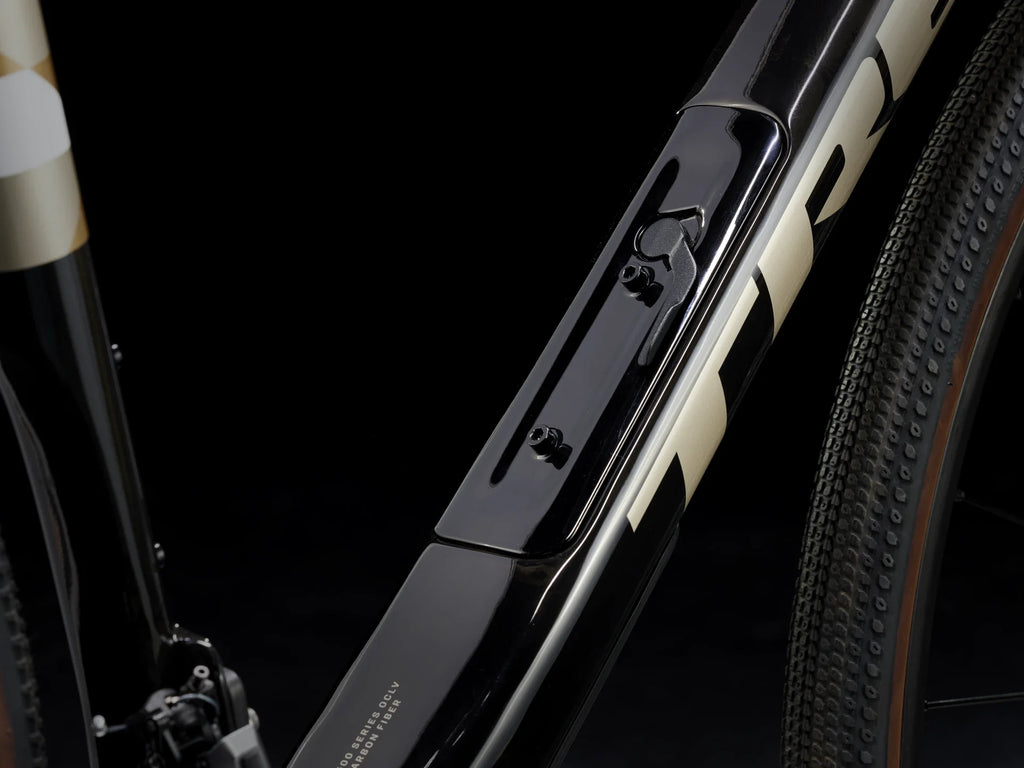

| Frame | 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle |

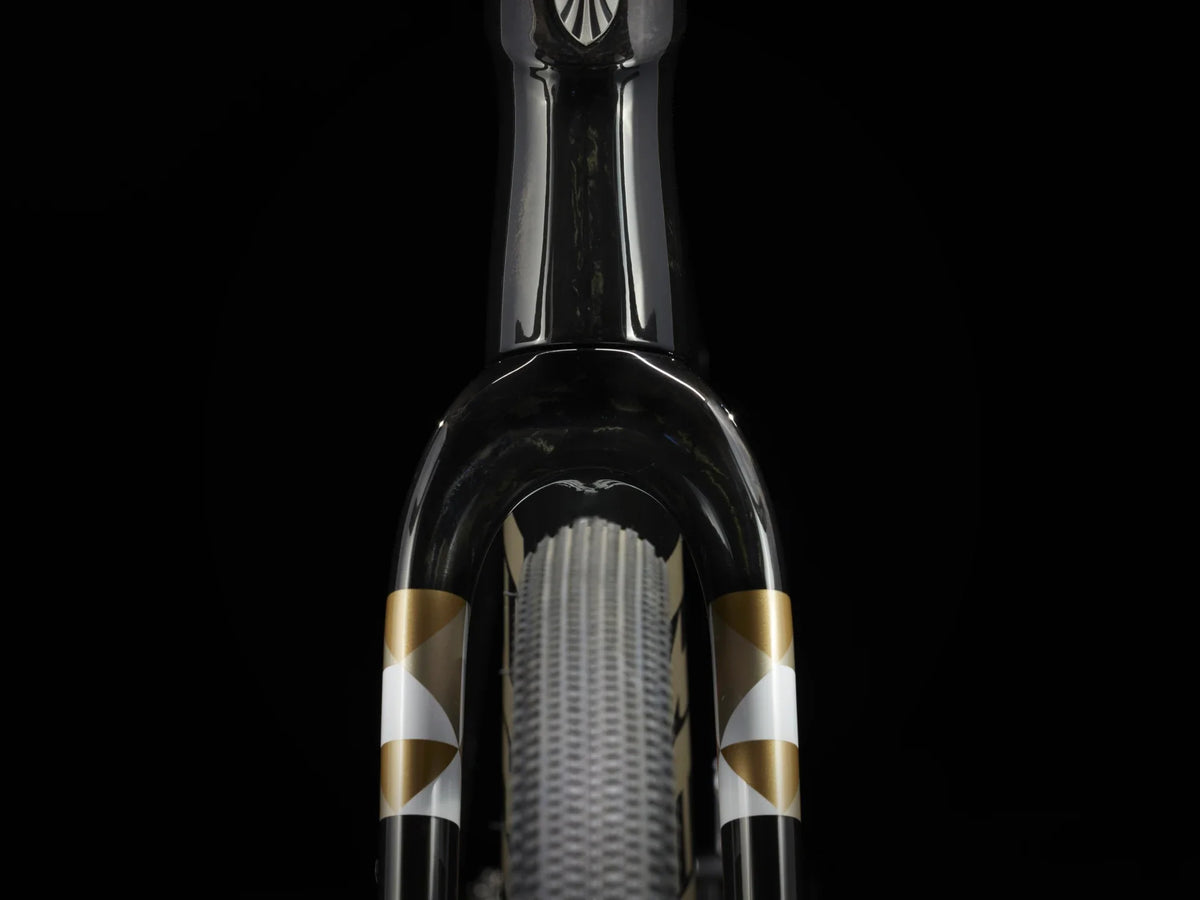

| Fork | Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | 56 - 9.65 kg / 21.28 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |

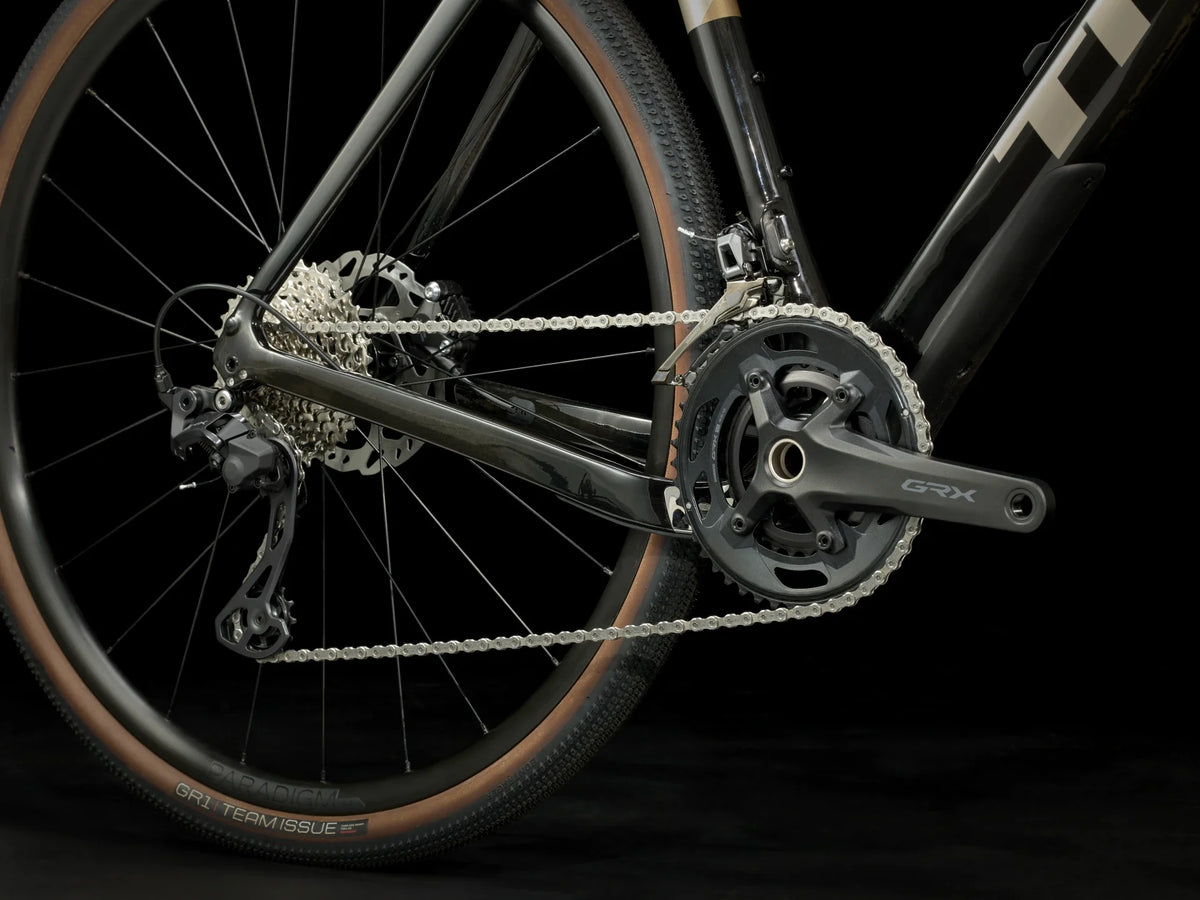

| Shifter | Shimano GRX RX610, 12-speed |
| Front derailleur | Shimano GRX RX820, braze-on, down swing |
| Rear derailleur | Shimano GRX RX820, 36T max cog |
| Crank | Size: 49 Shimano GRX RX610, 46/30, 165 mm length |
| Crank | Size: 52 Shimano GRX RX610, 46/30, 170 mm length |
| Crank | Size: 54, 56 Shimano GRX RX610, 46/30, 172.5 mm length |
| Crank | Size: 58, 61 Shimano GRX RX610, 46/30, 175 mm length |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7100, 11-36, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 46T, 2x: 50/37 |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | See service manual |
| Saddle | Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width |
| Saddle | Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

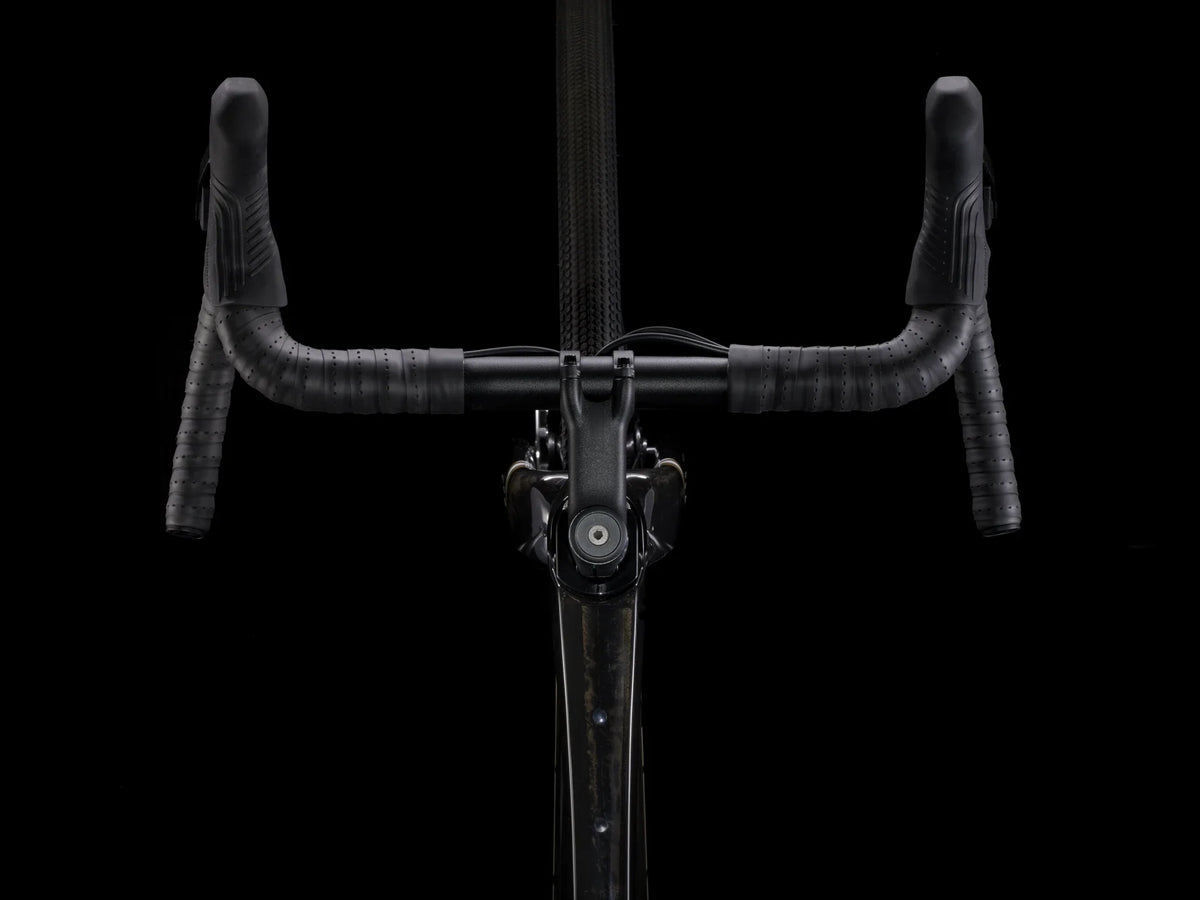

| Handlebar | Size: 49 Bontrager Elite Gravel, 38 cm width |
| Handlebar | Size: 52 Bontrager Elite Gravel, 40 cm width |
| Handlebar | Size: 54, 56 Bontrager Elite Gravel, 42 cm width |
| Handlebar | Size: 58, 61 Bontrager Elite Gravel, 44 cm width |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Stem | Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Stem | Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Stem | Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
| Brake rotor | Shimano RT70, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Bag | Bontrager BITS Internal Frame Storage Bag |
Specifications — Radioactive Red/Nautical Navy

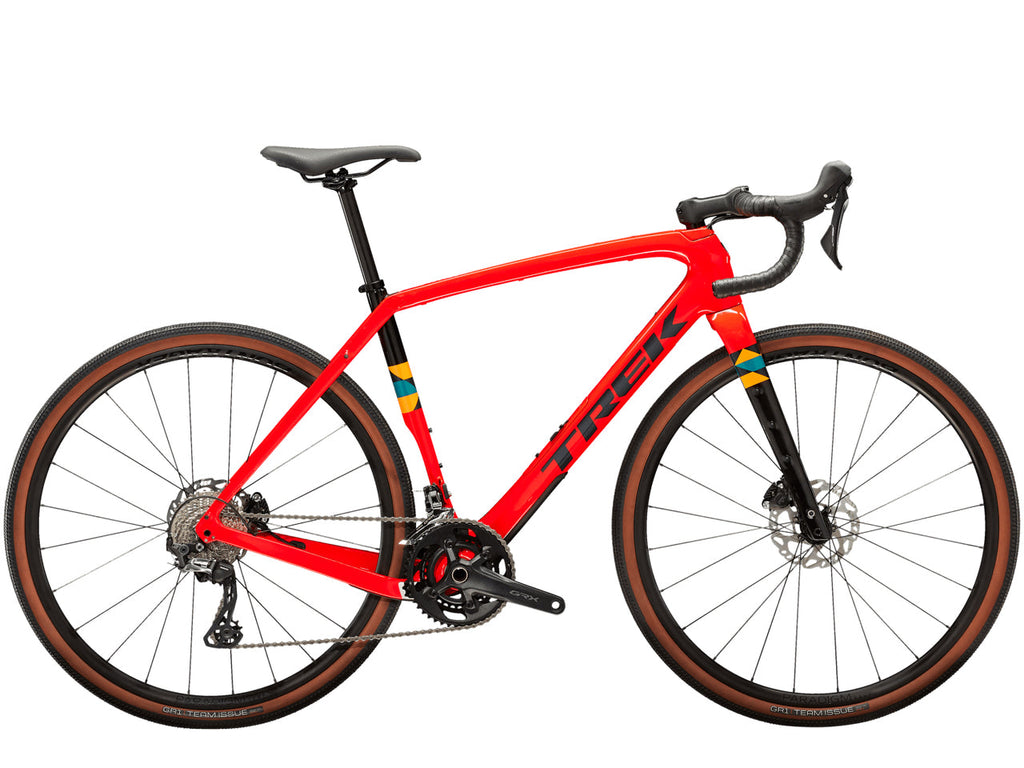

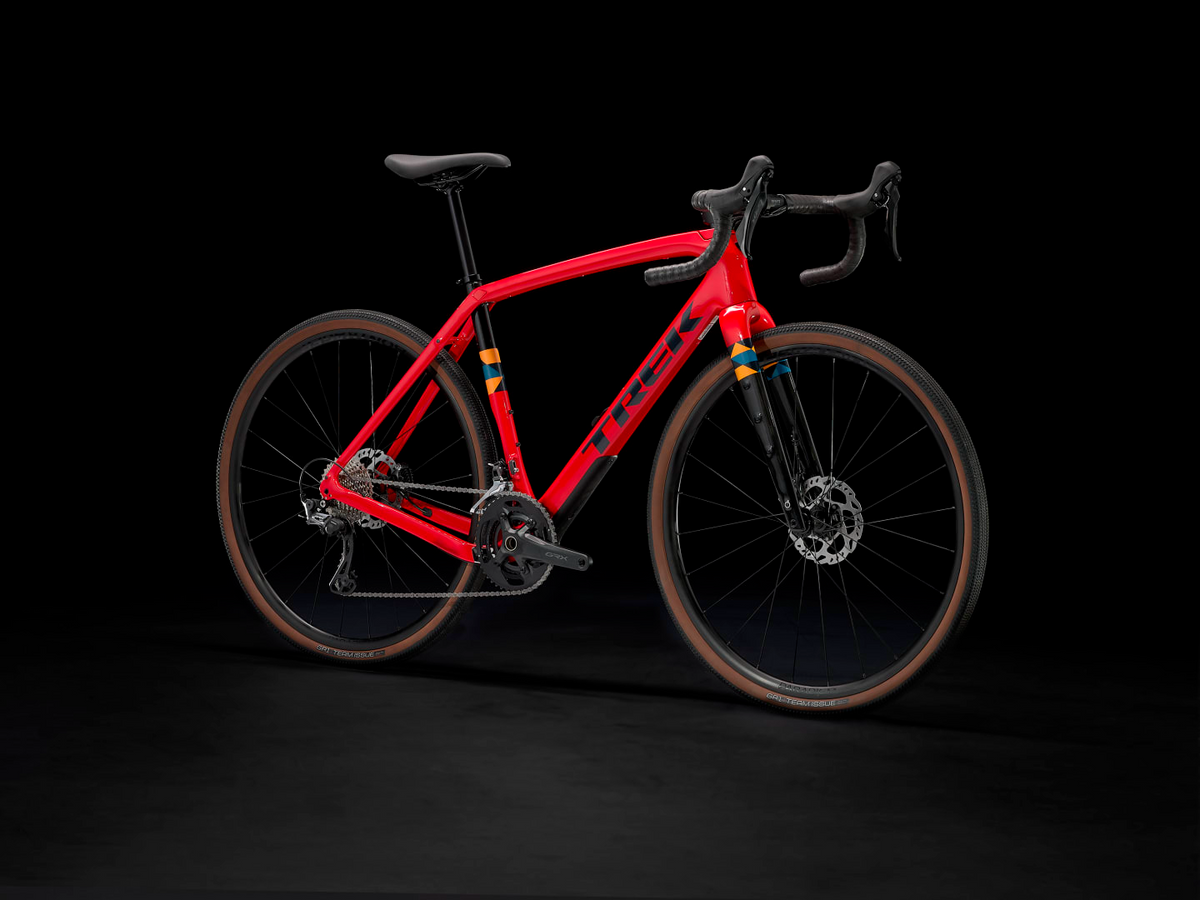

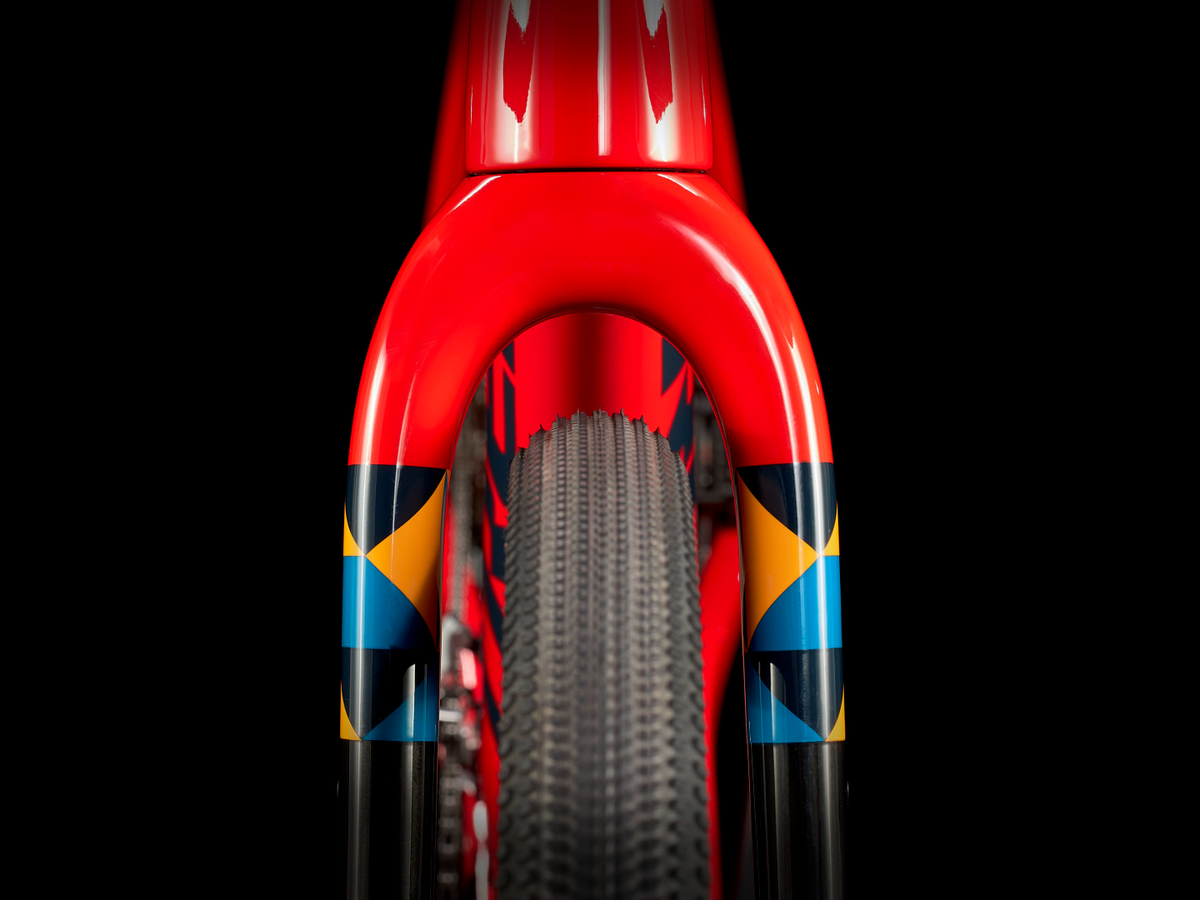

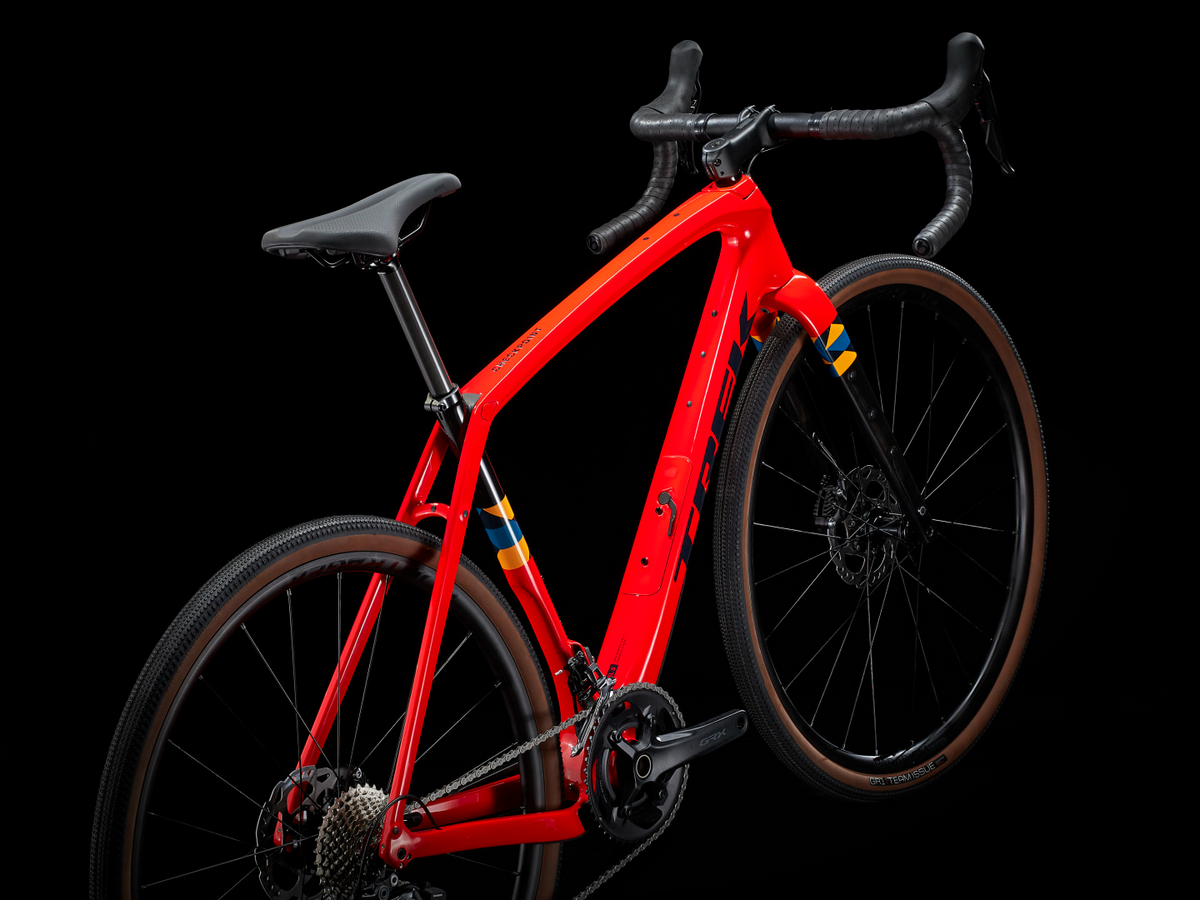

| Model | 2024 Trek Checkpoint SL 5 - Radioactive Red/Nautical Navy |
|---|---|

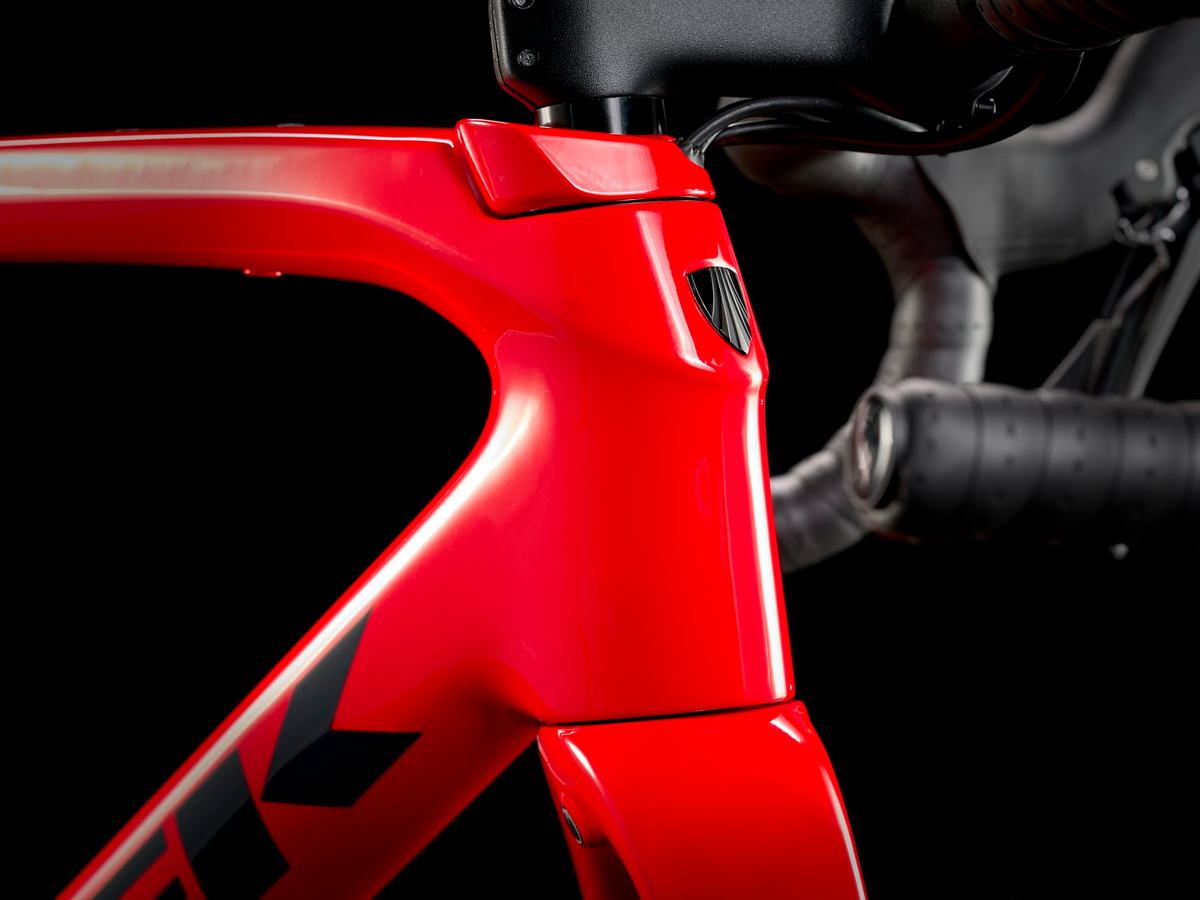

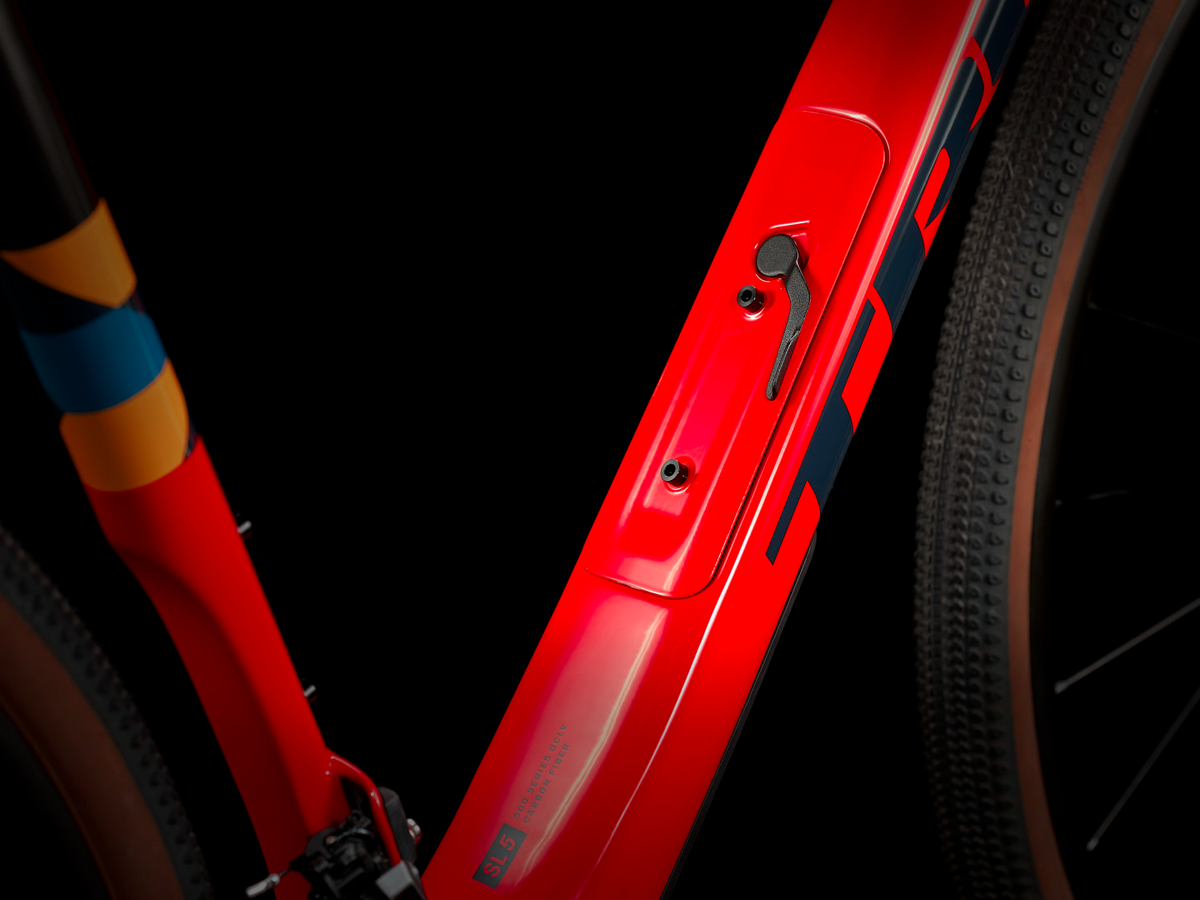

| Frame | 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c |
| Tyre part | Size: 49, 52, 54, 56, 58, 61 Bontrager TLR sealant, 180 ml/6 oz |
| Tyre part | Size: 49, 52, 54, 56, 58, 61 Bontrager XXX TLR valve, 50 mm |
| Rim strip | Bontrager Aeolus XXX rim strip |
| Shifter | Shimano GRX RX600, 11-speed |

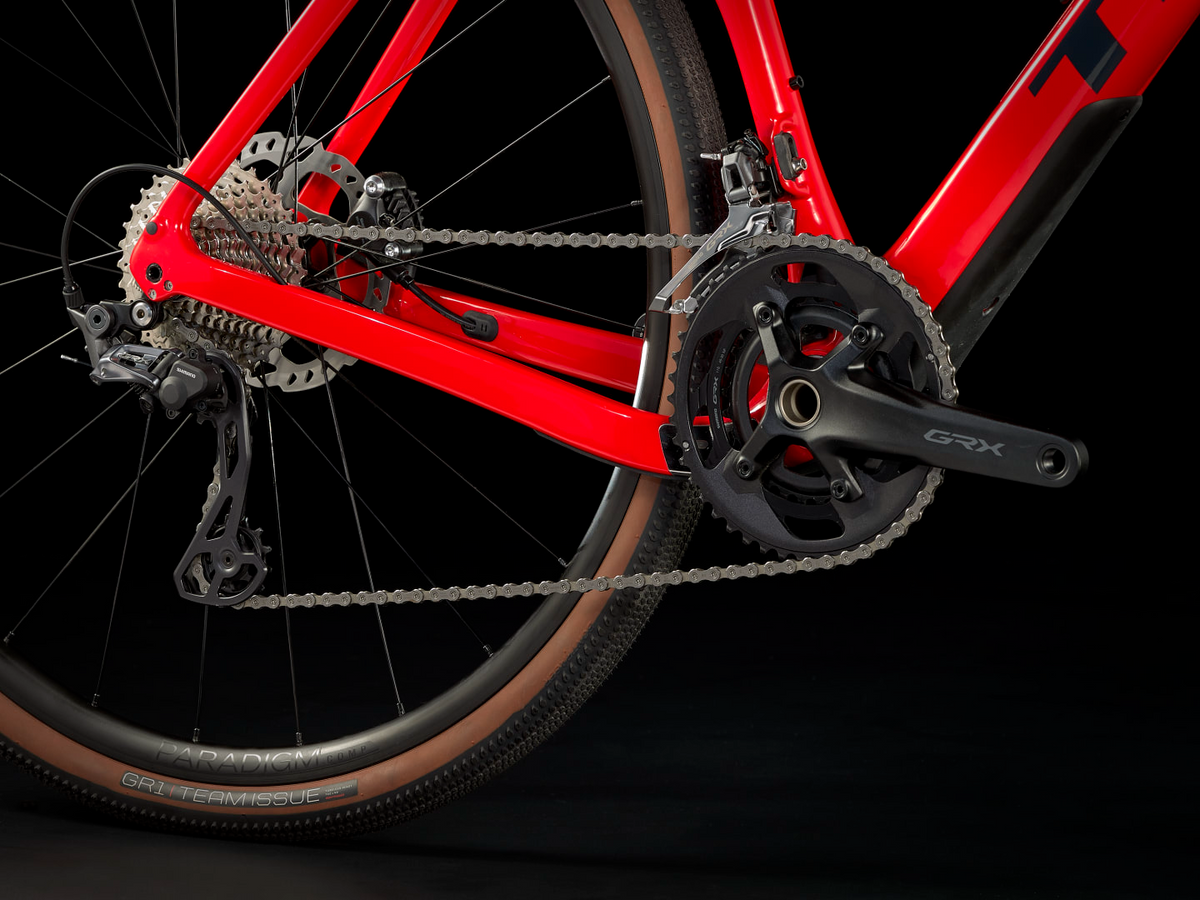

| Front derailleur | Shimano GRX RX810, braze-on |
| Rear derailleur | Shimano GRX RX810, long cage, 34T max cog |
| Crank | Size: 49 Shimano GRX RX600, 46/30, 165 mm length |
| Crank | Size: 52 Shimano GRX RX600, 46/30, 170 mm length |
| Crank | Size: 54, 56 Shimano GRX RX600, 46/30, 172.5 mm length |
| Crank | Size: 58, 61 Shimano GRX RX600, 46/30, 175 mm length |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
| Chain | Shimano 105 HG601, 11-speed |
| Saddle | Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width |
| Saddle | Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

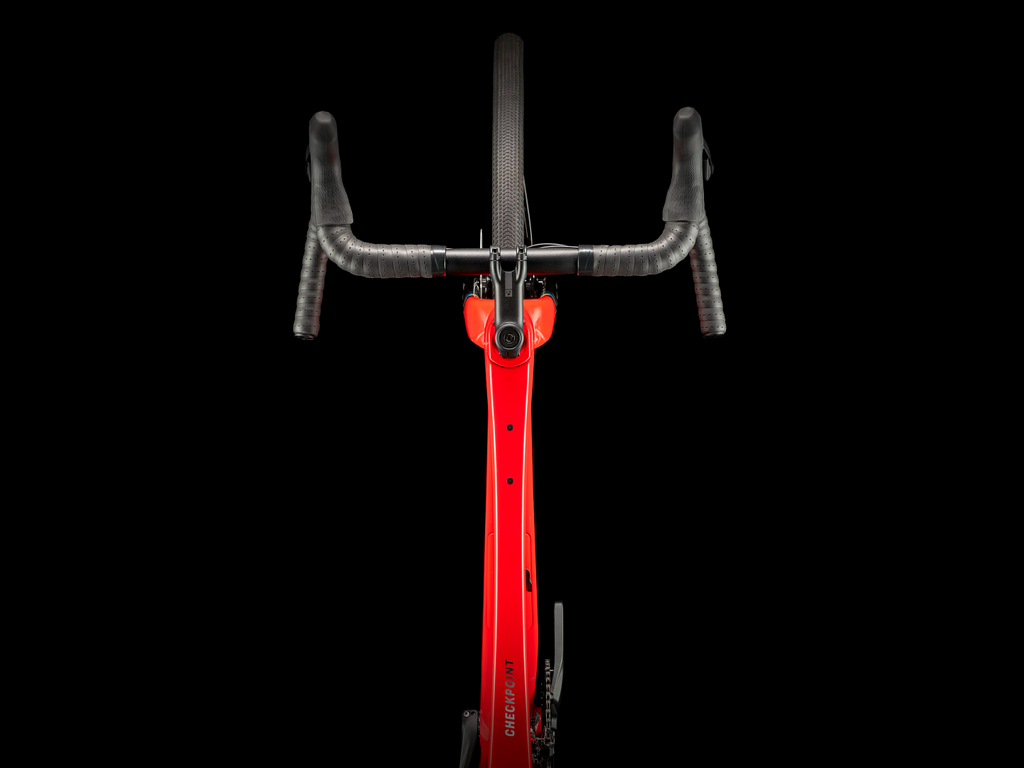

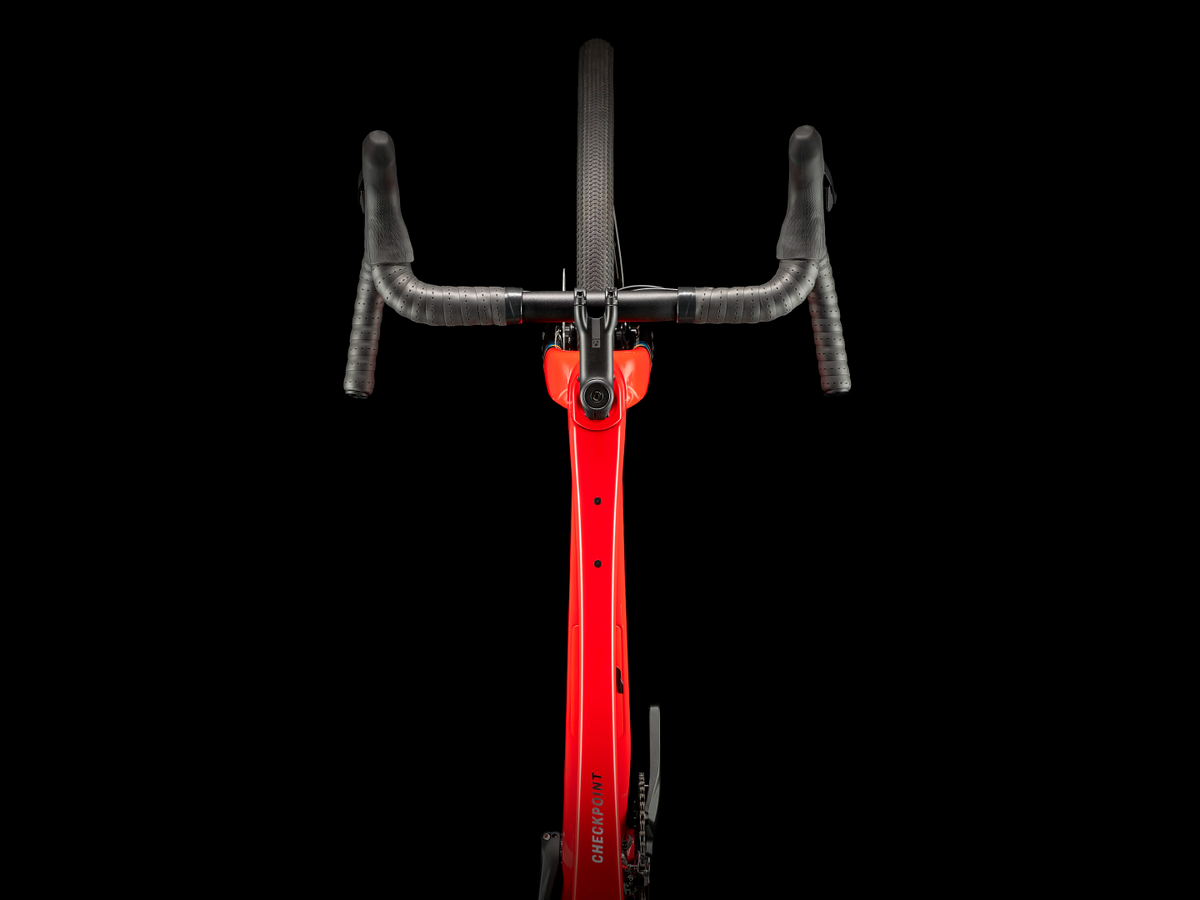

| Handlebar | Size: 49 Bontrager Elite Gravel, 38 cm width |
| Handlebar | Size: 52 Bontrager Elite Gravel, 40 cm width |
| Handlebar | Size: 54, 56 Bontrager Elite Gravel, 42 cm width |
| Handlebar | Size: 58, 61 Bontrager Elite Gravel, 44 cm width |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Stem | Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Stem | Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Stem | Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
| Brake rotor | Shimano SM-RT70, CenterLock, 160 mm |
| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | 56 - 21.38 lbs / 9.7 kg |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
