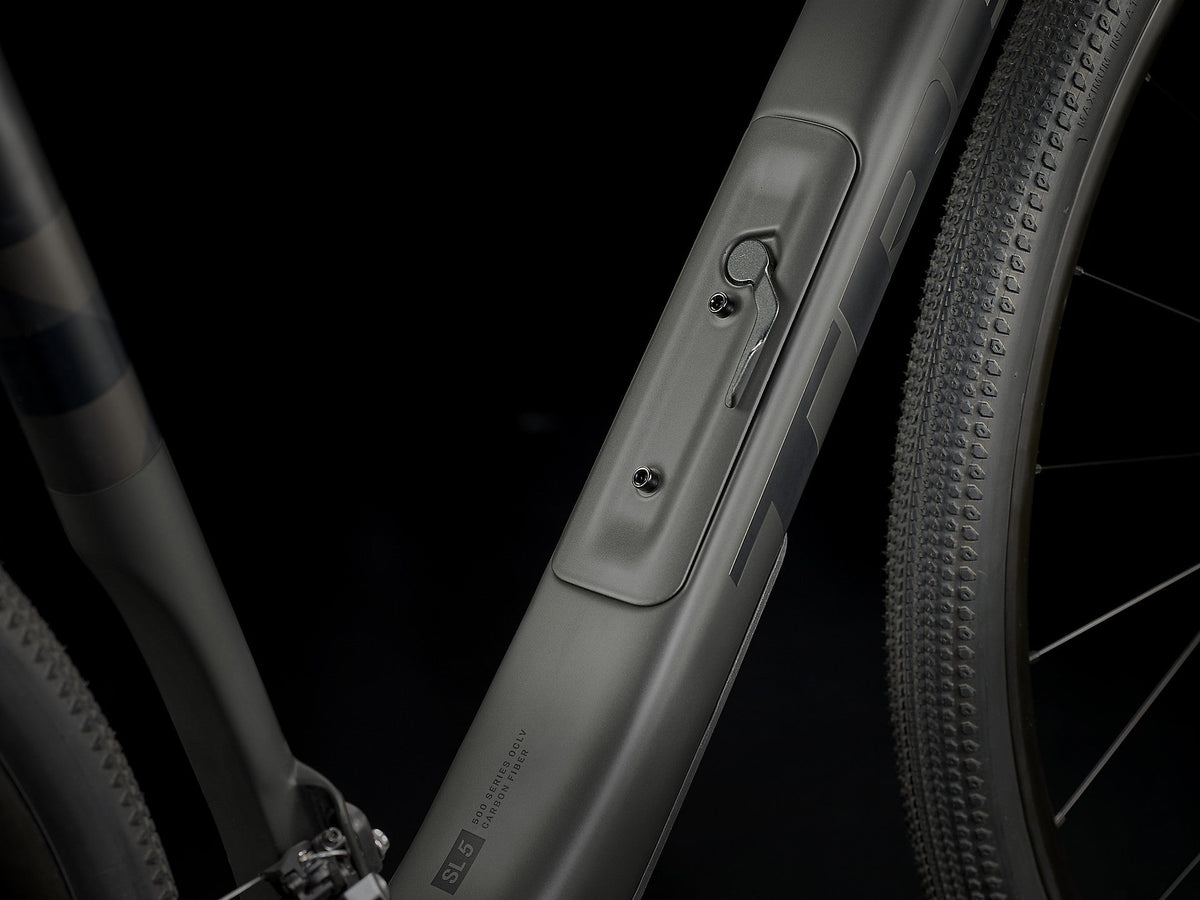

  • 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke — image 6
  • 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke — image 7
  • 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke — image 8
  • 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke — image 9

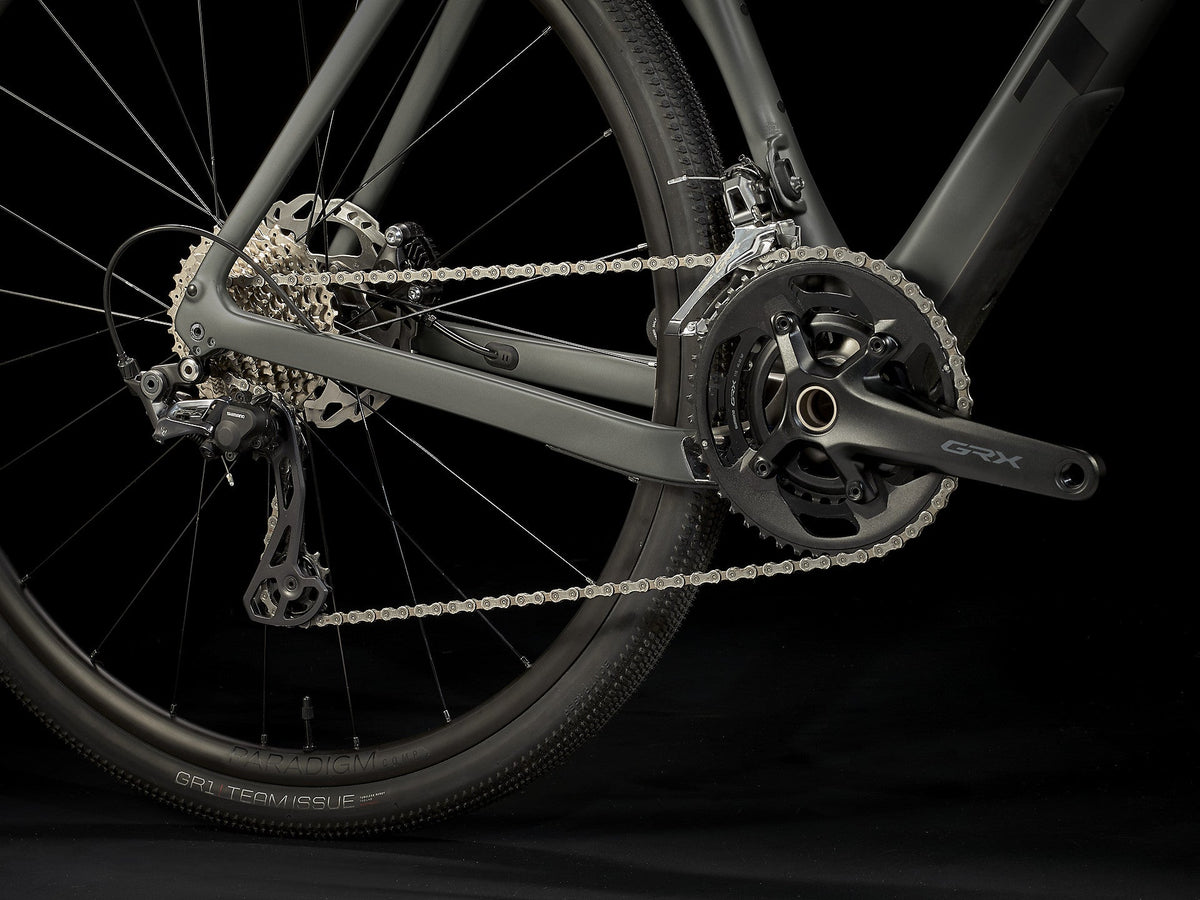

  • 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke — image 10

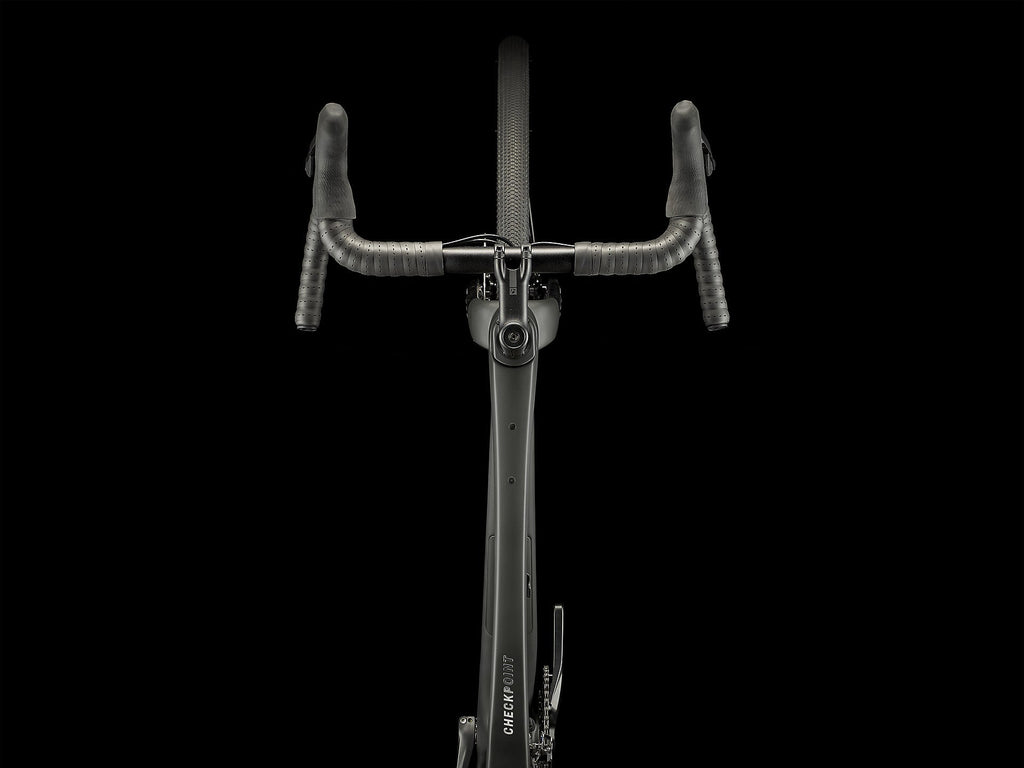

  • 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke — image 11

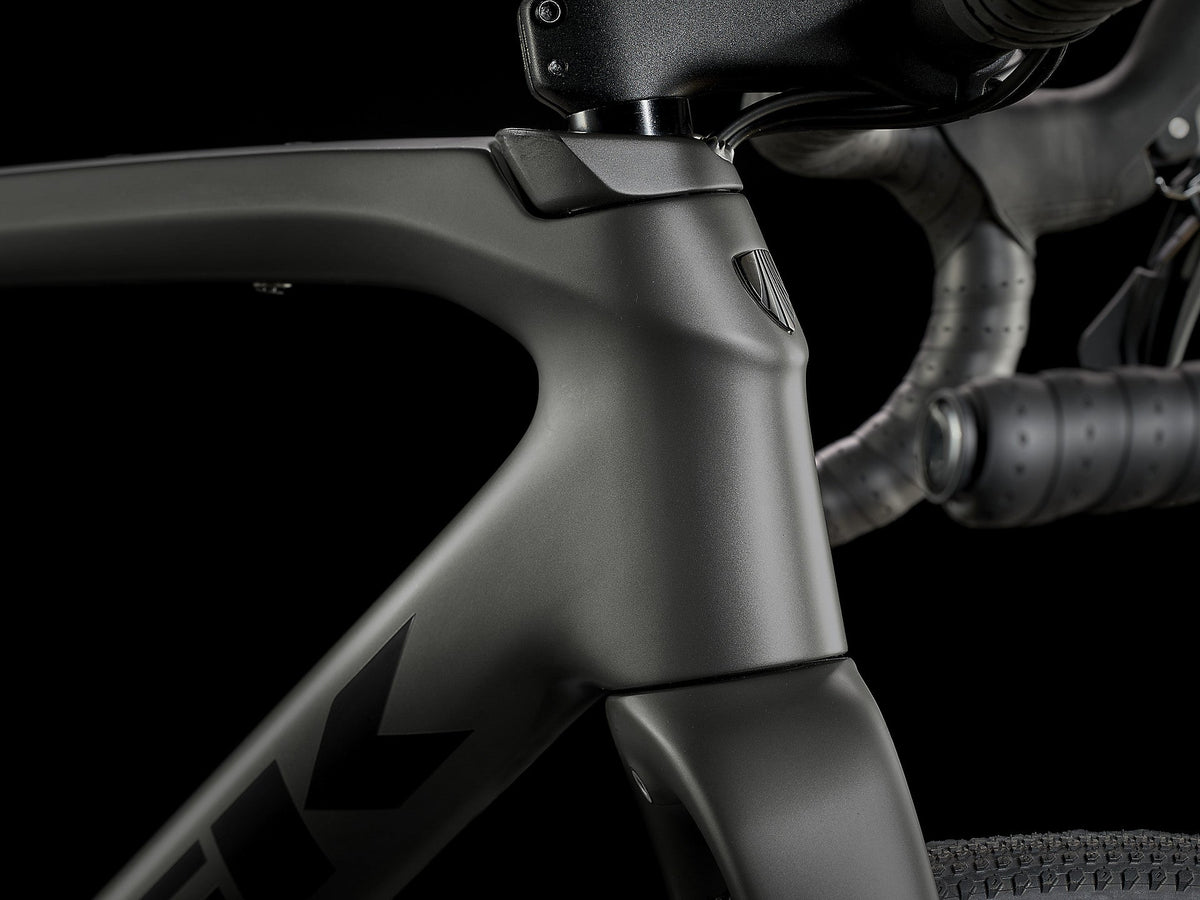

  • 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke — image 12
2023 Trek Checkpoint SL 5

2023 Trek Checkpoint SL 5

R 53,950.00 R 65,000.00
ColourSatin Mercury/Satin Carbon Smoke
Size56
In stock

The 2023 Trek Checkpoint SL 5 is built for mixed-surface rides that connect tarmac and gravel. Compare the listed frame, components and size options to choose your setup.

Specifications

Model 2023 Trek Checkpoint SL 5 - Satin Mercury/Satin Carbon Smoke
Frame 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
Hub front Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes 14 g stainless steel
Tyre Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
Tyre part Size: 49, 52, 54, 56, 58, 61 Bontrager TLR sealant, 180 ml/6 oz
Tyre part Size: 49, 52, 54, 56, 58, 61 Bontrager XXX TLR valve, 50 mm
Rim strip Bontrager Aeolus XXX rim strip
Shifter Shimano GRX RX600, 11-speed
Front derailleur Shimano GRX RX810, braze-on
Rear derailleur Shimano GRX RX810, long cage, 34T max cog
Crank Size: 49 Shimano GRX RX600, 46/30, 165 mm length
Crank Size: 52 Shimano GRX RX600, 46/30, 170 mm length
Crank Size: 54, 56 Shimano GRX RX600, 46/30, 172.5 mm length
Crank Size: 58, 61 Shimano GRX RX600, 46/30, 175 mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano 105 HG700-11, 11-34, 11-speed
Chain Shimano 105 HG601, 11-speed
Saddle Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
Saddle Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width
Seatpost Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar Size: 49 Bontrager Elite Gravel, 38 cm width
Handlebar Size: 52 Bontrager Elite Gravel, 40 cm width
Handlebar Size: 54, 56 Bontrager Elite Gravel, 42 cm width
Handlebar Size: 58, 61 Bontrager Elite Gravel, 44 cm width
Handlebar tape Bontrager Supertack Perf tape
Stem Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Stem Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor Shimano SM-RT70, CenterLock, 160 mm

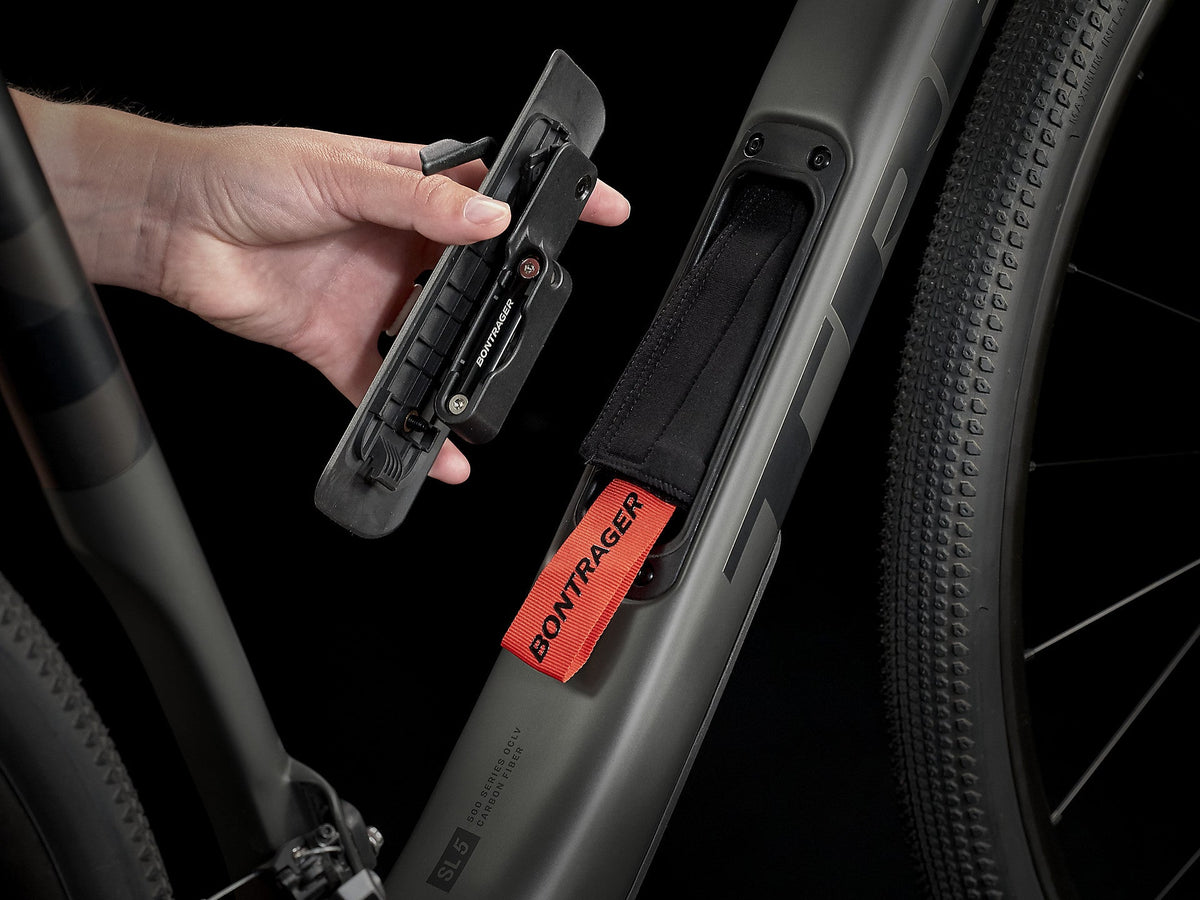

Bag Bontrager BITS Internal Frame Storage Bag
Weight 56 - 21.38 lbs / 9.7 kg
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
